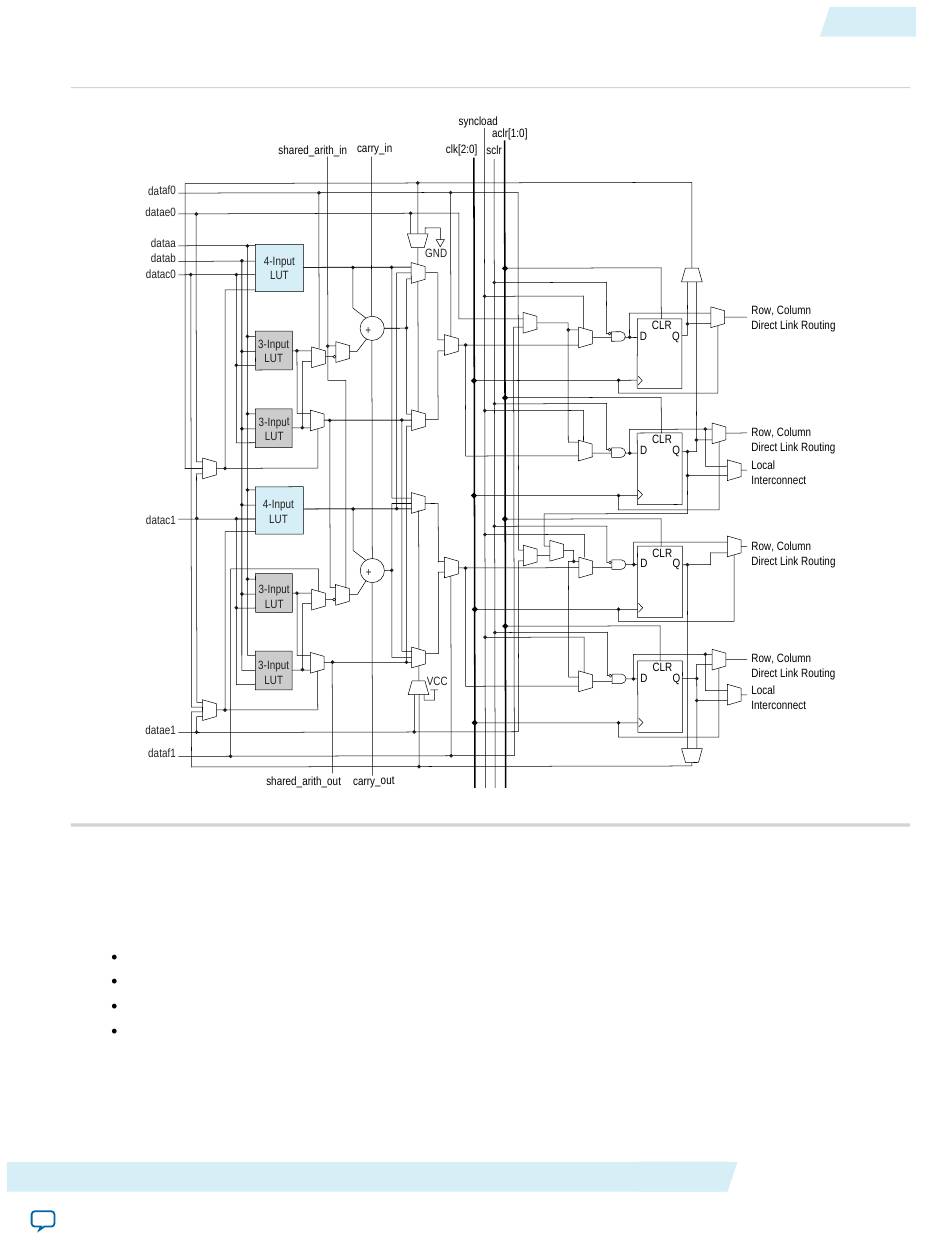

Figure 1-6: ALM Connection Details for Cyclone V Devices

ALM Operating Modes

The Cyclone V ALM operates in any of the following modes:

Extended LUT mode

Arithmetic mode

Shared arithmetic mode

Logic Array Blocks and Adaptive Logic Modules in Cyclone V Devices
