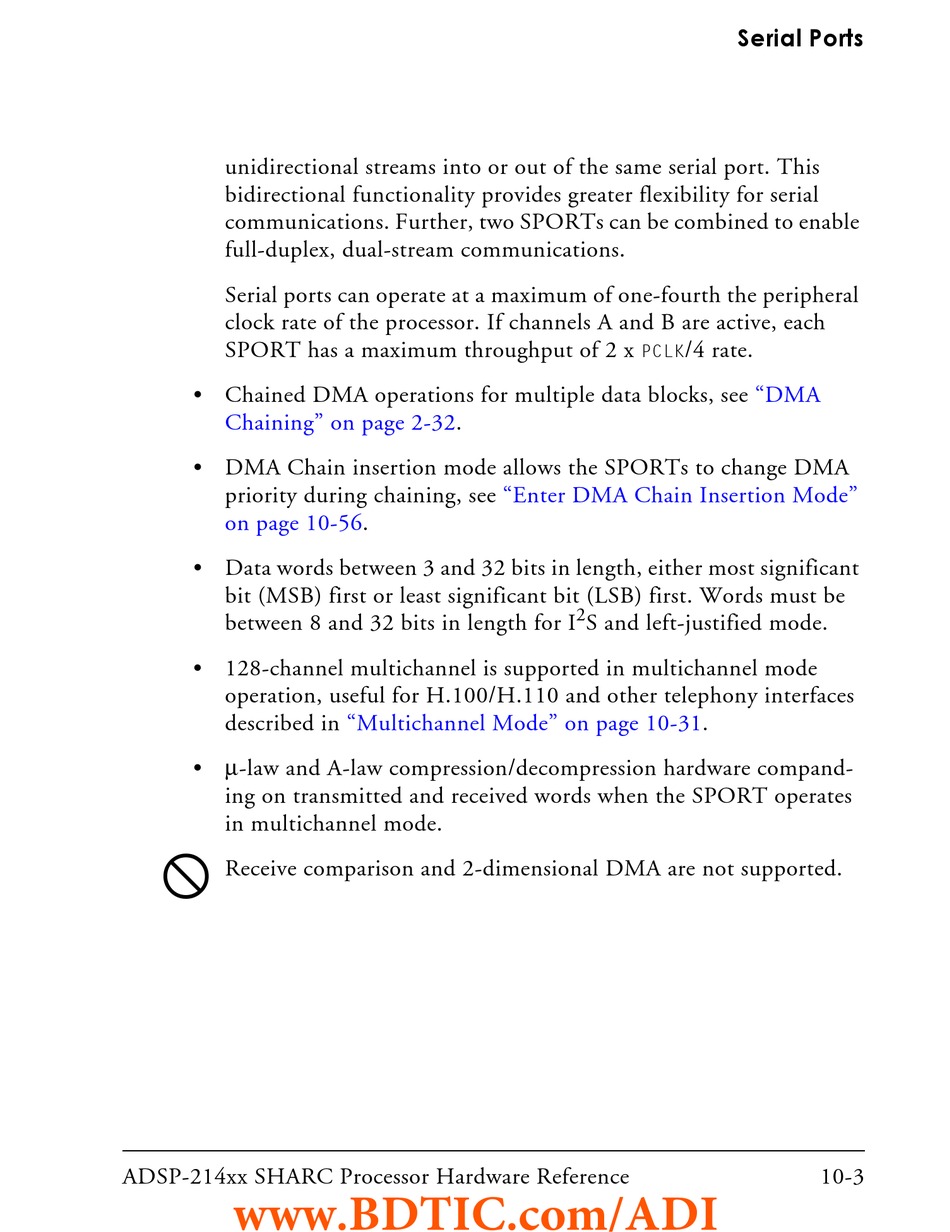

unidirectional streams into or out of the same serial port. This
bidirectional functionality provides greater flexibility for serial
communications. Further, two SPORTs can be combined to enable
full-duplex, dual-stream communications.
Serial ports can operate at a maximum of one-fourth the peripheral
clock rate of the processor. If channels A and B are active, each
SPORT has a maximum throughput of 2 x
• Chained DMA operations for multiple data blocks, see
Chaining" on page
• DMA Chain insertion mode allows the SPORTs to change DMA
priority during chaining, see
on page
• Data words between 3 and 32 bits in length, either most significant
bit (MSB) first or least significant bit (LSB) first. Words must be
between 8 and 32 bits in length for I
• 128-channel multichannel is supported in multichannel mode
operation, useful for H.100/H.110 and other telephony interfaces
described in
• μ-law and A-law compression/decompression hardware compand-
ing on transmitted and received words when the SPORT operates
in multichannel mode.
Receive comparison and 2-dimensional DMA are not supported.
