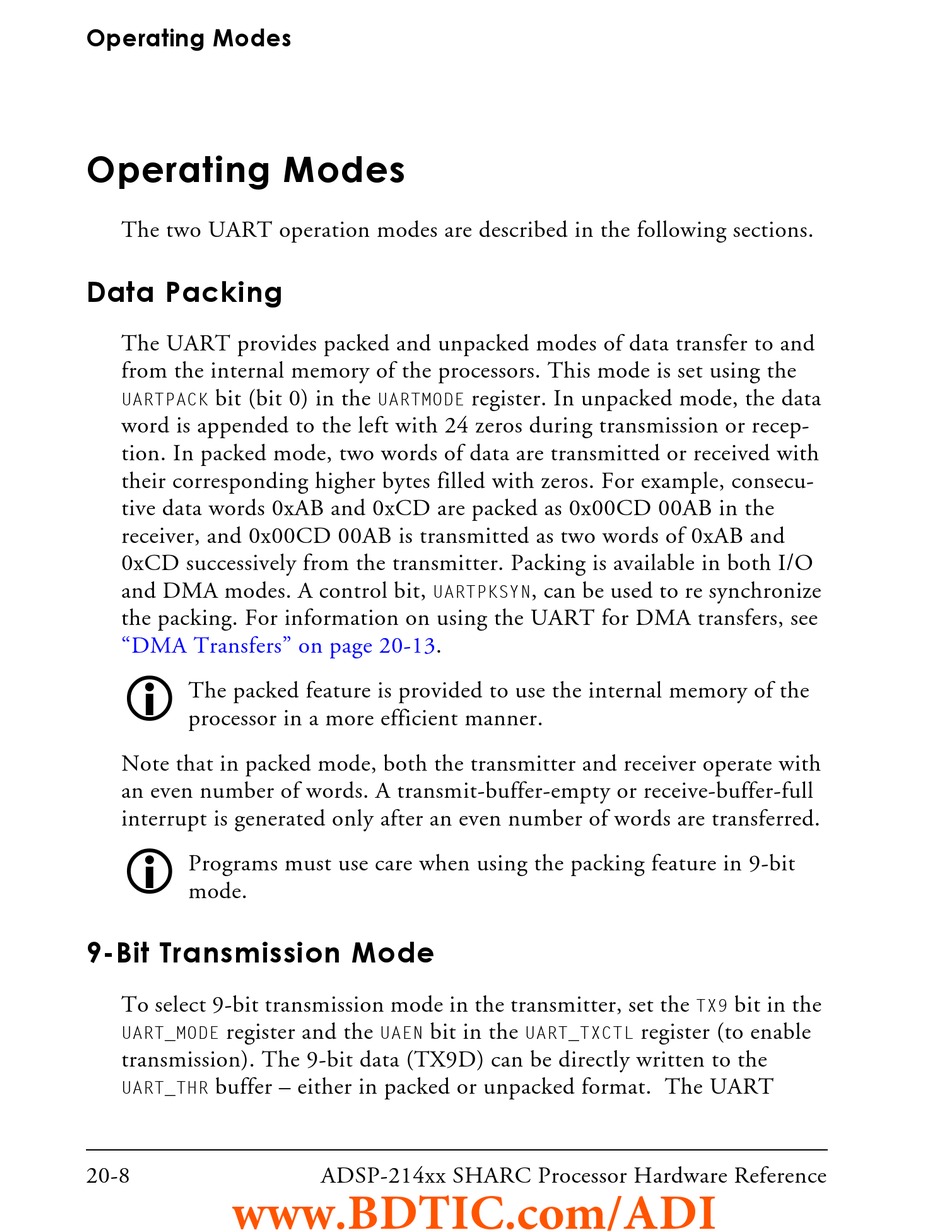

Operating Modes

The two UART operation modes are described in the following sections.

Data Packing

The UART provides packed and unpacked modes of data transfer to and

from the internal memory of the processors. This mode is set using the

bit (bit 0) in the

word is appended to the left with 24 zeros during transmission or recep-

tion. In packed mode, two words of data are transmitted or received with

their corresponding higher bytes filled with zeros. For example, consecu-

tive data words 0xAB and 0xCD are packed as 0x00CD 00AB in the

receiver, and 0x00CD 00AB is transmitted as two words of 0xAB and

0xCD successively from the transmitter. Packing is available in both I/O

and DMA modes. A control bit,

the packing. For information on using the UART for DMA transfers, see

"DMA Transfers" on page

The packed feature is provided to use the internal memory of the

processor in a more efficient manner.

Note that in packed mode, both the transmitter and receiver operate with

an even number of words. A transmit-buffer-empty or receive-buffer-full

interrupt is generated only after an even number of words are transferred.

Programs must use care when using the packing feature in 9-bit

9-Bit Transmission Mode

To select 9-bit transmission mode in the transmitter, set the

transmission). The 9-bit data (TX9D) can be directly written to the

buffer – either in packed or unpacked format. The UART

www.BDTIC.com/ADI

ADSP-214xx SHARC Processor Hardware Reference

, can be used to re synchronize
