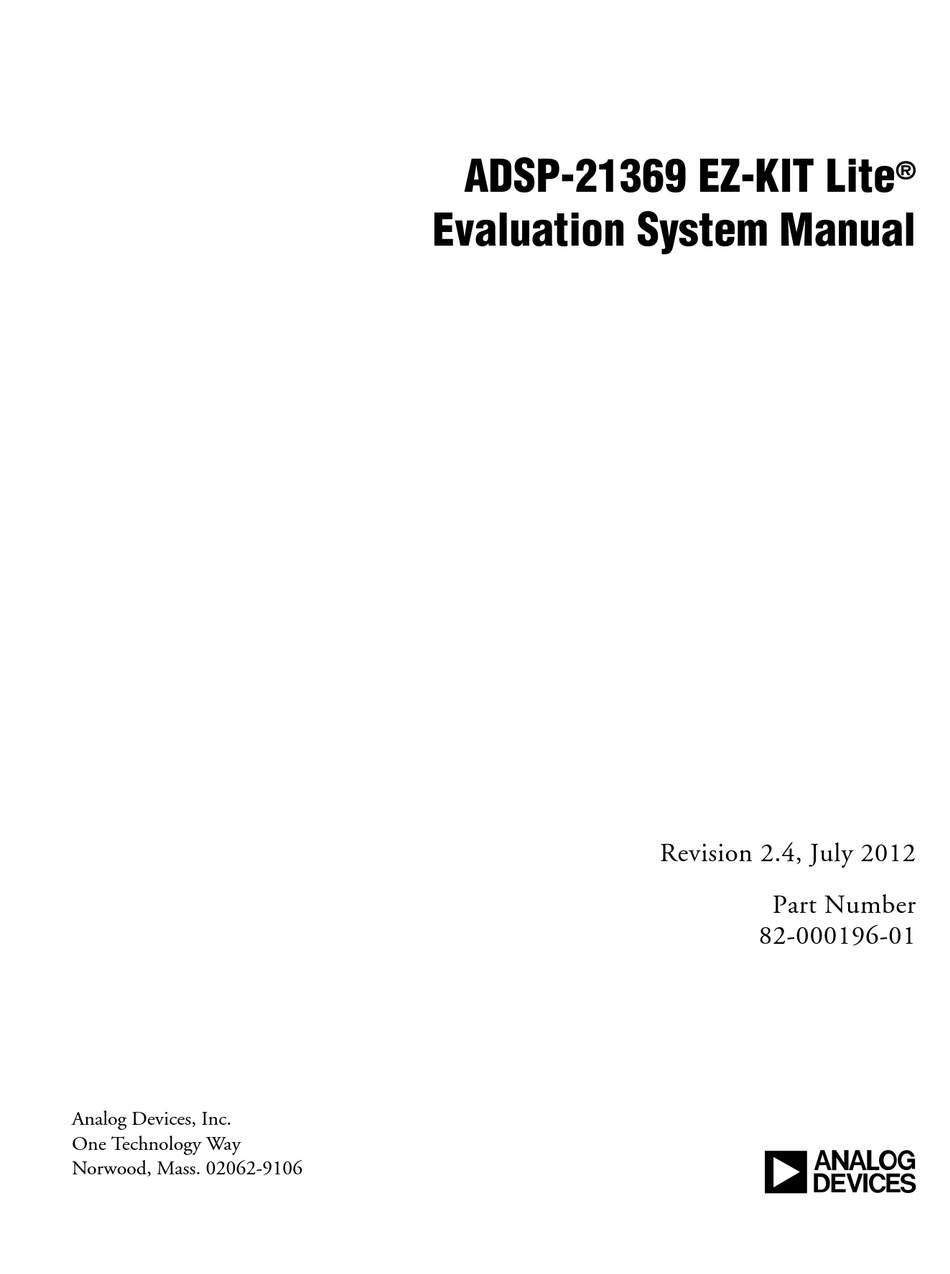

ADSP-21369 EZ-KIT Lite
®
Evaluation System Manual
Revision 2.4, July 2012
Part Number
82-000196-01
Analog Devices, Inc.
One Technology Way
a
Norwood, Mass. 02062-9106

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADSP-21369 EZ-KIT Lite and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Analog Devices ADSP-21369 EZ-KIT Lite

Summary of Contents for Analog Devices ADSP-21369 EZ-KIT Lite

  • Page 1 ADSP-21369 EZ-KIT Lite ® Evaluation System Manual Revision 2.4, July 2012 Part Number 82-000196-01 Analog Devices, Inc. One Technology Way Norwood, Mass. 02062-9106...
  • Page 2 Analog Devices, Inc. Printed in the USA. Disclaimer Analog Devices, Inc. reserves the right to change this product without prior notice. Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use;...
  • Page 3 Regulatory Compliance The ADSP-21369 EZ-KIT Lite is designed to be used solely in a labora- tory environment. The board is not intended for use as a consumer end product or as a portion of a consumer end product. The board is an open system design which does not include a shielded enclosure and therefore may cause interference to other electrical devices in close proximity.

  • Page 5: Table Of Contents

    EngineerZone ................ xvii Related Documents ..............xviii Notation Conventions ..............xviii USING THE ADSP-21369 EZ-KIT LITE Package Contents ................1-2 Default Configuration ..............1-3 CCES Install and Session Startup ..........1-4 Session Startup ................ 1-6 ADSP-21369 EZ-KIT Lite Evaluation System Manual...
  • Page 6 JTAG Emulation Port ............. 2-8 Switches ..................2-9 Boot Mode and Clock Ratio Select Switch (SW2) ....2-10 Codec Setup Switch (SW3) ........... 2-11 Electret Microphone Select Switch (SW4) ......2-12 UART Enable Switch (SW5) ..........2-12 ADSP-21369 EZ-KIT Lite Evaluation System Manual...
  • Page 7 Expansion Interface Connectors (J1–3) ........2-22 Audio In RCA Connector (J10) ..........2-22 Audio Out RCA Connector (J5) ..........2-23 Headphone Out Jack (J9) ............2-23 Power Jack (J4) ..............2-23 RS-232 Connector (J6) ............2-24 ADSP-21369 EZ-KIT Lite Evaluation System Manual...
  • Page 8 S/PDIF Coax Connectors (J7 and J8) ........2-24 DPI Header (P3) ..............2-25 DAI Header (P4) ..............2-25 JTAG Header (ZP4) .............. 2-25 ADSP-21369 EZ-KIT LITE BILL OF MATERIALS ADSP-21369 EZ-KIT LITE SCHEMATIC INDEX viii ADSP-21369 EZ-KIT Lite Evaluation System Manual...

  • Page 9: Preface

    PREFACE ® Thank you for purchasing the ADSP-21369 EZ-KIT Lite , Analog ® Devices, Inc. evaluation system for SHARC processors. SHARC processors are based on a 32-bit super Harvard architecture that includes a unique memory architecture comprised of two large on-chip,...

  • Page 10: Product Overview

    Product Overview evaluation board peripherals. Analog Devices JTAG emulators offer faster communication between the host PC and target hardware. Analog Devices carries a wide range of in-circuit emulation products. To learn more about Analog Devices emulators and processor development tools, go to http://www.analog.com/dsp/tools...
  • Page 11 • LabVIEW™-based virtual instruments • Multifunction data acquisition device • Bench-top workstation and prototype board • LEDs • Eleven LEDs: one power (green), one board reset (red), one USB monitor (amber), and eight general-purpose (amber) ADSP-21369 EZ-KIT Lite Evaluation System Manual...
  • Page 12 The DPI port of the processor is connected to the UART and SPI inter- faces. The UART interface can connect to a standard RS-232 connector, while the SPI connects to 2M bit of serial flash memory. ADSP-21369 EZ-KIT Lite Evaluation System Manual...

  • Page 13: Purpose Of This Manual

    Lite. Finally, a schematic and a bill of materials are provided for reference. Intended Audience The primary audience for this manual is a programmer who is familiar with Analog Devices processors. This manual assumes that the audience has a working knowledge of the appropriate processor architecture and instruction set.

  • Page 14: Manual Contents

    Appendix B is part of the online help. What’s New in This Manual This is revision 2.4 of the ADSP-21369 EZ-KIT Lite Evaluation System Manual. The manual has been updated to include CCES information. Additional changes include the following.

  • Page 15: Technical Support

    Preface For the latest version of this manual, please refer to the Analog Devices Web site. Technical Support You can reach Analog Devices processors and DSP technical support in the following ways: • Post your questions in the processors and DSP support community ®...

  • Page 16: Supported Processors

    Supported Processors The ADSP-21369 EZ-KIT Lite evaluation system supports Analog Devices ADSP-21369 SHARC processors. Product Information Product information can be obtained from the Analog Devices Web site and the online help system. Analog Devices Web Site The Analog Devices Web site, , provides information www.analog.com...

  • Page 17: Engineerzone

    Visit (found on the Analog Devices home page) to sign up. If myAnalog you are a registered user, just log on. Your user name is your e-mail address.

  • Page 18: Related Documents

    Optional item lists in syntax descriptions appear within brackets delim- [this,…] ited by commas and terminated with an ellipse; read the example as an optional comma-separated list of this xviii ADSP-21369 EZ-KIT Lite Evaluation System Manual...
  • Page 19 A Warning identifies conditions or inappropriate usage of the product that could lead to conditions that are potentially hazardous for the devices users. In the online version of this book, the word Warning appears instead of this symbol. ADSP-21369 EZ-KIT Lite Evaluation System Manual...
  • Page 20 Notation Conventions ADSP-21369 EZ-KIT Lite Evaluation System Manual...

  • Page 21: Using The Adsp-21369 Ez-Kit Lite

    1 USING THE ADSP-21369 EZ-KIT LITE This chapter provides information to assist you with development of pro- grams for the ADSP-21369 EZ-KIT Lite evaluation system. The information appears in the following sections. • “Package Contents” on page 1-2 Lists the items contained in your EZ-KIT Lite package.

  • Page 22: Package Contents

    For detailed information on how to program the ADSP-21369 SHARC processor, refer to the documents referenced in “Related Documents”. Package Contents Your ADSP-21369 EZ-KIT Lite evaluation system package contains the following items. • ADSP-21369 EZ-KIT Lite board • Universal 7V DC power supply • USB 2.0 cable...

  • Page 23: Default Configuration

    Store unused EZ-KIT Lite boards in the pro- tective shipping package. The ADSP-21369 EZ-KIT Lite board is designed to run outside your per- sonal computer as a standalone unit. You do not have to open your computer case.

  • Page 24: Cces Install And Session Startup

    Follow these instructions to ensure correct operation of the product soft- ware and hardware. Step 1: Connect the EZ-KIT Lite board to a personal computer (PC) run- ning CCES using one of two options: an Analog Devices emulator or via the debug agent. ADSP-21369 EZ-KIT Lite Evaluation System Manual...
  • Page 25 USB monitor LED (labeled )and the green power LED (labeled ZLED3 ) on the debug agent are both on. This signifies that the board is ZLED4 communicating properly with the host PC and ready to run CCES. ADSP-21369 EZ-KIT Lite Evaluation System Manual...

  • Page 26: Session Startup

    The Select Processor page of the Session Wizard appears. 4. Ensure Blackfin is selected in Processor family. In Processor type, select ADSP-21369. Click Next. The Select Connection Type page of the Session Wizard appears. ADSP-21369 EZ-KIT Lite Evaluation System Manual...
  • Page 27 The Select Platform page of the Session Wizard appears. 6. Do one of the following: • For standalone debug agent connections, ensure that the selected platform is ADSP-21369 EZ-KIT Lite via Debug Agent. • For emulator connections, choose the type of emulator that is connected to the board.

  • Page 28: Visualdsp++ Install And Session Startup

    Note that VisualDSP++ does not connect to any session. Skip the rest of this step to step 2. If you have run VisualDSP++ previously, the last opened session appears on the screen. You can override the default behavior and ADSP-21369 EZ-KIT Lite Evaluation System Manual...
  • Page 29 Select EZ-KIT Lite and click Next. 5. The Select Platform page of the wizard appears on the screen. Ensure that the selected platform is ADSP-21369 EZ-KIT Lite via Debug Agent. Specify your own Session name for your session or accept the default name.

  • Page 30: Cces Evaluation License

    Delete. Click OK. CCES Evaluation License The ADSP-21369 EZ-KIT Lite software is part of the Board Support Package (BSP) for the SHARC ADSP-2136x family. The EZ-KIT Lite is a licensed product that offers an unrestricted evaluation license for 90 days after activation.

  • Page 31: Visualdsp++ Evaluation License

    CCES with a valid evaluation or full license. VisualDSP++ Evaluation License The ADSP-21369 EZ-KIT Lite installation is part of the VisualDSP++ installation. The EZ-KIT Lite is a licensed product that offers an unre- stricted evaluation license for the first 90 days. Once the initial unrestricted 90-day evaluation license expires: 1.
  • Page 32 SPI flash memory is connected to the SPI port of the processor; SPI flash designates: • DPI pin 5 ( ) as a chip select DPI5 • DPI pin 3 ( ) as the SPI clock DPI3 1-12 ADSP-21369 EZ-KIT Lite Evaluation System Manual...

  • Page 33: Elvis Interface

    Example programs are included in the EZ-KIT Lite installation directory to demonstrate flash memory reads and writes. ELVIS Interface The ADSP-21369 EZ-KIT Lite board contains the National Instruments Educational Laboratory Virtual Instrumentation Suite interface. The interface features the DC voltage and current measurement modules, oscilloscope and bode analyzer modules, function generator, arbitrary waveform generator, and digital I/O.

  • Page 34: Analog Audio

    (SRU). It is possible to disable the on-board audio oscillator from driving the audio codec and the processor’s input pin. For instructions on how to configure the clock, refer to “Codec Setup Switch (SW3)” on page 2-11. 1-14 ADSP-21369 EZ-KIT Lite Evaluation System Manual...

  • Page 35: Leds And Push Buttons

    DIP switch ( The DIP switch can disconnect the processor pins connected to the push buttons. See “Push Button Enable Switch (SW7)” on page 2-13 ADSP-21369 EZ-KIT Lite Evaluation System Manual 1-15...
  • Page 36 For more information, refer to the ADSP-2137x SHARC Processor Hardware Reference (Includes ADSP-21367, ADSP-21368, ADSP-21369, ADSP-21371, ADSP-21375). Table 1-3. LED Connections LED Reference Designator Processor Pin LED1 DPI6 LED2 DPI7 LED3 DPI8 LED4 DPI13 LED5 DPI14 LED6 DAI15 1-16 ADSP-21369 EZ-KIT Lite Evaluation System Manual...

  • Page 37: Example Programs

    LEDs and push buttons. Example Programs Example programs are provided with the ADSP-21369 EZ-KIT Lite to demonstrate various capabilities of the product. The programs are included in the product installation kit and can be found in the Examples folder of the installation.
  • Page 38 Board Design Database 1-18 ADSP-21369 EZ-KIT Lite Evaluation System Manual...

  • Page 39: Adsp-21369 Ez-Kit Lite Hardware Reference

    Shows the locations and describes the on-board configuration jumpers. • “Connectors” on page 2-21 Shows the locations and provides part numbers for the on-board connectors. In addition, the manufacturer and part number infor- mation is provided for the mating parts. ADSP-21369 EZ-KIT Lite Evaluation System Manual...

  • Page 40: System Architecture

    Power Regulation Figure 2-1. System Architecture Block Diagram The EZ-KIT Lite is designed to demonstrate the ADSP-21369 processor capabilities. The processor core is powered at 1.3V, and the I/O is pow- ered at 3.3V. ADSP-21369 EZ-KIT Lite Evaluation System Manual...

  • Page 41: External Port

    SDRAM memory. All of the external port signals are available externally via the expansion interface connectors ( ). The pinout of the connectors can be found in J1—3 “ADSP-21369 EZ-KIT Lite Schematic” on page B-1. ADSP-21369 EZ-KIT Lite Evaluation System Manual...

  • Page 42: Dai Interface

    DAI7 (SCLK1) ADC_BCLK ADC_SDATA1 DAI5 (SD1A) Phono Jack IN DAI6 (SD1B) DAI4 (SFS0) ELVIS_TRIG MCLK PLLMCLK IN DAI3 (SCLK0) DAI2 (SD0B) PLLMCLK OUT SPDIF OUT DAI1 (SD0A) 12.288MHz Figure 2-2. DAI Connections Block Diagram ADSP-21369 EZ-KIT Lite Evaluation System Manual...

  • Page 43: Dpi Interface

    ) and 0.1” spaced header ( ). The pinout of the connec- J1—3 tors can be found in “ADSP-21369 EZ-KIT Lite Schematic” on page B-1. DPI Interface The digital peripheral interface (DPI) pins are connected to a second sig- nal routing unit of the processor ( ).

  • Page 44: Flag Pins

    ( ) and 0.1” spaced header ( ). The pinout of the connec- J1—3 tors can be found in “ADSP-21369 EZ-KIT Lite Schematic” on page B-1. FLAG Pins The processor has four general-purpose I/O flag pins. Table 2-1 describes the flag pin connections.

  • Page 45: External Pll

    ADSP-21369 EZ-KIT Lite Hardware Reference External PLL The ADSP-21369 EZ-KIT Lite contains an external phase lock loop to help generate a faster and more stable master input clock, . The PLL MCLK uses DAI pin 3 as an input clock from the ADSP-21369 processor. The new clock generated by PLL connects to the processor via DAI pin 2.

  • Page 46: Jtag Emulation Port

    This is not a standard connection of the JTAG interface. For information about the standard connection of the interface, see EE-68 published on the Analog Devices Web site. For more information about the JTAG connector, see “JTAG Header (ZP4)” on page 2-25.

  • Page 47: Switches

    ADSP-21369 EZ-KIT Lite Hardware Reference Switches This section describes operation of the on-board switches. The switch locations and default settings are shown in Figure 2-4. Figure 2-4. Switch Locations and Default Settings ADSP-21369 EZ-KIT Lite Evaluation System Manual...

  • Page 48: Boot Mode And Clock Ratio Select Switch (Sw2)

    The core clock frequency can be increased or decreased via software by writing to the register. For more information on changing the core PMCTL clock frequency and other setup information, refer to the ADSP-2137x SHARC Processor Hardware Reference (Includes ADSP-21367, ADSP-21368, ADSP-21369, ADSP-21371, ADSP-21375). 2-10 ADSP-21369 EZ-KIT Lite Evaluation System Manual...

  • Page 49: Codec Setup Switch (Sw3)

    3 is , and the AD1835A codec generates the control signals. position 4 disconnects the AD1835A codec’s pin from the ADC_DATA DAI. This is useful when the DAI is connected to another device. ADSP-21369 EZ-KIT Lite Evaluation System Manual 2-11...

  • Page 50: Electret Microphone Select Switch (Sw4)

    ) is located at the top left side of the board. The second loopback test switch, , is located at the top right side of SW14 the board. These switches are used for testing only; all switch positions should remain 2-12 ADSP-21369 EZ-KIT Lite Evaluation System Manual...

  • Page 51: Push Button Enable Switch (Sw7)

    A and B of the oscilloscope. The switch is used only when the board is connected to the Educational Laboratory Vir- tual Instrumentation Suite (ELVIS) station (see “ELVIS Interface” on page 1-13). ADSP-21369 EZ-KIT Lite Evaluation System Manual 2-13...

  • Page 52: Elvis Function Generator Configuration Switch (Sw13)

    Table 2-8. Table 2-8. ELVIS Function Generator Configuration Switch (SW13) Channel Switch Position Audio Signal AMP_LEFT_IN LEFT_IN 1 (ON 2 (ON) AMP_RIGHT_IN RIGHT_IN 3 (OFF) AMP_LEFT_IN DAC0 2-14 ADSP-21369 EZ-KIT Lite Evaluation System Manual...

  • Page 53: Leds And Push Buttons

    1 Bold typeface denotes the default settings. LEDs and Push Buttons This section describes the on-board LEDs and push buttons. The LED and push button locations are shown in Figure 2-6. Figure 2-6. LED and Push Button Locations ADSP-21369 EZ-KIT Lite Evaluation System Manual 2-15...

  • Page 54: General Purpose Leds (Led1-8)

    LED does not light, try cycling power on the board and/or reinstalling the USB driver.  When the development software is actively communicating with the EZ-KIT Lite target board, the LED can flicker, indicating communications handshake. 2-16 ADSP-21369 EZ-KIT Lite Evaluation System Manual...

  • Page 55: Push Buttons (Sw8-11)

    USB cable has been plugged in and com- munication initialized correctly with the PC. After USB communication has been initialized, the only way to reset the USB is by powering down the board. ADSP-21369 EZ-KIT Lite Evaluation System Manual 2-17...

  • Page 56: Jumpers

    Jumpers Jumpers This section describes functionality of the configuration jumpers. The jumper locations are shown in Figure 2-7. Figure 2-7. Jumper Locations 2-18 ADSP-21369 EZ-KIT Lite Evaluation System Manual...

  • Page 57: Vco Select Jumper (Jp1)

    ELVIS station instead of the processor. The jumper settings are shown Table 2-11. Table 2-11. ELVIS Select Jumper (JP2) JP2 Setting Mode Not connected to an ELVIS station (default) Connected to an ELVIS station ADSP-21369 EZ-KIT Lite Evaluation System Manual 2-19...

  • Page 58: Elvis Voltage Selection Jumper (Jp3)

    The jumper settings are shown in Table 2-13. Table 2-13. ELVIS Select Jumper (JP4) JP4 Setting Mode DAI4 disconnected from the ELVIS TRIG pin (default) DAI4 connected to the ELVIS TRIG pin 2-20 ADSP-21369 EZ-KIT Lite Evaluation System Manual...

  • Page 59: Connectors

    ADSP-21369 EZ-KIT Lite Hardware Reference Connectors This section describes connector functionality and provides information about mating connectors. The connector locations are shown in Figure 2-8. Figure 2-8. Connector Locations ADSP-21369 EZ-KIT Lite Evaluation System Manual 2-21...

  • Page 60: Expansion Interface Connectors (J1-3)

    90-position 0.05” spacing SAMTEC TFC-145 series (low cost) Audio In RCA Connector (J10) Part Description Manufacturer Part Number Two-channel right angle RCA jack SWITCHCRAFT PJRAS1X2S02 Mating Cable Two-channel RCA interconnect MONSTER CABLE BI100-1M cable 2-22 ADSP-21369 EZ-KIT Lite Evaluation System Manual...

  • Page 61: Audio Out Rca Connector (J5)

    ) provides all of the power necessary to operate the EZ-KIT Lite board. Part Description Manufacturer Part Number 2.5 mm power jack SWITCHCRAFT RAPC712X-ND DIGI-KEY Mating Power Supply (shipped with EZ-KIT Lite) 7V power supply CUI INC. DMS070214-P6P-SZ ADSP-21369 EZ-KIT Lite Evaluation System Manual 2-23...

  • Page 62: S/Pdif Coax Connectors (J7 And J8)

    Mating Cable Cable DB9M to DB9F 6 feet DIGI-KEY 45-0308-0000-ND S/PDIF Coax Connectors (J7 and J8) Part Description Manufacturer Part Number Coaxial SWITCHCRAFT PJRAN1X1U01 Mating Cable Two-channel RCA intercon- MONSTER CABLE BI100-1M nect cable 2-24 ADSP-21369 EZ-KIT Lite Evaluation System Manual...

  • Page 63: Dpi Header (P3)

    When an emulator connects to the JTAG header, the USB debug interface is disabled.  Pin 3 is missing to provide keying. Pin 3 in the mating connector should have a plug. ADSP-21369 EZ-KIT Lite Evaluation System Manual 2-25...
  • Page 64 Connectors  When using an emulator with the EZ-KIT Lite board, follow the connection instructions provided with the emulator. Part Description Manufacturer Part Number 14-pin IDC header 68737-414HLF 2-26 ADSP-21369 EZ-KIT Lite Evaluation System Manual...
  • Page 65 SOIC14 IDT74FCT3244 IDT74FCT3244APYG APY SSOP20 12.288MHZ EPSON SG-8002CA MP OSC003 LT1765 SOIC8 LINEAR LT1765ES8#PBF TECH MT48LC4M32 DIGI-KEY 557-1196-1-ND B2 TSOP86 GTL2002 GTL2002DP,118 TSSOP8 IS61LV5128AL ISSI IS61LV5128AL-10TLI TSOP44 SN74LVC1G08 U16,U18 SN74LVC1G08DBVR SOT23-5 SN74LVC1G08 SN74LVC1G08DBVR SOT23-5 ADSP-21369 EZ-KIT Lite Evaluation System Manual...
  • Page 66 ADM708SARZ ANALOG ADM708SARZ SOIC8 DEVICES AD8532ARZ ANALOG AD8532ARZ SOIC8 DEVICES ADP3336ARM VR3-VR4 ANALOG ADP3336ARMZ-REEL7 Z MSOP8 DEVICES ADM3202ARN ANALOG ADM3202ARNZ Z SOIC16 DEVICES AD8606ARZ U8-U15 ANALOG AD8606ARZ SOIC8 DEVICES AD1835AASZ ANALOG AD1835AASZ MQFP52 DEVICES ADSP-21369 EZ-KIT Lite Evaluation System Manual...

  • Page 67: Adsp-21369 Ez-Kit Lite Bill Of Materials

    ADSP-21369 EZ-KIT Lite Bill Of Materials Ref. Qty. Description Reference Designator Manufacturer Part Number AD623ARMZ U5-U6 ANALOG AD623ARMZ USOIC8 DEVICES AD820ARZ U33-U34 ANALOG AD820ARZ SOIC8 DEVICES ADSP-21369 ANALOG ADSP-21369KBPZ-3A SBGA256 DEVICES ADG774ABRQ U24-U25 ANALOG ADG774ABRQZ Z QSOP16 DEVICES ADP1864AUJZ VR2,VR5...
  • Page 68 650-RGEF500 TABLE FUS005 YELLOW LED1-LED8 DIGI-KEY P512TR-ND LED001 0.22UF 25V C77,C91-C92,C118- 08053C224KAT2A 10% 0805 C119,C152-C154,C1 85-C186 0.1UF 50V 10% C172,C216 08055C104KAT 0805 2.2UF 35V 10% CT6,CT8 TAJB225K035R 600 100MHZ FER1-FER5 DIGI-KEY 490-1014-2-ND 200MA 0603 ADSP-21369 EZ-KIT Lite Evaluation System Manual...
  • Page 69 ADSP-21369 EZ-KIT Lite Bill Of Materials Ref. Qty. Description Reference Designator Manufacturer Part Number 2A S2A VISHAY S2A-E3 DO-214AA 1UF 16V 10% C204,C207-C209 DIGI-KEY 399-1284-2-ND 0805 10UF 25V C215 DIGI-KEY 587-1393-2-ND +80%/-20% 1210 68UF 25V 20% CT1-CT2 PANASONIC EEE-FC1E680P CAP003...
  • Page 70 0402 121,R138 22 1/10W 5% R124,R133 DIGI-KEY P22JTR-ND 0402 33 1/16W 5% R6,R27 VISHAY CRCW040233R0JNEA 0402 1.5UH 20% COIL CRAFT DO1608C-152MLC IND003 100MA CENTRAL CMDSH-3-E3 CMDSH-3 SEMI SOD-323 0.18UF 25V C218 08053C184KAT2A 10% 0805 ADSP-21369 EZ-KIT Lite Evaluation System Manual...
  • Page 71 ADSP-21369 EZ-KIT Lite Bill Of Materials Ref. Qty. Description Reference Designator Manufacturer Part Number 100UF 10V TPSC107K010R0075 10% C 64.9K 1/10W R190,R194 VISHAY CRCW080564K9FKEA 1% 0805 210.0K 1/4W R191,R193 VISHAY CRCW0805210KFKEA 1% 0805 107.0 1/10W R128 DIGI-KEY 311-107CRTR-ND 1% 0805 249.0 1/10W...
  • Page 72 750.0K 1/10W R110,R116 DIGI-KEY 311-750KHRTR-ND 1% 0603 11.0K 1/10W R39-R40,R50,R58,R7 DIGI-KEY 311-11.0KHRTR-ND 1% 0603 3,R81,R86,R97,R102, R115,R144 5.49K 1/10W R37,R41-R42,R48,R5 DIGI-KEY 311-5.49KHRTR-ND 1% 0603 1,R56,R59,R67,R72,R 75,R80,R83-R84,R87, R96,R99,R103-R104, R113-R114 3.32K 1/10W R36,R43,R49,R57,R7 DIGI-KEY 311-3.32KHRTR-ND 1% 0603 4,R82,R85,R94,R130 ADSP-21369 EZ-KIT Lite Evaluation System Manual...
  • Page 73 ADSP-21369 EZ-KIT Lite Bill Of Materials Ref. Qty. Description Reference Designator Manufacturer Part Number 1.65K 1/10W R44,R52,R60,R64,R7 DIGI-KEY 311-1.65KHRTR-ND 1% 0603 1,R79,R88,R95 49.9K 1/10W R46,R55,R63,R66,R6 DIGI-KEY 311-49.9KHRTR-ND 1% 0603 8,R76,R91-R92,R119- R120 604.0 1/10W R45,R54,R62,R65,R6 NIC COMPO- NRC06F6040TRF 1% 0603 9,R77,R90,R93 NENTS 90.9K 1/10W...
  • Page 74 100 1/16W 5% R165-R167,R179 DIGI-KEY 311-100JRTR-ND 0402 0.027UF 25V C181 06033C273JAT2A 5% 0603 0.27UF 16V C180,C182 0603YG274ZAT2A 20% 0603 2.05K 1/16W R100-R101 VISHAY CRCW04022K05FKED 1% 0402 15.0K 1/16W R140 DIGI-KEY 311-15.0KHRTR-ND 1% 0603 A-10 ADSP-21369 EZ-KIT Lite Evaluation System Manual...
  • Page 75 ADSP-21369 EZ-KIT Lite Bill Of Materials Ref. Qty. Description Reference Designator Manufacturer Part Number 232.0 1/16W R129 DIGI-KEY 311-232HRTR-ND 1% 0603 301.0 1/16W R105-R106 DIGI-KEY 311-301HRTR-ND 1% 0603 24.9K 1/10W R11,R196 DIGI-KEY 311-24.9KHTR-ND 1% 0603 47UF 6.3V 10% NIC COMPO- NTC-T476K6.3TRBF...
  • Page 76 MSS1038-252NL_ IND013 470UF 2.5V SANYO 2R5TPE470MF 20% D2E 30A GSOT05 D9-D11 VISHAY GSOT05-GS08 SOT23-3 30A GSOT03 VISHAY GSOT03-GS08 SOT23-3 VISHAY VESD01-02V-GS08 VESD01-02V-G S08 SOD-523 0.03 1/2W 1% R199,R201 CSF 1/2 0.03 1%R 1206 A-12 ADSP-21369 EZ-KIT Lite Evaluation System Manual...
  • Page 78 DATA30 SDA10 SDA10 DATA31 DATA31 MS2_FLAG2_IRQ2 MS2_FLAG2_IRQ2 MS3_FLAG3_IRQ3_LED8 MS3_FLAG3_TIMEXP FLAG1_~IRQ1_SW1 FLAG1_~IRQ1 TRST FLAG0_~IRQ0_SW2 FLAG0_~IRQ0 RESET RESET BOOT_CFG0 BOOT_CFG0 XTAL BOOT_CFG1 BOOT_CFG1 DSP_CLKIN CLKIN CLK_CFG0 CLK_CFG0 CLKOUT CLKOUT CLK_CFG1 CLK_CFG1 ADSP-21369 SBGA256 0.1UF 0402 XTAL PIN TEST POINT DO NOT POPULATE C1 3.3V 3.3V 0.01UF...
  • Page 79 VDDINT32 GND32 VDDEXT VDDINT33 GND33 VDDINT34 GND34 VDDINT35 GND35 GND36 VDDIO1 GND37 VDDIO2 GND38 VDDIO3 GND39 VDDIO4 GND40 VDDIO5 GND41 VDDIO6 GND42 VDDIO7 GND43 VDDIO8 GND44 VDDIO9 GND45 VDDIO10 GND46 VDDIO11 GND47 VDDIO12 GND48 VDDIO13 GND49 VDDIO14 GND50 VDDIO15 GND51 VDDIO16 GND52 VDDIO17...
  • Page 80 DQM3 DQ27 0402 DATA28 DQ28 DATA29 DQ29 DATA30 DQ30 DATA31 DQ31 3.3V DQM signals are either tied to GND or driven by processor's FLAG pin. This is SDRAM device specific and the requirement is specified in SDRAM VDD1 VSS1 datasheets VDD2 VSS2 VDD3...
  • Page 81 OUTRP4 OUTRN4 OUTLP4 MASTER_SLAVE ~M/S OUTLN4 RESET PD/RST FILTD 3.3V FILTR ODVDD AVDD1 AVDD2 DVDD1 AVDD3 DVDD2 AGND1 DGND1 AGND2 DGND2 AGND3 AGND4 AGND5 AGND6 AD1835AASZ MQFP52 3.3V 3.3V 5V_B FER2 0603 0.01UF 0.01UF 0.01UF 0.01UF 0.01UF 0.01U 0402 0402 0402 0402 0402...
  • Page 82 5.49K 0603 100PF 0603 11.0K 3.32K 0603 0603 OUTRN1 330PF 0603 DAC1 RIGHT AD8606ARZ 680PF SOIC8 0603 5.49K 1.65K 0603 0603 OUTRP1 2.74K 0603 220PF 0603 AUDIO_VREF_DAC AGND 0.22UF 0.22UF 0805 0805 AGND AGND AD8606 AD8606...
  • Page 83 5.49K C131 0603 100PF 0603 11.0K 3.32K 0603 0603 OUTRN3 C129 330PF 0603 DAC3 RIGHT C128 AD8606ARZ 680PF SOIC8 0603 5.49K 1.65K 0603 0603 OUTRP3 2.74K C127 0603 220PF 0603 AUDIO_VREF_DAC AGND C118 C119 0.22UF 0.22UF 0805 0805 AGND AGND AD8606 AD8606...
  • Page 84 R106 301.0 0603 VREF_MIC_R AIN_AMP_RIGHT CON031 FER3 C163 R115 R114 10UF 11.0K 5.49K 0603 0805 0603 0603 AIN_RIGHT C160 C161 680PF 100PF 0603 0603 AGND AGND AUDIO_VREF_ADC AD8606A SOIC8 R112 R111 5.76K 5.76K 0603 0603 C159 120PF 0603 R110 750.0K 0603 AUDIO_VREF_ADC AD8606A...
  • Page 85 65LVDS2D C172 0.1UF 0805 DAIP1_SPDIF_OUT SN74LVC1G08 SOT23-5 SN74LVC1G08 SOT23-5 3.3V 3.3V C174 C184 0.01UF 0.01UF 0402 0402 SN74LVC1G08 SN74LVC1G08 Loopback Test Switc (Default= All OFF) For Test Purposes On SPDIF_COAX_IN RX_IN DIP4 SWT018...
  • Page 86 TP14 VDDEXT_SHUNT VDDEXT R147 10.0K 0603 AD623ARMZ C188 USOIC8 0.01UF R149 0402 0603 R150 25.5K 0603 C189 0.1UF 0603 AGND DSP IO CURRE...
  • Page 87 0402 R161 0402 LABEL "PB4" R167 R160 0402 0603 RS_P3 74LVC14A SWT013 SOIC14 MOMENTARY C200 0402 ELVIS_SELECT 3.3V R155 R156 0402 0402 74LVC14A 74LVC14A SOIC14 SOIC14 3.3V C193 C202 C195 C196 C194 C201 0.01UF 0.01UF 0.01UF 0.01UF 0.01UF 0.01UF 0402 0402 0402 0402...
  • Page 88 DAIP2_PLLMCLK_OUT DATA13 DATA12 DAIP4_ELVIS_TRIG DATA15 DATA14 DAIP6_AD1835_MCLK DATA17 DATA16 DAIP8_ADC_LRCLK DATA19 DATA18 DAIP10_DAC_D3 DATA21 DATA20 DAIP12_DAC_D1 DATA23 DATA22 DAIP14_DAC_LRCLK DATA25 DATA24 DAIP16_LED7 DATA27 DATA26 DAIP18_SPDIF_IN DATA29 DATA28 DAIP20_SW4 DATA31 DATA30 FLAG1_~IRQ1_SW1 DPI2_MISO DPI4_SPI_AD1835_CS DPI6_LED1 DPI8_LED3 DPI10_UART0_RX DPI12_UART0_CTS DPI14_LED5 CON019...
  • Page 89 R183 47.5K SYNC 0603 C220 4.7UF SL22 0805 C219 R182 LT1765 2200PF 10.0K C217 DO-214AA SOIC8 0603 0603 4.7UF 0805 UNREG_IN C224 C221 10UF 10UF 1210 0805 AGND3 R196 24.9K 0603 COMP C222 C223 470PF 68PF PGATE 0603 0603 R197 ADP1864AUJZ 80.6K SOT23-6...
  • Page 90 2-4, 2-11 J7-8 (S/PDIF coax), 2-24 out RCA connector (J5), 2-23 J9 (headphone out), 1-15, 2-23 P3 (DPI header), 2-25 P4 (DAI header), 2-25 ZP4 (JTAG), 2-8, 2-25 contents, of this EZ-KIT Lite package, ADSP-21369 EZ-KIT Lite Evaluation System Manual...
  • Page 91 (default), 2-10 connections, 1-13, 1-16, 2-16 start/end addresses, 1-12 disabling (SW2), via external port, 1-11, header (P3), 2-6, 2-25 frame sync/clock signals, 1-15, 2-11 DPI12-10 pins, 2-7, 2-12 FUNCT_OUT signals, 2-15 DPI14-13 pins, 1-16, ADSP-21369 EZ-KIT Lite Evaluation System Manual...
  • Page 92 2-16 2-17 LED1-7 (FLAGx I/O), 1-16, 2-16 LED8 (FLAG3), 1-16, 2-6, 2-16 LED9 (power), 1-8, 2-16 ZLED3 (USB monitor), 1-8, 2-16 LEFT_IN signals, 2-14 cables, LEFT_OUT signals, 2-14 connectors, xi, 1-15, related documents, xviii ADSP-21369 EZ-KIT Lite Evaluation System Manual...
  • Page 93 (SW5) configuration, 1-11 universal asynchronous via external port, receiver/transmitter, See UART startup, of this EZ-KIT Lite, CCES, interface, 2-8, 2-25 cable, 1-2, 1-8, 2-16, 2-17 interface chip (U34), 2-17 monitor LED (ZLED3), 1-8, 2-16 ADSP-21369 EZ-KIT Lite Evaluation System Manual...
  • Page 94 Index VisualDSP++ environment, voltage-controlled oscillator select jumper (JP1), 2-19 ADSP-21369 EZ-KIT Lite Evaluation System Manual...
  • Page 95 Development Boards & Kits - Other Processors Click to view products by manufacturer: Analog Devices Other Similar products are found below : EVB-MEC1418MECC 20-101-1252 C29XPCIE-RDB CC-ACC-18M433 MAX1464EVKIT RTE510Y470TGB00000R RTK0EN0001D01001BZ MAXQ622-KIT# YR0K505231S000BE YR0K50571MS000BE YQB-R5F1057A-TB QB-R5F104PJ-TB CC- ACC-ETHMX OV-7604-C7-EVALUATION-BOARD SK-AD02-D62Q1747TB SK-BS01-D62Q1577TB ST7MDT1-EMU2 GROVE BASE...
