IIR MAC Status Register (IIRMACSTAT)
The
IIRMACSTAT
Table A-54, provides the status of MAC operations.
15
IIR_AINV
IIR_ARI
IIR_ARZ

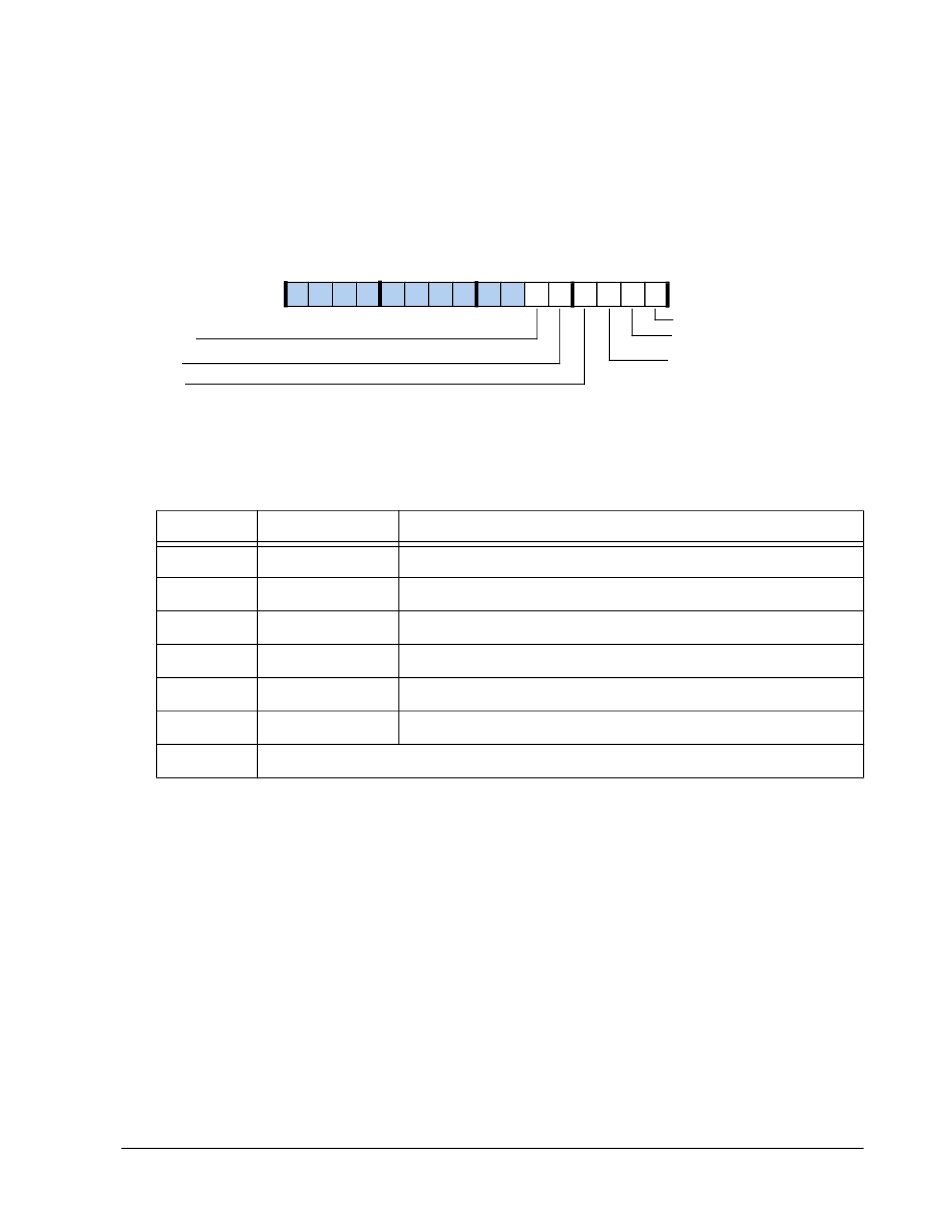

Figure A-42. IIRMACSTAT Register
Table A-54. IIRMACSTAT Register Bit Descriptions (RO)
Bits Name
0 IIR_MRZ
1 IIR_MRI
2 IIR_MINV
3 IIR_ARZ
4 IIR_ARI
5 IIR_AINV
31–6 Reserved
IIR DMA Status Register (IIRDMASTAT)
The IIR DMA registers are described in
The
IIRDMASTAT
Table A-55, provides the status of DMA operations. All the bits in this
register are read only.
