Phase-Locked Loop (PLL)
Phase-Locked Loop (PLL)
The following sections describe the clocking system of the SHARC pro-
cessor. This information is critical to ensure designs that work correctly
and efficiently.
Functional Description
To provide the clock generation for the core and system, the processor
uses an analog PLL with programmable state machine control. The PLL
design serves a wide range of applications. It emphasizes embedded appli-
cations and low cost for general-purpose processors, in which
performance, flexibility, and control of power dissipation are key features.
This broad range of applications requires a range of frequencies for the
clock generation circuitry. The input clock may be a crystal, an oscillator,
or a buffered, shaped clock derived from an external system clock oscilla-
tor. The clock system is shown in
INPUT CLOCK
CLKIN
DIVIDER
PRE DIVIDER
INDIV BIT
PLLM BIT OR
CLK_CFG1-0
BYPASS
PLLD BITS
CLOCK SELECTION

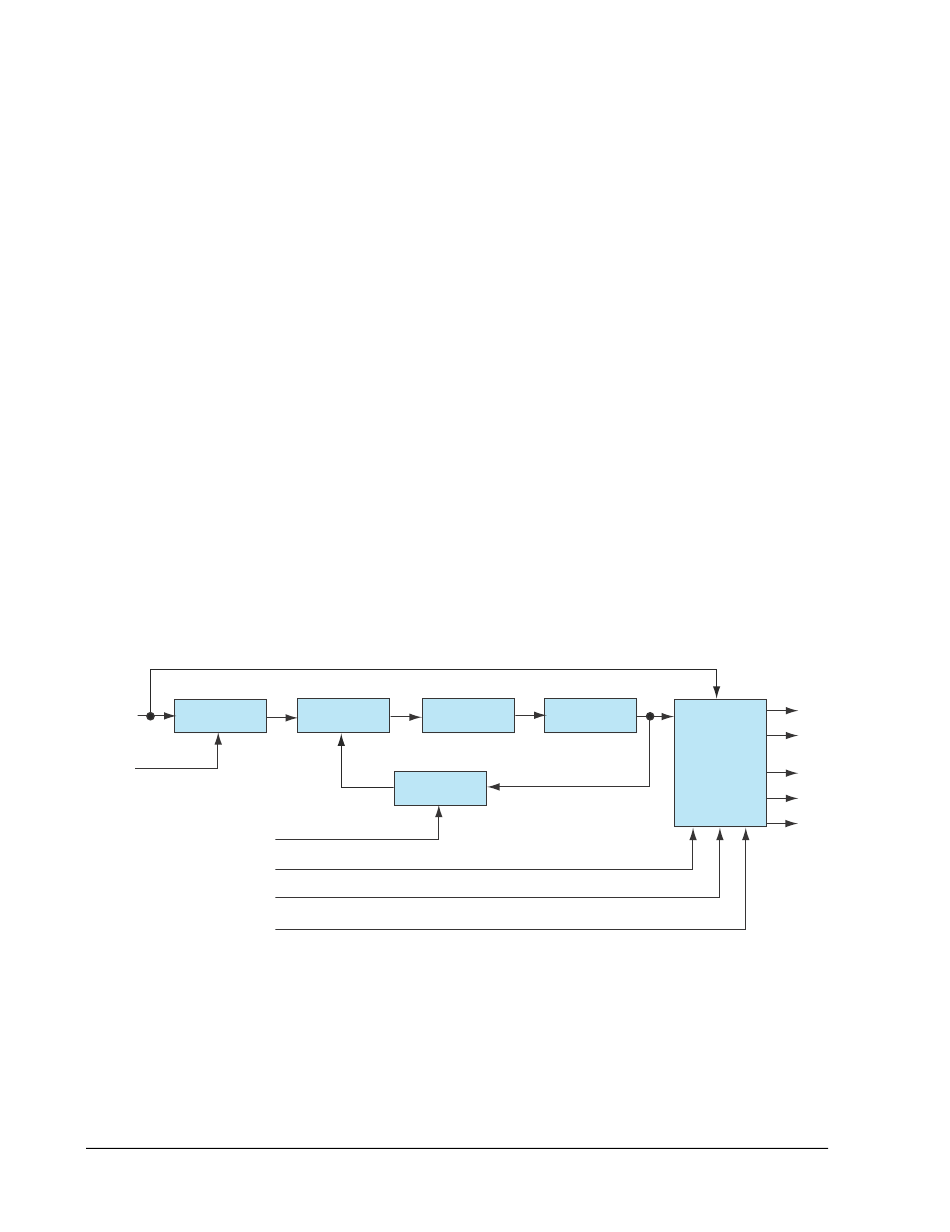

Figure 22-1. Clocking System
Subject to the maximum VCO frequency, the PLL supports a wide range
of multiplier ratios of the input clock,
22-2
www.BDTIC.com/ADI
Figure
PHASE LOOP
DETECT
FILTER
MULTIPLIER
CLKIN
ADSP-214xx SHARC Processor Hardware Reference
22-1.
VCO
GENERATOR
. To achieve this wide
CCLK
PCLK
OUTPUT
SDCLK/
CLOCK
DDR2CLK
POST
MLBCLK
DIVIDER
LCLK
