V SENSE
Vt=+1.25V
RESET

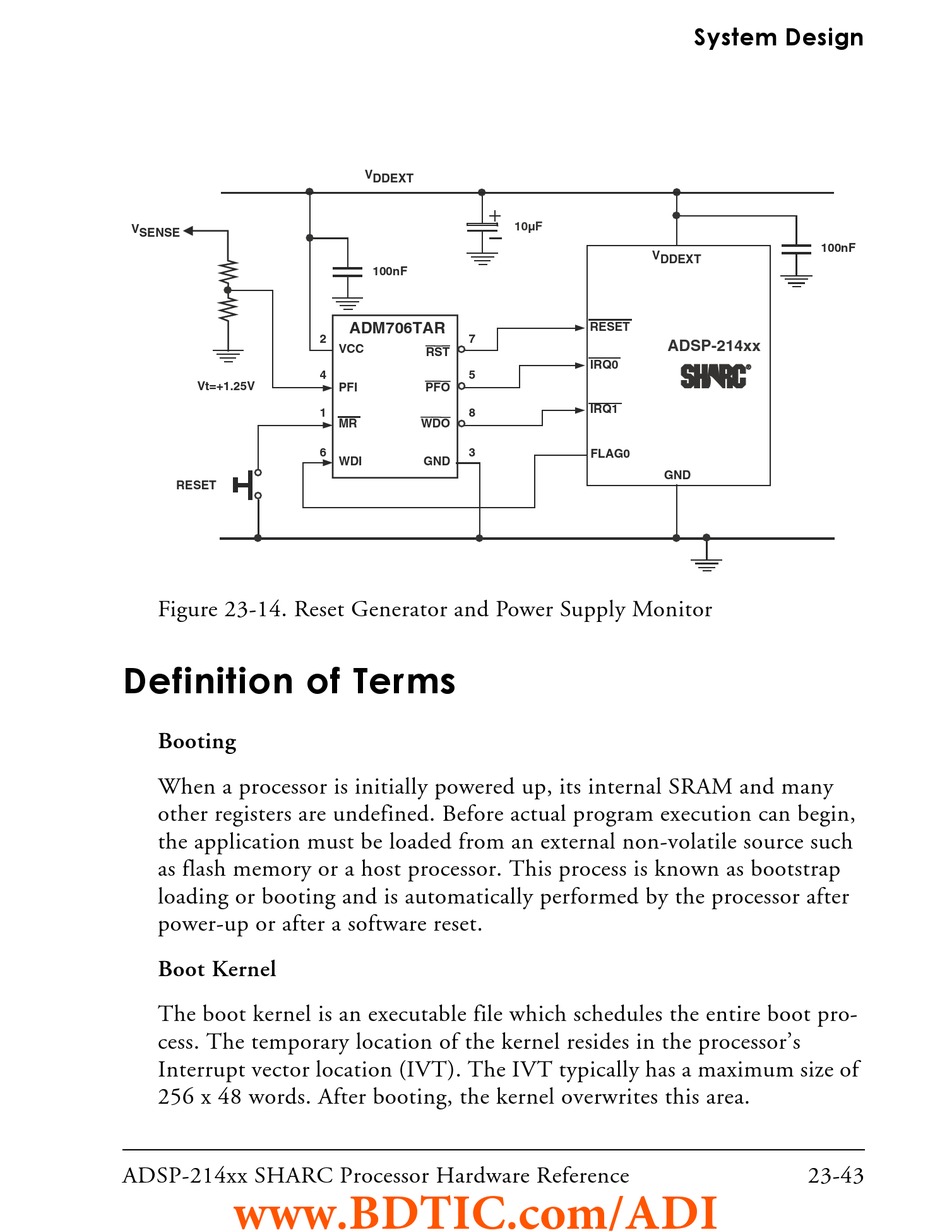

Figure 23-14. Reset Generator and Power Supply Monitor
Definition of Terms
Booting
When a processor is initially powered up, its internal SRAM and many
other registers are undefined. Before actual program execution can begin,
the application must be loaded from an external non-volatile source such
as flash memory or a host processor. This process is known as bootstrap
loading or booting and is automatically performed by the processor after
power-up or after a software reset.
Boot Kernel
The boot kernel is an executable file which schedules the entire boot pro-
cess. The temporary location of the kernel resides in the processor's
Interrupt vector location (IVT). The IVT typically has a maximum size of
256 x 48 words. After booting, the kernel overwrites this area.
ADSP-214xx SHARC Processor Hardware Reference
www.BDTIC.com/ADI
V DDEXT
100nF
ADM706TAR
2
7
VCC
RST
4
5
PFO
PFI
1
8
WDO
MR
6
3
WDI
GND
10μF
V DDEXT
RESET
ADSP-214xx
IRQ0
IRQ1
FLAG0
GND
System Design
100nF
