Peripherals Routed Through the DAI
31 30
IDP_PDAP_EN
IDP_PDAP_RESET
IDP_PDAP_CLKEDGE
IDP_PDAP_PACKING (28–27)
IDP_PP_SELECT
15
IDP_P16_PDAPMASK
IDP_P15_PDAPMASK
IDP_P14_PDAPMASK
IDP_P13_PDAPMASK
IDP_P12_PDAPMASK
IDP_P11_PDAPMASK
IDP_P10_PDAPMASK
IDP_P09_PDAPMASK

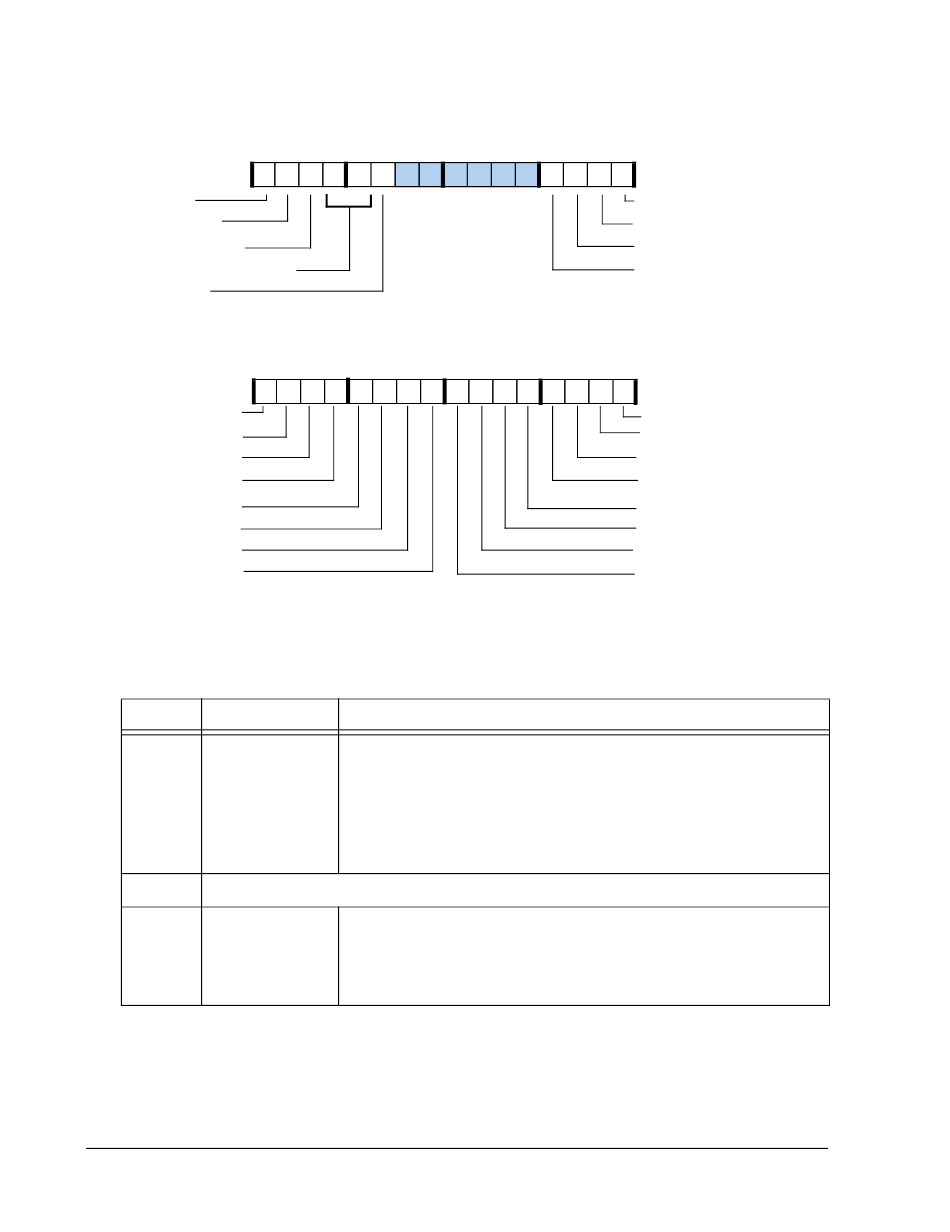

Figure A-96. IDP_PP_CTL Register
Table A-93. IDP_PP_CTL Register Bit Descriptions (RW)
Bit Name
19–0 IDP_P20–1_
PDAPMASK
25–20 Reserved
26 IDP_PP_
SELECT
A-180
www.BDTIC.com/ADI
29 28 27 26 25 24 23 22
14 13 12 11 10 9 8 7
Description
Parallel Data Acquisition Port Mask. For each of the parallel
inputs:
0 = Input data from PDAP_20-1 are masked
1 = Input data from PDAP_20-1 are unmasked
After this masking process, data gets passed along to the packing
unit.
PDAP Port Select. This bit selects which peripheral is connected
to the PDAP unit.
0 = Data/control bits are read from DAI pins
1 = Data/control bits are read from AMI_ADDR pins
ADSP-214xx SHARC Processor Hardware Reference
