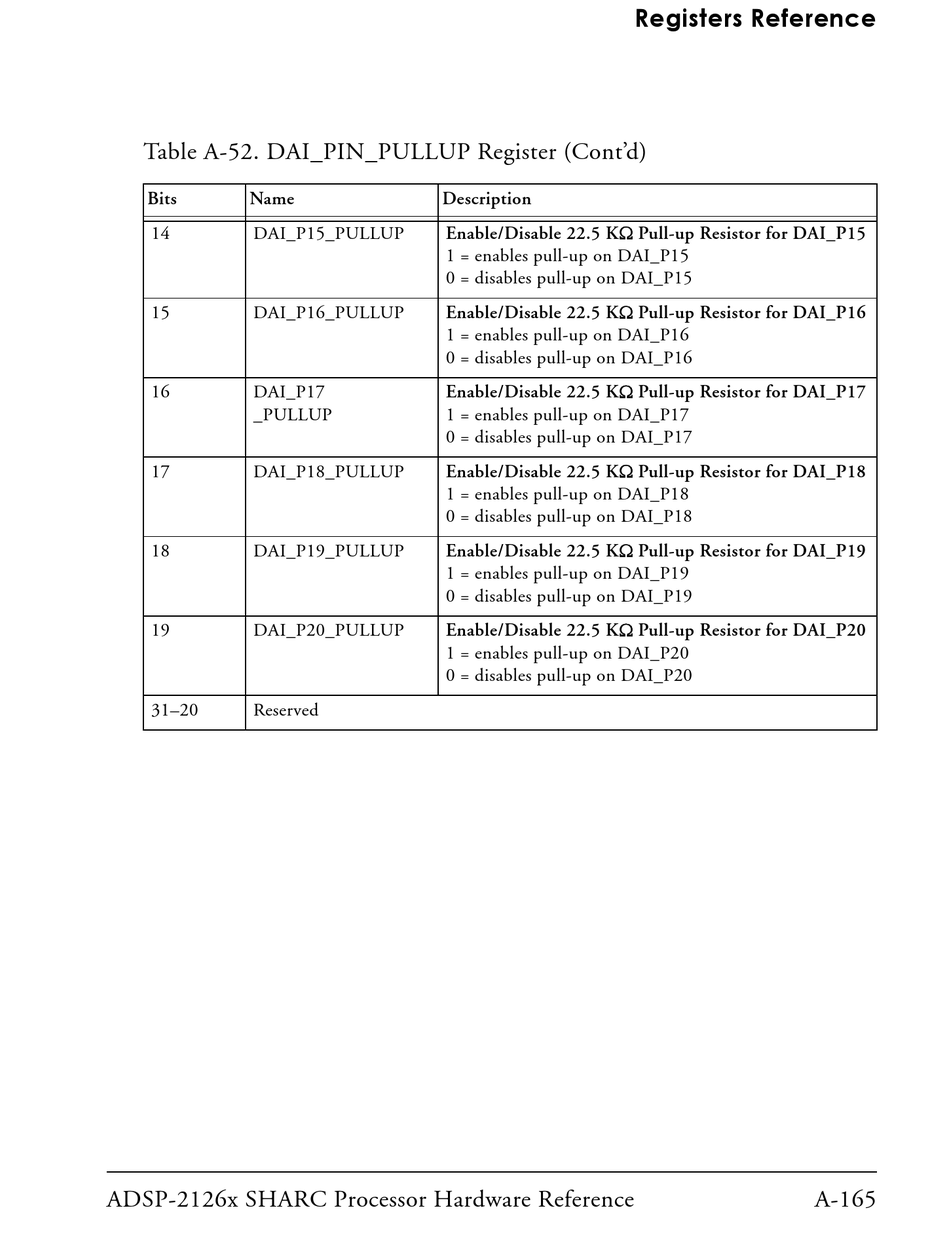

Table A-52. DAI_PIN_PULLUP Register (Cont'd)
Bits Name
14 DAI_P15_PULLUP
15 DAI_P16_PULLUP
16 DAI_P17
_PULLUP
17 DAI_P18_PULLUP
18 DAI_P19_PULLUP
19 DAI_P20_PULLUP
31–20 Reserved
ADSP-2126x SHARC Processor Hardware Reference
Description
Enable/Disable 22.5 K Pull-up Resistor for DAI_P15
1 = enables pull-up on DAI_P15
0 = disables pull-up on DAI_P15
Enable/Disable 22.5 K Pull-up Resistor for DAI_P16
1 = enables pull-up on DAI_P16
0 = disables pull-up on DAI_P16
Enable/Disable 22.5 K Pull-up Resistor for DAI_P17
1 = enables pull-up on DAI_P17
0 = disables pull-up on DAI_P17
Enable/Disable 22.5 K Pull-up Resistor for DAI_P18
1 = enables pull-up on DAI_P18
0 = disables pull-up on DAI_P18
Enable/Disable 22.5 K Pull-up Resistor for DAI_P19
1 = enables pull-up on DAI_P19
0 = disables pull-up on DAI_P19
Enable/Disable 22.5 K Pull-up Resistor for DAI_P20
1 = enables pull-up on DAI_P20
0 = disables pull-up on DAI_P20
