The following figure shows an example of these conventions.
Timer Configuration Registers (TIMERx_CONFIG)
ERR_TYP[1:0] (Error Type) - RO
00 - No error.
01 - Counter overflow error.
10 - Period register programming error.
11 - Pulse width register programming error.
EMU_RUN (Emulation Behavior Select)
0 - Timer counter stops during emulation.
1 - Timer counter runs during emulation.
TOGGLE_HI (PWM_OUT PULSE_HI Toggle Mode)
0 - The effective state of PULSE_HI
is the programmed state.
1 - The effective state of PULSE_HI
alternates each period.
CLK_SEL (Timer Clock Select)
This bit must be set to 1, when operat-
ing the PPI in GP Output modes.
0 - Use system clock SCLK for counter.
1 - Use PWM_CLK to clock counter.
OUT_DIS (Output Pad Disable)
0 - Enable pad in PWM_OUT mode.
1 - Disable pad in PWM_OUT mode.

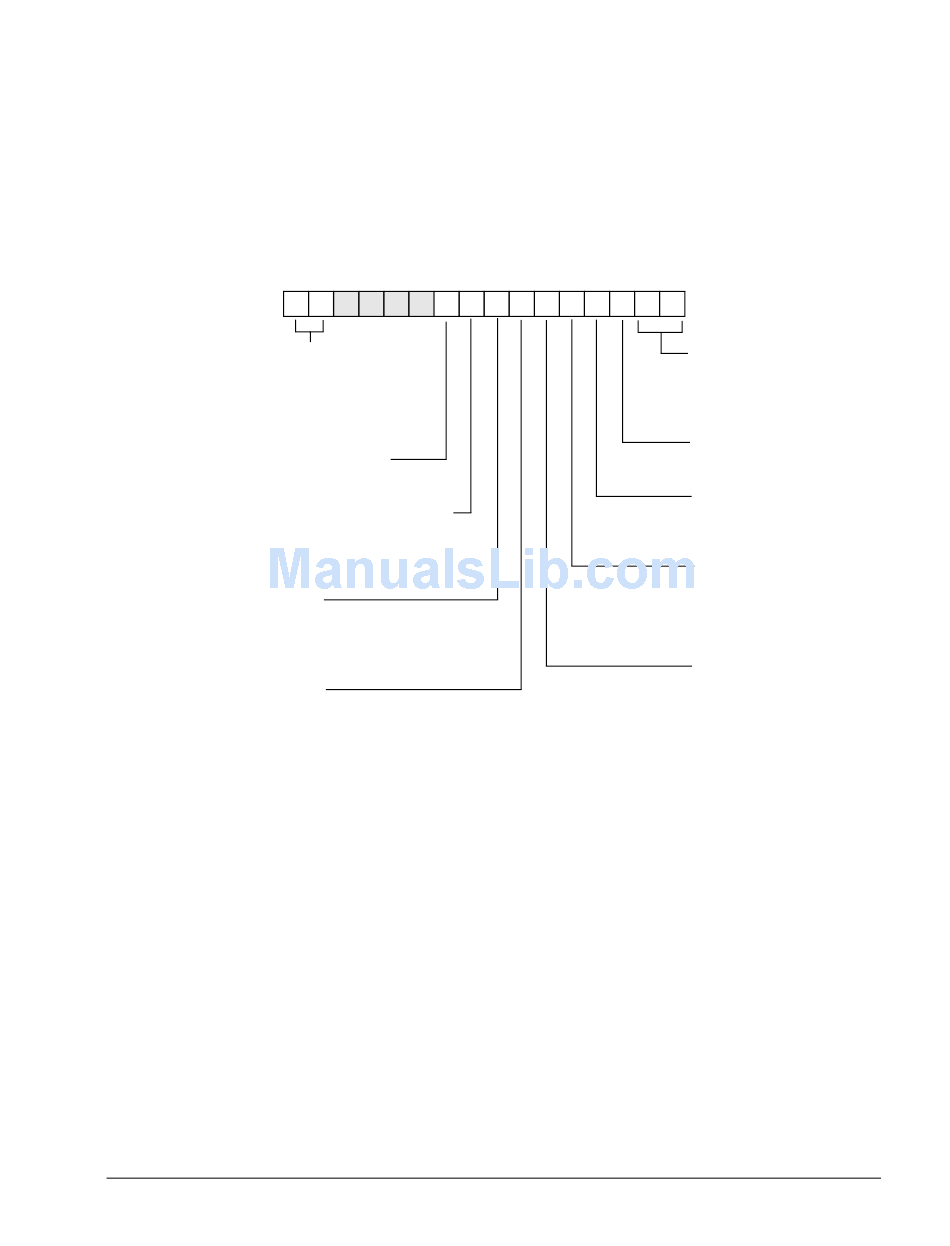

Figure 1. Register Diagram Example
ADSP-2126x SHARC Processor Hardware Reference
15 14 13 12 11 10 9 8
0 0 0 0 0 0 0 0
7 6 5 4 3 2 1 0
0
0 0 0 0 0 0 0
Preface
Reset = 0x0000
TMODE[1:0] (Timer Mode)
00 - Reset state - unused.
01 - PWM_OUT mode.
10 - WDTH_CAP mode.
11 - EXT_CLK mode.
PULSE_HI
0 - Negative action pulse.
1 - Positive action pulse.
PERIOD_CNT (Period
Count)
0 - Count to end of width.
1 - Count to end of period.
IRQ_ENA (Interrupt
Request Enable)
0 - Interrupt request
disable.
1 - Interrupt request enable
TIN_SEL (Timer Input
Select)
0 - Sample TMRx pin or
PF1 pin.
1 - Sample UART RX pin
or PPI_CLK pin.
