Designing for High Frequency Operation
inches of ground lead causes ringing to be seen on the displayed trace and
makes the signal appear to have excessive overshoot and undershoot.
A 1 GHz or better sampling oscilloscope is needed to see the signals
accurately.
CASE 1:
BYPASS CAPACITORS ON NON-COMPONENT
(BOTTOM) SIDE OF BOARD, BENEATH DSP PACKAGE

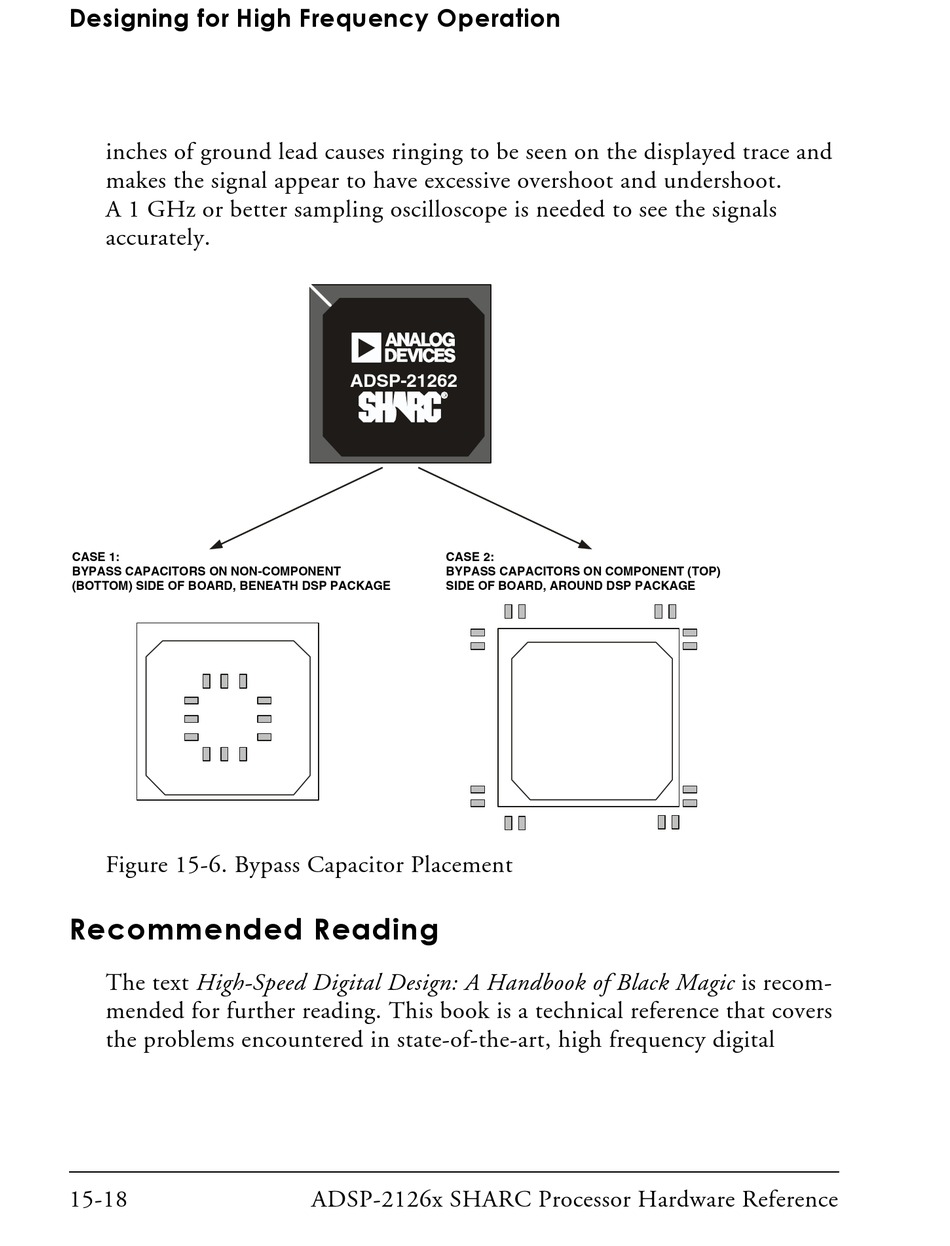

Figure 15-6. Bypass Capacitor Placement
Recommended Reading
The text High-Speed Digital Design: A Handbook of Black Magic is recom-
mended for further reading. This book is a technical reference that covers
the problems encountered in state-of-the-art, high frequency digital
15-18
a
ADSP-21262
S
CASE 2:
BYPASS CAPACITORS ON COMPONENT (TOP)
SIDE OF BOARD, AROUND DSP PACKAGE
