I/O Processor Registers

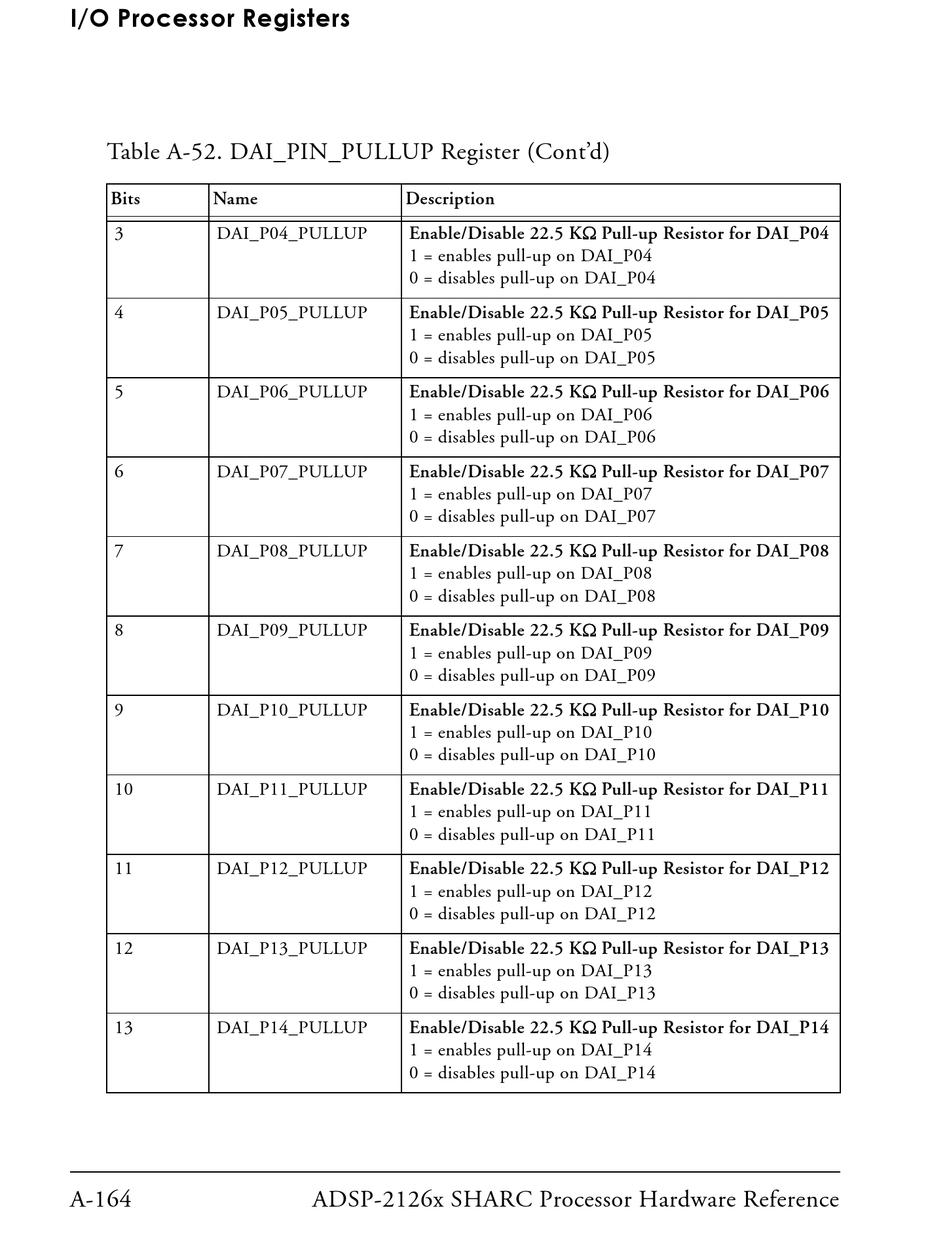

Table A-52. DAI_PIN_PULLUP Register (Cont'd)
Bits Name
3 DAI_P04_PULLUP
4 DAI_P05_PULLUP
5 DAI_P06_PULLUP
6 DAI_P07_PULLUP
7 DAI_P08_PULLUP
8 DAI_P09_PULLUP
9 DAI_P10_PULLUP
10 DAI_P11_PULLUP
11 DAI_P12_PULLUP
12 DAI_P13_PULLUP
13 DAI_P14_PULLUP
A-164
Description
Enable/Disable 22.5 K Pull-up Resistor for DAI_P04
1 = enables pull-up on DAI_P04
0 = disables pull-up on DAI_P04
Enable/Disable 22.5 K Pull-up Resistor for DAI_P05
1 = enables pull-up on DAI_P05
0 = disables pull-up on DAI_P05
Enable/Disable 22.5 K Pull-up Resistor for DAI_P06
1 = enables pull-up on DAI_P06
0 = disables pull-up on DAI_P06
Enable/Disable 22.5 K Pull-up Resistor for DAI_P07
1 = enables pull-up on DAI_P07
0 = disables pull-up on DAI_P07
Enable/Disable 22.5 K Pull-up Resistor for DAI_P08
1 = enables pull-up on DAI_P08
0 = disables pull-up on DAI_P08
Enable/Disable 22.5 K Pull-up Resistor for DAI_P09
1 = enables pull-up on DAI_P09
0 = disables pull-up on DAI_P09
Enable/Disable 22.5 K Pull-up Resistor for DAI_P10
1 = enables pull-up on DAI_P10
0 = disables pull-up on DAI_P10
Enable/Disable 22.5 K Pull-up Resistor for DAI_P11
1 = enables pull-up on DAI_P11
0 = disables pull-up on DAI_P11
Enable/Disable 22.5 K Pull-up Resistor for DAI_P12
1 = enables pull-up on DAI_P12
0 = disables pull-up on DAI_P12
Enable/Disable 22.5 K Pull-up Resistor for DAI_P13
1 = enables pull-up on DAI_P13
0 = disables pull-up on DAI_P13
Enable/Disable 22.5 K Pull-up Resistor for DAI_P14
1 = enables pull-up on DAI_P14
0 = disables pull-up on DAI_P14
