Spi General Operations - Analog Devices ADSP-21261 SHARC Hardware Reference Manual

8-bit host microcontroller is the SPI master. The processor can be booted
via its SPI interface to allow application code and data to be downloaded
prior to runtime.
8-bit Host
MICROCONTROLLER
SCLK
S_SEL
MOSI
MISO

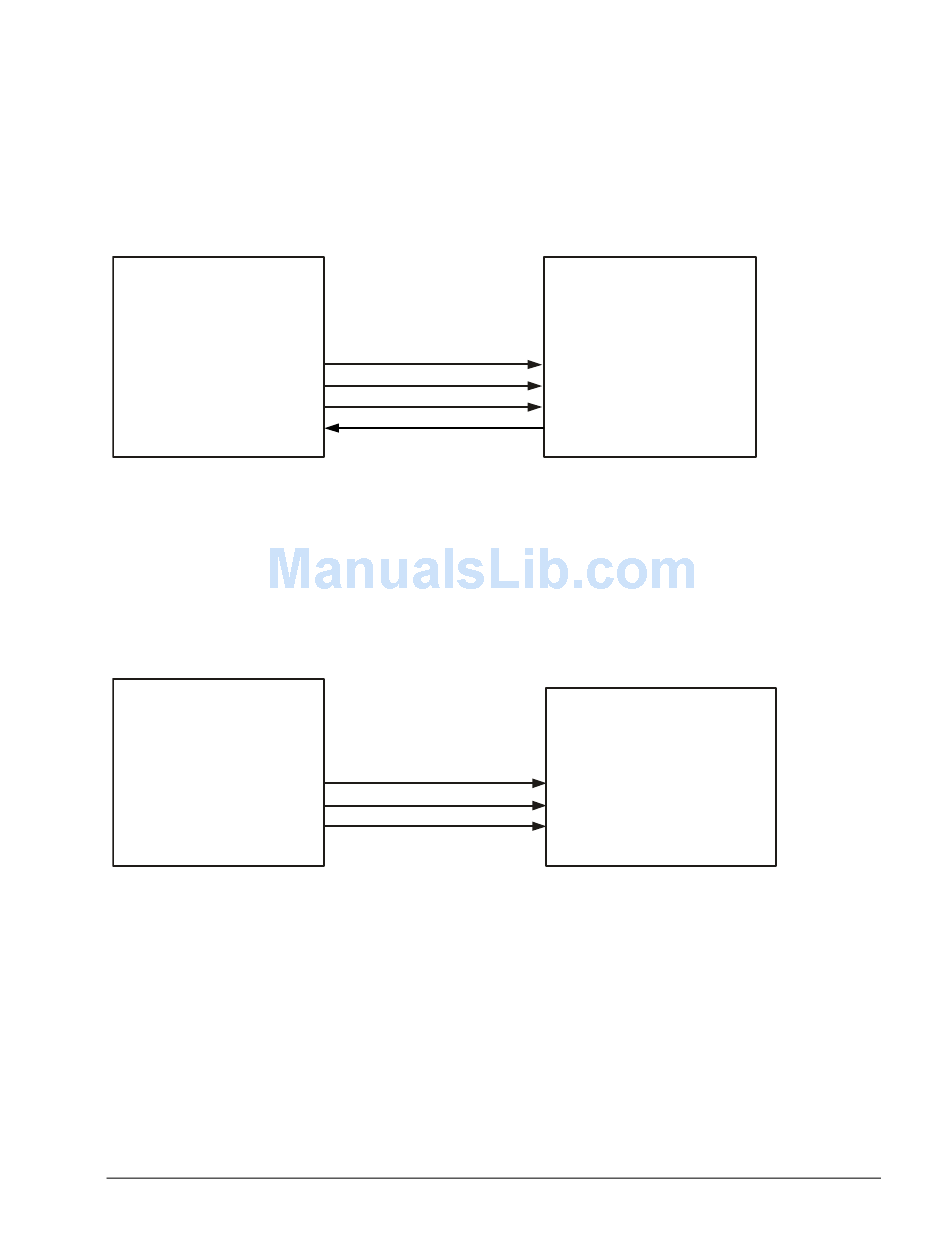

Figure 10-4. ADSP-2126x Processor as SPI Slave
Figure 10-5 illustrates an example of an ADSP-2126x SPI interface where
the processor is the SPI master. When it uses the SPI interface, the proces-
sor can be directed to alter the conversion resources, mute the sound,
modify the volume, and power down the AD1855 stereo DAC.
ADSP-2126x
MASTER DEVICE
SPICLK
FLAG0
MOSI
Figure 10-5. ADSP-2126x Processor as SPI Master

SPI General Operations

The SPI in the ADSP-2126x processor can be used in a single master as
well as in a multimaster environment. In both configurations, every
pin in the SPI system is connected. Likewise, every
ADSP-2126x SHARC Processor Hardware Reference
Serial Peripheral Interface Port
ADSP-2126x
SLAVE SPI DEVICE
SPICLK
SPIDS
MOSI
MISO
AD1855
STEREO 96 KHZ DAC
CCLK
CLATCH
DATA
MISO
MOSI
pin in the system
10-7
