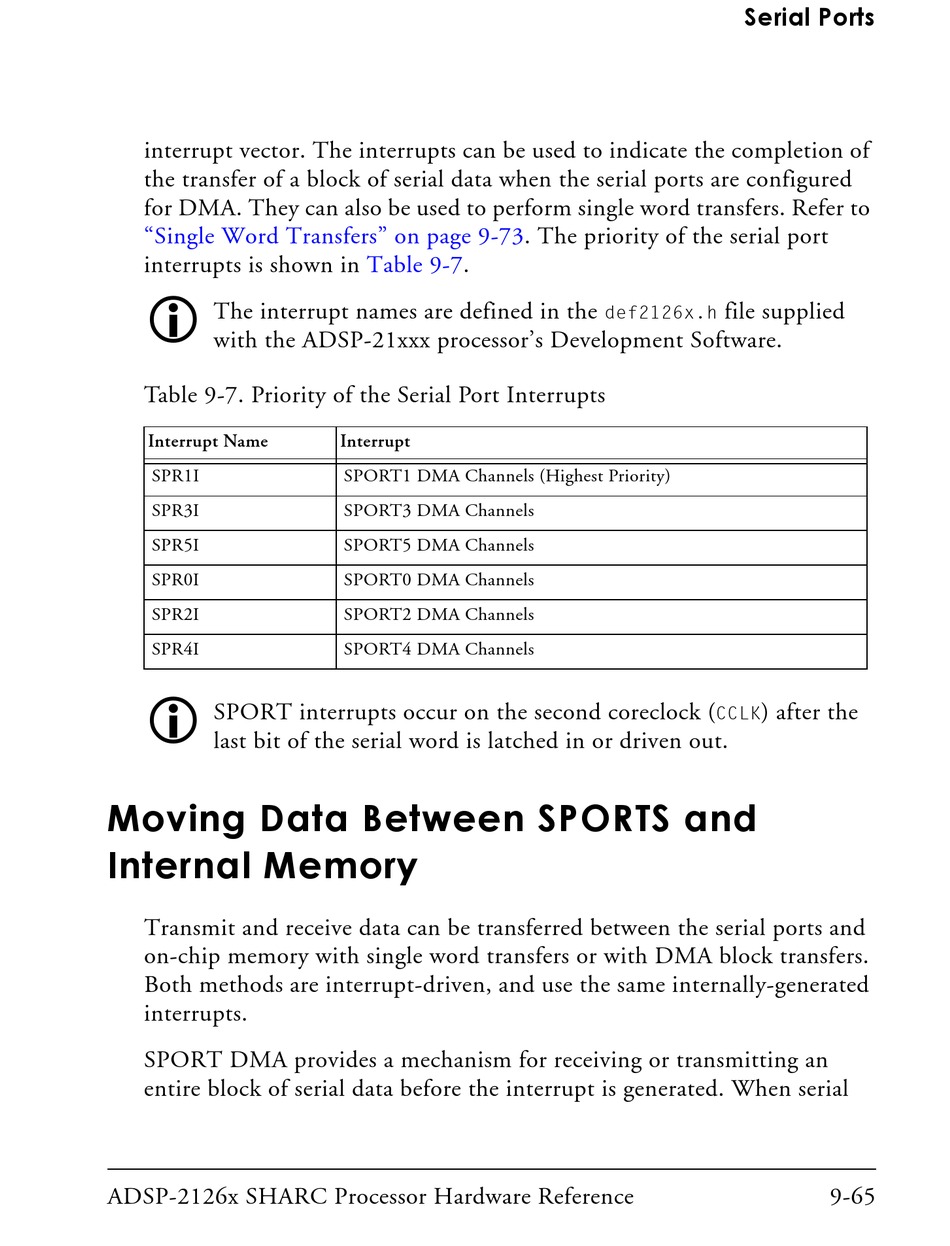

interrupt vector. The interrupts can be used to indicate the completion of
the transfer of a block of serial data when the serial ports are configured
for DMA. They can also be used to perform single word transfers. Refer to
"Single Word Transfers" on page
interrupts is shown in

The interrupt names are defined in the
with the ADSP-21xxx processor's Development Software.
Table 9-7. Priority of the Serial Port Interrupts
Interrupt Name
SPR1I
SPR3I
SPR5I
SPR0I
SPR2I
SPR4I

SPORT interrupts occur on the second coreclock (
last bit of the serial word is latched in or driven out.
Moving Data Between SPORTS and
Internal Memory
Transmit and receive data can be transferred between the serial ports and
on-chip memory with single word transfers or with DMA block transfers.
Both methods are interrupt-driven, and use the same internally-generated
interrupts.
SPORT DMA provides a mechanism for receiving or transmitting an
entire block of serial data before the interrupt is generated. When serial
ADSP-2126x SHARC Processor Hardware Reference
9-73. The priority of the serial port
Table 9-7.
Interrupt
SPORT1 DMA Channels (Highest Priority)
SPORT3 DMA Channels
SPORT5 DMA Channels
SPORT0 DMA Channels
SPORT2 DMA Channels
SPORT4 DMA Channels
Serial Ports
file supplied
def2126x.h
) after the
CCLK
9-65
