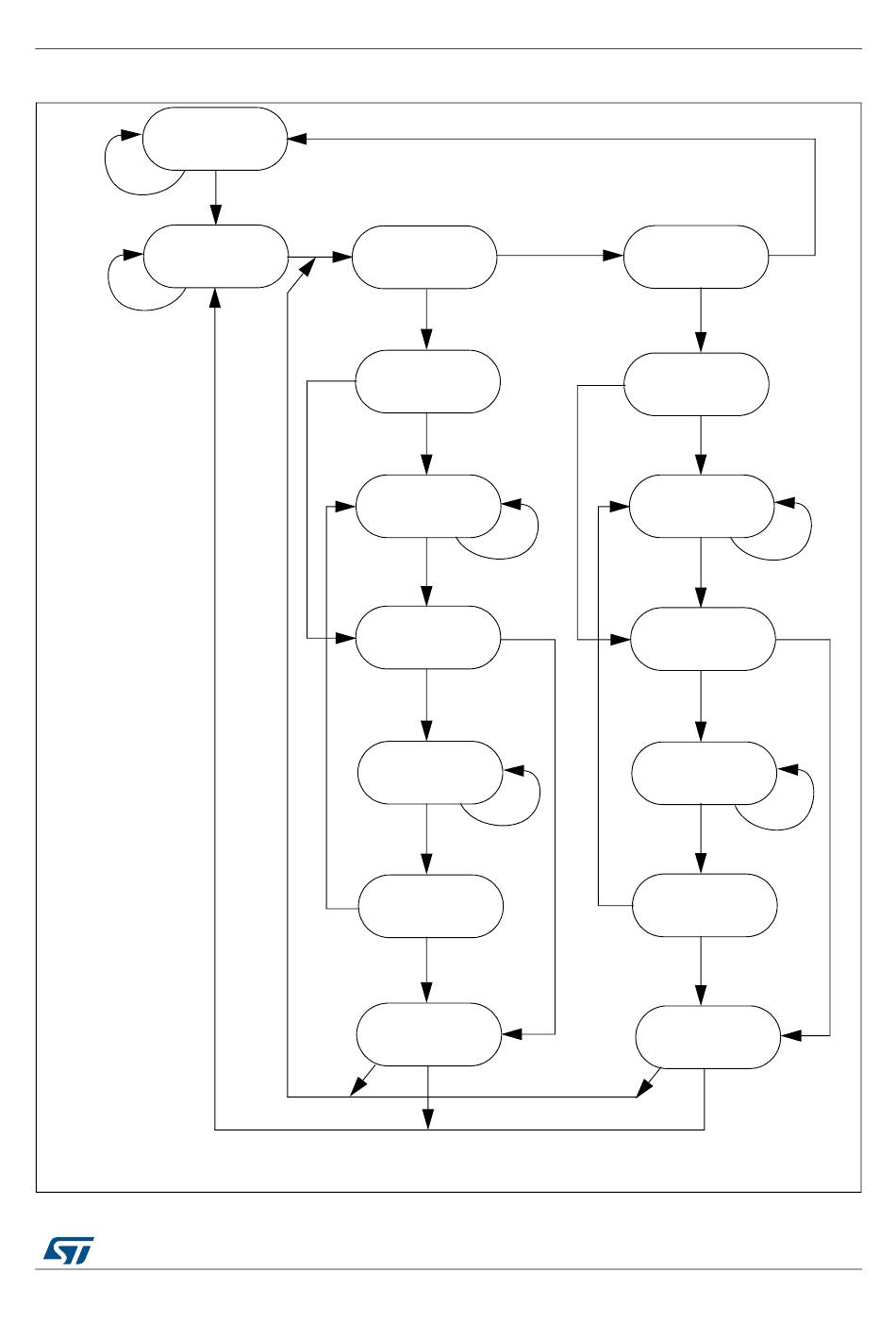

Figure 455. Ieee 1149.1 16-State Finite State Machine - STMicroelectronics SPC572L series Reference Manual

RM0400
TEST LOGIC
RESET
1
RUN-TEST/IDLE
0
NOTE: The value shown adjacent to each state transition in this figure represents the value of the TMS bit
at the time of a rising edge of TCK.

Figure 455. IEEE 1149.1 16-State finite state machine

0
1
SELECT-DR-SCAN
1
CAPTURE-DR
SHIFT-DR
EXIT1-DR
PAUSE-DR
0
EXIT2-DR
UPDATE-DR
1
