Table 540. Interrupt Line Select Register Field Descriptions - STMicroelectronics SPC572L series Reference Manual

CAN Subsystem
Address: 0x0058
0 1 2
R
W
Reset 0 0 0
16 17 18
R
W
Reset 0 0 0
Field
Stuff Error Interrupt Line
0
0 Interrupt assigned to interrupt line M_CAN INT0
STEL
1 Interrupt assigned to interrupt line M_CAN INT1
Format Error Interrupt Line
1
0 Interrupt assigned to interrupt line M_CAN INT0
FOEL
1 Interrupt assigned to interrupt line M_CAN INT1
Acknowledge Error Interrupt Line
2
0 Interrupt assigned to interrupt line M_CAN INT0
ACKEL
1 Interrupt assigned to interrupt line M_CAN INT1
Bit Error Interrupt Line
3
0 Interrupt assigned to interrupt line M_CAN INT0
BEL
1 Interrupt assigned to interrupt line M_CAN INT1
CRC Error Interrupt Line
4
0 Interrupt assigned to interrupt line M_CAN INT0
CRCEL
1 Interrupt assigned to interrupt line M_CAN INT1
Watchdog Interrupt Line
5
0 Interrupt assigned to interrupt line M_CAN INT0
WDIL
1 Interrupt assigned to interrupt line M_CAN INT1
Bus_Off Status Interrupt Line
6
0 Interrupt assigned to interrupt line M_CAN INT0
BOL
1 Interrupt assigned to interrupt line M_CAN INT1
Warning Status Interrupt Line
7
0 Interrupt assigned to interrupt line M_CAN INT0
EWL
1 Interrupt assigned to interrupt line M_CAN INT1
Error Passive Interrupt Line
8
0 Interrupt assigned to interrupt line M_CAN INT0
EPL
1 Interrupt assigned to interrupt line M_CAN INT1
1024/2058
3 4 5
0 0 0
19 20 21
0 0 0

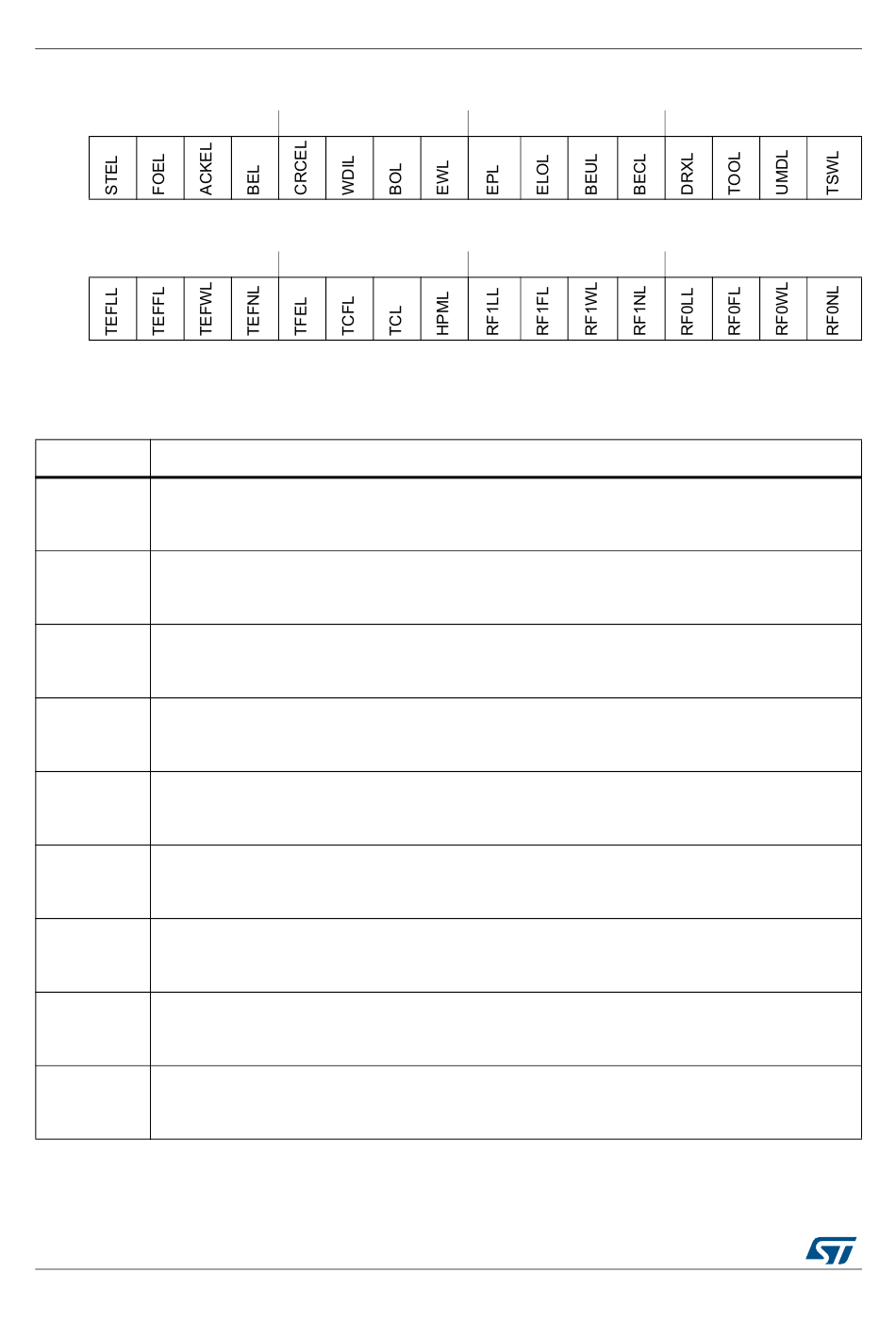

Figure 487. Interrupt line select register

Table 540. Interrupt line select register field descriptions

6 7 8 9
0 0 0 0
22 23 24 25
0 0 0 0
