RM0400
34.1.2

Analog input pin multiplexing

There are 24 external analog input pins in the 100-pin QFP for SPC572Lx, and 18 in the 80-
pin QFP. All analog input pins in either package are readable by SAR ADCB. In addition to
Analog-to-digital converter (ADC) configuration

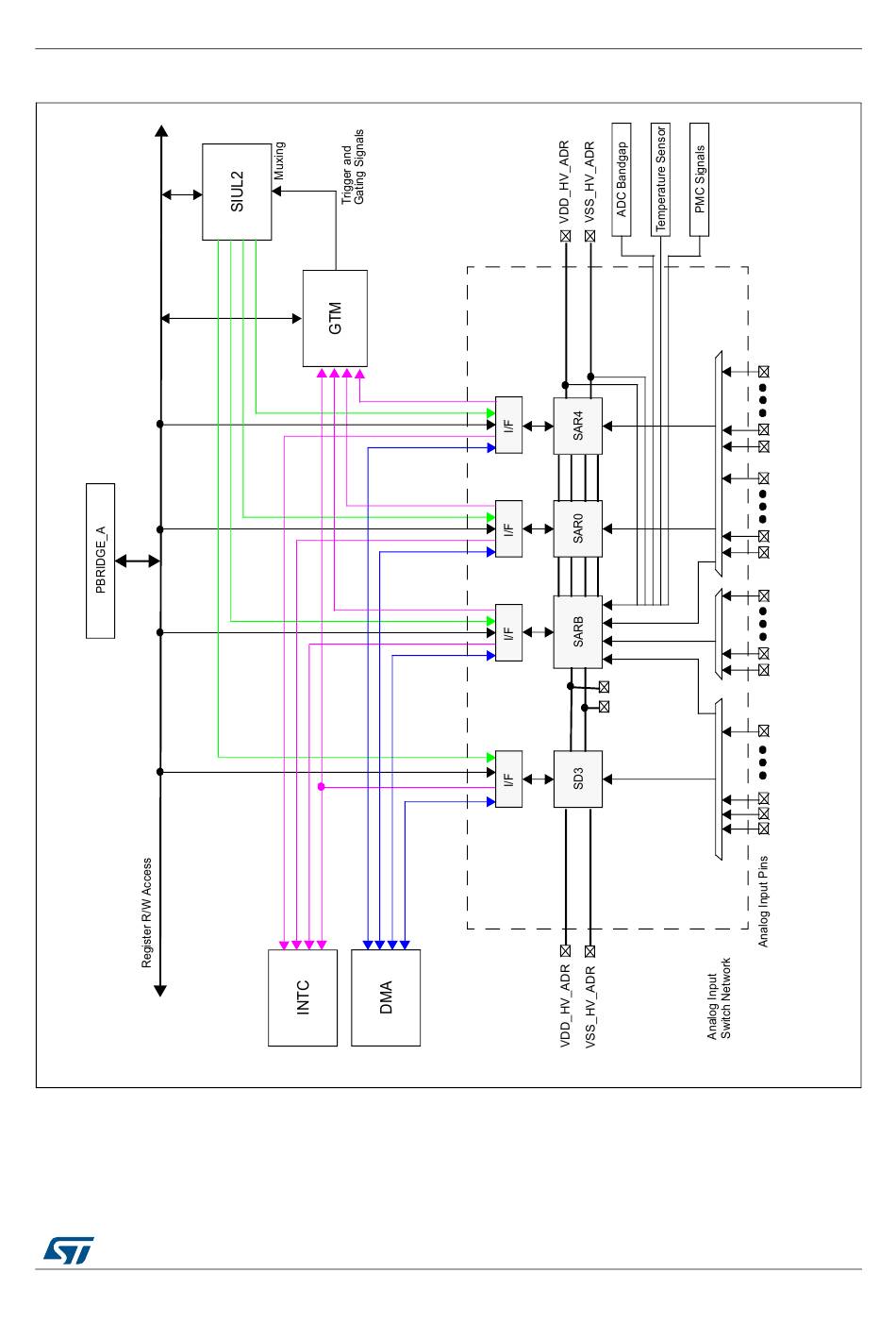

Figure 303. SPC572Lx ADC subsystem
DocID027809 Rev 4
VDD_HV_ADV
VSS_HV_ADV
693/2058
731
