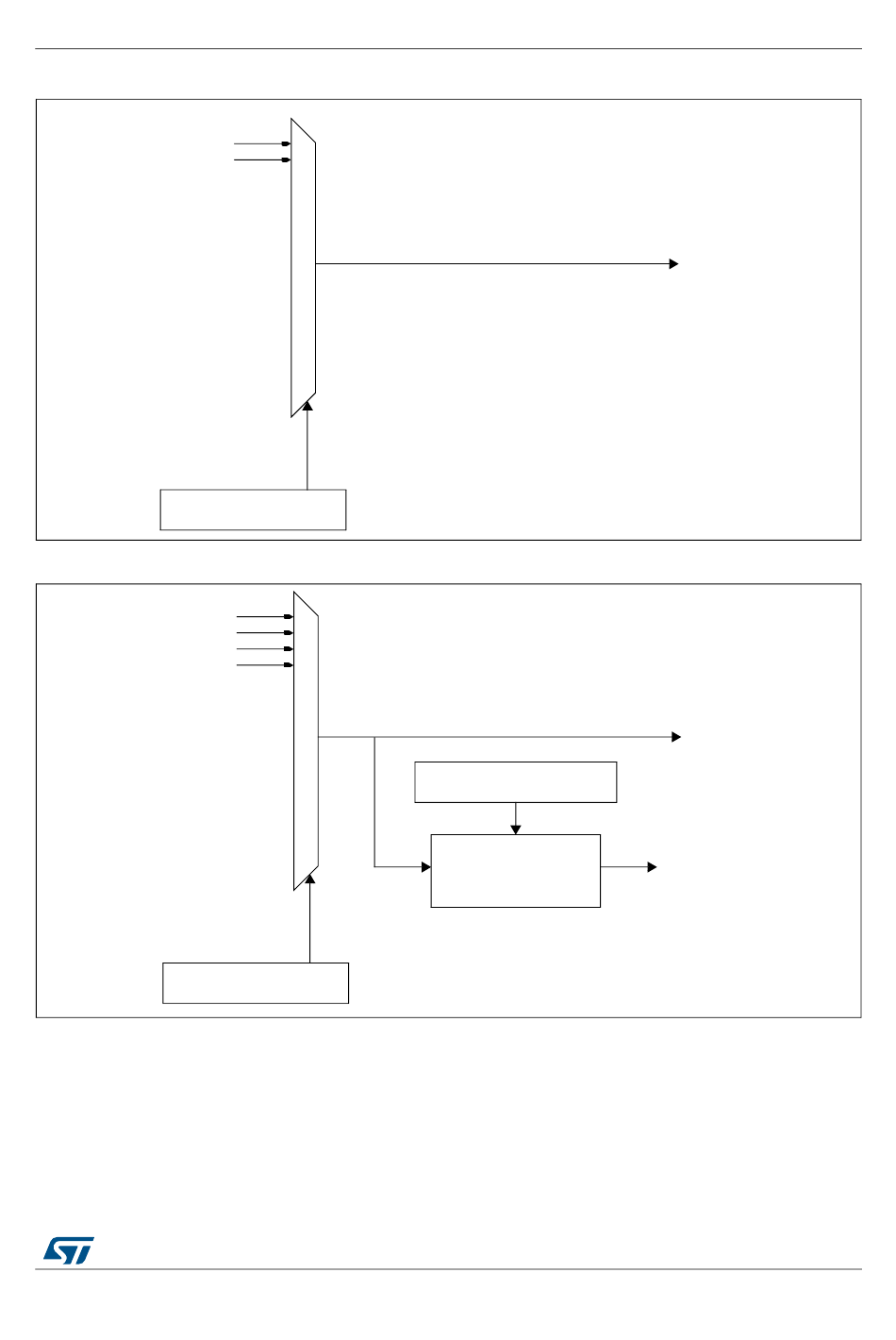

Figure 223. MC_CGM Auxiliary Clock 3 Generation Overview

IRCOSC
XOSC
CGM_AC3_SC Register
Figure 224. MC_CGM Auxiliary Clock 7 Generation Overview
IRCOSC
XOSC
PLL0 PHI
PLL0 PHI1
CGM_AC7_SC Register
0
1
0
1
2
3
CGM_AC7_DC0 Register
DocID027809 Rev 4
Clock Generation Module (MC_CGM)
clock divider
PLL0 reference clock
(unused)
SYSCLK1 pin clock
