Deserial Serial Peripheral Interface (DSPI)

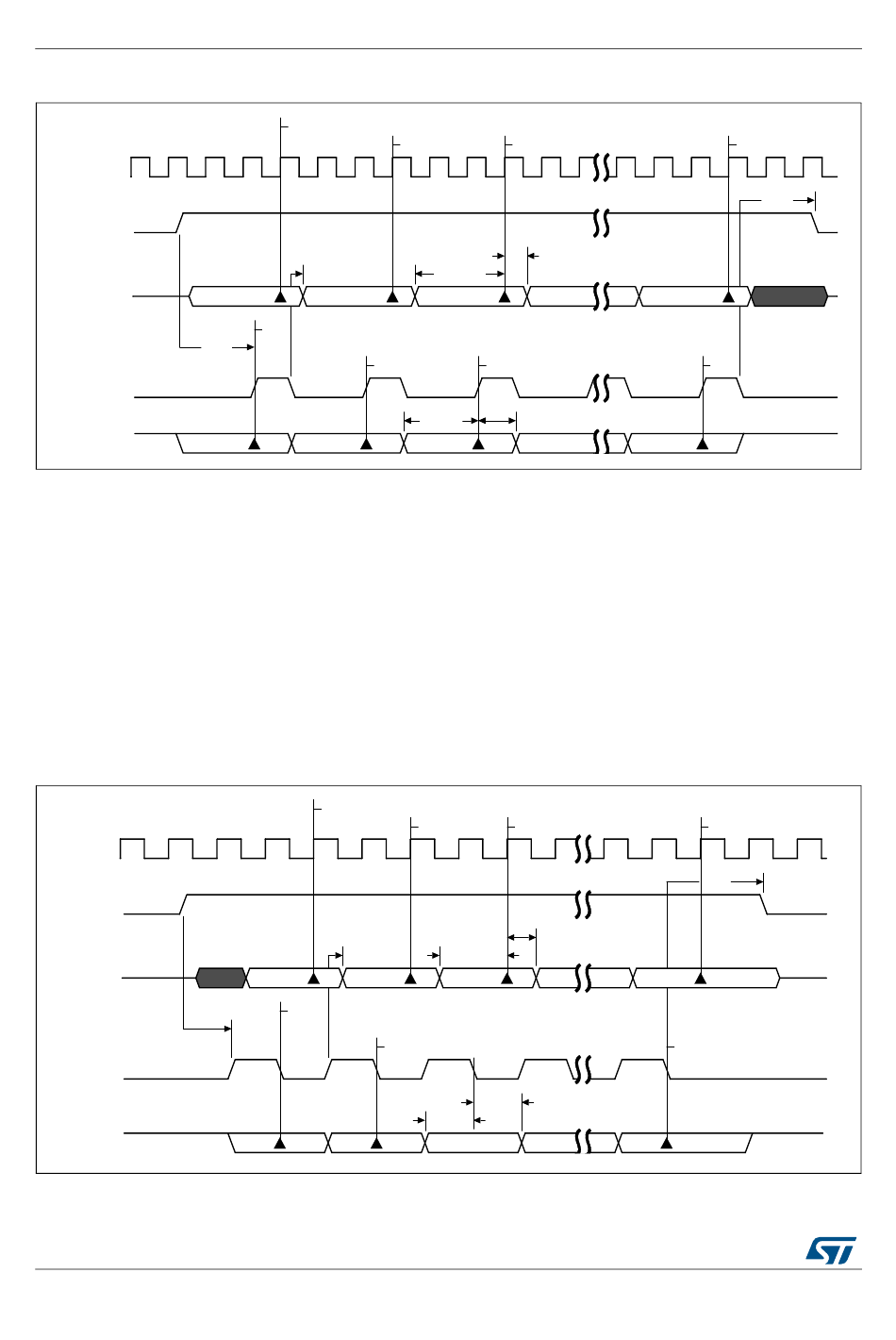

Figure 623. DSPI Modified Transfer Format (MTFE = 1, CPHA = 0, f
protocol
clk
PCS
SIN
t
SCK
SOUT
46.5.6.4 Modified SPI/DSI Transfer Format (MTFE = 1, CPHA = 1)
The following figures show the Modified Transfer Format for CPHA = 1. Only the condition,
where CPOL = 0 is shown. At the start of a transfer the DSPI asserts the PCS signal to the
slave device. After the PCS to SCK delay has elapsed the master and the slave put data on
their SOUT pins at the first edge of SCK. The slave samples the master SOUT signal on the
even numbered edges of SCK. The master samples the slave SOUT signal on the odd
numbered SCK edges starting with the third SCK edge. The slave samples the last bit on
the last edge of the SCK. The master samples the last slave SOUT bit one half SCK cycle
after the last edge of SCK. No clock edge will be visible on the master SCK pin during the
sampling of the last bit. The SCK to PCS delay must be greater or equal to half of the
SCK period.
Figure 624. DSPI Modified Transfer Format (MTFE = 1, CPHA = 1, f
protocol
clk
PCS
SIN
SCK
SOUT
