LVDS Fast Asynchronous Serial Transmission (LFAST) – Interprocessor Communications
47.10.2.2 Slow speed 4-phase generator
Clock control module will generate 4 phases of slow speed clock of frequency of 10/13 MHz.
For instance, if lfast_sysclk is 10 MHz then 4 phases of 5 MHz will be generated.

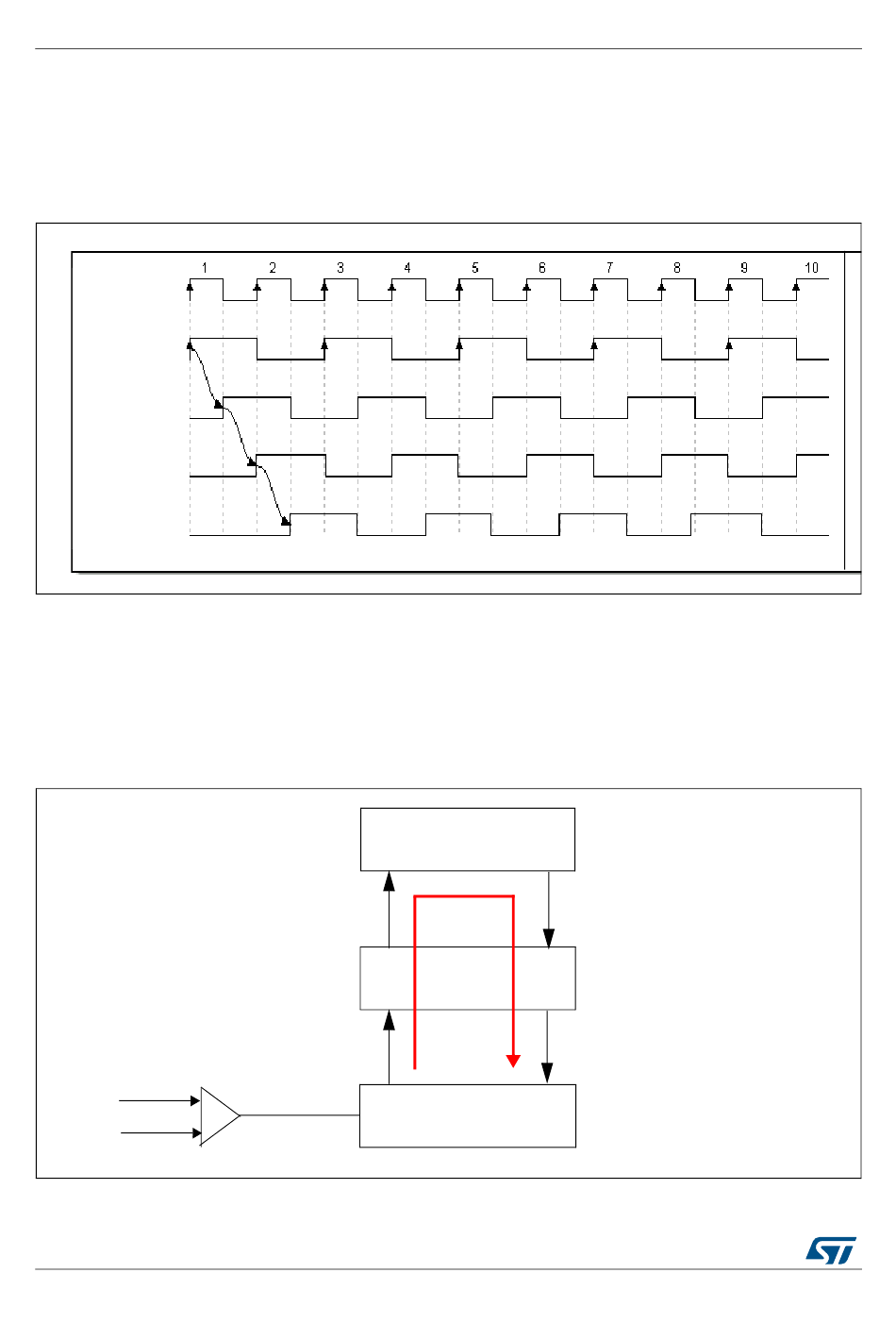

Shows 4 phases getting generated using lfast_sysclk.
10M_clock
5M_phase0_clk
5M_phase0_clk
5M_phase0_clk
5M_phase0_clk
47.10.3

Rx controller clocks

47.10.3.1 Clocking module requirements for high speed phases
The high speed Phases are obtained from the PLL via the Clocking Module as shown in
Figure 687.
Phase Enables to dig_ccm_top
LR
1290/2058
Figure 686. Slow speed 4 phases generation
Figure 687. Clock Enables and Clock Paths
round trip
Phase Enables
Clocking
Interface
DocID027809 Rev 4
PLL
Phase Clock to dig_ccm_top
Module
Phase Clock to LFAST
LFAST
Figure 686
