Table 863. 'Functional' Event Short Sequence (Rgm_Fess) Register Field Descriptions - STMicroelectronics SPC572L series Reference Manual

Reset Generation Module (MC_RGM)
Address 0x340
0 1 2
R
0 0 0
W
'Dest'
0 0 0
Reset
16 17 18
R
0 0
W
'Dest'
0 0 0
Reset

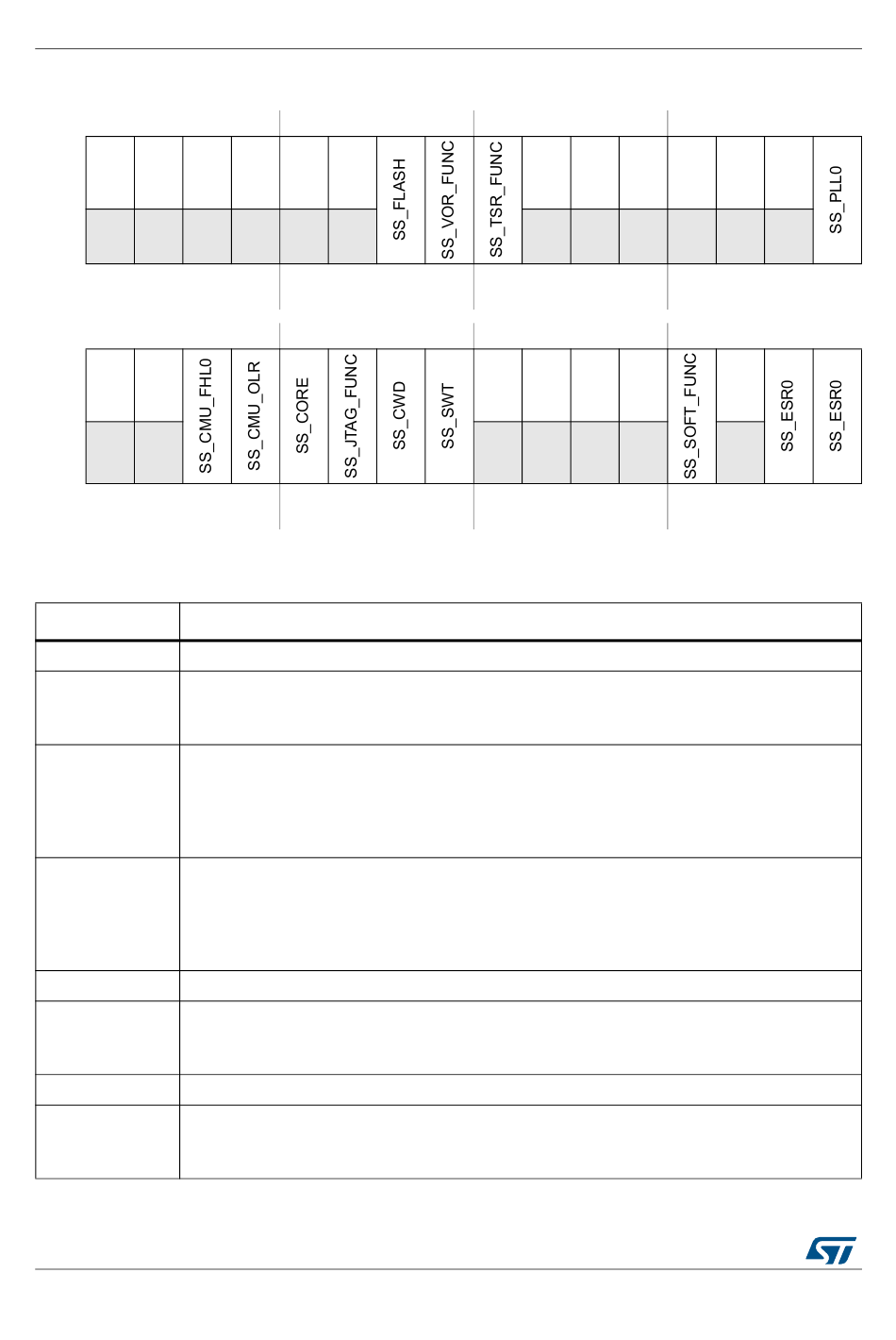

Figure 908. 'Functional' Event Short Sequence (RGM_FESS) register

Table 863. 'Functional' Event Short Sequence (RGM_FESS) register field descriptions

Field
0–5 Reserved
Short Sequence for Flash fatal error reset
6
0 The reset sequence triggered by a Flash fatal error reset event starts from PHASE1
SS_FLASH
1 The reset sequence triggered by a Flash fatal error reset event starts from PHASE3
Short Sequence for voltage out of range 'functional' reset
0 The reset sequence triggered by a voltage out of range 'functional' reset event will start from
7
PHASE1
SS_VOR_FUNC
1 The reset sequence triggered by a voltage out of range 'functional' reset event will start from
PHASE3, skipping PHASE1 and PHASE2
Short Sequence for temperature sensor 'functional' reset
0 The reset sequence triggered by a temperature sensor 'functional' reset event will start from
8
PHASE1
SS_TSR_FUNC
1 The reset sequence triggered by a temperature sensor 'functional' reset event will start from
PHASE3, skipping PHASE1 and PHASE2
9–14 Reserved
Short Sequence for PLL0 lock failure
15
0 The reset sequence triggered by a PLL0 lock failure event starts from PHASE1
SS_PLL0
1 The reset sequence triggered by a PLL0 lock failure event starts from PHASE3
16–17 Reserved
Short Sequence for system frequency out of range
18
0 The reset sequence triggered by a system frequency out of range event starts from PHASE1
SS_CMU_FHL0
1 The reset sequence triggered by a system frequency out of range event starts from PHASE3
