Table 857. 'Destructive' Event Alternate Request (Rgm_Dear) Register Field Descriptions - STMicroelectronics SPC572L series Reference Manual

RM0400
Address 0x020
0 1 2
R
0 0 0
W
POR 0 0 0
16 17 18
R
0 0 0
W
POR 0 0 0

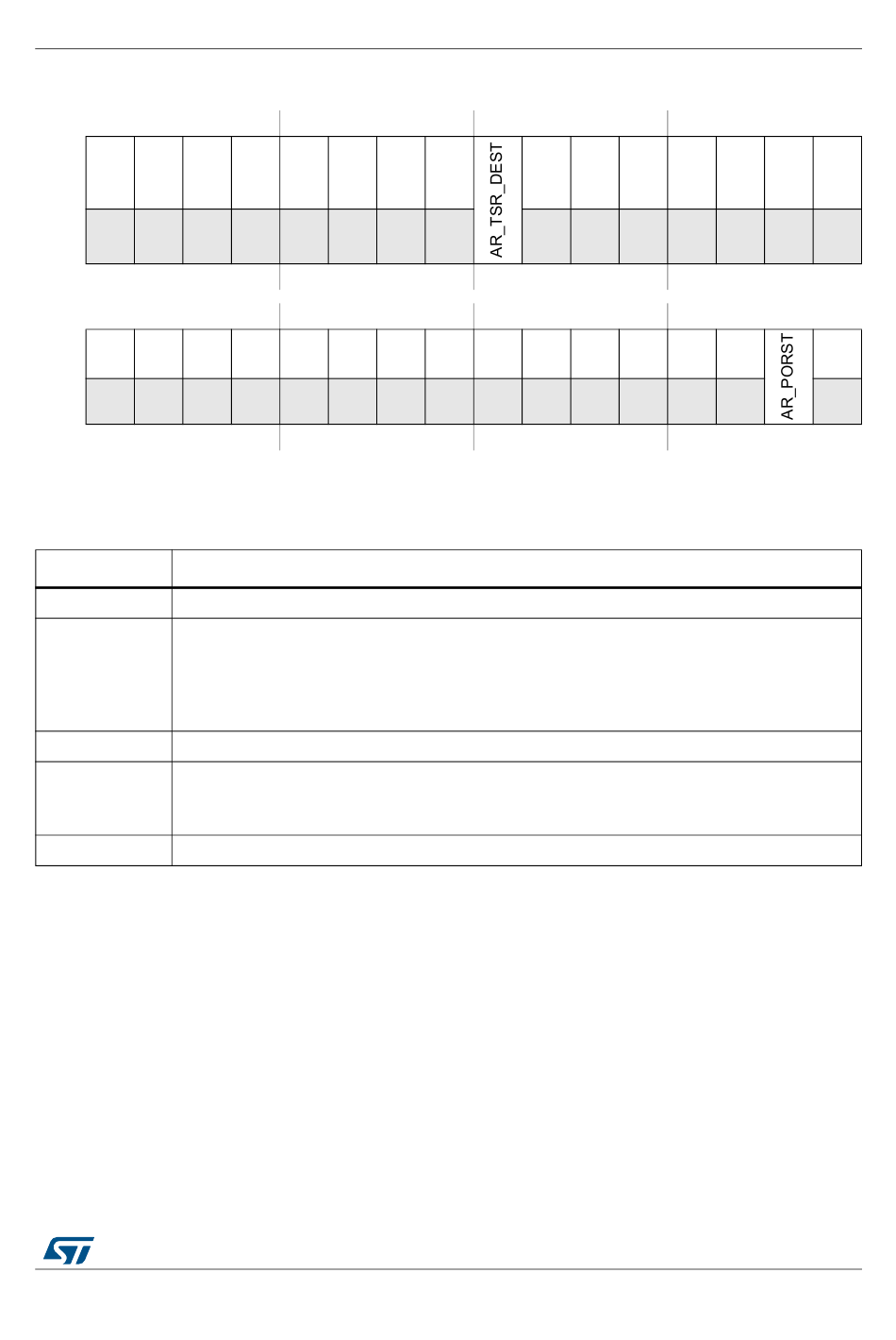

Figure 902. 'Destructive' Event Alternate Request (RGM_DEAR) register

Table 857. 'Destructive' Event Alternate Request (RGM_DEAR) register Field Descriptions

Field
0–7 Reserved
Alternate Request for temperature sensor 'destructive' reset
0 Generate a SAFE mode request on a temperature sensor 'destructive' reset event if the reset
8
is disabled
AR_TSR_DEST
1 Generate an interrupt request on a temperature sensor 'destructive' reset event if the reset is
disabled
9–29 Reserved
Alternate Request for external power-on reset
30
0 Generate a SAFE mode request on an external power-on reset event if the reset is disabled
AR_PORST
1 Generate an interrupt request on an external power-on reset event if the reset is disabled
31 Reserved
51.3.1.4 Destructive' Bidirectional Reset Enable (RGM_DBRE) register
This register enables the generation of an external reset on 'destructive' reset. Supervisor
and test modes allow for read/write access, whereas read access only is allowed in user
mode.
This register is reset only on power-on.
3 4 5 6
0 0 0 0
0 0 0 0
19 20 21 22
0 0 0 0
0 0 0 0
