Representative Logical Diagram Of A Queue - Intel IXP45X Developer's Manual

AHB Queue Manager (AQM)—Intel
Processors

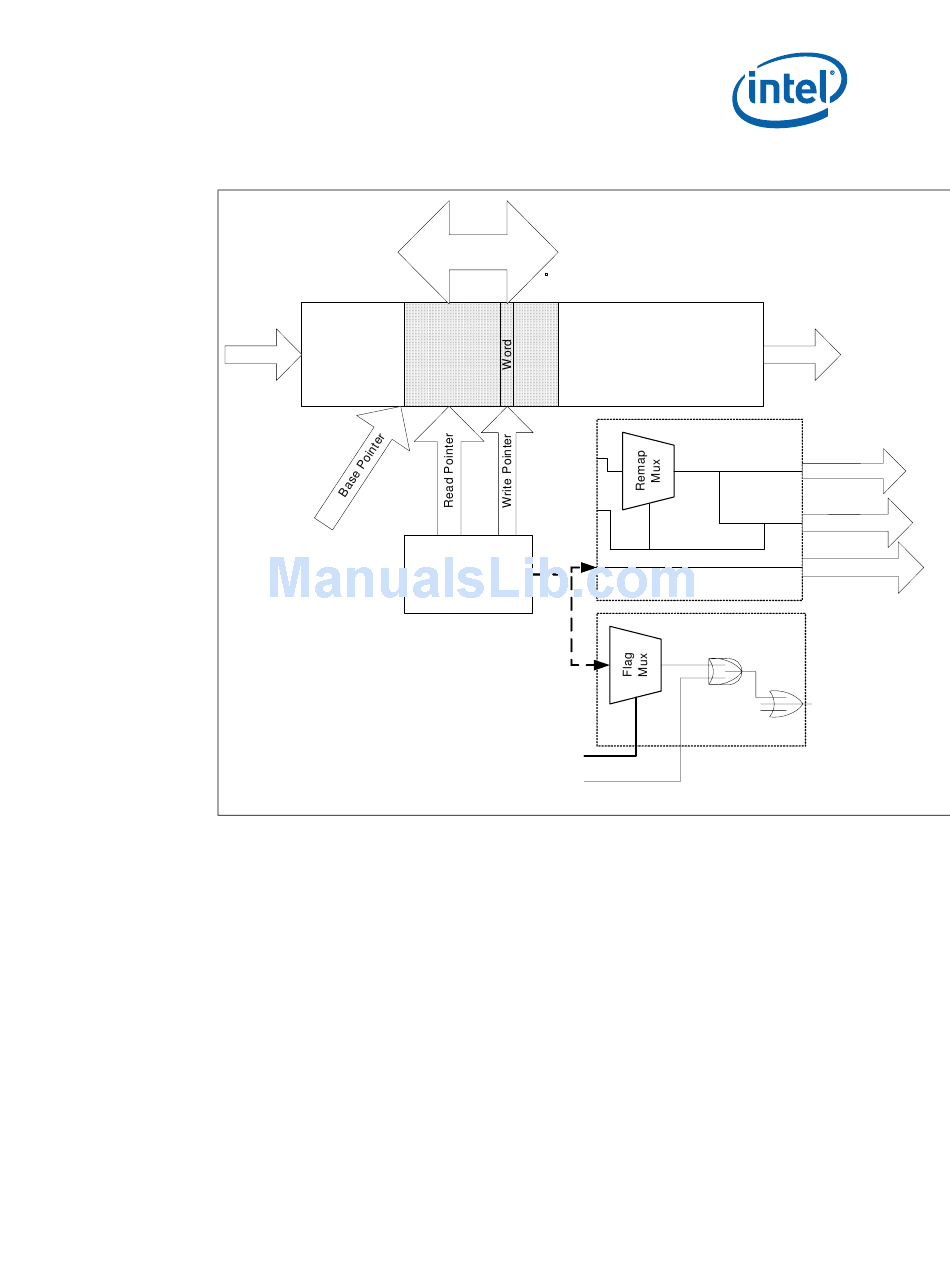

Figure 208. Representative Logical Diagram of a Queue
DIN
Figure 208
implementation of the AQM is as a monolithic controller of queues, but you can look at
each queue as if it stands alone. Each queue fits into the SRAM at a certain base
address, is a certain size, and maintains its own flags. The output of those flags
depends on whether the queue is a lower queue (0-31) or an upper queue (32-63). The
detailed description follows.
