20.2.1.1 SSP Format — Detail
When outgoing data in the SSP controller is ready to transmit, SSP_SFRM asserts for
one clock period. On the following clock, data to be transmitted is driven on SSP_TXD
one bit at a time, most significant bit first. Similarly, the peripheral drives data on the
SSP_RXD pin. Word length may be from 4 to 16 bits. All transitions take place on the
rising edge of SSP_SCLK and data sampling is done on the falling edge. At the end of
the transfer, SSP_TXD retains the value of the last bit sent (bit 0) through the next idle
period. If the SSP Port is disabled or reset, SSP_TXD is forced to zero.
Table 270
transmitted frame and when back-to-back frames are transmitted. Once the bottom
entry of the transmit FIFO contains data, SSP_SFRM is pulsed high for one SSP_SCLK
period and the value to be transmitted is transferred from the transmit FIFO to the
transmit logic's serial shift register. On the next rising edge of SSP_SCLK, the MSB of
the 4 to 16-bit data frame is shifted to the SSP_TXD pin. Likewise, the MSB of the
received data is shifted onto the SSP_RXD pin by the off-chip serial slave device. Both
the SSP and the off-chip serial slave device then latch each data bit into their serial
shifter on the falling edge of each SSP_SCLK. The received data is transferred from
the serial shifter to the receive FIFO on the first rising edge of SSP_SCLK after the LSB
has been latched.
.

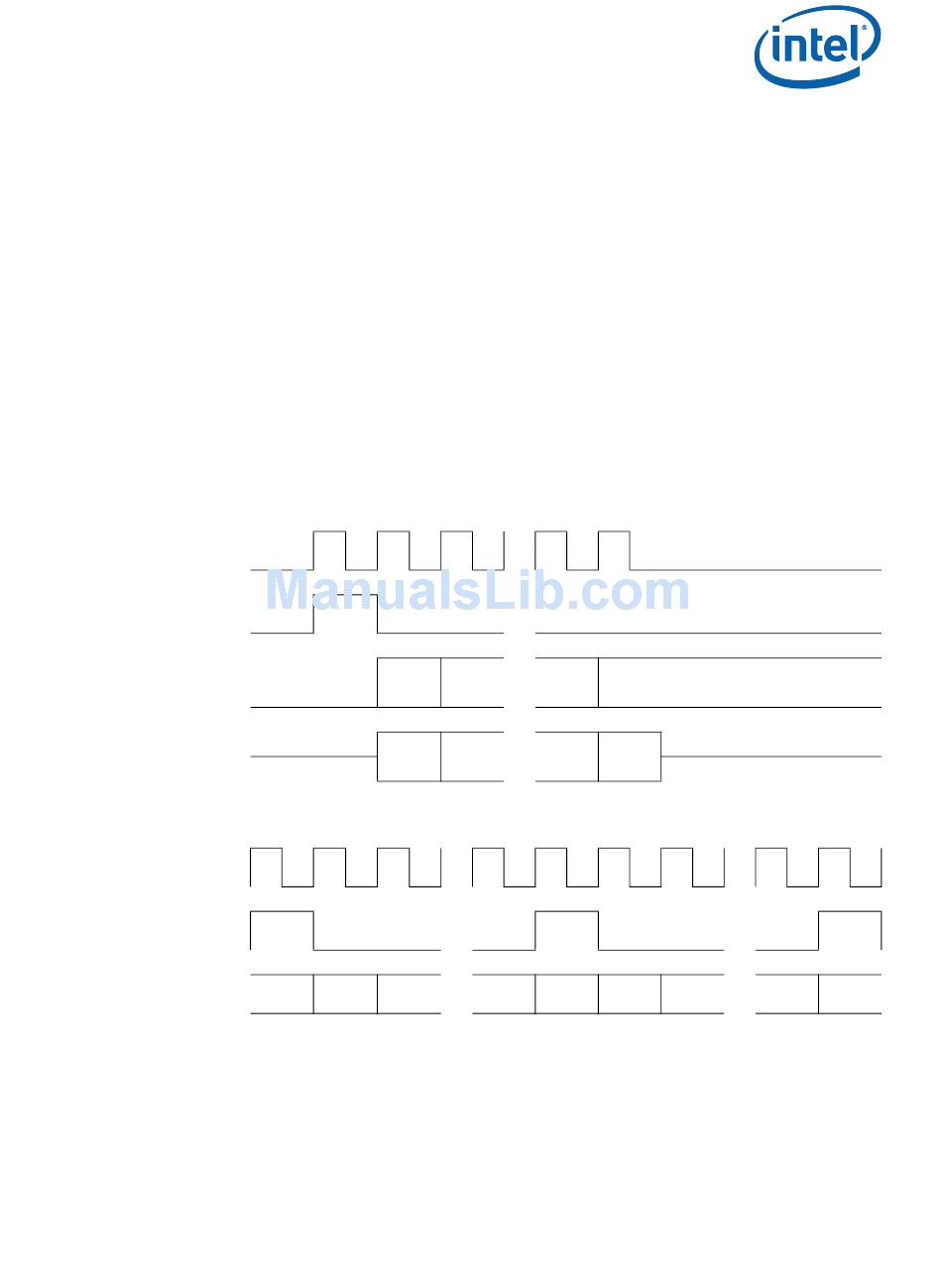

Table 270. Texas Instruments
SSP_S
CLK
SSP_S
FRM
SSP_T
XD
SSP_R
XD
SSP_S
CLK
SSP_S
FRM
TX/RX
20.2.1.2 SPI Format — Detail
Note that there are four possible sub-modes of the SPI format depending on the
SSP_SCLK edges selected for driving data and sampling received data, and on the
selection of the phase mode of SSP_SCLK see
page 866
