12.4.1.8.16 TI* HPI-16, Multiplexed-Mode Write Access

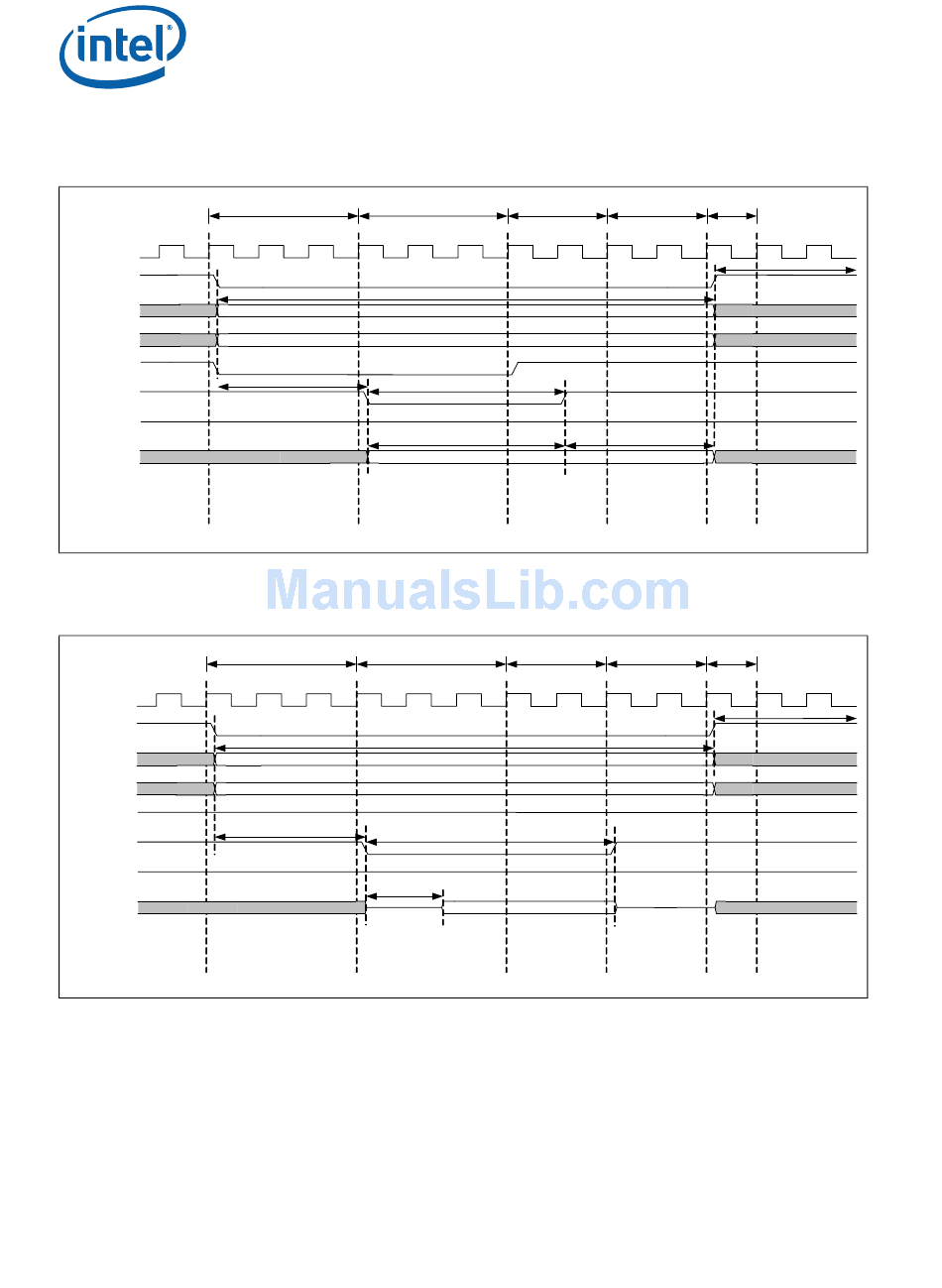

Figure 144. Expansion Bus Write (TI* HPI-16, Multiplexed Mode)
EX_CLK
EX_CS_N[0]
(hcs_n)
EX_ADDR[2:1]
(hcntl)
EX_BE_N[3:0]
EX_RD_N
(hr_w_n)
EX_WR_N
(hds1_n)
EX_RDY_N
(hrdy)
EX_DATA[31:0]
(hdin)
12.4.1.8.17 TI* HPI-16, Multiplexed-Mode Read Access
Figure 145. Expansion Bus Read (TI* HPI-16, Multiplexed Mode)
EX_CLK
EX_CS_N[0]
(hcs_n)
EX_ADDR[2:1]
(hcntl)
EX_BE_N[3:0]
EX_RD_N
(hr_w_n)
EX_WR_N
(hds1_n)
EX_RDY_N
(hrdy)
EX_DATA[31:0]
(hdout)
® ®
