Layer 4 Interconnect
2.11 TIPB Router

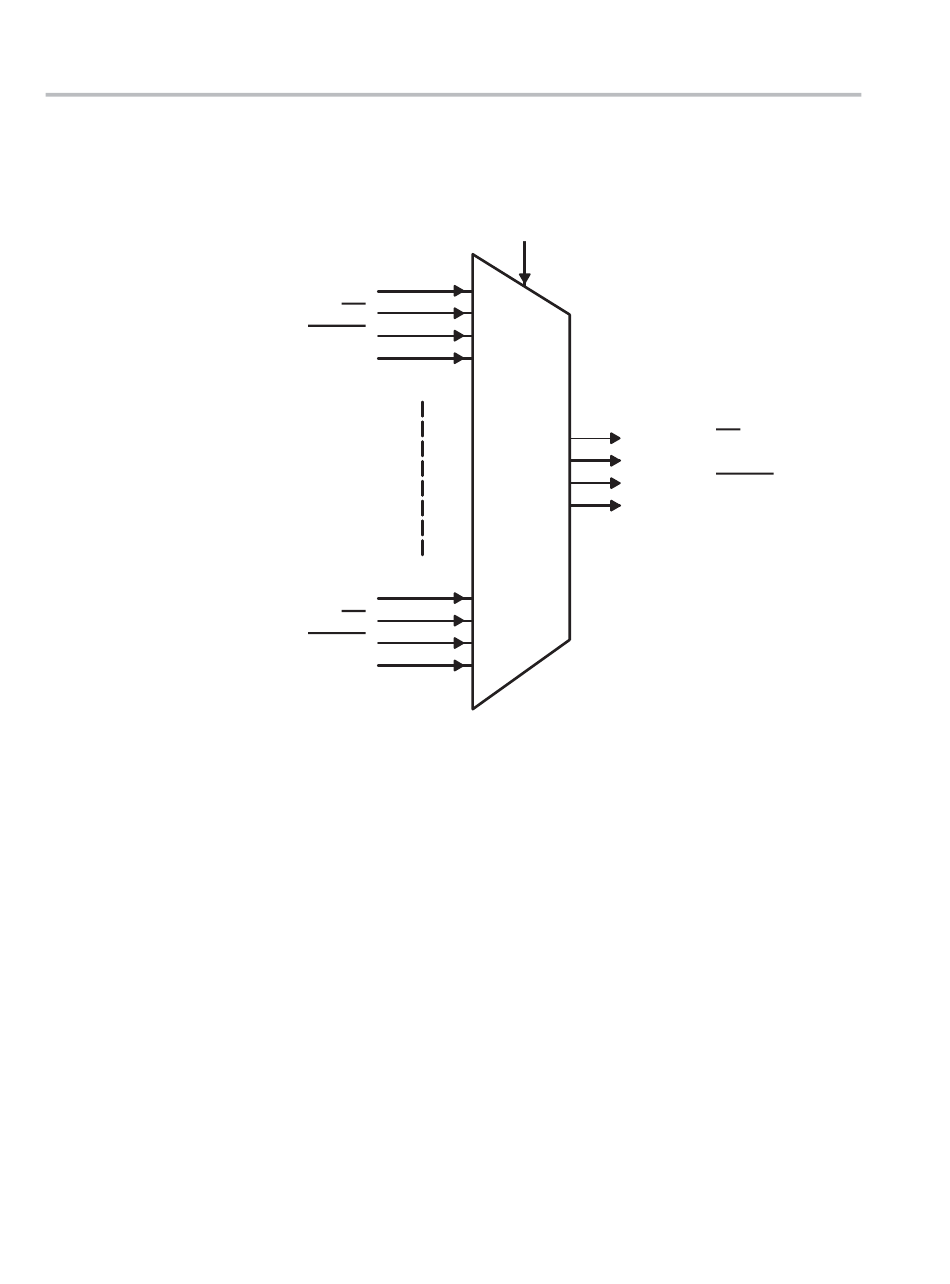

Figure 7. TIPB Router Block Diagram
L4_PERIPH_DI [31:0]
L4_PERIPH_READY
L4_PERIPH_PERHMAS [1:0]
L4_PERIPH_DI [31:0]
L4_PERIPH_READY
L4_PERIPH_PERHMAS [1:0]
34 Peripheral Interconnects
L4_PERIPH_OE
Up to 32 peripherals
L4_PERIPH_OE
The TIPB router is a simple multiplexer that returns information coming from
peripherals to the host (DSP or MPU). The information concerns a current
READ or WRITE access on a peripheral. This TIPB router supports up to 32
peripheral connections.
L4_HOST_CS [4:0]
L4_HOST_OE
L4_HOST_DI [31:0]
TIPB
L4_HOST_READY
router
L4_HOST_PERHMAS [1:0]
