Digital camera interface (DCMI)
from the camera are stable and can be sampled. The maximum DCMI_PIXCLK period must
be higher than 2.5 HCLK periods.
24.3.4 DCMI DMA interface
The DMA interface is active when the CAPTURE bit of the DCMI_CR register is set. A DMA
request is generated each time the camera interface receives a complete 32-bit data block
in its register.
24.3.5 DCMI physical interface
The interface is composed of 11/13/15/17 inputs. Only the Slave mode is supported.
The camera interface can capture 8-bit, 10-bit, 12-bit or 14-bit data depending on the
EDM[1:0] bits of the DCMI_CR register. If less than 14 bits are used, the unused input pins
must be connected to ground.
DCMI pins are shown in
The data are synchronous with DCMI_PIXCLK and change on the rising/falling edge of the
pixel clock depending on the polarity.
The DCMI_HSYNC signal indicates the start/end of a line.
The DCMI_VSYNC signal indicates the start/end of a frame
1. The capture edge of DCMI_PIXCLK is the falling edge, the active state of DCMI_HSYNC and
DCMI_VSYNC is 1.
2. DCMI_HSYNC and DCMI_VSYNC can change states at the same time.
8-bit data
When EDM[1:0] = 00 in DCMI_CR the interface captures 8 LSBs at its input (DCMI_D[7:0])
and stores them as 8-bit data. The DCMI_D[13:8] inputs are ignored. In this case, to capture
a 32-bit word, the camera interface takes four pixel clock cycles.
The first captured data byte is placed in the LSB position in the 32-bit word and the 4
captured data byte is placed in the MSB position in the 32-bit word. The table below gives
an example of the positioning of captured data bytes in two 32-bit words.
768/2301
Table 154.

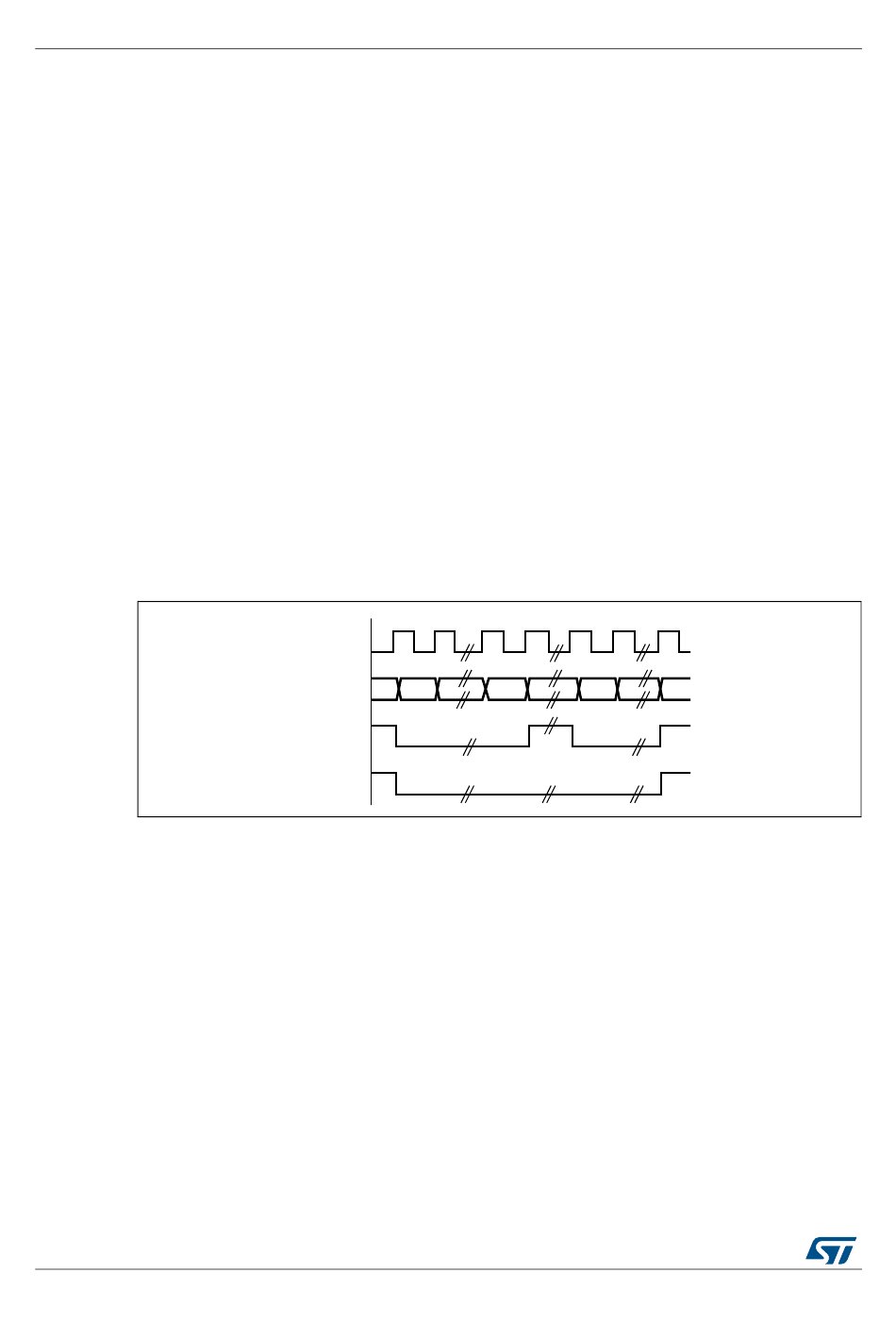

Figure 169. DCMI signal waveforms
DCMI_PIXCLK
DCMI_D[13:0]
DCMI_HSYNC
DCMI_VSYNC
RM0432 Rev 6
RM0432
ai15606c
