Comparator (COMP)
26.3 COMP functional description
26.3.1 COMP block diagram
The block diagram of the comparators is shown in
COMPx_INP I/Os
COMPx_INM I/Os
DAC_CH1
DAC_CH2
3/4 V
1/2 V
1/4 V
26.3.2 COMP pins and internal signals
The I/Os used as comparators inputs must be configured in analog mode in the GPIOs
registers.
The comparator output can be connected to the I/Os using the alternate function channel
given in "Alternate function mapping" table in the datasheet.
The output can also be internally redirected to a variety of timer input for the following
purposes:
•
Emergency shut-down of PWM signals, using BKIN and BKIN2 inputs
•
Cycle-by-cycle current control, using OCREF_CLR inputs
•
Input capture for timing measures
It is possible to have the comparator output simultaneously redirected internally and
externally.
PC5
PB2
¼ V
REFINT
½ V
REFINT
806/2301

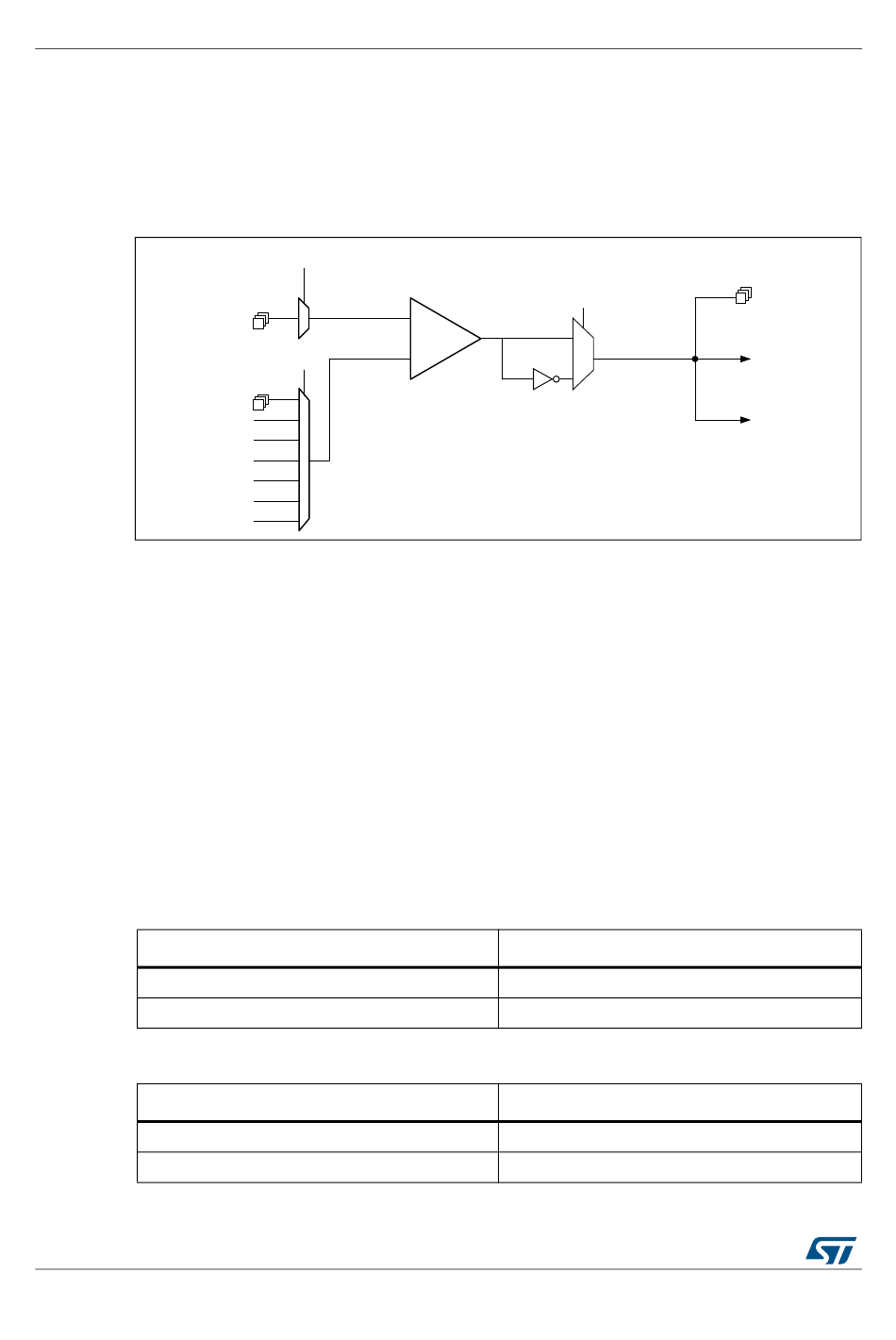

Figure 183. Comparator block diagram
