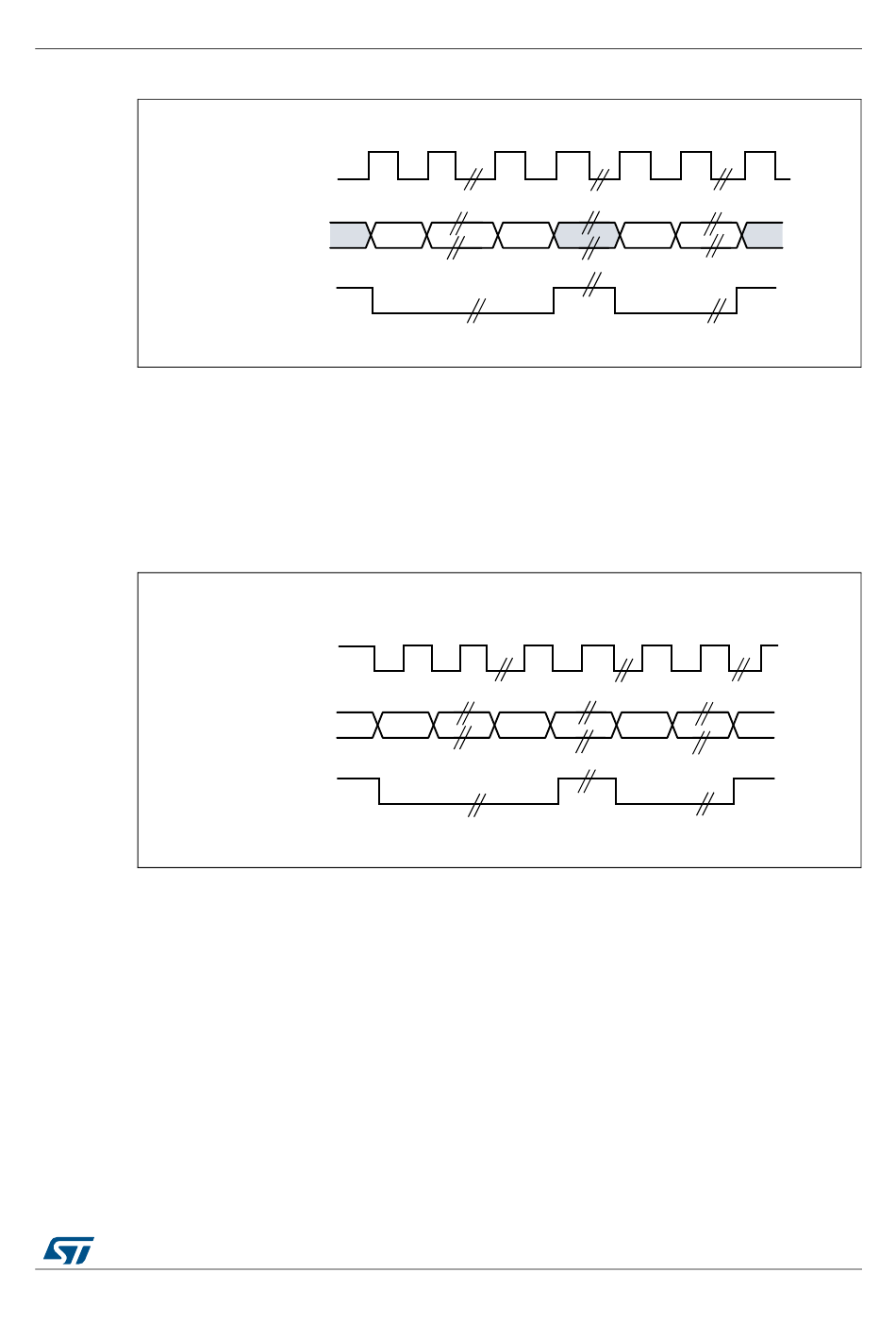

Figure 178. Data enable in receive mode waveform diagram (CKPOL=0)
If the PSSI_DE alternate output function is enabled (through DERDYCFG) in transmit mode
(OUTEN=1), the PSSI drives PSSI_DE on the same PSSI_PDCK edge that the one used to
drive the data (D[15:0]). If a new 8 or 16-bit data (as programmed in the EDM[1:0] control
bits in PSSI_CR) is available for transmission in the internal FIFO, this data is output on the
data outputs (D[15:0]) and the PSSI_DE output becomes active on the current PSSI_PDCK
edge. Otherwise (if the TX FIFO is empty), the D[15:0] outputs remains unchanged on the
next clock edge and the PSSI_DE output becomes inactive.
Figure 179. Data enable waveform diagram in transmit mode (CKPOL=0)
Ready (PSSI_RDY) alternate function output
The ready signal, PSSI_RDY, is an optional signal. It is driven by the receiving device and
indicates whether data is being accepted in the current cycle. When PSSI_RDY is inactive,
it means that the data will not be or should not be sampled by the receiver at the next clock
edge.
This alternate function signal can be enabled using the DERDYCFG control bits (bits 20:18
of PSSI_CR). PSSI_RDY polarity is configured through the RDYPOL control bit (bit 6 of
PSSI_CR). PSSI_RDY is active low when RDYPOL is cleared to 0, and high when RDYPOL
set to 1.
The direction of the PSSI_RDY signal is defined by the OUTEN (bit 31 of PSSI_CR). It is set
in the opposite direction compared to the PSSI_DE and data signals.
