General-purpose timers (TIM2 and TIM3)
16.3.6

PWM input mode

This mode is a particular case of input capture mode. The procedure is the same except:
●
Two ICx signals are mapped on the same TIx input.
●
These 2 ICx signals are active on edges with opposite polarity.
●
One of the two TIxFP signals is selected as trigger input and the slave mode controller
is configured in reset mode.
For example, you can measure the period (in TIMx_CCR1 register) and the duty cycle (in
TIMx_CCR2 register) of the PWM applied on TI1 using the following procedure (depending
on CK_INT frequency and prescaler value):
●
Select the active input for TIMx_CCR1: write the CC1S bits to 01 in the TIMx_CCMR1
register (TI1 selected).
●
Select the active polarity for TI1FP1 (used both for capture in TIMx_CCR1 and counter
clear): write the CC1P to '0' and the CC1NP bit to '0' (active on rising edge).
●
Select the active input for TIMx_CCR2: write the CC2S bits to 10 in the TIMx_CCMR1
register (TI1 selected).
●
Select the active polarity for TI1FP2 (used for capture in TIMx_CCR2): write the CC2P
bit to '1' and the CC2NP bit to '0'(active on falling edge).
●
Select the valid trigger input: write the TS bits to 101 in the TIMx_SMCR register
(TI1FP1 selected).
●
Configure the slave mode controller in reset mode: write the SMS bits to 100 in the
TIMx_SMCR register.
●
Enable the captures: write the CC1E and CC2E bits to '1 in the TIMx_CCER register.

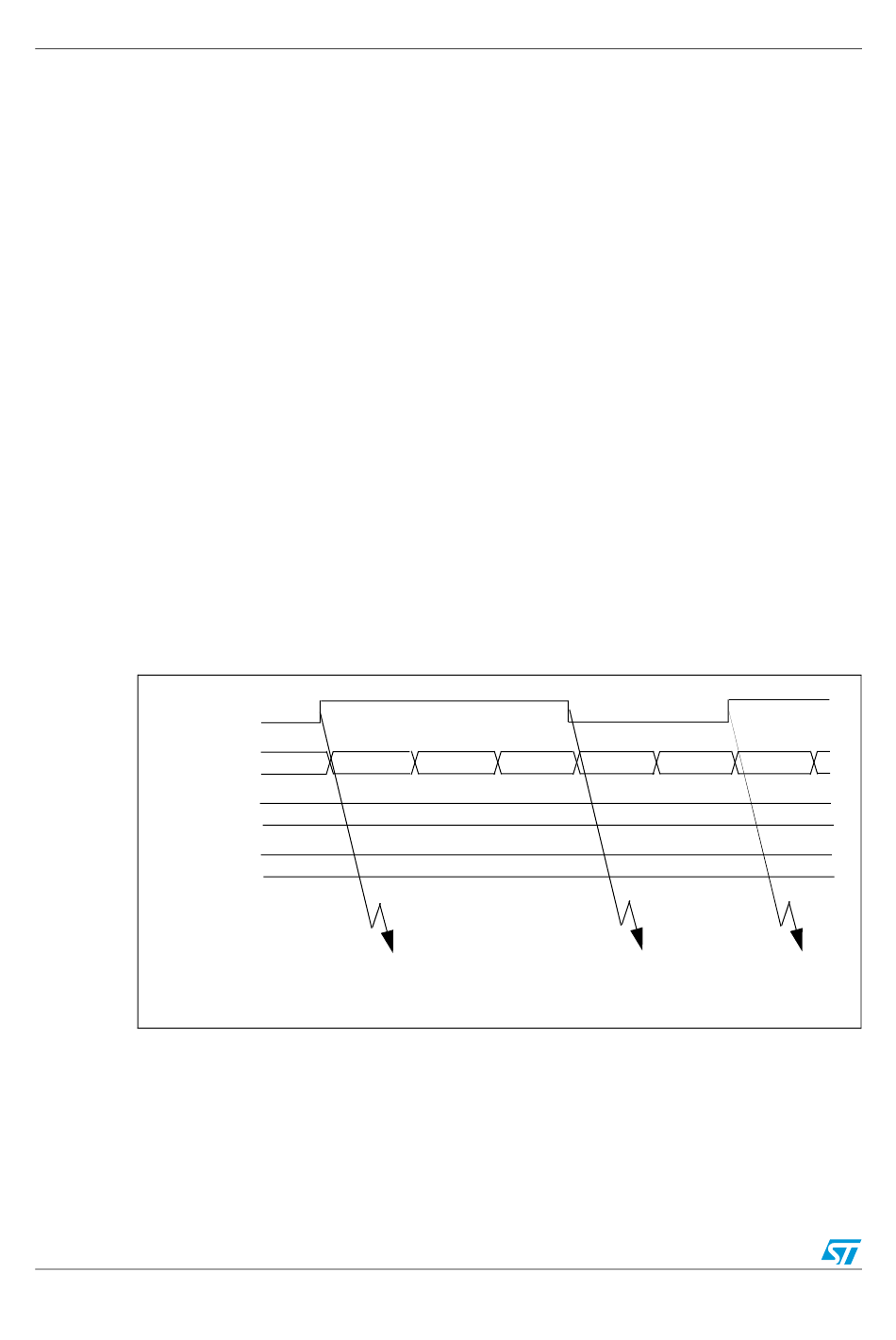

Figure 119. PWM input mode timing

TIMx_CNT
TIMx_CCR1
TIMx_CCR2
310/742
TI1
0004 0000
IC1 capture
IC2 capture
reset counter
Doc ID 018940 Rev 1
0001 0002 0003
0004
0002
0004 0000
IC2 capture IC1 capture
pulse width period
measurement measurement
