RM0091
MSB justified standard
For this standard, the WS signal is generated at the same time as the first data bit, which is
the MSBit.

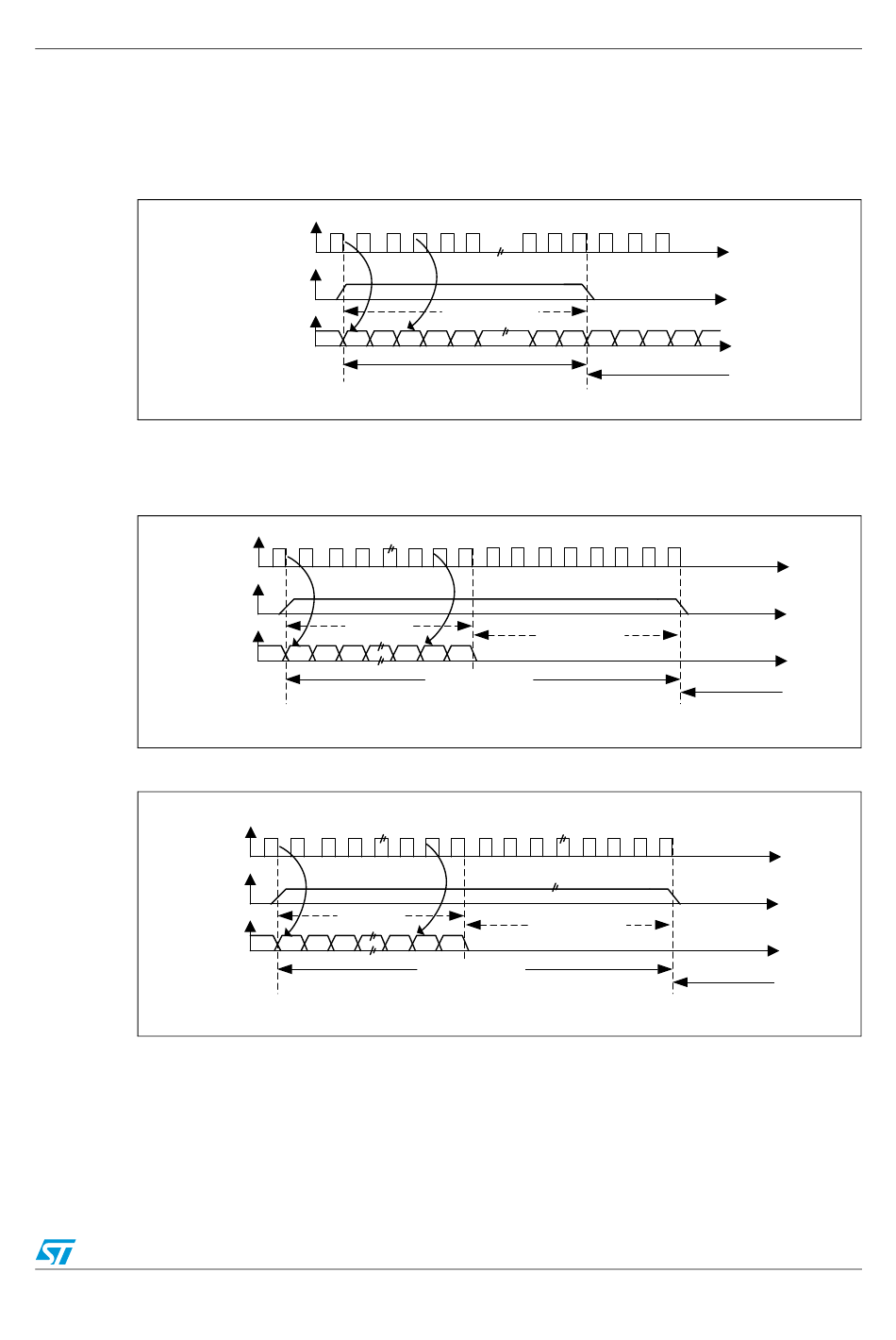

Figure 271. MSB Justified 16-bit or 32-bit full-accuracy length with CPOL = 0

Data are latched on the falling edge of CK (for transmitter) and are read on the rising edge
(for the receiver).

Figure 272. MSB justified 24-bit frame length with CPOL = 0

Figure 273. MSB justified 16-bit extended to 32-bit packet frame with CPOL = 0

CK
Transmission
WS
SD
MSB
CK
Transmission
WS
24 bit data
SD
MSB
CK
Transmission
WS
16-bit data
SD
MSB
Doc ID 018940 Rev 1
Serial peripheral interface / inter-IC sound (SPI/I2S)
Reception
16- or 32 bit data
LSB MSB
Channel left
Reception
8-bit remaining
0 forced
LSB
Channel left 32-bit
Reception
16-bit remaining
0 forced
LSB
Channel left 32-bit
Channel right
MS30100 V1
Channel right
MS30101V1
Channel right
MS30102V1
657/742
