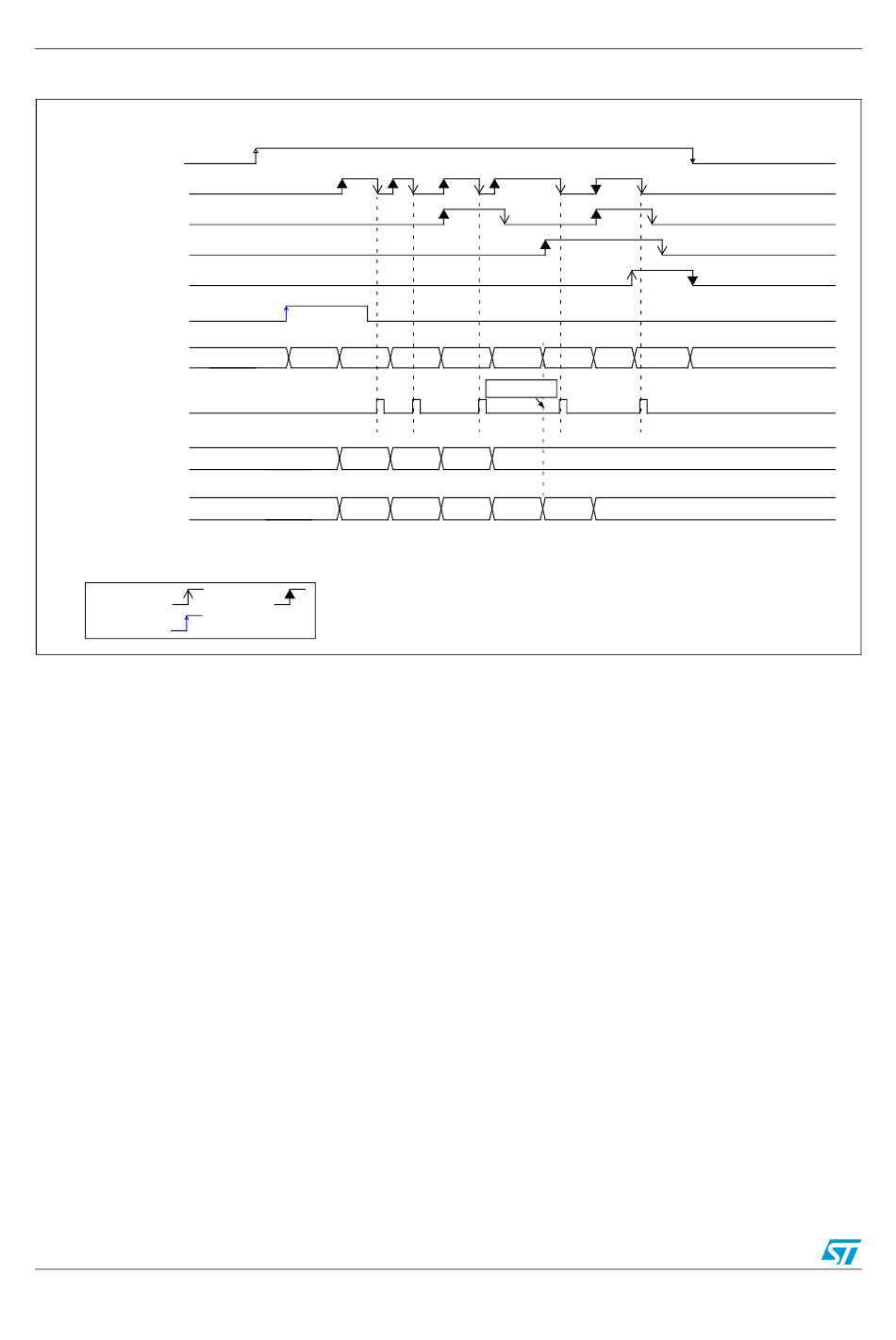

Figure 32. Example of overrun (OVR)

(1)
ADSTART
EOC
EOSEQ
OVR
ADSTP
(1)
TRGx
(2)
ADC state
ADC_DR Read
Access
ADC_DR
(OVRMOD=0)
ADC_DR
(OVRMOD=1)
by S/W
triggered
12.6.3

Managing a sequence of data converted without using the DMA

If the conversions are slow enough, the conversion sequence can be handled by software.
In this case the software must use the EOC flag and its associated interrupt to handle each
data result. Each time a conversion is complete, the EOC bit is set in the ADC_ISR register
and the ADC_DR register can be read. The OVRMOD bit in the ADC_CFGR1 register
should be configured to 0 to manage overrun events as an error.
12.6.4

Managing converted data without using the DMA without overrun

It may be useful to let the ADC convert one or more channels without reading the data after
each conversion. In this case, the OVRMOD bit must be configured at 1 and the OVR flag
should be ignored by the software. When OVRMOD=1, an overrun event does not prevent
the ADC from continuing to convert and the ADC_DR register always contains the latest
conversion data.
12.6.5

Managing converted data using the DMA

Since all converted channel values are stored in a single data register, it is efficient to use
DMA when converting more than one channel. This avoids losing the conversion data
results stored in the ADC_DR register.
When DMA mode is enabled (DMAEN bit set to 1 in the ADC_CFGR1 register), a DMA
request is generated after the conversion of each channel. This allows the transfer of the
184/742
RDY CH0 CH1
D0
D0
by H/W
Doc ID 018940 Rev 1
CH2 CH0 CH1 CH2
OVERRUN
D1 D2 D0
D1 D2 D0 D1
CH0 STOP RDY
D2
