Figure 133. Gating Timer 2 With Enable Of Timer 1 - STMicroelectronics STM32F05 series Reference Manual

RM0091
In the next example, we synchronize Timer 1 and Timer 2. Timer 1 is the master and starts
from 0. Timer 2 is the slave and starts from 0xE7. The prescaler ratio is the same for both
timers. Timer 2 stops when Timer 1 is disabled by writing '0 to the CEN bit in the TIM1_CR1
register:
●
Configure Timer 1 master mode to send its Output Compare 1 Reference (OC1REF)
signal as trigger output (MMS=100 in the TIM1_CR2 register).
●
Configure the Timer 1 OC1REF waveform (TIM1_CCMR1 register).
●
Configure Timer 2 to get the input trigger from Timer 1 (TS=000 in the TIM2_SMCR
register).
● Configure Timer 2 in gated mode (SMS=101 in TIM2_SMCR register).
●
Reset Timer 1 by writing '1 in UG bit (TIM1_EGR register).
● Reset Timer 2 by writing '1 in UG bit (TIM2_EGR register).
●
Initialize Timer 2 to 0xE7 by writing '0xE7' in the timer 2 counter (TIM2_CNTL).
● Enable Timer 2 by writing '1 in the CEN bit (TIM2_CR1 register).
●
Start Timer 1 by writing '1 in the CEN bit (TIM1_CR1 register).
● Stop Timer 1 by writing '0 in the CEN bit (TIM1_CR1 register).

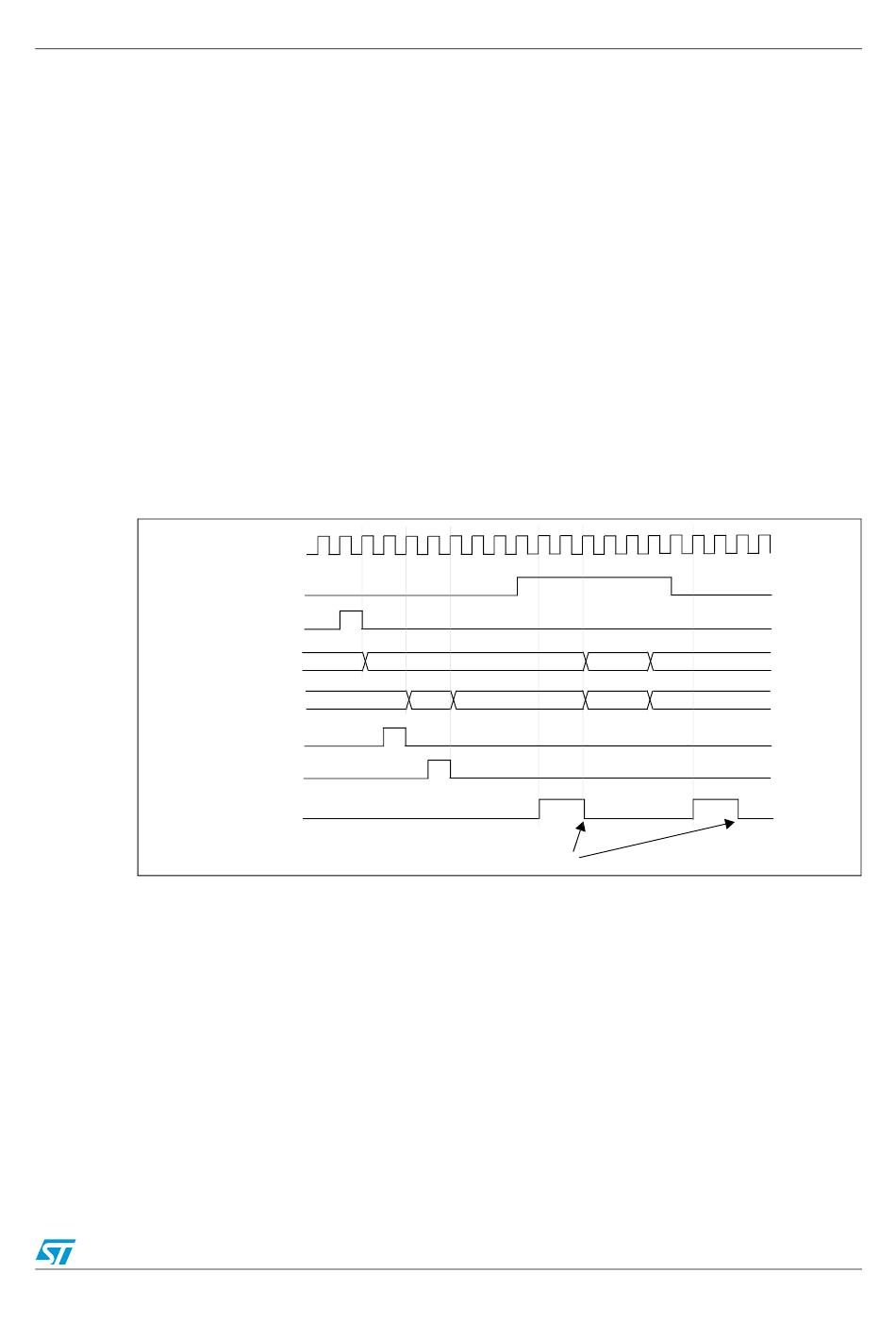

Figure 133. Gating timer 2 with Enable of timer 1

TIMER1-CEN=CNT_EN
TIMER1-CNT_INIT
TIMER2-CNT_INIT
CK_INT
TIMER1-CNT
75
TIMER2-CNT AB
TIMER2
write CNT
TIMER 2-TIF
Doc ID 018940 Rev 1
General-purpose timers (TIM2 and TIM3)
00
00 E7
Write TIF=0
01 02
E8 E9
325/742
