OCx polarity is software programmable using the CCxP bit in the TIMx_CCER register. It
can be programmed as active high or active low. OCx output is enabled by a combination of
the CCxE, CCxNE, MOE, OSSI and OSSR bits (TIMx_CCER and TIMx_BDTR registers).
Refer to the TIMx_CCER register description for more details.
In PWM mode (1 or 2), TIMx_CNT and TIMx_CCRx are always compared to determine
whether TIMx_CCRx ≤ TIMx_CNT or TIMx_CNT ≤ TIMx_CCRx (depending on the direction
of the counter).
The timer is able to generate PWM in edge-aligned mode or center-aligned mode
depending on the CMS bits in the TIMx_CR1 register.
PWM edge-aligned mode
● Upcounting configuration
Upcounting is active when the DIR bit in the TIMx_CR1 register is low. Refer to the
Upcounting mode on page
In the following example, we consider PWM mode 1. The reference PWM signal
OCxREF is high as long as TIMx_CNT < TIMx_CCRx else it becomes low. If the
compare value in TIMx_CCRx is greater than the auto-reload value (in TIMx_ARR)
then OCxREF is held at '1'. If the compare value is 0 then OCxRef is held at '0'.
Figure 75
TIMx_ARR=8.

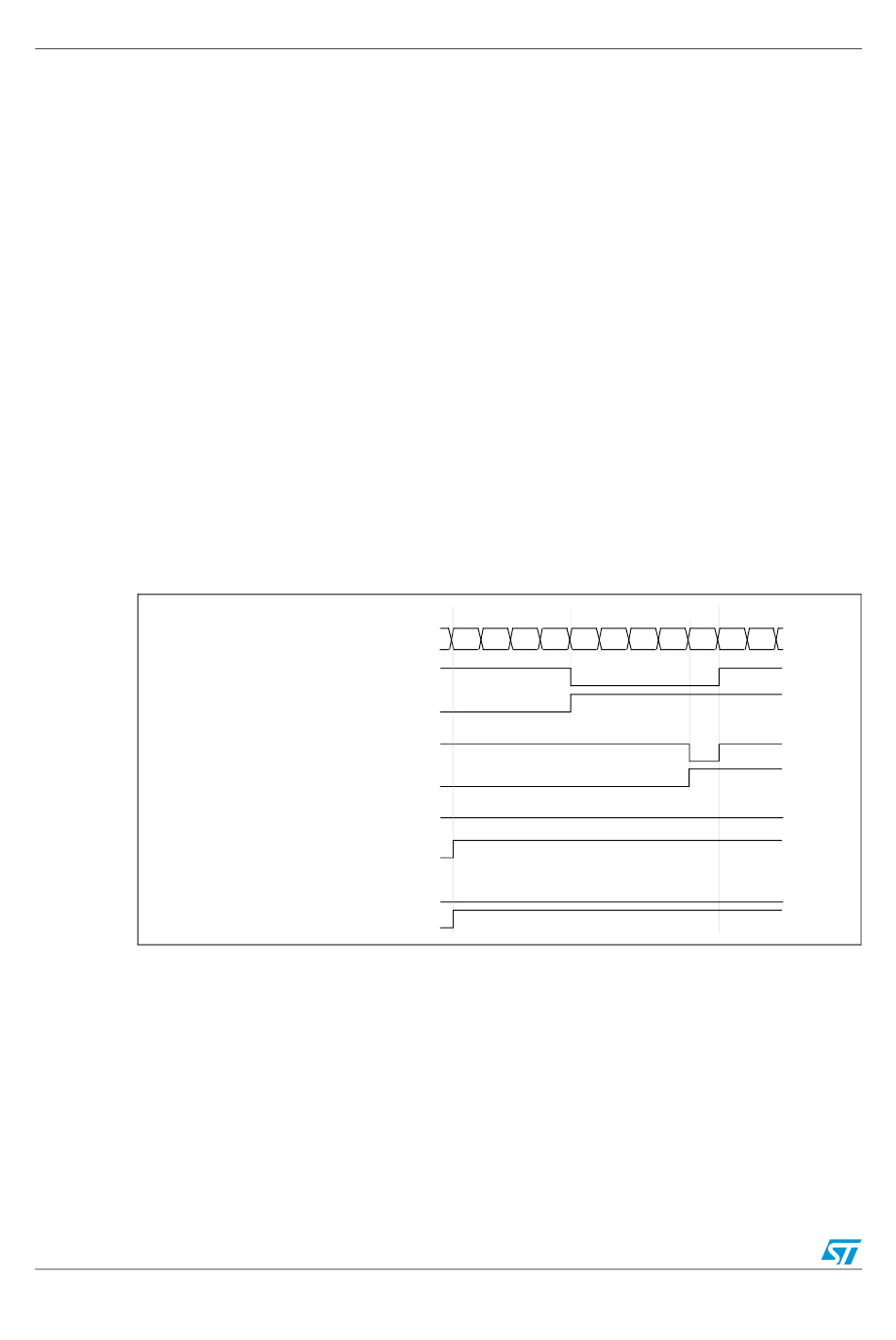

Figure 75. Edge-aligned PWM waveforms (ARR=8)

●
Downcounting configuration
Downcounting is active when DIR bit in TIMx_CR1 register is high. Refer to the
Downcounting mode on page 229
In PWM mode 1, the reference signal OCxRef is low as long as
TIMx_CNT > TIMx_CCRx else it becomes high. If the compare value in TIMx_CCRx is
greater than the auto-reload value in TIMx_ARR, then OCxREF is held at '1'. 0% PWM
is not possible in this mode.
246/742
227.
shows some edge-aligned PWM waveforms in an example where
Counter register
OCXREF
CCRx=4
CCxIF
OCXREF
CCRx=8
CCxIF
OCXREF
CCRx>8
CCxIF
OCXREF
CCRx=0
CCxIF
Doc ID 018940 Rev 1
0 1 2 3 4 5
'1'
'0'
RM0091
6 7 8 0 1
