ADC functional description

Figure 22

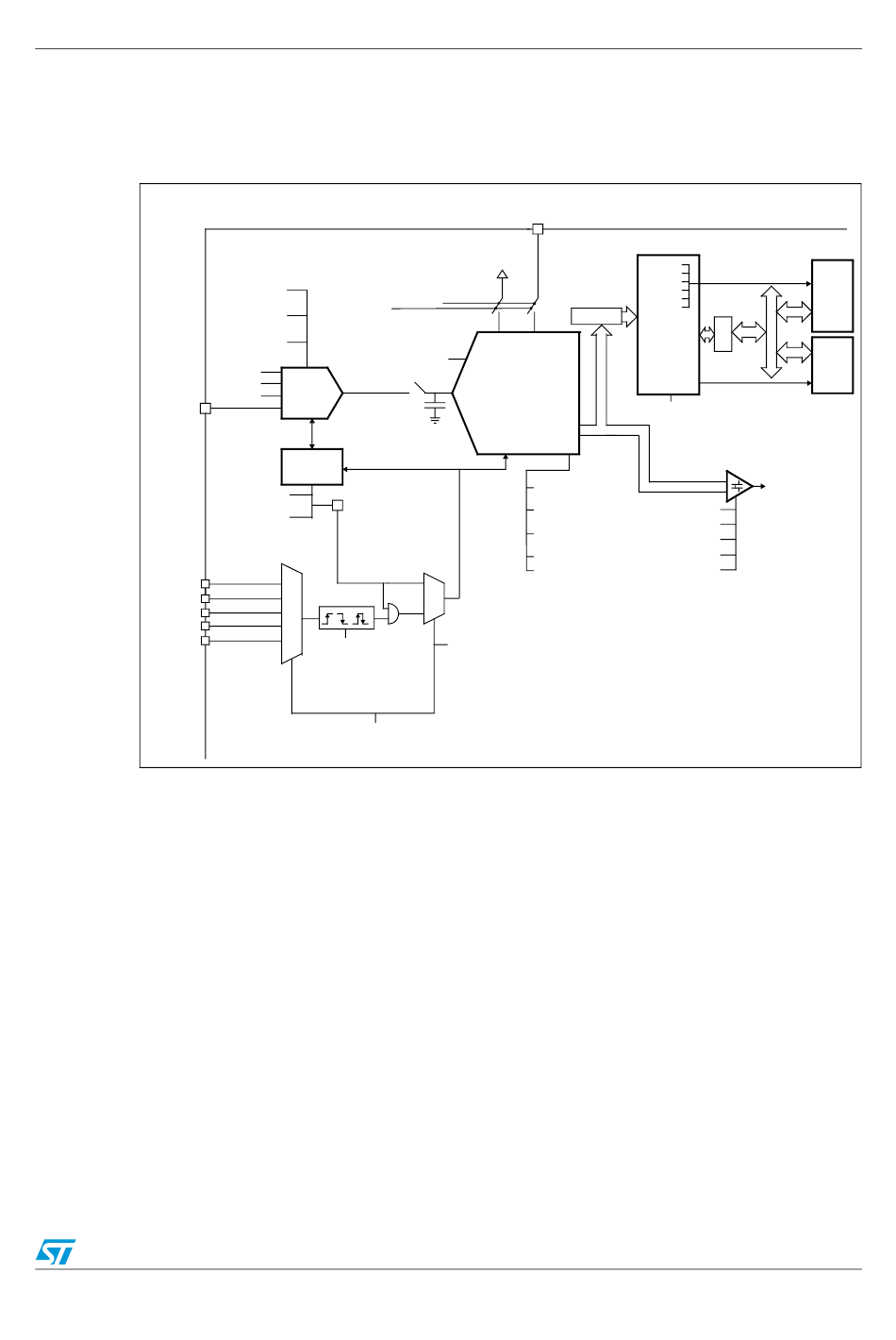

Figure 22. ADC block diagram

ADC_IN[15:0]
TIM1_TRGO
TIM1_CC4
TIM2_TRGO
TIM3_TRGO
TIM15_TRGO
12.4.1

Calibration (ADCAL)

The ADC has a calibration feature. During the procedure, the ADC calculates a calibration
factor which is internally applied to the ADC until the next ADC power-off. The application
must not use the ADC during calibration and must wait until it is complete.
Calibration should be performed before starting A/D conversion. It removes the offset error
which may vary from chip to chip due to process variation.
The calibration is initiated by software by setting bit ADCAL=1. Calibration can only be
initiated when the ADC is disabled (when ADEN=0). ADCAL bit stays at 1 during all the
calibration sequence. It is then cleared by hardware as soon the calibration completes. After
this, the calibration factor can be read from the ADC_DR register (from bits 6 to 0).
The calibration factor is kept if the ADC is disabled (ADEN=0). However, if the ADC is
disabled for extended periods, then it is recommended that a new calibration cycle is run
before re-enabling the ADC.
The calibration factor is lost each time power is removed from the ADC (for example when
the product enters STANDBY or VBAT mode).
