Advanced-control timer (TIM1)
1.
Select the proper TI1x source (internal or external) with the TI1SEL[3:0] bits in the
TIMx_TISEL register.
2.
Select the active input for TIMx_CCR1: write the CC1S bits to 01 in the TIMx_CCMR1
register (TI1 selected).
3.
Select the active polarity for TI1FP1 (used both for capture in TIMx_CCR1 and counter
clear): write the CC1P and CC1NP bits to '0' (active on rising edge).
4.
Select the active input for TIMx_CCR2: write the CC2S bits to 10 in the TIMx_CCMR1
register (TI1 selected).
5.
Select the active polarity for TI1FP2 (used for capture in TIMx_CCR2): write the CC2P
and CC2NP bits to CC2P/CC2NP='10' (active on falling edge).
6.
Select the valid trigger input: write the TS bits to 00101 in the TIMx_SMCR register
(TI1FP1 selected).
7.
Configure the slave mode controller in reset mode: write the SMS bits to 0100 in the
TIMx_SMCR register.
8.
Enable the captures: write the CC1E and CC2E bits to '1' in the TIMx_CCER register.
25.3.9
Forced output mode
In output mode (CCxS bits = 00 in the TIMx_CCMRx register), each output compare signal
(OCxREF and then OCx/OCxN) can be forced to active or inactive level directly by software,
independently of any comparison between the output compare register and the counter.
To force an output compare signal (OCXREF/OCx) to its active level, user just needs to
write 0101 in the OCxM bits in the corresponding TIMx_CCMRx register. Thus OCXREF is
forced high (OCxREF is always active high) and OCx get opposite value to CCxP polarity
bit.
For example: CCxP=0 (OCx active high) => OCx is forced to high level.
The OCxREF signal can be forced low by writing the OCxM bits to 0100 in the
TIMx_CCMRx register.
Anyway, the comparison between the TIMx_CCRx shadow register and the counter is still
performed and allows the flag to be set. Interrupt and DMA requests can be sent
accordingly. This is described in the output compare mode section below.
748/1450

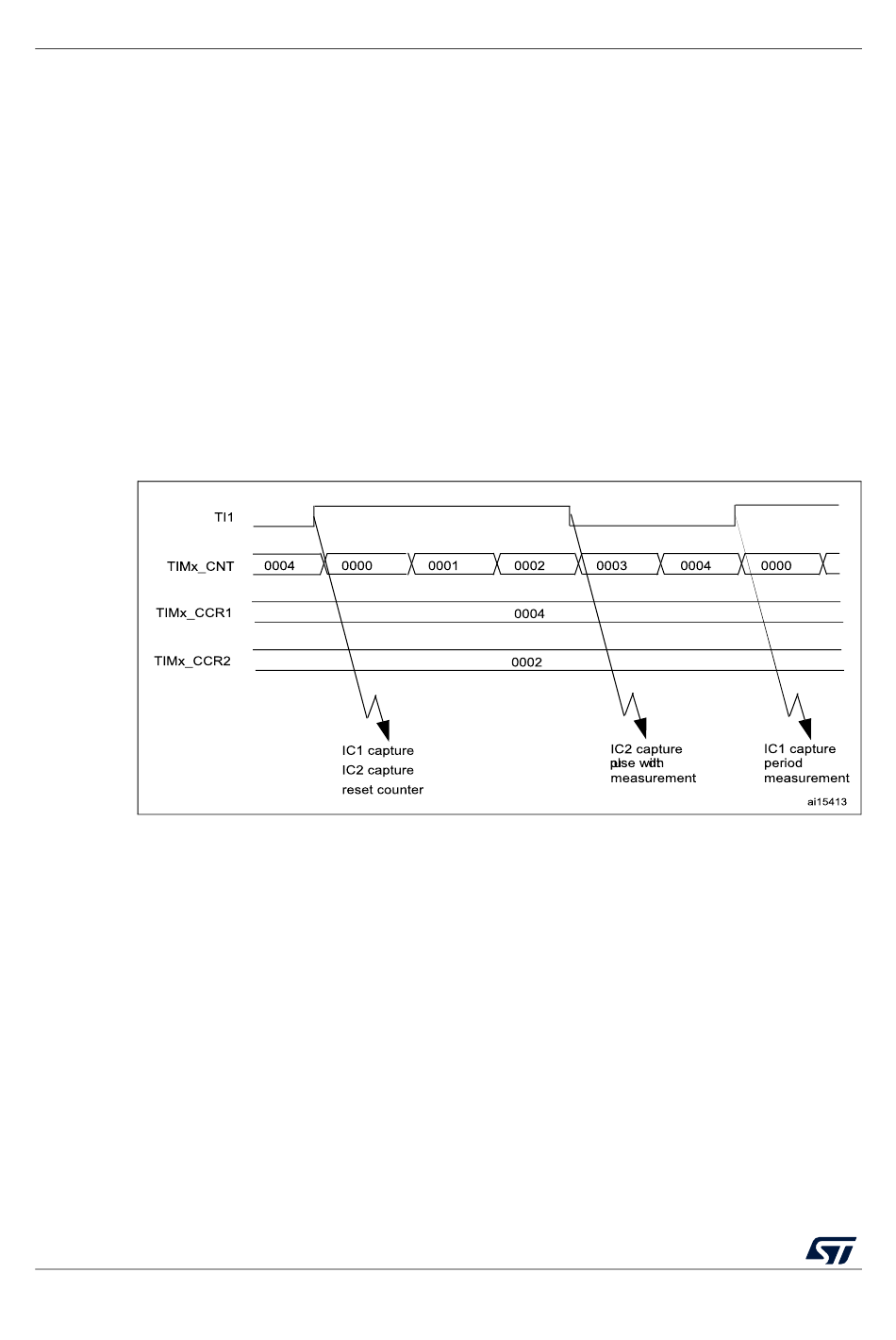

Figure 161. PWM input mode timing

RM0453 Rev 5
