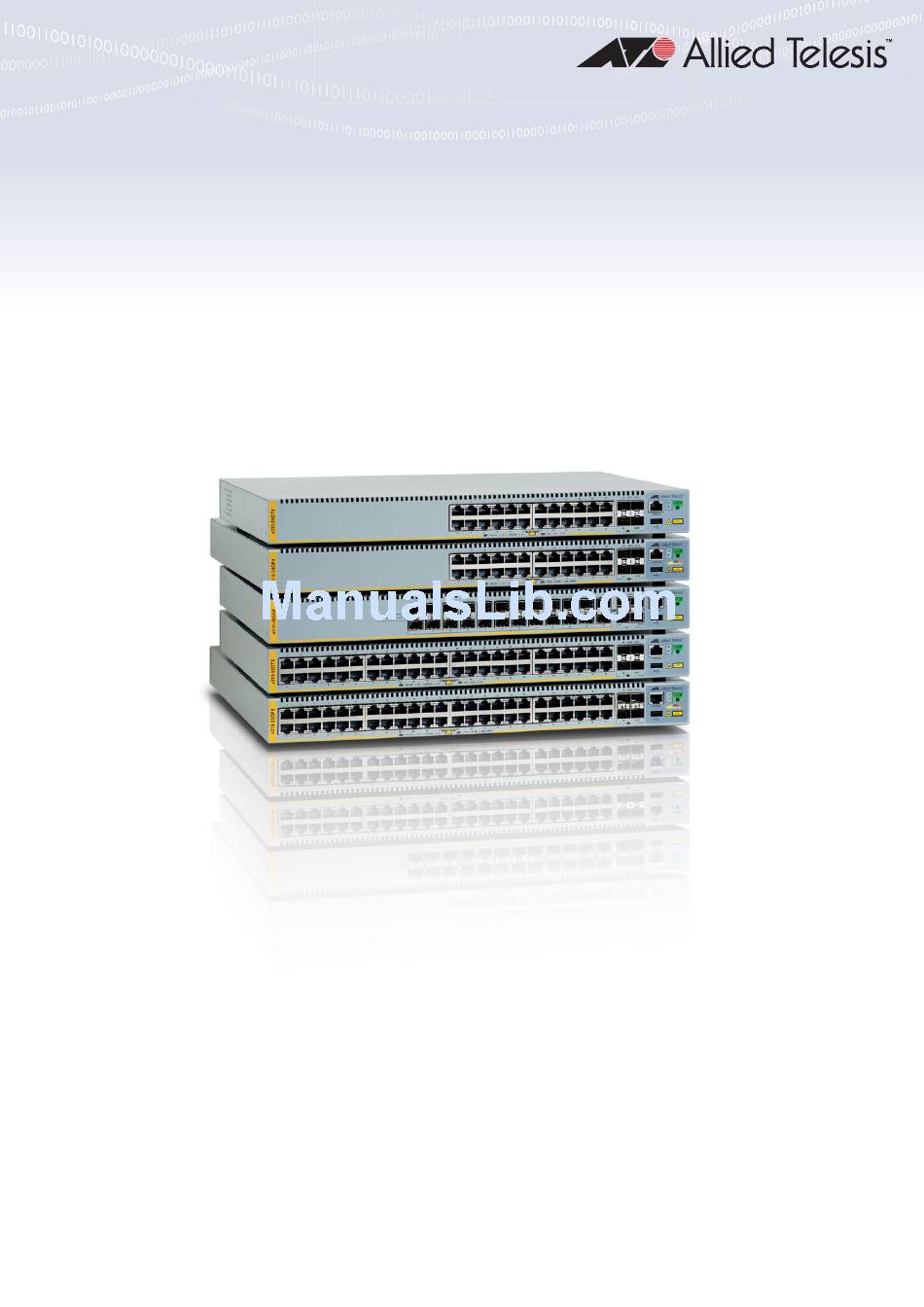

Page 1 Series STACKABLE GIGABIT EDGE SWITCHES x510-28GTX x510-28GSX x510L-28GT x510-28GPX x510-28GSX-80 x510L-28GP x510-52GTX x510DP-28GTX x510L-52GT x510-52GPX x510DP-52GTX x510L-52GP Command Reference for AlliedWare Plus™ Version 5.4.7-1.x C613-50170-01 Rev B...
Page 2 If you would like a copy of the GPL source code contained in Allied Telesis products, please send us a request by registered mail including a check for US$15 to cover production and shipping costs and a CD with the GPL code will be mailed to you.
Page 3: Table Of Contents
Contents PART 1: Setup and Troubleshooting ......94 Chapter 1: CLI Navigation Commands ......95 Introduction .
Page 4 erase factory-default ........132 erase startup-config ........133 ip tftp source-interface .
Page 5 terminal resize ........198 username .
Page 6 show interface memory ....... . . 269 show memory ........271 show memory allocations .
Page 7 service ma-name ........343 show ethernet cfm details .
Page 8 log-rate-limit nsm ........447 log trustpoint .
Page 9 clear mac address-table dynamic ......505 clear mac address-table static ......507 clear port counter .
Page 10 show port-vlan-forwarding-priority ......575 show interface switchport vlan translation ..... 576 show vlan .
Page 11 show spanning-tree mst detail ......644 show spanning-tree mst detail interface ..... . 646 show spanning-tree mst instance .
Page 12 show debugging lacp ........712 show diagnostic channel-group ......713 show etherchannel .
Page 13 arp opportunistic-nd ........777 arp-reply-bc-dmac ........778 clear arp-cache .
Page 14 clear ipv6 neighbors ........839 ipv6 address ........840 ipv6 address autoconfig .
Page 15 distance (RIP) ........901 distribute-list (RIP) .
Page 16 router ipv6 rip ........961 show debugging ipv6 rip .
Page 17 maximum-area ........1022 neighbor (OSPF) ........1023 network area .
Page 18 auto-cost reference bandwidth (IPv6 OSPF) ....1095 bandwidth ........1097 clear ipv6 ospf process .
Page 19 undebug ipv6 ospf packet ......1168 undebug ipv6 ospf route ....... 1169 Chapter 29: Route Map Commands .
Page 20 ip igmp ssm ........1227 ip igmp ssm-map enable .
Page 21 clear ip mroute statistics ....... 1287 clear ipv6 mroute ........1288 clear ipv6 mroute statistics .
Page 22 ip pim rp-candidate ........1348 ip pim rp-register-kat ....... . . 1349 ip pim sparse-mode .
Page 23 ipv6 pim sparse-mode passive ......1408 ipv6 pim spt-threshold ....... . 1409 ipv6 pim spt-threshold group-list .
Page 24 Introduction ........1464 access-group .
Page 25 ipv6 access-list extended (named) ......1589 ipv6 access-list extended proto ......1593 (ipv6 access-list extended IP protocol filter) .
Page 26 storm-downtime ........1667 storm-protection ........1668 storm-rate .
Page 27 auth timeout quiet-period ......1749 auth timeout reauth-period ......1750 auth timeout server-timeout .
Page 28 show auth sessionstatistics ......1817 show auth statistics interface ......1818 show auth supplicant .
Page 29 ip radius source-interface ....... 1886 radius-server deadtime ....... . 1887 radius-server host .
Page 30 Introduction ........1950 crypto key generate rsa .
Page 31 ip dhcp snooping trust ....... . 2010 ip dhcp snooping verify mac-address ..... . . 2011 ip dhcp snooping violation .
Page 32 show stack ........2079 show stack detail .
Page 33 epsr configuration ........2153 epsr datavlan ........2154 epsr enhancedrecovery enable .
Page 34 Chapter 54: Allied Telesis Management Framework™ (AMF) Commands ..2218 Introduction ........2218 area-link .
Page 35 atmf secure-mode ........2299 atmf secure-mode certificate expire ......2301 atmf secure-mode certificate expiry .
Page 36 show atmf virtual-links ....... . 2410 show atmf working-set ....... . 2412 show debugging atmf .
Page 37 show ip dhcp pool ........2484 show ip dhcp-relay .
Page 38 show ntp counters associations ......2564 show ntp status ........2566 Chapter 58: SNMP Commands .
Page 39 location civic-location configuration ......2632 location civic-location identifier ......2636 location civic-location-id .
Page 40 service ssh ........2704 show banner login .
Page 41 type usb ......... . 2776 undebug trigger .
Page 42 List of Commands (access-list extended ICMP filter) ........1527 (access-list extended IP filter).
Page 43 aaa authentication auth-web ......... . .1844 aaa authentication dot1x .
Page 44 alternate-checksum-mode ..........2111 area authentication ipsec spi .
Page 45 atmf backup enable ........... .2240 atmf backup guests delete .
Page 46 atmf recover guest............2293 atmf recover led-off.
Page 47 auth timeout quiet-period ..........1749 auth timeout reauth-period .
Page 48 auth-web-server ping-poll enable ........1792 auth-web-server ping-poll failcount .
Page 49 circuit-failover ............2112 cisco-metric-behavior (RIP).
Page 50 clear ipv6 dhcp client ...........2503 clear ipv6 mld group.
Page 51 clear test interface ............495 clear vlan statistics.
Page 52 crypto key pubkey-chain knownhosts ........2698 crypto key pubkey-chain userkey........2700 crypto key zeroize .
Page 53 debug ipv6 ospf ifsm ...........1100 debug ipv6 ospf lsa .
Page 54 debug ping-poll ............2783 debug platform packet .
Page 55 delete ..............126 description (amf container) .
Page 56 dot1x port-control ............1692 dot1x timeout tx-period .
Page 57 erp-instance ............2185 ethernet cfm domain-name .
Page 58 instance vlan (MSTP) ........... . . 633 interface (to configure) .
Page 59 ip dns forwarding retry ..........822 ip dns forwarding source-interface .
Page 60 ip igmp ssm-map enable..........1228 ip igmp ssm-map static .
Page 61 ip pim anycast-rp ............1328 ip pim bsr-border .
Page 62 ip prefix-list.............1551 ip proxy-arp .
Page 63 ipv6 mld access-group ..........1256 ipv6 mld immediate-leave .
Page 64 ipv6 nd retransmission-time ..........860 ipv6 nd suppress-ra.
Page 65 ipv6 pim rp-address ........... .1401 ipv6 pim rp-candidate .
Page 66 link-address ............2524 linkflap action .
Page 67 log email time ............407 log email .
Page 68 mail from............. . .2671 mail smtpserver .
Page 69 mkdir ..............136 mls qos cos .
Page 70 offset-list (RIP) ............925 openflow controller.
Page 71 police single-rate action ..........1639 police twin-rate action .
Page 72 reboot ..............255 recv-buffer-size (IPv6 RIPng) .
Page 73 router vrrp (interface) ...........2125 router-id (IPv6 OSPF).
Page 74 service-policy input ........... . .1649 set ip next-hop (PBR).
Page 75 show atmf guests detail..........2369 show atmf guests.
Page 76 show counter dhcp-client ..........2474 show counter dhcp-relay .
Page 77 show debugging ip dns forwarding ........829 show debugging ip packet.
Page 78 show epsr <epsr-instance> ..........2170 show epsr common segments .
Page 79 show interface status ........... . 479 show interface switchport vlan translation.
Page 80 show ip ospf database network .........1049 show ip ospf database nssa-external .
Page 81 show ip rip ............. . 937 show ip route database .
Page 82 show ipv6 ospf route ...........1157 show ipv6 ospf virtual-links .
Page 83 show lldp statistics ........... . .2661 show lldp.
Page 84 show openflow status ..........2058 show ping-poll .
Page 85 show running-config interface ......... . . 151 show running-config log.
Page 86 show ssh server allow-users ..........2719 show ssh server deny-users .
Page 87 show vlan statistics ............585 show vlan .
Page 88 spanning-tree hello-time ..........673 spanning-tree link-type .
Page 89 stack management vlan ..........2092 stack priority .
Page 90 switchport port-security maximum........561 switchport port-security violation .
Page 91 timers spf exp (IPv6 OSPF) ..........1163 timers spf exp .
Page 92 undebug ip packet interface ..........814 undebug ipv6 ospf events .
Page 93 up-count ............. . .2801 user (RADIUS server) .
Page 94: Part 1: Setup And Troubleshooting
Part 1: Setup and Troubleshooting C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 95: Cli Navigation Commands
CLI Navigation Commands Introduction Overview This chapter provides an alphabetical reference for the commands used to navigate between different modes. This chapter also provides a reference for the help and show commands used to help navigate within the CLI. Command List •...
Page 96: Configure Terminal
CLI N AVIGATION OMMANDS CONFIGURE TERMINAL configure terminal Overview This command enters the Global Configuration command mode. configure terminal Syntax Mode Privileged Exec Example To enter the Global Configuration command mode (note the change in the command prompt), enter the command: awplus# configure terminal awplus(config)#...
Page 97: Disable (Privileged Exec Mode)
CLI N AVIGATION OMMANDS DISABLE RIVILEGED XEC MODE disable (Privileged Exec mode) Overview This command exits the Privileged Exec mode, returning the prompt to the User Exec mode. To end a session, use the exit command. disable Syntax Mode Privileged Exec Example To exit the Privileged Exec mode, enter the command: awplus#...
Page 98 CLI N AVIGATION OMMANDS Overview This command lets you to run User Exec and Privileged Exec mode commands when you are in any configuration mode. do <command> Syntax Parameter Description <command> Specify the command and its parameters. Mode Any configuration mode awplus# configure terminal Example...
Page 99: Enable (Privileged Exec Mode)
CLI N AVIGATION OMMANDS ENABLE RIVILEGED XEC MODE enable (Privileged Exec mode) Overview This command enters the Privileged Exec mode and optionally changes the privilege level for a session. If a privilege level is not specified then the maximum privilege level (15) is applied to the session. If the optional privilege level is omitted then only users with the maximum privilege level can access Privileged Exec mode without providing the password as specified by the enable password...
Page 100 CLI N AVIGATION OMMANDS ENABLE RIVILEGED XEC MODE Privilege Exec mode. Use the enable password command or the enable secret commands to set the password to enable access to Privileged Exec mode. awplus> enable 7 awplus# Related disable (Privileged Exec mode) Commands enable password enable secret...
Page 101: End
CLI N AVIGATION OMMANDS Overview This command returns the prompt to the Privileged Exec command mode from any other advanced command mode. Syntax Mode All advanced command modes, including Global Configuration and Interface Configuration modes. Example The following example shows the use of the end command to return to the Privileged Exec mode directly from Interface mode.
Page 102: Exit
CLI N AVIGATION OMMANDS EXIT exit Overview This command exits the current mode, and returns the prompt to the mode at the previous level. When used in User Exec mode, the exit command terminates the session. exit Syntax Mode All command modes, including Global Configuration and Interface Configuration modes.
Page 103: Help
CLI N AVIGATION OMMANDS HELP help Overview This command displays a description of the AlliedWare Plus™ OS help system. help Syntax Mode All command modes Example To display a description on how to use the system help, use the command: awplus# help Output...
Page 104: Logout
CLI N AVIGATION OMMANDS LOGOUT logout Overview This command exits the User Exec or Privileged Exec modes and ends the session. logout Syntax Mode User Exec and Privileged Exec Example To exit the User Exec mode, use the command: awplus# logout C613-50170-01 Rev B Command Reference for x510 Series...
Page 105: Show History
CLI N AVIGATION OMMANDS SHOW HISTORY show history Overview This command lists the commands entered in the current session. The history buffer is cleared automatically upon reboot. The output lists all command line entries, including commands that returned an error. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus”...
Page 106: File And Configuration Management Commands
File and Configuration Management Commands Introduction Overview This chapter provides an alphabetical reference of AlliedWare Plus™ OS file and configuration management commands. Filename Syntax Many of the commands in this chapter use the placeholder “filename” to represent and Keyword the name and location of the file that you want to act on. The following table Usage explains the syntax of the filename for each different type of file location.
Page 107 ILE AND ONFIGURATION ANAGEMENT OMMANDS When you copy a file... Use this syntax: Example: Copying with SFTP sftp://[[<location>]/<directory>] To specify a file in the top-level /<filename> directory of the server: sftp://10.0.0.5/example.cfg <hostname>-<stack_ID>/flash:[/][< Copying to or from To specify a file in the configs directory directory>/] stack member on member 2 of a stack named vcstack:...
Page 108 ILE AND ONFIGURATION ANAGEMENT OMMANDS Similarly, you can specify the USB storage device base directory with usb or usb: or usb:/ You cannot name a directory or subdirectory flash, nvs, usb, card, tftp, scp, sftp or http. These keywords are reserved for tab completion when using various file commands.
Page 109 ILE AND ONFIGURATION ANAGEMENT OMMANDS • “show boot” on page 142 • “show file” on page 144 • “show file systems” on page 145 • “show running-config” on page 147 • “show running-config interface” on page 151 • “show startup-config” on page 153 •...
Page 110: Autoboot Enable
ILE AND ONFIGURATION ANAGEMENT OMMANDS AUTOBOOT ENABLE autoboot enable Overview This command enables the device to restore a release file and/or a configuration file from external media, such as a USB storage device. When the Autoboot feature is enabled, the device looks for a special file called autoboot.txt on the external media.
Page 111: Boot Config-File
ILE AND ONFIGURATION ANAGEMENT OMMANDS BOOT CONFIG FILE boot config-file Overview Use this command to set the configuration file to use during the next boot cycle. Use the no variant of this command to remove the configuration file. Syntax boot config-file <filepath-filename> no boot config-file Parameter Description...
Page 112 ILE AND ONFIGURATION ANAGEMENT OMMANDS BOOT CONFIG FILE To stop running the configuration file “branch.cfg” stored on the switch’s USB storage device filesystem when the device boots up, use the commands: awplus# configure terminal awplus(config)# no boot config-file usb:/branch.cfg Related boot config-file backup Commands boot system...
Page 113: Boot Config-File Backup
ILE AND ONFIGURATION ANAGEMENT OMMANDS BOOT CONFIG FILE BACKUP boot config-file backup Overview Use this command to set a backup configuration file to use if the main configuration file cannot be accessed. Use the no variant of this command to remove the backup configuration file. Syntax boot config-file backup <filepath-filename>...
Page 114: Boot System
ILE AND ONFIGURATION ANAGEMENT OMMANDS BOOT SYSTEM boot system Overview Use this command to set the release file to load during the next boot cycle. Use the no variant of this command to stop specifying a primary release file to boot from.
Page 115 ILE AND ONFIGURATION ANAGEMENT OMMANDS BOOT SYSTEM In a VCStack configuration, if there is not enough space to synchronize the new release across the stack, the boot system command has an interactive mode that prompts you to delete old releases. awplus# configure terminal awplus(config)#...
Page 116: Boot System Backup
ILE AND ONFIGURATION ANAGEMENT OMMANDS BOOT SYSTEM BACKUP boot system backup Overview Use this command to set a backup release file to load if the main release file cannot be loaded. Use the no variant of this command to stop specifying a backup release file. Syntax boot system backup <filepath-filename>...
Page 117 ILE AND ONFIGURATION ANAGEMENT OMMANDS Overview This command changes the current working directory. cd <directory-name> Syntax Parameter Description <directory-name> Name and path of the directory. Mode Privileged Exec To change to the directory called images, use the command: Example awplus# cd images Related Commands...
Page 118: Copy (Filename)
ILE AND ONFIGURATION ANAGEMENT OMMANDS COPY FILENAME copy (filename) Overview This command copies a file. This allows you to: • copy files from your device to a remote device • copy files from a remote device to your device • copy files stored on Flash memory to or from a different memory type, such as a USB storage device •...
Page 119 ILE AND ONFIGURATION ANAGEMENT OMMANDS COPY FILENAME To copy the file “config.cfg” into the current directory from a USB storage device, and rename it to “configtest.cfg”, use the command: awplus# copy usb:/config.cfg configtest.cfg To copy the file “config.cfg” into the current directory from a remote file server, and rename it to “configtest.cfg”, use the command: awplus# copy fserver:/config.cfg configtest.cfg...
Page 120: Copy Current-Software
ILE AND ONFIGURATION ANAGEMENT OMMANDS COPY CURRENT SOFTWARE copy current-software Overview This command copies the AlliedWare Plus™ OS software that the device has booted from, to a destination file. Specify whether the destination is Flash or USB when saving the software to the local filesystem. copy current-software <destination-name>...
Page 121: Copy Debug
ILE AND ONFIGURATION ANAGEMENT OMMANDS COPY DEBUG copy debug Overview This command copies a specified debug file to a destination file. copy debug {<destination-name>|debug|flash|nvs|scp|tftp|usb} Syntax {<source-name>|debug|flash|nvs|scp|tftp|usb} Parameter Description <destination-name> The filename and path where you would like the debug output saved. See Introduction on page 106 for valid syntax.
Page 122: Copy Running-Config
ILE AND ONFIGURATION ANAGEMENT OMMANDS COPY RUNNING CONFIG copy running-config Overview This command copies the running-config to a destination file, or copies a source file into the running-config. Commands entered in the running-config do not survive a device reboot unless they are saved in a configuration file. copy <source-name>...
Page 123: Copy Startup-Config
ILE AND ONFIGURATION ANAGEMENT OMMANDS COPY STARTUP CONFIG copy startup-config Overview This command copies the startup-config script into a destination file, or alternatively copies a configuration script from a source file into the startup-config file. Specify whether the destination is Flash or USB when loading from the local filesystem.
Page 124: Copy Zmodem
ILE AND ONFIGURATION ANAGEMENT OMMANDS COPY ZMODEM copy zmodem Overview This command allows you to copy files using ZMODEM using Minicom. ZMODEM works over a serial connection and does not need any interfaces configured to do a file transfer. copy <source-name> zmodem Syntax copy zmodem Parameter...
Page 125: Create Autoboot
ILE AND ONFIGURATION ANAGEMENT OMMANDS CREATE AUTOBOOT create autoboot Use this command to create an autoboot.txt file on external media. This Overview command will automatically ensure that the keys and values that are expected in this file are correct. After the file is created the create autoboot command will copy the current release and configuration files across to the external media.
Page 126: Delete
ILE AND ONFIGURATION ANAGEMENT OMMANDS DELETE delete Overview This command deletes files or directories. delete [force] [recursive] <filename> Syntax Parameter Description force Ignore nonexistent filenames and never prompt before deletion. recursive Remove the contents of directories recursively. <filename> The filename and path of the file to delete. See Introduction on page 106 for valid syntax.
Page 127: Delete Debug
ILE AND ONFIGURATION ANAGEMENT OMMANDS DELETE DEBUG delete debug Overview Use this command to delete a specified debug output file. delete debug <source-name> Syntax Parameter Description <source-name> The filename and path where the debug output originates. Introduction on page 106 for valid URL syntax. Mode Privileged Exec Example...
Page 128: Dir
ILE AND ONFIGURATION ANAGEMENT OMMANDS Overview This command lists the files on a filesystem. If no directory or file is specified then this command lists the files in the current working directory. dir [all] [recursive] [sort [reverse] [name|size|time] Syntax [<filename>|debug|flash|nvs|usb] Parameter Description List all files.
Page 129 ILE AND ONFIGURATION ANAGEMENT OMMANDS To list all the files in the root of the Flash filesystem, use the command: awplus# dir all flash: To list recursively the files in the Flash filesystem, use the command: awplus# dir recursive flash: To list the files in alphabetical order, use the command: awplus# dir sort name...
Page 130: Edit
ILE AND ONFIGURATION ANAGEMENT OMMANDS EDIT edit Overview This command opens a text file in the AlliedWare Plus™ text editor. Once opened you can use the editor to alter to the file. If a filename is specified and it already exists, then the editor opens it in the text editor.
Page 131: Edit (Filename)
ILE AND ONFIGURATION ANAGEMENT OMMANDS EDIT FILENAME edit (filename) Overview This command opens a remote text file as read-only in the AlliedWare Plus™ text editor. Before starting the editor make sure your terminal, terminal emulation program, or Telnet client is 100% compatible with a VT100 terminal. The editor uses VT100 control sequences to display text on the terminal.
Page 132: Erase Factory-Default
ILE AND ONFIGURATION ANAGEMENT OMMANDS ERASE FACTORY DEFAULT erase factory-default Overview This command erases all data from NVS and all data from Flash excluding the following: • the current release file • the backup release file • license files The device is then rebooted and returned to its factory default condition. The device can then be used for AMF automatic node recovery.
Page 133: Erase Startup-Config
ILE AND ONFIGURATION ANAGEMENT OMMANDS ERASE STARTUP CONFIG erase startup-config Overview This command deletes the file that is set as the startup-config file, which is the configuration file that the system runs when it boots up. At the next restart, the device loads the default configuration file, default.cfg. If default.cfg no longer exists, then the device loads with the factory default configuration.
Page 134: Ip Tftp Source-Interface
ILE AND ONFIGURATION ANAGEMENT OMMANDS IP TFTP SOURCE INTERFACE ip tftp source-interface Overview Use this command to manually specify the IP address that all TFTP requests originate from. This is useful in network configurations where TFTP servers only accept requests from certain devices, or where the server cannot dynamically determine the source of the request.
Page 135: Ipv6 Tftp Source-Interface
ILE AND ONFIGURATION ANAGEMENT OMMANDS TFTP SOURCE INTERFACE ipv6 tftp source-interface Overview Use this command to manually specify the IPv6 address that all TFTP requests originate from. This is useful in network configurations where TFTP servers only accept requests from certain devices, or where the server cannot dynamically determine the source of the request.
Page 136: Mkdir
ILE AND ONFIGURATION ANAGEMENT OMMANDS MKDIR mkdir Overview This command makes a new directory. mkdir <name> Syntax Parameter Description <name> The name and path of the directory that you are creating. Mode Privileged Exec Usage You cannot name a directory or subdirectory flash, nvs, usb, card, tftp, scp, sftp or http.
Page 137: Move
ILE AND ONFIGURATION ANAGEMENT OMMANDS MOVE move Overview This command renames or moves a file. move <source-name> <destination-name> Syntax Parameter Description <source-name> The filename and path of the source file. See Introduction on page 106 for valid syntax. <destination-name> The filename and path of the destination file. See Introduction on page 106 for valid syntax.
Page 138: Move Debug
ILE AND ONFIGURATION ANAGEMENT OMMANDS MOVE DEBUG move debug Overview This command moves a specified debug file to a destination debug file. move debug {<destination-name>|debug|nvs|flash|usb} Syntax Parameter Description <destination-name> The filename and path where you would like the debug output moved to. See Introduction on page 106 for valid syntax.
Page 139: Pwd
ILE AND ONFIGURATION ANAGEMENT OMMANDS Overview This command prints the current working directory. Syntax Mode Privileged Exec Example To print the current working directory, use the command: awplus# Related Commands C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 140: Rmdir
ILE AND ONFIGURATION ANAGEMENT OMMANDS RMDIR rmdir Overview This command removes a directory. This command only works on empty directories, unless you specify the optional force keyword. rmdir [force] <name> Syntax Parameter Description force Optional keyword that allows you to delete directories that are not empty and contain files or subdirectories.
Page 141: Show Autoboot
ILE AND ONFIGURATION ANAGEMENT OMMANDS SHOW AUTOBOOT show autoboot Overview This command displays the Autoboot configuration and status. show autoboot Syntax Mode Privileged Exec Example To show the Autoboot configuration and status, use the command: awplus# show autoboot Output Figure 2-6: Example output from the show autoboot command awplus#show autoboot...
Page 142: Show Boot
ILE AND ONFIGURATION ANAGEMENT OMMANDS SHOW BOOT show boot Overview This command displays the current boot configuration. We recommend that the currently running release is set as the current boot image. show boot Syntax Mode Privileged Exec Example To show the current boot configuration, use the command: awplus# show boot Output...
Page 143 ILE AND ONFIGURATION ANAGEMENT OMMANDS SHOW BOOT Table 2-1: Parameters in the output from show boot (cont.) Parameter Description Backup boot config The configuration file to use during the next boot cycle if the main configuration file cannot be loaded. Autoboot status The status of the Autoboot feature;...
Page 144: Show File
ILE AND ONFIGURATION ANAGEMENT OMMANDS SHOW FILE show file Overview This command displays the contents of a specified file. show file <filename> Syntax Parameter Description <filename> Name of a file on the local Flash filesystem, or name and directory path of a file. Mode Privileged Exec To display the contents of the file oldconfig.cfg, which is in the current...
Page 145: Show File Systems
ILE AND ONFIGURATION ANAGEMENT OMMANDS SHOW FILE SYSTEMS show file systems Overview This command lists the filesystems and their utilization information where appropriate. show file systems Syntax Mode Privileged Exec Examples To display the filesystems, use the command: awplus# show file systems Output Figure 2-9: Example output from the show file systems command...
Page 146 ILE AND ONFIGURATION ANAGEMENT OMMANDS SHOW FILE SYSTEMS Table 3: Parameters in the output of the show file systems command (cont.) Parameter Description Prefixes The prefixes used when entering commands to access the filesystems; one of: flash system tftp sftp http.
Page 147: Show Running-Config
Antivirus configuration application Application configuration as-path Autonomous system path filter configuration as-path access-list Configuration of ACLs for AS path filtering atmf Allied Telesis Management Framework configuration Border Gateway Protocol (BGP) configuration community-list Community-list configuration crypto Security-specific configuration dhcp DHCP configuration...
Page 148 ILE AND ONFIGURATION ANAGEMENT OMMANDS SHOW RUNNING CONFIG Parameter Description Internet Protocol (IP) configuration ip pim dense-mode PIM-DM configuration ip pim sparse-mode PIM-SM configuration ip route IP static route configuration ip-reputation IP Reputation configuration IPS configuration ipsec Internet Protocol Security (IPSec) configuration ipv6 Internet Protocol version 6 (IPv6)
Page 149 ILE AND ONFIGURATION ANAGEMENT OMMANDS SHOW RUNNING CONFIG Parameter Description switch Switch configuration web-control Web Control configuration Mode Privileged Exec and Global Configuration Example To display the current configuration of your device, use the command: awplus# show running-config Output Figure 2-10: Example output from show running-config ...
Page 150 ILE AND ONFIGURATION ANAGEMENT OMMANDS SHOW RUNNING CONFIG ! switch 1 provision x510-28 ! vlan database vlan 2-15 state enable ! interface port1.0.1-1.0.6 switchport switchport mode access ! interface port1.0.25-1.0.26 switchport switchport mode access switchport access vlan 14 ! interface vlan1 ip address 192.168.1.1/24...
Page 151: Show Running-Config Interface
ILE AND ONFIGURATION ANAGEMENT OMMANDS SHOW RUNNING CONFIG INTERFACE show running-config interface Overview This command displays the current configuration of one or more interfaces on the device. show running-config interface [<interface-list>] [dot1x|ip Syntax igmp|ip multicast|ip pim dense-mode|ip pim sparse-mode|ipv6 rip|lacp|mstp|ospf|rip|rstp|stp] Parameter Description <interface-list>...
Page 152 ILE AND ONFIGURATION ANAGEMENT OMMANDS SHOW RUNNING CONFIG INTERFACE Parameter Description rstp Displays running configuration for RSTP (Rapid Spanning Tree Protocol) for the specified interfaces. Displays running configuration for STP (Spanning Tree Protocol) for the specified interfaces. Mode Privileged Exec and Global Configuration Default Displays information for all protocols on all interfaces Examples...
Page 153: Show Startup-Config
ILE AND ONFIGURATION ANAGEMENT OMMANDS SHOW STARTUP CONFIG show startup-config Overview This command displays the contents of the start-up configuration file, which is the file that the device runs on start-up. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus”...
Page 154: Show Version
ILE AND ONFIGURATION ANAGEMENT OMMANDS SHOW VERSION show version Overview This command displays the version number and copyright details of the current AlliedWare Plus™ OS your device is running. show version Syntax Mode User Exec and Privileged Exec Example To display the version details of your currently installed software, use the command: awplus# show version...
Page 155 ILE AND ONFIGURATION ANAGEMENT OMMANDS SHOW VERSION Corosync Cluster Engine  Copyright (c) 2002-2004 MontaVista Software, Inc. All rights reserved.  Copyright (c) 2005-2010 Red Hat, Inc. File Utility Library  Copyright (c) Ian F. Darwin 1986-1987, 1989-1992, 1994-1995.  Software written by Ian F.
Page 156: Unmount
ILE AND ONFIGURATION ANAGEMENT OMMANDS UNMOUNT unmount Overview Use this command to unmount an external storage device. We recommend you unmount storage devices before removing them, to avoid file corruption. This is especially important if files may be automatically written to the storage device, such as external log files or AMF backup files.
Page 157: Write File
ILE AND ONFIGURATION ANAGEMENT OMMANDS WRITE FILE write file Overview This command copies the running-config into the file that is set as the current startup-config file. This command is a synonym of the write memory and copy running-config startup-config commands. write [file] Syntax Mode...
Page 158: Write Memory
ILE AND ONFIGURATION ANAGEMENT OMMANDS WRITE MEMORY write memory Overview This command copies the running-config into the file that is set as the current startup-config file. This command is a synonym of the write file and copy running-config startup-config commands. write [memory] Syntax Mode...
Page 159: Write Terminal
ILE AND ONFIGURATION ANAGEMENT OMMANDS WRITE TERMINAL write terminal Overview This command displays the current configuration of the device. This command is a synonym of the show running-config command. write terminal Syntax Mode Privileged Exec Example To display the current configuration of your device, use the command: awplus# write terminal Related...
Page 160: User Access Commands
User Access Commands Introduction Overview This chapter provides an alphabetical reference of commands used to configure user access. Command List • “clear line console” on page 162 • “clear line vty” on page 163 • “enable password” on page 164 •...
Page 161 CCESS OMMANDS • “service terminal-length (deleted)” on page 189 • “show privilege” on page 190 • “show security-password configuration” on page 191 • “show security-password user” on page 192 • “show telnet” on page 193 • “show users” on page 194 •...
Page 162: Clear Line Console
CCESS OMMANDS CLEAR LINE CONSOLE clear line console Overview This command resets a console line. If a terminal session exists on the line then the terminal session is terminated. If console line settings have changed then the new settings are applied. clear line console 0 Syntax Mode...
Page 163: Clear Line Vty
CCESS OMMANDS CLEAR LINE VTY clear line vty Overview This command resets a VTY line. If a session exists on the line then it is closed. clear line vty <0-32> Syntax Parameter Description <0-32> Line number Mode Privileged Exec Example To reset the first VTY line, use the command: awplus# clear line vty 1...
Page 164: Enable Password
CCESS OMMANDS ENABLE PASSWORD enable password Overview To set a local password to control access to various privilege levels, use the enable password Global Configuration command. Use the enable password command to modify or create a password to be used, and use the no enable password command to remove the password.
Page 165 CCESS OMMANDS ENABLE PASSWORD the commands in User Exec mode, but not any configuration commands in Privileged Exec mode. Note that the enable password command is an alias for the enable secret command and one password per privilege level is allowed using these commands. Do not assign one password to a privilege level with enable password and another...
Page 166 CCESS OMMANDS ENABLE PASSWORD password. It is not required to use the service password-encryption command for this method. The output in the configuration file will show only the encrypted string, and not the text string. awplus# configure terminal awplus(config)# enable password 8 fU7zHzuutY2SA awplus(config)# This results in the following show output: awplus#show run...
Page 167: Enable Secret
CCESS OMMANDS ENABLE SECRET enable secret Overview To set a local password to control access to various privilege levels, use the enable secret Global Configuration command. Use the enable secret command to modify or create a password to be used, and use the no enable secret command to remove the password.
Page 168 CCESS OMMANDS ENABLE SECRET the commands in User Exec mode, but not any configuration commands in Privileged Exec mode. Note that the enable secret command is an alias for the enable password command and one password per privilege level is allowed using these commands. Do not assign one password to a privilege level with enable password and another...
Page 169 CCESS OMMANDS ENABLE SECRET is not required to use the service password-encryption command for this method. The output in the configuration file will show only the encrypted string, and not the text string: awplus# configure terminal awplus(config)# enable secret 8 fU7zHzuutY2SA awplus(config)# This results in the following show output: awplus#show run...
Page 170: Exec-Timeout
CCESS OMMANDS EXEC TIMEOUT exec-timeout Overview This command sets the interval your device waits for user input from either a console or VTY connection. Once the timeout interval is reached, the connection is dropped. This command sets the time limit when the console or VTY connection automatically logs off after no activity.
Page 171 CCESS OMMANDS EXEC TIMEOUT Related line Commands service telnet C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 172: Flowcontrol Hardware (Asyn/Console)
CCESS OMMANDS FLOWCONTROL HARDWARE ASYN CONSOLE flowcontrol hardware (asyn/console) Overview Use this command to enable RTS/CTS (Ready To Send/Clear To Send) hardware flow control on a terminal console line (asyn port) between the DTE (Data Terminal Equipment) and the DCE (Data Communications Equipment). flowcontrol hardware Syntax no flowcontrol hardware...
Page 173 CCESS OMMANDS FLOWCONTROL HARDWARE ASYN CONSOLE Examples To enable hardware flow control on terminal console line asyn0, use the commands: awplus# configure terminal awplus(config)# line console 0 awplus(config-line)# flowcontrol hardware To disable hardware flow control on terminal console line asyn0, use the commands: awplus# configure terminal...
Page 174: Length (Asyn)
CCESS OMMANDS LENGTH ASYN length (asyn) Overview Use this command to specify the number of rows of output that the device will display before pausing, for the console or VTY line that you are configuring. The no variant of this command restores the length of a line (terminal session) attached to a console port or to a VTY to its default length of 22 rows.
Page 175: Line
CCESS OMMANDS LINE line Overview Use this command to enter line configuration mode for the specified VTYs or the console. The command prompt changes to show that the device is in Line Configuration mode. line vty <first-line> [<last-line>] Syntax line console 0 Parameter Description <first-line>...
Page 176 CCESS OMMANDS LINE To enter Line Configuration mode to configure the console (asyn 0) port terminal line, use the commands: awplus# configure terminal awplus(config)# line console 0 awplus(config-line)# Related accounting login Commands clear line console clear line vty flowcontrol hardware (asyn/console) length (asyn) login authentication privilege level...
Page 177: Privilege Level
CCESS OMMANDS PRIVILEGE LEVEL privilege level Overview This command sets a privilege level for VTY or console connections. The configured privilege level from this command overrides a specific user’s initial privilege level at the console login. privilege level <1-15> Syntax Mode Line Configuration Usage...
Page 178: Security-Password History
CCESS OMMANDS SECURITY PASSWORD HISTORY security-password history Overview This command specifies the number of previous passwords that are unable to be reused. A new password is invalid if it matches a password retained in the password history. The no variant of the command disables this feature. Syntax security-password history <0-15>...
Page 179: Security-Password Forced-Change
CCESS OMMANDS SECURITY PASSWORD FORCED CHANGE security-password forced-change Overview This command specifies whether or not a user is forced to change an expired password at the next login. If this feature is enabled, users whose passwords have expired are forced to change to a password that must comply with the current password security rules at the next login.
Page 180: Security-Password Lifetime
CCESS OMMANDS SECURITY PASSWORD LIFETIME security-password lifetime Overview This command enables password expiry by specifying a password lifetime in days. Note that when the password lifetime feature is disabled, it also disables the security-password forced-change command and the security-password warning command.
Page 181: Security-Password Min-Lifetime-Enforce
CCESS OMMANDS SECURITY PASSWORD MIN LIFETIME ENFORCE security-password min-lifetime-enforce Overview Use this command to configure a minimum number of days before a password can be changed by a user. With this feature enabled, once a user sets the password, the user cannot change it again until the minimum lifetime has passed.
Page 182: Security-Password Minimum-Categories
CCESS OMMANDS SECURITY PASSWORD MINIMUM CATEGORIES security-password minimum-categories Overview This command specifies the minimum number of categories that the password must contain in order to be considered valid. The password categories are: • uppercase letters: A to Z • lowercase letters: a to z •...
Page 183: Security-Password Minimum-Length
CCESS OMMANDS SECURITY PASSWORD MINIMUM LENGTH security-password minimum-length Overview This command specifies the minimum allowable password length. This value is checked against when there is a password change or a user account is created. security-password minimum-length <1-23> Syntax Parameter Description <1-23>...
Page 184: Security-Password Reject-Expired-Pwd
CCESS OMMANDS SECURITY PASSWORD REJECT EXPIRED security-password reject-expired-pwd Overview This command specifies whether or not a user is allowed to login with an expired password. Users with expired passwords are rejected at login if this functionality is enabled. Users then have to contact the Network Administrator to change their password.
Page 185: Security-Password Warning
CCESS OMMANDS SECURITY PASSWORD WARNING security-password warning Overview This command specifies the number of days before the password expires that the user will receive a warning message specifying the remaining lifetime of the password. Note that the warning period cannot be set unless the lifetime feature is enabled with the security-password lifetime command.
Page 186: Service Advanced-Vty
CCESS OMMANDS SERVICE ADVANCED service advanced-vty Overview This command enables the advanced-vty help feature. This allows you to use TAB completion for commands. Where multiple options are possible, the help feature displays the possible options. The no service advanced-vty command disables the advanced-vty help feature. Syntax service advanced-vty no service advanced-vty...
Page 187: Service Password-Encryption
CCESS OMMANDS SERVICE PASSWORD ENCRYPTION service password-encryption Overview Use this command to enable password encryption. This is enabled by default. When password encryption is enabled, the device displays passwords in the running config in encrypted form instead of in plain text. Use the no service password-encryption command to stop the device from displaying newly-entered passwords in encrypted form.
Page 188: Service Telnet
CCESS OMMANDS SERVICE TELNET service telnet Overview Use this command to enable the telnet server. The server is enabled by default. Enabling the telnet server starts the device listening for incoming telnet sessions on the configured port. The server listens on port 23, unless you have changed the port by using the privilege level command.
Page 189: Service Terminal-Length (Deleted)
CCESS OMMANDS SERVICE TERMINAL LENGTH DELETED service terminal-length (deleted) Overview This command has been deleted in Software Version 5.4.5-0.1 and later. C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 190: Show Privilege
CCESS OMMANDS SHOW PRIVILEGE show privilege Overview This command displays the current user privilege level, which can be any privilege level in the range <1-15>. Privilege levels <1-6> allow limited user access (all User Exec commands), privilege levels <7-14> allow restricted user access (all User Exec commands plus Privileged Exec show commands).
Page 191: Show Security-Password Configuration
CCESS OMMANDS SHOW SECURITY PASSWORD CONFIGURATION show security-password configuration Overview This command displays the configuration settings for the various security password rules. show security-password configuration Syntax Mode Privileged Exec Example To display the current security-password rule configuration settings, use the command: awplus# show security-password configuration...
Page 192: Show Security-Password User
CCESS OMMANDS SHOW SECURITY PASSWORD USER show security-password user Overview This command displays user account and password information for all users. show security-password user Syntax Mode Privileged Exec Example To display the system users’ remaining lifetime or last password change, use the command: awplus# show security-password user...
Page 193: Show Telnet
CCESS OMMANDS SHOW TELNET show telnet Overview This command shows the Telnet server settings. show telnet Syntax Mode User Exec and Privileged Exec Example To show the Telnet server settings, use the command: awplus# show telnet Output Figure 3-4: Example output from the show telnet command Telnet Server Configuration...
Page 194: Show Users
CCESS OMMANDS SHOW USERS show users Overview This command shows information about the users who are currently logged into the device. show users Syntax Mode User Exec and Privileged Exec Example To show the users currently connected to the device, use the command: awplus# show users Output...
Page 195: Telnet
CCESS OMMANDS TELNET telnet Overview Use this command to open a telnet session to a remote device. telnet {<hostname>|[ip] <ipv4-addr>|[ipv6] <ipv6-addr>} Syntax [<port>] Parameter Description <hostname> The host name of the remote system. Keyword used to specify the IPv4 address or host name of a remote system.
Page 196: Telnet Server
CCESS OMMANDS TELNET SERVER telnet server Overview This command enables the telnet server on the specified TCP port. If the server is already enabled then it will be restarted on the new port. Changing the port number does not affect the port used by existing sessions. telnet server {<1-65535>|default} Syntax Parameter...
Page 197: Terminal Length
CCESS OMMANDS TERMINAL LENGTH terminal length Overview Use the terminal length command to specify the number of rows of output that the device will display before pausing, for the currently-active terminal only. Use the terminal no length command to remove the length specified by this command.
Page 198: Terminal Resize
CCESS OMMANDS TERMINAL RESIZE terminal resize Overview Use this command to automatically adjust the number of rows of output on the console, which the device will display before pausing, to the number of rows configured on the user’s terminal. terminal resize Syntax Mode User Exec and Privileged Exec...
Page 199: Username
CCESS OMMANDS USERNAME username Overview This command creates or modifies a user to assign a privilege level and a password. : The default username privilege level of 1 is not shown in running-config output. NOTE Any username privilege level that has been modified from the default is shown. Syntax username <name>...
Page 200 CCESS OMMANDS USERNAME Usage An intermediate CLI security level (privilege level 7 to privilege level 14) allows a CLI user access to the majority of show commands, including the platform show commands that are available at privilege level 1 to privilege level 6. Note that some show commands, such as show running-configuration and show startup-configuration, are only available at privilege level 15.
Page 201: Feature Licensing Commands
To see which Feature Licenses are available for your device, see the AlliedWare Plus Datasheet. With Software Version 5.4.6-1.x and later, new installations of Allied Telesis Management Framework (AMF) require a Subscription License instead of a Feature License. For information about Subscription Licensing commands, see the Subscription Licensing Commands chapter.
Page 202: License
EATURE ICENSING OMMANDS LICENSE license Overview This command activates the licensed software feature set on a standalone switch, or a stack of switches. Use the no variant of this command to deactivate the licensed software feature set on a standalone switch, or a stack of switches. For feature licenses, contact your authorized distributor or reseller.
Page 203 EATURE ICENSING OMMANDS LICENSE If you add a feature license you will be prompted at the console that the feature needs to restart. For example, if the feature license contains a license for the EPSR protocol, then that protocol will restart, but you do not need to manually restart the whole device for the new license to take effect.
Page 204: Show License
EATURE ICENSING OMMANDS SHOW LICENSE show license Overview This command displays information about a specific software feature license, or all enabled software feature licenses on the device. show license [feature] [<label>|index <index-number>] Syntax Parameter Description feature Only display license information for any applied feature licenses. <label>...
Page 205 EATURE ICENSING OMMANDS SHOW LICENSE Table 4-1: Parameters in the output of show license Parameter Description Board region Name of the region for the Base License features. Index Index identifying entry. The index is assigned automatically by the software. It is not configured. License name Name of the license key bundle (case-sensitive).
Page 206: Show License Brief
EATURE ICENSING OMMANDS SHOW LICENSE BRIEF show license brief Overview This command displays information about a specific software feature license, or all enabled software feature licenses on the device. show license [feature] [<label>|index <index-number>] brief Syntax Parameter Description feature Only display license information for any applied feature licenses. <label>...
Page 207 EATURE ICENSING OMMANDS SHOW LICENSE BRIEF Table 4-2: Parameters in the output of show license brief Parameter Description Board region Name of the region for the Base License features. Index Index identifying entry. The index is assigned automatically by the software. It is not configured. License name Name of the license key bundle (case-sensitive).
Page 208: Show License Brief Member
EATURE ICENSING OMMANDS SHOW LICENSE BRIEF MEMBER show license brief member Overview Use this command to display information about either a specific software license, or all software feature licenses enabled on either a specific stack member or all stack members. show license [<label>] brief member [<1-8>|all] Syntax Parameter...
Page 209 EATURE ICENSING OMMANDS SHOW LICENSE BRIEF MEMBER Table 4-3: Parameters in the output of show license brief member Parameter Description Board region Name of the region for the Base License features. Index Index identifying entry. The index is assigned automatically by the software. It is not configured. License name Name of the license key bundle (case-sensitive).
Page 210: Show License Member
EATURE ICENSING OMMANDS SHOW LICENSE MEMBER show license member Overview Use this command to display information about either a specific software license, or all software feature licenses enabled on either a specific stack member or all stack members. show license [<label>] member [<1-8>|all] Syntax Parameter Description...
Page 211 EATURE ICENSING OMMANDS SHOW LICENSE MEMBER Output Figure 4-5: Example output from show license member awplus#show license member all Board region: Global Software Feature Licenses ------------------------------------------------------------------------ Index : 1 License name : Base License Customer name : Base License Quantity of licenses : 1...
Page 212: Subscription Licensing Commands
Licensing commands. For Software Version 5.4.6-1.x and later, Subscription Licensing enables you to use Allied Telesis Management Framework (AMF). You need to purchase an AMF subscription for each AMF master or controller node in your AMF network. To see the AMF subscriptions for your device, see the AlliedWare Plus Datasheet.
Page 213: License Redistribute
Check which stack member the license entitlement came from originally, by using the command: awplus# show license external stored If you are replacing that stack member, in the Allied Telesis Download center, transfer the license to another stack member’s serial number. Update the stack’s licenses by using the command: awplus#...
Page 214: License Update (Filename)
Use this command to load a license, after you have manually copied the license file onto the device. Only use this command if you cannot directly access the Allied Telesis Download Center from this device. Otherwise, use the command license update online instead.
Page 215: License Update Online
LICENSE UPDATE ONLINE license update online Overview Use this command to add or update subscription licenses from the Allied Telesis Download Center, to subscribe to features such as AMF master and OpenFlow. When you enter this command, the device will:...
Page 216 UBSCRIPTION ICENSING OMMANDS LICENSE UPDATE ONLINE Related show license external Commands Command Version 5.4.6-2.1: command added changes C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 217: Show License External
UBSCRIPTION ICENSING OMMANDS SHOW LICENSE EXTERNAL show license external Overview Use this command to show information about subscription (external) licenses. For products with stacking, additional information may be displayed to indicate the source of the current feature entitlements. If this information indicates that a device is “NOT PRESENT”, you need to take action as described in the warning in the output.
Page 218 Upon reboot  these entitlements will be lost. To avoid loss of functionality  re-connect the device to the stack, or transfer the license to another  stack member using the RMA feature on the Allied Telesis Download Center website. ...
Page 219 UBSCRIPTION ICENSING OMMANDS SHOW LICENSE EXTERNAL Related license update online Commands C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 220: Gui Commands
GUI Commands Introduction Overview This chapter provides an alphabetical reference of commands used to configure the GUI. For more information, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide Command List • “atmf topology-gui enable” on page 221 •...
Page 221: Atmf Topology-Gui Enable
GUI C OMMANDS ATMF TOPOLOGY GUI ENABLE atmf topology-gui enable Overview Use this command to enable the operation of Vista Manager EX on the Master device. Vista Manager EX delivers state-of-the-art monitoring and management for your Autonomous Management Framework™ (AMF) network, by automatically creating a complete topology map of switches, firewalls and wireless access points (APs).
Page 222: Gui-Timeout
GUI C OMMANDS TIMEOUT gui-timeout Overview Use this command to configure an idle timeout period for a GUI session. The time can be set in minutes and/or seconds. Use the no variant of this command to disable the GUI session idle timeout. Syntax gui-timeout <minutes>...
Page 223 GUI C OMMANDS TIMEOUT Related show running-config Commands C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 224: Log Event-Host
GUI C OMMANDS LOG EVENT HOST log event-host Overview Use this command to set up an external host to log AMF topology events through Vista Manager. This command is run on the Master device. Use the no variant of this command to disable log events through Vista Manager. Syntax log event-host [<ipv4-addr>|<ipv6-addr>] atmf-topology-event no log event-host [<ipv4-addr>|<ipv6-addr>] atmf-topology-event...
Page 225: Service Http
GUI C OMMANDS SERVICE HTTP service http Overview Use this command to enable the HTTP (Hypertext Transfer Protocol) service. This service is required to support Vista Manager EX™ and the AlliedWare Plus™ GUI Java applet. Use the no variant of this command to disable the HTTP feature. service http Syntax no service http...
Page 226: Show Http
GUI C OMMANDS SHOW HTTP show http Overview This command shows the HTTP server settings. show http Syntax Mode User Exec and Privileged Exec Example To show the HTTP server settings, use the command: awplus# show http Output Figure 6-2: Example output from the show http command awplus#show http...
Page 227: System Configuration And Monitoring Commands
System Configuration and Monitoring Commands Introduction Overview This chapter provides an alphabetical reference of commands for configuring and monitoring the system. Command List • “banner exec” on page 229 • “banner login (system)” on page 231 • “banner motd” on page 233 •...
Page 228 YSTEM ONFIGURATION AND ONITORING OMMANDS • “show cpu” on page 260 • “show cpu history” on page 263 • “show debugging” on page 266 • “show ecofriendly” on page 267 • “show interface memory” on page 269 • “show memory” on page 271 •...
Page 229: Banner Exec
YSTEM ONFIGURATION AND ONITORING OMMANDS BANNER EXEC banner exec Overview This command configures the User Exec mode banner that is displayed on the console after you login. The banner exec default command restores the User Exec banner to the default banner. Use the no banner exec command to disable the User Exec banner and remove the default User Exec banner.
Page 230 YSTEM ONFIGURATION AND ONITORING OMMANDS BANNER EXEC To remove the User Exec mode banner after login, enter the following commands: awplus#configure terminal awplus(config)#no banner exec awplus(config)#exit awplus#exit  awplus login: manager Password:  awplus> Related banner login (system) Commands banner motd C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™...
Page 231: Banner Login (System)
YSTEM ONFIGURATION AND ONITORING OMMANDS BANNER LOGIN SYSTEM banner login (system) Overview This command configures the login banner that is displayed on the console when you login. The login banner is displayed on all connected terminals. The login banner is displayed after the MOTD (Message-of-the-Day) banner and before the login username and password prompts.
Page 232: Banner Motd
YSTEM ONFIGURATION AND ONITORING OMMANDS BANNER LOGIN SYSTEM Related banner exec Commands banner motd C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 233: Banner Motd
YSTEM ONFIGURATION AND ONITORING OMMANDS BANNER MOTD banner motd Overview Use this command to create or edit the text MotD (Message-of-the-Day) banner displayed before login. The MotD banner is displayed on all connected terminals. The MotD banner is useful for sending messages that affect all network users, for example, any imminent system shutdowns.
Page 234 YSTEM ONFIGURATION AND ONITORING OMMANDS BANNER MOTD awplus>enable awplus#configure terminal Enter configuration commands, one per line. End with CNTL/Z. awplus(config)#no banner motd awplus(config)#exit awplus#exit  awplus login: manager Password:  AlliedWare Plus (TM) 5.4.7 01/03/17 12:00:00  awplus> Related banner exec Commands banner login (system) C613-50170-01 Rev B...
Page 235: Clock Set
YSTEM ONFIGURATION AND ONITORING OMMANDS CLOCK SET clock set Overview This command sets the time and date for the system clock. clock set <hh:mm:ss> <day> <month> <year> Syntax Parameter Description <hh:mm:ss> Local time in 24-hour format <day> Day of the current month, from 1 to 31 <month>...
Page 236: Clock Summer-Time Date
YSTEM ONFIGURATION AND ONITORING OMMANDS CLOCK SUMMER TIME DATE clock summer-time date Overview This command defines the start and end of summertime for a specific year only, and specifies summertime’s offset value to Standard Time for that year. The no variant of this command removes the device’s summertime setting. This clears both specific summertime dates and recurring dates (set with the clock summer-time recurring...
Page 237 YSTEM ONFIGURATION AND ONITORING OMMANDS CLOCK SUMMER TIME DATE Related clock summer-time recurring Commands clock timezone C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 238: Clock Summer-Time Recurring
YSTEM ONFIGURATION AND ONITORING OMMANDS CLOCK SUMMER TIME RECURRING clock summer-time recurring Overview This command defines the start and end of summertime for every year, and specifies summertime’s offset value to Standard Time. The no variant of this command removes the device’s summertime setting. This clears both specific summertime dates (set with the clock summer-time date command) and recurring dates.
Page 239 YSTEM ONFIGURATION AND ONITORING OMMANDS CLOCK SUMMER TIME RECURRING Mode Global Configuration Examples To set a summertime definition for New Zealand using NZST (UTC+12:00) as the standard time, and NZDT (UTC+13:00) as summertime, with summertime set to start on the last Sunday in September, and end on the 1st Sunday in April, use the command: awplus(config)# clock summer-time NZDT recurring 5 sun sep 2:00...
Page 240: Clock Timezone
YSTEM ONFIGURATION AND ONITORING OMMANDS CLOCK TIMEZONE clock timezone Overview This command defines the device’s clock timezone. The timezone is set as a offset to the UTC. The no variant of this command resets the system time to UTC. By default, the system time is set to UTC. clock timezone <timezone-name>...
Page 241: Continuous-Reboot-Prevention
YSTEM ONFIGURATION AND ONITORING OMMANDS CONTINUOUS REBOOT PREVENTION continuous-reboot-prevention Overview Use this command to enable and to configure the continuous reboot prevention feature. Continuous reboot prevention allows the user to configure the time period during which reboot events are counted, the maximum number of times the switch can reboot within the specified time period, referred to as the threshold, and the action to take if the threshold is exceeded.
Page 242 YSTEM ONFIGURATION AND ONITORING OMMANDS CONTINUOUS REBOOT PREVENTION Examples To enable continuous reboot prevention, use the commands: awplus# configure terminal awplus(config)# continuous-reboot-prevention enable To set the period to 500 and action to stopreboot, use the commands: awplus# configure terminal awplus(config)# continuous-reboot-prevention period 500 action stopreboot To return the period and action to the defaults and keep the continuous reboot...
Page 243: Ecofriendly Led
YSTEM ONFIGURATION AND ONITORING OMMANDS ECOFRIENDLY LED ecofriendly led Overview Use this command to enable the eco-friendly LED (Light Emitting Diode) feature, which turns off power to the port LEDs, including the stack port status LEDs. Power to the system status and stack management LEDs is not disabled. Use the no variant of this command to disable the eco-friendly LED feature.
Page 244: Ecofriendly Lpi
YSTEM ONFIGURATION AND ONITORING OMMANDS ECOFRIENDLY LPI ecofriendly lpi Use this command to conserve power by enabling the eco-friendly LPI (Low Power Idle) feature. This feature reduces the power supplied to the ports by the switch whenever the ports are idle and are connected to IEEE 802.3az Energy Efficient Ethernet compliant host devices.
Page 245: Show Ecofriendly
YSTEM ONFIGURATION AND ONITORING OMMANDS ECOFRIENDLY LPI Related duplex Commands ecofriendly led show ecofriendly show interface speed C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 246: Findme
YSTEM ONFIGURATION AND ONITORING OMMANDS FINDME findme Overview Use this command to physically locate a specific device from a group of similar devices. Activating the command causes a selected number of port LEDs to alternately flash green then amber (if that device has amber LEDs) at a rate of 1 Hz. Use the no variant of this command to deactivate the Find Me feature prior to the timeout expiring.
Page 247 YSTEM ONFIGURATION AND ONITORING OMMANDS FINDME To activate the Find Me feature for the default duration (60 seconds) on switch port interfaces port1.0.2 through port1.0.4, use the following command: awplus# findme interface port1.0.2-1.0.4 In the example above, ports 2 to 4 will flash 4 times and then all ports will flash twice.
Page 248: Findme Trigger
YSTEM ONFIGURATION AND ONITORING OMMANDS FINDME TRIGGER findme trigger Overview When this command is enabled, the LED flashing functionality of the find-me command is applied whenever any or all of the selected parameter conditions is detected. Use the no variant to remove the findme trigger function for the selected parameter.
Page 249: Hostname
YSTEM ONFIGURATION AND ONITORING OMMANDS HOSTNAME hostname Overview This command sets the name applied to the device as shown at the prompt. The hostname is: • displayed in the output of the show system command • displayed in the CLI prompt so you know which device you are configuring •...
Page 250 YSTEM ONFIGURATION AND ONITORING OMMANDS HOSTNAME To set the system name to HQ-Sales, use the command: Example awplus# configure terminal awplus(config)# hostname HQ-Sales This changes the prompt to: HQ-Sales(config)# To revert to the default hostname awplus, use the command: HQ-Sales(config)# no hostname This changes the prompt to: awplus(config)#...
Page 251: Max-Fib-Routes
YSTEM ONFIGURATION AND ONITORING OMMANDS ROUTES max-fib-routes Overview This command enables you to control the maximum number of FIB routes configured. It operates by providing parameters that enable you to configure preset maximums and warning message thresholds. : For static routes use the max-static-routes command.
Page 252: Max-Static-Routes
YSTEM ONFIGURATION AND ONITORING OMMANDS STATIC ROUTES max-static-routes Overview Use this command to set the maximum number of static routes, excluding FIB (Forwarding Information Base) routes. : For FIB routes use the max-fib-routes command. NOTE Use the no variant of this command to set the maximum number of static routes to the default of 1000 static routes.
Page 253: No Debug All
YSTEM ONFIGURATION AND ONITORING OMMANDS NO DEBUG ALL no debug all Overview This command disables the debugging facility for all features on your device. This stops the device from generating any diagnostic debugging messages. The debugging facility is disabled by default. Syntax no debug all [ipv6|dot1x|nsm|ospf|pim dense-mode|pim sparse-mode|rip|vrrp]...
Page 254 YSTEM ONFIGURATION AND ONITORING OMMANDS NO DEBUG ALL To disable all PIM Sparse Mode debugging, use the command: awplus# no debug all pim sparse-mode To disable all RIP debugging, use the command: awplus# no debug all rip To disable all VRRP debugging, use the command: awplus# no debug all vrrp Related...
Page 255: Reboot
YSTEM ONFIGURATION AND ONITORING OMMANDS REBOOT reboot Overview This command halts the device and performs a cold restart (also known as reload). It displays a confirmation request before restarting. You can reboot a stand-alone device, a stack, or a specified stack member. Syntax reboot [<stack-ID>] reload [<stack-ID>]...
Page 256: Reload
YSTEM ONFIGURATION AND ONITORING OMMANDS RELOAD reload Overview This command performs the same function as the reboot command. C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 257: Show Clock
YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW CLOCK show clock Overview This command displays the system’s current configured local time and date. It also displays other clock related information such as timezone and summertime configuration. show clock Syntax Mode User Exec and Privileged Exec Example To display the system’s current local time, use the command: awplus#...
Page 258 YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW CLOCK Related clock set Commands clock summer-time date clock summer-time recurring clock timezone C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 259: Show Continuous-Reboot-Prevention
YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW CONTINUOUS REBOOT PREVENTION show continuous-reboot-prevention Overview This command displays the current continuous reboot prevention configuration. show continuous-reboot-prevention Syntax Mode User Exec and Privileged Exec Examples To show the current continuous reboot prevention configuration, use the command: awplus# show continuous-reboot-prevention...
Page 260: Show Cpu
YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW CPU show cpu Overview This command displays a list of running processes with their CPU utilization. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide.
Page 261 YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW CPU Output Figure 7-3: Example output from show cpu Stack member 2:  CPU averages: 1 second: 12%, 20 seconds: 2%, 60 seconds: 2% System load averages: 1 minute: 0.03, 5 minutes: 0.02, 15 minutes: 0.00 Current CPU load:...
Page 262 YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW CPU Table 2: Parameters in the output of the show cpu command (cont.) Parameter Description state Process state; one of “run”, “sleep”, “zombie”, and “dead”. sleep% Percentage of time that the process is in the sleep state. runtime The time that the process has been running for, measured in jiffies.
Page 263: Show Cpu History
YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW CPU HISTORY show cpu history Overview This command prints a graph showing the historical CPU utilization. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide.
Page 264 YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW CPU HISTORY Output Figure 7-4: Example output from the show cpu history command Per second CPU load history  100 90 80 70 60 50 40 30 * 10 ******************************************* **************** |..|..|..|..|..|..|..|..|..|..|..|.. Oldest Newest CPU load% per second (last 60 seconds)...
Page 265 YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW CPU HISTORY Related show memory Commands show memory allocations show memory pools show process C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 266: Show Debugging
User Exec and Privileged Exec Usage This command displays all debugging information, similar to the way the show tech-support command displays all show output for use by Allied Telesis authorized service personnel only. Example To display all debugging information, use the command: awplus#...
Page 267: Show Ecofriendly
YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW ECOFRIENDLY show ecofriendly Overview This command displays the switch’s eco-friendly configuration status. The ecofriendly led ecofriendly lpi configuration status are shown in the show ecofriendly output. show ecofriendly Syntax Mode Privileged Exec and Global Configuration Example To display the switch’s eco-friendly configuration status, use the following command:...
Page 268 YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW ECOFRIENDLY Table 3: Parameters in the output of the show ecofriendly command (cont.) Parameter Description off (configuration The eco-friendly LED feature has been enabled with overridden by eco the eco-switch button, overriding the configuration button) set with the ecofriendly led...
Page 269: Show Interface Memory
This command displays the shared memory used by either all interfaces, or the specified interface or interfaces. The output is useful for diagnostic purposes by Allied Telesis authorized service personnel. For information on filtering and saving command output, see the “Getting Started...
Page 270 YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW INTERFACE MEMORY Output Figure 7-7: Example output from the show interface memory command awplus#show interface memory Vlan blocking state shared memory usage --------------------------------------------- Interface shmid Bytes Used nattch Status port1.0.1 393228 1 port1.0.2 458766 1...
Page 271: Show Memory
YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW MEMORY show memory Overview This command displays the memory used by each process that is currently running For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide.
Page 272 YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW MEMORY Table 4: Parameters in the output of the show memory command Parameter Description Stack member Stack member number. RAM total Total amount of RAM memory free. free Available memory size. buffers Memory allocated kernel buffers. Identifier number for the process.
Page 273: Show Memory Allocations
YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW MEMORY ALLOCATIONS show memory allocations Overview This command displays the memory allocations used by processes. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide.
Page 274: Show Memory History
YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW MEMORY ALLOCATIONS Related show memory Commands show memory history show memory pools show memory shared show tech-support C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 275: Show Memory History
YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW MEMORY HISTORY show memory history Overview This command prints a graph showing the historical memory usage. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide.
Page 276 YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW MEMORY HISTORY Output Figure 7-11: Example output from the show memory history command STACK member 1:  Per minute memory utilization history  100 90 80 70 60 50 40************************************************************* 30 20 10 |..|..|..|..|..|..|..|..|..|..|..|.. Oldest Newest...
Page 277: Show Memory Pools
YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW MEMORY POOLS show memory pools Overview This command shows the memory pools used by processes. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide.
Page 278: Show Memory Shared
Overview This command displays shared memory allocation information. The output is useful for diagnostic purposes by Allied Telesis authorized service personnel. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide.
Page 279: Show Process
YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW PROCESS show process Overview This command lists a summary of the current running processes. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide. Syntax show process [<stack-ID>] [sort {cpu|mem}] Parameter...
Page 280 YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW PROCESS Output Figure 7-14: Example output from the show process command Stack member 2:  CPU averages: 1 second: 8%, 20 seconds: 5%, 60 seconds: 5% System load averages: 1 minute: 0.04, 5 minutes: 0.08, 15 minutes: 0.12 Current CPU load:...
Page 281 YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW PROCESS Table 5: Parameters in the output from the show process command (cont.) Parameter Description Process priority. state Process state; one of “run”, “sleep”, “stop”, “zombie”, or “dead”. sleep% Percentage of time the process is in the sleep state. Related show cpu Commands...
Page 282: Show Reboot History
YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW REBOOT HISTORY show reboot history Overview Use this command to display the device’s reboot history. show reboot history [<stack-ID>] Syntax Parameter Description <stack-ID> Stack member number, from 1 to 8. Mode User Exec and Privileged Exec Example To show the reboot history of stack member 2, use the command: awplus#...
Page 283 YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW REBOOT HISTORY Table 6: Parameters in the output from the show reboot history command Parameter Description Continuous reboot A continuous reboot prevention event has occurred. The prevention action taken is configured with the continuous-reboot- prevention command.
Page 284: Show Router-Id
YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW ROUTER show router-id Overview Use this command to show the Router ID of the current system. show router-id Syntax Mode User Exec and Privileged Exec Example To display the Router ID of the current system, use the command: awplus# show router-id Output...
Page 285: Show System
System Status Mon Nov 16 08:42:16 2015  Board Board Name Serial number -------------------------------------------------------------------------------- Base x510-28GTX A24SCA01M -------------------------------------------------------------------------------- RAM: Total: 495792 kB Free: 384904 kB Flash: 63.0MB Used: 50.9MB Available: 12.1MB -------------------------------------------------------------------------------- Environment Status : Normal Uptime : 0 days 16:31:49...
Page 286: Show System Environment
Figure 7-18: Example output from show system environment Stack Environment Monitoring Status  Stack member 1:  Overall Status: Normal  Resource ID: 1 Name: x510-28GTX Sensor (Units) Reading Low Limit High Limit Status Fan: Fan 1 (Rpm) 4344 3000 Ok...
Page 287: Show System Interrupts
YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW SYSTEM INTERRUPTS show system interrupts Overview Use this command to display the number of interrupts for each IRQ (Interrupt Request) used to interrupt input lines on a PIC (Programmable Interrupt Controller) on your device. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus”...
Page 288: Show System Mac
YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW SYSTEM MAC show system mac Overview This command displays the physical MAC address available on a standalone switch or a stack. This command also shows the virtual MAC address for a stack if the stack virtual MAC address feature is enabled with the stack virtual-mac command or the...
Page 289: Show System Pci Device
YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW SYSTEM PCI DEVICE show system pci device Overview Use this command to display the PCI devices on your device. show system pci device Syntax Mode User Exec and Privileged Exec Example To display information about the PCI devices on your device, use the command: awplus# show system pci device Output...
Page 290: Show System Pci Tree
YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW SYSTEM PCI TREE show system pci tree Overview Use this command to display the PCI tree on your device. show system pci tree Syntax Mode User Exec and Privileged Exec Example To display information about the PCI tree on your device, use the command: awplus# show system pci tree Output...
Page 291: Show System Serialnumber
YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW SYSTEM SERIALNUMBER show system serialnumber Overview This command shows the serial number information for the device. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide.
Page 292: Show Tech-Support
YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW TECH SUPPORT show tech-support Overview This command generates system and debugging information for the device and saves it to a file. This command is useful for collecting a large amount of information so that it can then be analyzed for troubleshooting purposes.
Page 293 YSTEM ONFIGURATION AND ONITORING OMMANDS SHOW TECH SUPPORT Parameter Description tacacs+ Display TACACS+ information update Display resource update specific information Output modifier > Output redirection >> Output redirection (append) outfile Output file name <filename> Specifies a name for the output file. If no name is specified, this file will be saved as: tech-support.txt.gz.
Page 294: Speed (Asyn)
YSTEM ONFIGURATION AND ONITORING OMMANDS SPEED ASYN speed (asyn) Overview This command changes the console speed from the device. Note that a change in console speed is applied for subsequent console sessions. Exit the current session to enable the console speed change using the clear line console command.
Page 295 YSTEM ONFIGURATION AND ONITORING OMMANDS SPEED ASYN Related clear line console Commands line show running-config show startup-config speed C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 296: System Territory (Deprecated)
YSTEM ONFIGURATION AND ONITORING OMMANDS SYSTEM TERRITORY DEPRECATED system territory (deprecated) Overview This command has been deprecated in Software Version 5.4.4-0.1 and later. It now has no effect. It is no longer useful to specify a system territory, so there is no alternative command.
Page 297: Terminal Monitor
YSTEM ONFIGURATION AND ONITORING OMMANDS TERMINAL MONITOR terminal monitor Overview Use this command to display debugging output on a terminal. To display the cursor after a line of debugging output, press the Enter key. Use the command terminal no monitor to stop displaying debugging output on the terminal, or use the timeout option to stop displaying debugging output on the terminal after a set time.
Page 298: Undebug All
YSTEM ONFIGURATION AND ONITORING OMMANDS UNDEBUG ALL undebug all Overview This command applies the functionality of the no debug all command. C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 299: Pluggables And Cabling Commands
Pluggables and Cabling Commands Introduction Overview This chapter provides an alphabetical reference of commands used to configure and monitor Pluggables and Cabling, including: • Cable Fault Locator for finding faults in copper cabling • Optical Digital Diagnostic Monitoring (DDM) to help find fiber issues when links go down •...
Page 300: Clear Test Cable-Diagnostics Tdr
LUGGABLES AND ABLING OMMANDS CLEAR TEST CABLE DIAGNOSTICS TDR clear test cable-diagnostics tdr Overview Use this command to clear the results of the last cable test that was run. clear test cable-diagnostics tdr Syntax Mode Privileged Exec Examples To clear the results of a previous cable-diagnostics test use the following commands: awplus# clear test cable-diagnostics tdr...
Page 301: Debug Fiber-Monitoring
LUGGABLES AND ABLING OMMANDS DEBUG FIBER MONITORING debug fiber-monitoring Overview Use this command to enable debugging of active fiber monitoring on the specified ports. Use the no variant of this command to disable debugging on all ports or the specified ports. Syntax debug fiber-monitoring interface <port-list>...
Page 302 LUGGABLES AND ABLING OMMANDS DEBUG FIBER MONITORING Output Figure 8-1: Example output from debug fiber-monitoring awplus#debug fiber-monitoring interface port2.0.1 awplus#terminal monitor  % Warning: Console logging enabled awplus#01:42:50 awplus Pluggable[522]: Fiber-monitor port2.0.1: Channel:1 Reading:1748 Baseline:1708 Threshold:1356 01:42:52 awplus Pluggable[522]: Fiber-monitor port2.0.1: Channel:1 Reading:1717 Baseline:1709 Threshold:1357...
Page 303: Fiber-Monitoring Action
LUGGABLES AND ABLING OMMANDS FIBER MONITORING ACTION fiber-monitoring action Overview Use this command to specify an action to be taken if the optical power received on the port changes from the baseline by the amount specified in the fiber-monitoring sensitivity command. Use the no variant of this command to remove the specified action or all actions from the port.
Page 304: Fiber-Monitoring Baseline
LUGGABLES AND ABLING OMMANDS FIBER MONITORING BASELINE fiber-monitoring baseline Overview Use this command to configure how the baseline value for comparison is calculated for active fiber monitoring on the port. Note that alarm generation will not commence until the link has been up for a full averaging period.
Page 305 LUGGABLES AND ABLING OMMANDS FIBER MONITORING BASELINE Related fiber-monitoring interval Commands fiber-monitoring sensitivity C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 306: Fiber-Monitoring Enable
LUGGABLES AND ABLING OMMANDS FIBER MONITORING ENABLE fiber-monitoring enable Overview Use this command to enable active fiber monitoring on a fiber port. If the port can support fiber monitoring but does not have the correct SFP or fiber type installed, the configuration will be saved, and monitoring will commence when a supported SFP is inserted.
Page 307: Fiber-Monitoring Interval
LUGGABLES AND ABLING OMMANDS FIBER MONITORING INTERVAL fiber-monitoring interval Overview Use this command to configure the fiber monitoring polling interval in seconds for the port. The optical power will be read every <interval> seconds and compared against the calculated threshold values to see if a log message or other action is required.
Page 308: Fiber-Monitoring Sensitivity
LUGGABLES AND ABLING OMMANDS FIBER MONITORING SENSITIVITY fiber-monitoring sensitivity Overview Use this command to configure the sensitivity of the alarm thresholds on the port for active fiber monitoring. Use the no variant of this command to reset the sensitivity to the default. Syntax fiber-monitoring sensitivity (low|medium|high|highest|fixed <25-65535>)|relative <0.01-10.0>...
Page 309 LUGGABLES AND ABLING OMMANDS FIBER MONITORING SENSITIVITY Related fiber-monitoring action Commands fiber-monitoring baseline show system fiber-monitoring C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 310: Show System Fiber-Monitoring
LUGGABLES AND ABLING OMMANDS SHOW SYSTEM FIBER MONITORING show system fiber-monitoring Overview Use this command to display settings and current status for Active Fiber Monitoring. show system fiber-monitoring Syntax Mode User Exec/Privileged Exec Example To display configuration and status for active fiber monitoring on ports, use the command: awplus# show system fiber-monitoring...
Page 311 LUGGABLES AND ABLING OMMANDS SHOW SYSTEM FIBER MONITORING Table 8-1: Parameters in the output from show system fiber-monitoring Parameter Description Reading units The units for optical power readings in the rest of the display, e.g. 0.0001mW. Status Whether active fiber monitoring is enabled or disabled for this port.
Page 312 LUGGABLES AND ABLING OMMANDS SHOW SYSTEM FIBER MONITORING fiber-monitoring interval fiber-monitoring sensitivity C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 313: Show System Pluggable
Different types of pluggable transceivers are supported in different models of device. See your Allied Telesis dealer for more information about the models of pluggables that your device supports.
Page 314: Serial Number
LUGGABLES AND ABLING OMMANDS SHOW SYSTEM PLUGGABLE Table 9: Parameters in the output from the show system pluggable command Parameter Description Vendor Specifies the vendor’s name for the installed pluggable transceiver. Device Specifies the device name for the installed pluggable transceiver.
Page 315: Show System Pluggable Detail
Different types of pluggable transceivers are supported in different models of device. See your Allied Telesis dealer for more information about the models of pluggables that your device supports.
Page 316 LUGGABLES AND ABLING OMMANDS SHOW SYSTEM PLUGGABLE DETAIL • Power Monitoring: Displays the received power measurement type, which can be either OMA(Optical Module Amplitude) or Avg(Average Power) measured in μW. : For parameters that are not supported or not specified, a hyphen is displayed NOTE instead.
Page 317 LUGGABLES AND ABLING OMMANDS SHOW SYSTEM PLUGGABLE DETAIL Table 8-1: Parameters in the output from show system pluggable detail (cont.) Parameter Description Device Revision Specifies the hardware revision code for the pluggable transceiver. This may be useful for troubleshooting because different devices may support different pluggable transceiver revisions.
Page 318: Show System Pluggable Diagnostics
LUGGABLES AND ABLING OMMANDS SHOW SYSTEM PLUGGABLE DIAGNOSTICS show system pluggable diagnostics Overview This command displays diagnostic information about SFP and SFP+ pluggable transceivers that support Digital Diagnostic Monitoring (DDM). Different types of pluggable transceivers are supported in different models of device.
Page 319 LUGGABLES AND ABLING OMMANDS SHOW SYSTEM PLUGGABLE DIAGNOSTICS Output Figure 8-5: Example output from the show system pluggable diagnostics command on a device awplus#show system pluggable diagnostics System Pluggable Information Diagnostics  Port1.0.25 Status Alarms Warnings Reading Alarm Warning Min Temp: (Degrees C) 29.387 100.00...
Page 320: Show Test Cable-Diagnostics Tdr
LUGGABLES AND ABLING OMMANDS SHOW TEST CABLE DIAGNOSTICS TDR show test cable-diagnostics tdr Overview Use this command to display the results of the last cable-diagnostics test that was run using the TDR (Time Domain Reflectometer) on a fixed copper cable port. The displayed status of the cable can be either: •...
Page 321: Test Cable-Diagnostics Tdr Interface
LUGGABLES AND ABLING OMMANDS TEST CABLE DIAGNOSTICS TDR INTERFACE test cable-diagnostics tdr interface Overview Use this command to apply the Cable Fault Locator’s cable-diagnostics tests to twisted pair data cables for a selected port. The tests will detect either correct, short circuit, or open, circuit terminations.
Page 322: Connectivity Fault Management Commands
Connectivity Fault Management Commands Introduction Overview This chapter provides an alphabetical reference of commands used to configure Connectivity Fault Management. For more information, see the Connectivity Fault Management (CFM) Feature Overview and Configuration Guide. Command List • “cc interval” on page 324 •...
Page 323 ONNECTIVITY AULT ANAGEMENT OMMANDS • “show ethernet cfm service” on page 365 • “show mep-alarm status” on page 368 C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 324: Cc Interval
ONNECTIVITY AULT ANAGEMENT OMMANDS CC INTERVAL cc interval Overview Use this command to set the CCM Interval. cc ma-name <ma-name> interval <interval> Syntax Parameter Description ma-name Specify the Maintenance Association for which the Interval is used. <ma-name> Specify the Maintenance Association's CLI instance name. interval Specify the CCM Interval.
Page 325 ONNECTIVITY AULT ANAGEMENT OMMANDS CC INTERVAL service ma-name Command Version 5.4.7-1.1: command added changes C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 326: Cc Multicast
ONNECTIVITY AULT ANAGEMENT OMMANDS CC MULTICAST cc multicast Overview Use this command to enable a Local MEP to send CCMs using multicast, or to disable sending CCMs altogether. cc multicast state {enable|disable} Syntax Parameter Description state Specify to either enable or disable CFM multicast CCMs. enable Start sending periodic multicast frames.
Page 327: Cc Unicast
ONNECTIVITY AULT ANAGEMENT OMMANDS CC UNICAST cc unicast Overview Use this command to enable a Local MEP to send CCMs using unicast, or to disable sending CCMs altogether. cc unicast rmpid <rmep-id> state {enable|disable} Syntax Parameter Description rmpid The remote MEP that the Local MEP is to unicast to. <rmep-id>...
Page 328: Clear (Mep Attribute)
ONNECTIVITY AULT ANAGEMENT OMMANDS (MEP A CLEAR TTRIBUTE clear (MEP Attribute) Overview Use this command to clear a Local MEP attribute. clear {ccm-ltm-priority|lowest-priority-defect|fng-alarm-time Syntax |reset-fng-time|active|all} Parameter Description ccm-ltm-priority Set the queuing and p-bit priority for CCM messages to their default value of 7. lowest-priority- Set the Fault Notification Generation (FNG) lowest alarm defect...
Page 329: Clear Ethernet Cfm Errorlog
ONNECTIVITY AULT ANAGEMENT OMMANDS CLEAR ETHERNET CFM ERRORLOG clear ethernet cfm errorlog Overview Use this command to clear the Event List for all Maintenance Associations (MAs) associated with the specified Maintenance Domain (MD). clear ethernet cfm errorlog domain <domain-name> Syntax Parameter Description <domain-name>...
Page 330: Clear Mep Counter
ONNECTIVITY AULT ANAGEMENT OMMANDS CLEAR MEP COUNTER clear mep counter Overview Use this command to clear statistics counters for all Local MEPs within a given Maintenance Association (MA) and its associated Maintenance Domain (MD), or to optionally clear counters for one specific Local MEP. clear mep counter domain <domain-name>...
Page 331: Ethernet Cfm Domain-Name
ONNECTIVITY AULT ANAGEMENT OMMANDS ETHERNET CFM DOMAIN NAME ethernet cfm domain-name Overview Use this command to create and configure a CFM Maintenance Domain, or to enter Ethernet CFM Configuration mode for an existing Maintenance Domain instance. Use the no variant of this command to destroy the Maintenance Domain's instance that was previously created.
Page 332 ONNECTIVITY AULT ANAGEMENT OMMANDS ETHERNET CFM DOMAIN NAME Parameter Description Specify the md-type as MAC-based MD name format. The <md-type-name> consists of a MAC address + 2-octet (unsigned) integer in the form of HHHH.HHHH.HHHH:<2-octet integer>. This MAC based string plus the Short MA name that is configured for an MA make up the MAID field in a CCM message.
Page 333 ONNECTIVITY AULT ANAGEMENT OMMANDS ETHERNET CFM DOMAIN NAME cfm-sf-notify clear (MEP Attribute) ethernet cfm mep mep (FNG attributes) mep crosscheck service ma-name show ethernet cfm domain show ethernet cfm errorlog show ethernet cfm maintenance-points remote mep show ethernet cfm service Command Version 5.4.7-1.1: command added changes...
Page 334: Ethernet Cfm Mep
ONNECTIVITY AULT ANAGEMENT OMMANDS ETHERNET CFM MEP ethernet cfm mep Overview Use this command to create a Local MEP instance, or to enter Interface Ethernet CFM MEP Configuration mode for an existing Local MEP's instance, so you can configure it. Use the no variant of this command to destroy the Local MEP instance.
Page 335 ONNECTIVITY AULT ANAGEMENT OMMANDS ETHERNET CFM MEP prevent loops in the network. As such, it is important that Down MPs be used in an MD/MA that is not subject to topology loops. A Down MP can be VLAN aware or link-local. An MEP can be either Up or Down for a given MD/MA, but within a bridge for the same MD/MA, there can only be one Up or Down MEP (not both).
Page 336: Mep (Fng Attributes)
ONNECTIVITY AULT ANAGEMENT OMMANDS (FNG ATTRIBUTES mep (FNG attributes) Overview Use this command to configure the Fault Notification Generation (FNG) attributes of a Local MEP. mep {lowest-priority-defect <defect-priority>| Syntax fng-alarm-time <soak-time>|reset-fng-time <abate-time>} Parameter Description lowest-priority-defect The lowest level defect allowed to generate alarms. <defect-priority>...
Page 337 ONNECTIVITY AULT ANAGEMENT OMMANDS (FNG ATTRIBUTES Example To clear an alarm after the defect has been abated for 6 seconds, use the commands: awplus(config)# interface port1.0.2 awplus(config-if)# ethernet cfm mep down mpid 12 domain-name MD-INST2 ma-name MA-INST2-1 awplus(config-if-eth-cfm-mep)# mep reset-fng-time 600 Related clear (MEP Attribute) Commands...
Page 338: Mep Active
ONNECTIVITY AULT ANAGEMENT OMMANDS MEP ACTIVE mep active Overview Use this command to specify the administrative state of the Local MEP. mep active {true|false} Syntax Parameter Description true Put the Local MEP into a state of active, which enables it to perform various functions such as processing CCM messages.
Page 339 ONNECTIVITY AULT ANAGEMENT OMMANDS MEP ACTIVE Command Version 5.4.7-1.1: command added changes C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 340: Mep Ccm-Ltm-Priority
ONNECTIVITY AULT ANAGEMENT OMMANDS MEP CCM PRIORITY mep ccm-ltm-priority Overview Use this command to specify the queuing and p-bit priority for CCM messages. mep ccm-ltm-priority <0-7> Syntax Parameter Description <0-7> The queuing and p-bit priority for CCM messages. Default Mode Interface Ethernet CFM MEP Configuration Usage Maintenance Points are entities that exist within an MD/MA and can perform the...
Page 341: Mep Crosscheck
ONNECTIVITY AULT ANAGEMENT OMMANDS MEP CROSSCHECK mep crosscheck Overview Use this command within the MD instance context to create a Remote MEP instance and configure its parameters. Use the no variant of this command to destroy the Remote MEP instance. Syntax mep crosscheck mpid <rmep-id>...
Page 342 ONNECTIVITY AULT ANAGEMENT OMMANDS MEP CROSSCHECK in an MD/MA that is not subject to topology loops. A Down MP can be VLAN aware or link-local. An MEP can be either Up or Down for a given MD/MA, but within a bridge for the same MD/MA, there can only be one Up or Down MEP (not both).
Page 343: Service Ma-Name
ONNECTIVITY AULT ANAGEMENT OMMANDS SERVICE MA NAME service ma-name Overview Use this command to create a Maintenance Association instance within the MD instance context and configure its parameters. Use the no variant of this command to destroy the Maintenance Association instance.
Page 344 ONNECTIVITY AULT ANAGEMENT OMMANDS SERVICE MA NAME Parameter Description mip-creation Optional parameter that specifies the MIP creation permission value. none Specifies that no MIPs are to be created (the default and only choice). Mode Ethernet CFM Configuration Usage A Maintenance Association is a Connectivity Fault Management (CFM) term that represents a particular segment of a network within a Maintenance Domain.
Page 345 ONNECTIVITY AULT ANAGEMENT OMMANDS SERVICE MA NAME Command Version 5.4.7-1.1: command added changes C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 346: Show Ethernet Cfm Details
ONNECTIVITY AULT ANAGEMENT OMMANDS SHOW ETHERNET CFM DETAILS show ethernet cfm details Overview Use this command to show CFM configuration, status, and statistics in detail for all CFM entities that the system knows about. show ethernet cfm details Syntax Mode User Exec/Privileged Exec Example To show CFM configuration, status, and statistics in detail for all CFM entities, use...
Page 347 ONNECTIVITY AULT ANAGEMENT OMMANDS SHOW ETHERNET CFM DETAILS Local Maintenance End Point --------------------------- Domain Name....... MD-INST1 MA Service Name....MA-INST1-1 MA Primary VLAN....400 MEP ID......2 Direction......Down Interface......port1.0.3 MEP Active State....True CC State...... Enabled CC Type....... Multicast PDU VLAN Priority.....
Page 348 ONNECTIVITY AULT ANAGEMENT OMMANDS SHOW ETHERNET CFM DETAILS Service ------- CFM Service Name....MA-INST1-2 CFM Domain Name....MD-INST1 CFM Domain Level....3 Primary VLAN...... 300 Maintenance Assoc Name Format..string Maintenance Assoc Name Value..MA-12V300 CCM Transmission Interval..1 second Local MEPs......
Page 349 ONNECTIVITY AULT ANAGEMENT OMMANDS SHOW ETHERNET CFM DETAILS Local Maintenance End Point --------------------------- Domain Name....... MD-INST1 MA Service Name....MA-INST1-2 MA Primary VLAN....300 MEP ID......200 Direction......Down Interface......port1.0.2 MEP Active State....True CC State...... Enabled CC Type....... Multicast PDU VLAN Priority.....
Page 350 ONNECTIVITY AULT ANAGEMENT OMMANDS SHOW ETHERNET CFM DETAILS Related show ethernet cfm domain Commands show ethernet cfm maintenance-points local mep show ethernet cfm maintenance-points remote mep show ethernet cfm service Command Version 5.4.7-1.1: command added changes C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™...
Page 351: Show Ethernet Cfm Domain
ONNECTIVITY AULT ANAGEMENT OMMANDS SHOW ETHERNET CFM DOMAIN show ethernet cfm domain Overview Use this command to show the Ethernet CFM Domain(s) that have been configured in summary format. Options include the ability to show all domains with detailed information, or to show a specified domain with detailed information.
Page 352 ONNECTIVITY AULT ANAGEMENT OMMANDS SHOW ETHERNET CFM DOMAIN Figure 9-3: Example output from show ethernet cfm domain details awplus#show ethernet cfm domain details  Maintenance Domain Name..MD-INST1 Maintenance Domain Name Format... character-string Maintenance Domain Name Value..MD-12L0 Level......0 Associated CFM Services..
Page 353 ONNECTIVITY AULT ANAGEMENT OMMANDS SHOW ETHERNET CFM DOMAIN service ma-name show ethernet cfm details Command Version 5.4.7-1.1: command added changes C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 354: Show Ethernet Cfm Errorlog
ONNECTIVITY AULT ANAGEMENT OMMANDS SHOW ETHERNET CFM ERRORLOG show ethernet cfm errorlog Overview Use this command to list the CFM Errors that are in the CFM Errors Event List, starting from the oldest at the top to the latest at the end. show ethernet cfm errorlog domain <domain-name>...
Page 355 ONNECTIVITY AULT ANAGEMENT OMMANDS SHOW ETHERNET CFM ERRORLOG Table 9-3: Parameters in the output from show ethernet cfm errorlog domain MD-INST2 (cont.) Parameter Description Error Reason One of the following: “Remote MEP Down” - an RMEPCCMDefect has been declared for this remote MEP. CCMs have not been received from this remote MEP within the CCM interval....
Page 356: Show Ethernet Cfm Maintenance-Points Local Mep
ONNECTIVITY AULT ANAGEMENT OMMANDS SHOW ETHERNET CFM MAINTENANCE POINTS LOCAL MEP show ethernet cfm maintenance-points local mep Overview Use this command to show one or more Local MEPs, and their configuration and status in summary format. Options include the ability to show Local MEP(s) for a given interface with further option to show statistics counters.
Page 357: Service Name
ONNECTIVITY AULT ANAGEMENT OMMANDS SHOW ETHERNET CFM MAINTENANCE POINTS LOCAL MEP To show details of a specific Local MEP on an MA and its associated MD, use the command: awplus# show ethernet cfm maintenance-points local mep domain MD-INST1 service MA-INST1-1 mep 12 details Output Figure 9-6: Example output from show ethernet cfm maintenance-points...
Page 358: Ma Primary Vlan
ONNECTIVITY AULT ANAGEMENT OMMANDS SHOW ETHERNET CFM MAINTENANCE POINTS LOCAL MEP Figure 9-7: Example output from show ethernet cfm maintenance-points local mep domain MD-INST1 service MA-INST1-1 mep 12 details awplus#show ethernet cfm maintenance-points local mep domain MD-INST1 service MA-INST1-1 mep 12 details ...
Page 359: Cc State
ONNECTIVITY AULT ANAGEMENT OMMANDS SHOW ETHERNET CFM MAINTENANCE POINTS LOCAL MEP Table 9-5: Parameters in the output from show ethernet cfm maintenance-points local mep domain <domain-name> service <ma-name> mep <mep-id> details (cont.) Parameter Description CC State The MEP's CCM configured administrative state: Up: Enable...
Page 360: Error Ccm Reason
ONNECTIVITY AULT ANAGEMENT OMMANDS SHOW ETHERNET CFM MAINTENANCE POINTS LOCAL MEP Table 9-5: Parameters in the output from show ethernet cfm maintenance-points local mep domain <domain-name> service <ma-name> mep <mep-id> details (cont.) Parameter Description Error CCM Reason The reason that the local MEP is detecting the errorCCMdefect condition (if any):...
Page 361 ONNECTIVITY AULT ANAGEMENT OMMANDS SHOW ETHERNET CFM MAINTENANCE POINTS LOCAL MEP Command Version 5.4.7-1.1: command added changes C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 362: Show Ethernet Cfm Maintenance-Points Remote Mep
ONNECTIVITY AULT ANAGEMENT OMMANDS SHOW ETHERNET CFM MAINTENANCE POINTS REMOTE MEP show ethernet cfm maintenance-points remote mep Overview Use this command to show one or more Ethernet CFM maintenance points, namely Remote Maintenance End Points (MEPs) within a given Maintenance Association (MA) and its associated Maintenance Domain (MD), and their configuration and status in summary format.
Page 363 ONNECTIVITY AULT ANAGEMENT OMMANDS SHOW ETHERNET CFM MAINTENANCE POINTS REMOTE MEP Output Figure 9-8: Example output from show ethernet cfm maintenance-points remote mep domain MD-INST1 service MA-INST1-1 awplus#show ethernet cfm maintenance-points remote mep domain MD-INST1 service MA-INST1-1  CFM Domain Name: MD-INST1 CFM Service Name: MA-INST1-1...
Page 364 ONNECTIVITY AULT ANAGEMENT OMMANDS SHOW ETHERNET CFM MAINTENANCE POINTS REMOTE MEP Table 9-6: Parameters in the output from show ethernet cfm maintenance-points remote mep Parameter Description CFM Domain Name The instance identifiers that uniquely identify the MA and and CFM Service MD for the remote MEP(s) of interest.
Page 365: Show Ethernet Cfm Service
ONNECTIVITY AULT ANAGEMENT OMMANDS SHOW ETHERNET CFM SERVICE show ethernet cfm service Overview Use this command to show the Ethernet CFM Services (Maintenance Associations (MA)) configuration in summary format, or show a specified MA with detailed information. show ethernet cfm service [<ma-name> domain <domain-name> Syntax details] Parameter...
Page 366 ONNECTIVITY AULT ANAGEMENT OMMANDS SHOW ETHERNET CFM SERVICE Table 9-7: Parameters in the output from show ethernet cfm service (cont.) Parameter Description VLAN The Primary VLAN. Defect A list of defects detected by the MA’s Local MEPs. The defects shown can be: 1 - someRDIdefect is declared...
Page 367 ONNECTIVITY AULT ANAGEMENT OMMANDS SHOW ETHERNET CFM SERVICE Table 9-8: Parameters in the output from show ethernet cfm service <ma-name> domain <domain-name> details (cont.) Parameter Description Maintenance Assoc The name and name format of the MA. The name format is Name Format and one of the following:...
Page 368: Show Mep-Alarm Status
ONNECTIVITY AULT ANAGEMENT OMMANDS SHOW MEP ALARM STATUS show mep-alarm status Overview Use this command to show any alarms that have been declared by Local MEPs, and the defect(s) that caused the alarm. show mep-alarm status Syntax Mode User Exec/Privileged Exec Usage A Local MEP is used to detect connectivity faults with other remote MEPs that are in the same Maintenance Association (MA) and Maintenance Domain (MD) as the...
Page 369: Logging Commands
Logging Commands Introduction Overview This chapter provides an alphabetical reference of commands used to configure logging. See the Logging Feature Overview and Configuration Guide for more information about the different types of log and how to filter log messages. Command List •...
Page 370 OGGING OMMANDS • “log console (filter)” on page 394 • “log console exclude” on page 397 • “log email” on page 400 • “log email (filter)” on page 401 • “log email exclude” on page 404 • “log email time” on page 407 •...
Page 371: Clear Exception Log
OGGING OMMANDS CLEAR EXCEPTION LOG clear exception log Overview This command resets the contents of the exception log, but does not remove the associated core files. : When this command is used within a stacked environment, it will remove the NOTE contents of the exception logs in all stack members.
Page 372: Clear Log
OGGING OMMANDS CLEAR LOG clear log Overview This command removes the contents of the buffered and permanent logs. : When this command is used within a stacked environment, it will remove the NOTE contents of the buffered and permanent logs in all stack members. Syntax clear log Mode...
Page 373: Clear Log Buffered
OGGING OMMANDS CLEAR LOG BUFFERED clear log buffered Overview This command removes the contents of the buffered log. : When this command is used within a stacked environment, it will remove the NOTE contents of the buffered logs in all stack members. Syntax clear log buffered Mode...
Page 374: Clear Log External
OGGING OMMANDS CLEAR LOG EXTERNAL clear log external Overview Use this command to delete the external log file from the USB storage device it is stored on. If the external log is rotating between multiple files, this command deletes all those files, not just the most recent one.
Page 375: Clear Log Permanent
OGGING OMMANDS CLEAR LOG PERMANENT clear log permanent Overview This command removes the contents of the permanent log. : When this command is used within a stacked environment, it will remove the NOTE contents of the permanent logs in all stack members. Syntax clear log permanent Mode...
Page 376: Copy Buffered-Log
OGGING OMMANDS COPY BUFFERED copy buffered-log Overview Use this command to copy the buffered log to an internal or external destination. copy buffered-log <destination-name> Syntax Parameter Description <destination-name> The filename and path for the destination file. See Introduction on page 106 for valid syntax. Mode Privileged Exec Example...
Page 377: Copy Permanent-Log
OGGING OMMANDS COPY PERMANENT copy permanent-log Overview Use this command to copy the permanent log to an internal or external destination. copy permanent-log <destination-name> Syntax Parameter Description <destination-name> The filename and path for the destination file. See Introduction on page 106 for valid syntax. Mode Privileged Exec Example...
Page 378: Default Log Buffered
OGGING OMMANDS DEFAULT LOG BUFFERED default log buffered Overview This command restores the default settings for the buffered log stored in RAM. By default the size of the buffered log is 50 kB and it accepts messages with the severity level of “warnings” and above. default log buffered Syntax Default...
Page 379: Default Log Console
OGGING OMMANDS DEFAULT LOG CONSOLE default log console Overview This command restores the default settings for log messages sent to the terminal when a log console command is issued. By default all messages are sent to the console when a log console command is issued. default log console Syntax Mode...
Page 380: Default Log Email
OGGING OMMANDS DEFAULT LOG EMAIL default log email Overview This command restores the default settings for log messages sent to an email address. By default no filters are defined for email addresses. Filters must be defined before messages will be sent. This command also restores the remote syslog server time offset value to local (no offset).
Page 381: Default Log External
OGGING OMMANDS DEFAULT LOG EXTERNAL default log external Overview Use this command to restore the default settings for the external log. By default, the size of the external log is 50 kB, it rotates through 1 additional file, and it accepts messages with a severity level of notices and above.
Page 382: Default Log Host
OGGING OMMANDS DEFAULT LOG HOST default log host Overview This command restores the default settings for log sent to a remote syslog server. By default no filters are defined for remote syslog servers. Filters must be defined before messages will be sent. This command also restores the remote syslog server time offset value to local (no offset).
Page 383: Default Log Monitor
OGGING OMMANDS DEFAULT LOG MONITOR default log monitor Overview This command restores the default settings for log messages sent to the terminal when a terminal monitor command is used. default log monitor Syntax Default All messages are sent to the terminal when a terminal monitor command is used.
Page 384: Default Log Permanent
OGGING OMMANDS DEFAULT LOG PERMANENT default log permanent Overview This command restores the default settings for the permanent log stored in NVS. By default, the size of the permanent log is 50 kB and it accepts messages with the severity level of warnings and above. default log permanent Syntax Default...
Page 385: Log Buffered
OGGING OMMANDS LOG BUFFERED log buffered Overview This command configures the device to store log messages in RAM. Messages stored in RAM are not retained on the device over a restart. Once the buffered log reaches its configured maximum allowable size old messages will be deleted to make way for new ones.
Page 386: Log Buffered (Filter)
OGGING OMMANDS LOG BUFFERED FILTER log buffered (filter) Overview Use this command to create a filter to select messages to be sent to the buffered log. Selection can be based on the priority/ severity of the message, the program that generated the message, the logging facility used, a sub-string within the message or a combination of some or all of these.
Page 387 OGGING OMMANDS LOG BUFFERED FILTER Parameter Description pim-smv6 PIM-SM version 6 (PIM-SMv6) dot1x IEEE 802.1X Port-Based Access Control lacp Link Aggregation Control Protocol (LACP) Spanning Tree Protocol (STP) rstp Rapid Spanning Tree Protocol (RSTP) mstp Multiple Spanning Tree Protocol (MSTP) Integrated Management Interface (IMI) imish Integrated Management Interface Shell (IMISH)
Page 388 OGGING OMMANDS LOG BUFFERED FILTER Examples To add a filter to send all messages generated by EPSR that have a severity of notices or higher to the buffered log, use the following commands: awplus# configure terminal awplus(config)# log buffered level notices program epsr To add a filter to send all messages containing the text “Bridging initialization”...
Page 389: Log Buffered Exclude
OGGING OMMANDS LOG BUFFERED EXCLUDE log buffered exclude Overview Use this command to exclude specified log messages from the buffered log. You can exclude messages on the basis of: • the priority/severity of the message • the program that generated the message •...
Page 390 OGGING OMMANDS LOG BUFFERED EXCLUDE Parameter Description pim-sm Protocol Independent Multicast - Sparse Mode (PIM-SM) pim-smv6 PIM-SM version 6 (PIM-SMv6) dot1x IEEE 802.1X Port-Based Access Control lacp Link Aggregation Control Protocol (LACP) Spanning Tree Protocol (STP) rstp Rapid Spanning Tree Protocol (RSTP) mstp Multiple Spanning Tree Protocol (MSTP) Integrated Management Interface (IMI)
Page 391 OGGING OMMANDS LOG BUFFERED EXCLUDE Example To remove messages that contain the string “example of irrelevant message”, use the following commands: awplus# configure terminal awplus(config)# log buffered exclude msgtext example of irrelevant message Related clear log buffered Commands default log buffered log buffered log buffered (filter) log buffered size...
Page 392: Log Buffered Size
OGGING OMMANDS LOG BUFFERED SIZE log buffered size Overview This command configures the amount of memory that the buffered log is permitted to use. Once this memory allocation has been filled old messages will be deleted to make room for new messages. log buffered size <50-250>...
Page 393: Log Console
OGGING OMMANDS LOG CONSOLE log console Overview This command configures the device to send log messages to consoles. The console log is configured by default to send messages to the device’s main console port. Use the no variant of this command to configure the device not to send log messages to consoles.
Page 394: Log Console (Filter)
OGGING OMMANDS LOG CONSOLE FILTER log console (filter) Overview This command creates a filter to select messages to be sent to all consoles when the log console command is given. Selection can be based on the priority/severity of the message, the program that generated the message, the logging facility used, a sub-string within the message or a combination of some or all of these.
Page 395 OGGING OMMANDS LOG CONSOLE FILTER Parameter Description Spanning Tree Protocol (STP) rstp Rapid Spanning Tree Protocol (RSTP) mstp Multiple Spanning Tree Protocol (MSTP) Integrated Management Interface (IMI) imish Integrated Management Interface Shell (IMISH) epsr Ethernet Protection Switched Rings (EPSR) rmon Remote Monitoring loopprot Loop Protection...
Page 396 OGGING OMMANDS LOG CONSOLE FILTER Examples To create a filter to send all messages containing the text “Bridging initialization” to console instances where the log console command has been entered, use the following commands: awplus# configure terminal awplus(config)# log console msgtext "Bridging initialization" To remove a filter that sends all messages generated by EPSR that have a severity of notices or higher to consoles, use the following commands: awplus#...
Page 397: Log Console Exclude
OGGING OMMANDS LOG CONSOLE EXCLUDE log console exclude Overview Use this command to prevent specified log messages from being sent to the console, when console logging is turned on. You can exclude messages on the basis of: • the priority/severity of the message •...
Page 398 OGGING OMMANDS LOG CONSOLE EXCLUDE Parameter Description pim-dm Protocol Independent Multicast - Dense Mode (PIM-DM) pim-sm Protocol Independent Multicast - Sparse Mode (PIM-SM) pim-smv6 PIM-SM version 6 (PIM-SMv6) dot1x IEEE 802.1X Port-Based Access Control lacp Link Aggregation Control Protocol (LACP) Spanning Tree Protocol (STP) rstp Rapid Spanning Tree Protocol (RSTP)
Page 399 OGGING OMMANDS LOG CONSOLE EXCLUDE Mode Global configuration Example To remove messages that contain the string “example of irrelevant message”, use the following commands: awplus# configure terminal awplus(config)# log console exclude msgtext example of irrelevant message Related default log console Commands log console log console (filter)
Page 400: Log Email
OGGING OMMANDS LOG EMAIL log email Overview This command configures the device to send log messages to an email address. The email address is specified in this command. log email <email-address> Syntax Parameter Description <email-address> The email address to send log messages to Default By default no filters are defined for email log targets.
Page 401: Log Email (Filter)
OGGING OMMANDS LOG EMAIL FILTER log email (filter) Overview This command creates a filter to select messages to be sent to an email address. Selection can be based on the priority/ severity of the message, the program that generated the message, the logging facility used, a sub-string within the message or a combination of some or all of these.
Page 402 OGGING OMMANDS LOG EMAIL FILTER Parameter Description pim-sm Protocol Independent Multicast - Sparse Mode (PIM-SM) pim-smv6 PIM-SM version 6 (PIM-SMv6) dot1x IEEE 802.1X Port-Based Access Control lacp Link Aggregation Control Protocol (LACP) Spanning Tree Protocol (STP) rstp Rapid Spanning Tree Protocol (RSTP) mstp Multiple Spanning Tree Protocol (MSTP) Integrated Management Interface (IMI)
Page 403 OGGING OMMANDS LOG EMAIL FILTER Examples To create a filter to send all messages generated by EPSR that have a severity of notices or higher to the email address admin@homebase.com, use the following commands: awplus# configure terminal awplus(config)# log email admin@homebase.com level notices program epsr To create a filter to send all messages containing the text “Bridging initialization”, to the email address admin@homebase.com, use the following commands:...
Page 404: Log Email Exclude
OGGING OMMANDS LOG EMAIL EXCLUDE log email exclude Overview Use this command to prevent specified log messages from being emailed, when the device is configured to send log messages to an email address. You can exclude messages on the basis of: •...
Page 405 OGGING OMMANDS LOG EMAIL EXCLUDE Parameter Description pim-dm Protocol Independent Multicast - Dense Mode (PIM-DM) pim-sm Protocol Independent Multicast - Sparse Mode (PIM-SM) pim-smv6 PIM-SM version 6 (PIM-SMv6) dot1x IEEE 802.1X Port-Based Access Control lacp Link Aggregation Control Protocol (LACP) Spanning Tree Protocol (STP) rstp Rapid Spanning Tree Protocol (RSTP)
Page 406 OGGING OMMANDS LOG EMAIL EXCLUDE Mode Global configuration Example To remove messages that contain the string “example of irrelevant message”, use the following commands: awplus# configure terminal awplus(config)# log email exclude msgtext example of irrelevant message Related default log email Commands log email log email (filter)
Page 407: Log Email Time
OGGING OMMANDS LOG EMAIL TIME log email time Overview This command configures the time used in messages sent to an email address. If the syslog server is in a different time zone to your device then the time offset can be configured using either the utc-offset parameter option keyword or the local-offset parameter option keyword, where utc-offset is the time difference from UTC (Universal Time, Coordinated) and local-offset is the difference from...
Page 408 OGGING OMMANDS LOG EMAIL TIME To send messages to the email address test@home.com in the same time zone Examples as the device’s local time zone, use the following commands: awplus# configure terminal awplus(config)# log email admin@base.com time local 0 To send messages to the email address admin@base.com with the time information converted to the time zone of the email recipient, which is 3 hours ahead of the device’s local time zone, use the following commands: awplus#...
Page 409: Log External
OGGING OMMANDS LOG EXTERNAL log external Overview Use this command to enable external logging. External logging sends syslog messages to a file on a USB storage device. If the file does not already exist on the storage device, it (and any specified subdirectory) will be automatically created.
Page 410 OGGING OMMANDS LOG EXTERNAL show log external unmount Command Version 5.4.7-1.1: command added changes C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 411: Log External (Filter)
OGGING OMMANDS LOG EXTERNAL FILTER log external (filter) Overview Use this command to create a filter to select messages to be sent to the external log. You can include messages based on: • the priority/severity of the message • the program that generated the message •...
Page 412 OGGING OMMANDS LOG EXTERNAL FILTER Parameter Description ospfv3 Open Shortest Path First (OSPF) version 3 (OSPFv3) rsvp Resource Reservation Protocol (RSVP) pim-dm Protocol Independent Multicast - Dense Mode (PIM-DM) pim-sm Protocol Independent Multicast - Sparse Mode (PIM-SM) pim-smv6 PIM-SM version 6 (PIM-SMv6) dot1x IEEE 802.1X Port-Based Access Control lacp...
Page 413 OGGING OMMANDS LOG EXTERNAL FILTER Default By default the external log has a filter to select messages whose severity level is “notices (5)” or higher. This filter may be removed using the no variant of this command. Mode Global Configuration Examples To add a filter to send all messages generated by EPSR that have a severity of notices or higher to the external log, use the following commands:...
Page 414: Log External Exclude
OGGING OMMANDS LOG EXTERNAL EXCLUDE log external exclude Overview Use this command to exclude specified log messages from the external log. You can exclude messages on the basis of: • the priority/severity of the message • the program that generated the message •...
Page 415 OGGING OMMANDS LOG EXTERNAL EXCLUDE Parameter Description pim-sm Protocol Independent Multicast - Sparse Mode (PIM-SM) pim-smv6 PIM-SM version 6 (PIM-SMv6) dot1x IEEE 802.1X Port-Based Access Control lacp Link Aggregation Control Protocol (LACP) Spanning Tree Protocol (STP) rstp Rapid Spanning Tree Protocol (RSTP) mstp Multiple Spanning Tree Protocol (MSTP) Integrated Management Interface (IMI)
Page 416 OGGING OMMANDS LOG EXTERNAL EXCLUDE Example To remove messages that contain the string “example of irrelevant message”, use the following commands: awplus# configure terminal awplus(config)# log external exclude msgtext example of irrelevant message Related clear log external Commands default log external log external log external (filter) log external rotate...
Page 417: Log External Rotate
OGGING OMMANDS LOG EXTERNAL ROTATE log external rotate Overview Use this command to configure the number of files that the external log can rotate through. Use the no variant of this command to return to the default. Syntax log external rotate <0-255> no log external rotate Parameter Description...
Page 418 OGGING OMMANDS LOG EXTERNAL ROTATE Related clear log external Commands default log external log external log external (filter) log external exclude log external size show log config show log external unmount Command Version 5.4.7-1.1: command added changes C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™...
Page 419: Log External Size
OGGING OMMANDS LOG EXTERNAL SIZE log external size Overview Use this command to configure the total amount of size that the external log is permitted to use, in kilobytes. The maximum possible depends on the storage device’s file system. Note that if you are rotating between multiple files, this is the maximum size of all files, not of each individual file.
Page 420: Log Facility
OGGING OMMANDS LOG FACILITY log facility Overview Use this command to assign a facility to all log messages generated on this device. This facility overrides any facility that is automatically generated as part of the log message. Use the no variant of this command to remove the configured facility. Syntax log facility {kern|user|mail|daemon|auth|syslog|lpr|news|uucp|...
Page 421 OGGING OMMANDS LOG FACILITY Table 10-1: Ordinary meanings of the facility parameter in log messages (cont.) Facility Description FTP daemon local<0..7> The facility labels above have specific meanings, while the local facility labels are intended to be put to local use. In AlliedWare Plus, some of these local facility labels are used in log messages.
Page 422: Log Host
OGGING OMMANDS LOG HOST log host Overview This command configures the device to send log messages to a remote syslog server via UDP port 514. The IP address of the remote server must be specified. By default no filters are defined for remote syslog servers. Filters must be defined before messages will be sent.
Page 423: Log Host Time
OGGING OMMANDS LOG HOST log host exclude log host source log host time log trustpoint show log config C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 424: Log Host (Filter)
OGGING OMMANDS LOG HOST FILTER log host (filter) Overview This command creates a filter to select messages to be sent to a remote syslog server. Selection can be based on the priority/severity of the message, the program that generated the message, the logging facility used, a substring within the message or a combination of some or all of these.
Page 425 OGGING OMMANDS LOG HOST FILTER Parameter Description pim-smv6 PIM-SM version 6 (PIM-SMv6) dot1x IEEE 802.1X Port-Based Access Control lacp Link Aggregation Control Protocol (LACP) Spanning Tree Protocol (STP) rstp Rapid Spanning Tree Protocol (RSTP) mstp Multiple Spanning Tree Protocol (MSTP) Integrated Management Interface (IMI) imish Integrated Management Interface Shell (IMISH)
Page 426 OGGING OMMANDS LOG HOST FILTER Examples To create a filter to send all messages generated by EPSR that have a severity of notices or higher to a remote syslog server with IP address 10.32.16.21, use the following commands: awplus# configure terminal awplus(config)# log host 10.32.16.21 level notices program epsr To create a filter to send all messages containing the text “Bridging initialization”,...
Page 427: Log Host Exclude
OGGING OMMANDS LOG HOST EXCLUDE log host exclude Overview Use this command to prevent specified log messages from being sent to the remote syslog server, when log host is enabled. You can exclude messages on the basis of: • the priority/severity of the message •...
Page 428 OGGING OMMANDS LOG HOST EXCLUDE Parameter Description pim-dm Protocol Independent Multicast - Dense Mode (PIM-DM) pim-sm Protocol Independent Multicast - Sparse Mode (PIM-SM) pim-smv6 PIM-SM version 6 (PIM-SMv6) dot1x IEEE 802.1X Port-Based Access Control lacp Link Aggregation Control Protocol (LACP) Spanning Tree Protocol (STP) rstp Rapid Spanning Tree Protocol (RSTP)
Page 429 OGGING OMMANDS LOG HOST EXCLUDE Mode Global configuration Example To remove messages that contain the string “example of irrelevant message”, use the following commands: awplus# configure terminal awplus(config)# log host exclude msgtext example of irrelevant message Related default log host Commands log host log host (filter)
Page 430: Log Host Source
OGGING OMMANDS LOG HOST SOURCE log host source Overview Use this command to specify a source interface or IP address for the device to send syslog messages from. You can specify any one of an interface name, an IPv4 address or an IPv6 address. This is useful if the device can reach the syslog server via multiple interfaces or addresses and you want to control which interface/address the device uses.
Page 431: Log Host Time
OGGING OMMANDS LOG HOST TIME log host time Overview This command configures the time used in messages sent to a remote syslog server. If the syslog server is in a different time zone to your device then the time offset can be configured using either the utc-offset parameter option keyword or the local-offset parameter option keyword, where utc-offset is the time difference from UTC (Universal Time, Coordinated) and local-offset is the difference from local time.
Page 432 OGGING OMMANDS LOG HOST TIME To send messages to the remote syslog server with the IP address 10.32.16.12 with the time information converted to the time zone of the remote syslog server, which is 3 hours ahead of the device’s local time zone, use the following commands: awplus# configure terminal...
Page 433: Log Monitor (Filter)
OGGING OMMANDS LOG MONITOR FILTER log monitor (filter) Overview This command creates a filter to select messages to be sent to the terminal when terminal monitor command is given. Selection can be based on the priority/severity of the message, the program that generated the message, the logging facility used, a sub-string within the message or a combination of some or all of these.
Page 434 OGGING OMMANDS LOG MONITOR FILTER Parameter Description lacp Link Aggregation Control Protocol (LACP) Spanning Tree Protocol (STP) rstp Rapid Spanning Tree Protocol (RSTP) mstp Multiple Spanning Tree Protocol (MSTP) Integrated Management Interface (IMI) imish Integrated Management Interface Shell (IMISH) epsr Ethernet Protection Switched Rings (EPSR) rmon Remote Monitoring...
Page 435 OGGING OMMANDS LOG MONITOR FILTER Examples To create a filter to send all messages that are generated by authentication and have a severity of info or higher to terminal instances where the terminal monitor command has been given, use the following commands: awplus# configure terminal awplus(config)#...
Page 436: Log Monitor Exclude
OGGING OMMANDS LOG MONITOR EXCLUDE log monitor exclude Overview Use this command to prevent specified log messages from being displayed on a terminal, when terminal monitor is enabled. You can exclude messages on the basis of: • the priority/severity of the message •...
Page 437 OGGING OMMANDS LOG MONITOR EXCLUDE Parameter Description pim-dm Protocol Independent Multicast - Dense Mode (PIM-DM) pim-sm Protocol Independent Multicast - Sparse Mode (PIM-SM) pim-smv6 PIM-SM version 6 (PIM-SMv6) dot1x IEEE 802.1X Port-Based Access Control lacp Link Aggregation Control Protocol (LACP) Spanning Tree Protocol (STP) rstp Rapid Spanning Tree Protocol (RSTP)
Page 438 OGGING OMMANDS LOG MONITOR EXCLUDE Mode Global configuration Example To remove messages that contain the string “example of irrelevant message”, use the following commands: awplus# configure terminal awplus(config)# log monitor exclude msgtext example of irrelevant message Related default log monitor Commands log monitor (filter) show log config...
Page 439: Log Permanent
OGGING OMMANDS LOG PERMANENT log permanent Overview This command configures the device to send permanent log messages to non-volatile storage (NVS) on the device. The content of the permanent log is retained over a reboot. Once the permanent log reaches its configured maximum allowable size old messages will be deleted to make way for new messages.
Page 440: Log Permanent (Filter)
OGGING OMMANDS LOG PERMANENT FILTER log permanent (filter) Overview This command creates a filter to select messages to be sent to the permanent log. Selection can be based on the priority/ severity of the message, the program that generated the message, the logging facility used, a sub-string within the message or a combination of some or all of these.
Page 441 OGGING OMMANDS LOG PERMANENT FILTER Parameter Description dot1x IEEE 802.1X Port-Based Access Control lacp Link Aggregation Control Protocol (LACP) Spanning Tree Protocol (STP) rstp Rapid Spanning Tree Protocol (RSTP) mstp Multiple Spanning Tree Protocol (MSTP) Integrated Management Interface (IMI) imish Integrated Management Interface Shell (IMISH) epsr Ethernet Protection Switched Rings (EPSR)
Page 442 OGGING OMMANDS LOG PERMANENT FILTER Examples To create a filter to send all messages generated by EPSR that have a severity of notices or higher to the permanent log use the following commands: awplus# configure terminal awplus(config)# log permanent level notices program epsr To create a filter to send all messages containing the text “Bridging initialization”, to the permanent log use the following commands: awplus#...
Page 443: Log Permanent Exclude
OGGING OMMANDS LOG PERMANENT EXCLUDE log permanent exclude Overview Use this command to prevent specified log messages from being sent to the permanent log. You can exclude messages on the basis of: • the priority/severity of the message • the program that generated the message •...
Page 444 OGGING OMMANDS LOG PERMANENT EXCLUDE Parameter Description pim-sm Protocol Independent Multicast - Sparse Mode (PIM-SM) pim-smv6 PIM-SM version 6 (PIM-SMv6) dot1x IEEE 802.1X Port-Based Access Control lacp Link Aggregation Control Protocol (LACP) Spanning Tree Protocol (STP) rstp Rapid Spanning Tree Protocol (RSTP) mstp Multiple Spanning Tree Protocol (MSTP) Integrated Management Interface (IMI)
Page 445 OGGING OMMANDS LOG PERMANENT EXCLUDE Example To remove messages that contain the string “example of irrelevant message”, use the following commands: awplus# configure terminal awplus(config)# log permanent exclude msgtext example of irrelevant message Related clear log permanent Commands default log permanent log permanent log permanent (filter) log permanent size...
Page 446: Log Permanent Size
OGGING OMMANDS LOG PERMANENT SIZE log permanent size Overview This command configures the amount of memory that the permanent log is permitted to use. Once this memory allocation has been filled old messages will be deleted to make room for new messages. log permanent size <50-250>...
Page 447: Log-Rate-Limit Nsm
OGGING OMMANDS RATE LIMIT NSM log-rate-limit nsm Overview This command limits the number of log messages generated by the device for a given interval. Use the no variant of this command to revert to the default number of log messages generated by the device of up to 200 log messages per second. Syntax log-rate-limit nsm messages <message-limit>...
Page 448 OGGING OMMANDS RATE LIMIT NSM To return the device the default setting, to generate up to 200 log messages per second, use the following commands: awplus# configure terminal awplus(config)# no log-rate-limit nsm C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™...
Page 449: Log Trustpoint
OGGING OMMANDS LOG TRUSTPOINT log trustpoint Overview This command adds one or more trustpoints to be used with the syslog application. Multiple trustpoints may be specified, or the command may be executed multiple times, to add multiple trustpoints to the application. The no version of this command removes one or more trustpoints from the list of trustpoints associated with the application.
Page 450: Show Counter Log
OGGING OMMANDS SHOW COUNTER LOG show counter log Overview This command displays log counter information. show counter log Syntax Mode User Exec and Privileged Exec Example To display the log counter information, use the command: awplus# show counter log Output Figure 10-1: Example output from the show counter log command Log counters...
Page 451: Show Exception Log
OGGING OMMANDS SHOW EXCEPTION LOG show exception log Overview This command displays the contents of the exception log. show exception log Syntax Mode User Exec and Privileged Exec Example To display the exception log, use the command: awplus# show exception log Output Figure 10-2: Example output from the show exception log command on a device...
Page 452: Show Log
OGGING OMMANDS SHOW LOG show log Overview This command displays the contents of the buffered log. For information on filtering and saving command output, see the “Getting Started with AlliedWare_Plus” Feature Overview and Configuration Guide. Syntax show log [tail [<10-250>]] Parameter Description tail...
Page 453 OGGING OMMANDS SHOW LOG Output Figure 10-3: Example output from show log awplus#show log  <date> <time> <facility>.<severity> <program[<pid>]>: <message>  -------------------------------------------------------------------- 2011 Aug 29 07:55:22 kern.notice awplus kernel: Linux version 2.6.32.12-at1 (mak er@awpmaker03-dl) (gcc version 4.3.3 (Gentoo 4.3.3-r3 p1.2, pie-10.1.5) ) #1 Wed Dec 8 11:53:40 NZDT 2010...
Page 454: Show Log Config
OGGING OMMANDS SHOW LOG CONFIG show log config Overview This command displays information about the logging system. This includes the configuration of the various log destinations, such as buffered, permanent, syslog servers (hosts) and email addresses. This also displays the latest status information for each log destination.
Page 455 OGGING OMMANDS SHOW LOG CONFIG Host 10.32.16.21: Time offset ..+2:00 Offset type ..UTC Source ..- Secured ..enabled Filters: 1 Level ..critical Program ..any Facility ..any Message text . any Statistics ..1327 messages received, 1 accepted by filter (2016 Oct 11  10:36:16) Email admin@alliedtelesis.com:...
Page 456: Show Log External
OGGING OMMANDS SHOW LOG EXTERNAL show log external Overview Use this command to display the contents of the external log, which is stored on a USB storage device. show log external [tail [<10-250>]] Syntax Parameter Description tail Display only the latest log entries. <10-250>...
Page 457: Show Log Permanent
OGGING OMMANDS SHOW LOG PERMANENT show log permanent Overview This command displays the contents of the permanent log. show log permanent [<stack-ID>] [tail [<10-250>]] Syntax Parameter Description <stack-ID> Stack member number, from 1 to 8. tail Display only the latest log entries. <10-250>...
Page 458 OGGING OMMANDS SHOW LOG PERMANENT log permanent log permanent (filter) log permanent exclude log permanent size show log config C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 459: Show Running-Config Log
OGGING OMMANDS SHOW RUNNING CONFIG LOG show running-config log Overview This command displays the current running configuration of the Log utility. show running-config log Syntax Mode Privileged Exec and Global Configuration Example To display the current configuration of the log utility, use the command: awplus# show running-config log Related...
Page 460: Unmount
OGGING OMMANDS UNMOUNT unmount Overview Use this command to unmount an external storage device. We recommend you unmount storage devices before removing them, to avoid file corruption. This is especially important if files may be automatically written to the storage device, such as external log files or AMF backup files.
Page 461: Scripting Commands
Scripting Commands Introduction Overview This chapter provides commands used for command scripts. Command List • “activate” on page 462 • “echo” on page 463 • “wait” on page 464 C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 462: Activate
CRIPTING OMMANDS ACTIVATE activate Overview This command activates a script file. activate [background] <script> Syntax Parameter Description background Activate a script to run in the background. A process that is running in the background will operate as a separate task, and will not interrupt foreground processing.
Page 463: Echo
CRIPTING OMMANDS ECHO echo Overview This command echoes a string to the terminal, followed by a blank line. echo <line> Syntax Parameter Description <line> The string to echo Mode User Exec and Privileged Exec Usage This command may be useful in CLI scripts, to make the script print user-visible comments.
Page 464: Wait
CRIPTING OMMANDS WAIT wait Overview This command pauses execution of the active script for the specified period of time. wait <delay> Syntax Parameter Description <delay> <1-65335> Specify the time delay in seconds Default No wait delay is specified by default to pause script execution. Mode Privileged Exec (when executed from a script not directly from the command line) Usage...
Page 465: Interface Commands
Interface Commands Introduction Overview This chapter provides an alphabetical reference of commands used to configure and display interfaces. Command List • “description (interface)” on page 466 • “interface (to configure)” on page 467 • “mru” on page 469 • “mtu” on page 471 •...
Page 466: Description (Interface)
NTERFACE OMMANDS DESCRIPTION INTERFACE description (interface) Overview Use this command to add a description to a specific port or interface. description <description> Syntax Parameter Description <description> Text describing the specific interface. Descriptions can contain any printable ASCII characters (ASCII 32-126). Mode Interface Configuration Example...
Page 467: Interface (To Configure)
NTERFACE OMMANDS INTERFACE TO CONFIGURE interface (to configure) Overview Use this command to select one or more interfaces to configure. interface <interface-list> Syntax interface lo Parameter Description <interface-list> The interfaces or ports to configure. An interface-list can be: • an interface such as a VLAN (e.g. vlan2), a switch port (e.g. port1.0.6), a static channel group (e.g.
Page 468 NTERFACE OMMANDS INTERFACE TO CONFIGURE The following example shows how to enter Interface mode to configure the local loopback interface. awplus# configure terminal awplus(config)# interface lo awplus(config-if)# Related ip address (IP Addressing and Protocol) Commands show interface show interface brief C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™...
Page 469: Mru
NTERFACE OMMANDS Overview Use this command to set the Maximum Receive Unit (MRU) size for switch ports, where MRU is the maximum frame size (excluding headers) that switch ports can receive. For more information, see the Switching Feature Overview and Configuration Guide.
Page 470 NTERFACE OMMANDS To restore the MRU size of 1500 bytes on port1.0.2, use the commands: awplus# configure terminal awplus(config)# interface port1.0.2 awplus(config-if)# no mru Related show interface Commands C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 471: Mtu
NTERFACE OMMANDS Overview Use this command to set the Maximum Transmission Unit (MTU) size for VLANs, where MTU is the maximum packet size that VLANs can transmit. The MTU size setting is applied to both IPv4 and IPv6 packet transmission. Use the no variant of this command to remove a previously specified Maximum Transmission Unit (MTU) size for VLANs, and restore the default MTU size (1500 bytes) for VLANs.
Page 472 NTERFACE OMMANDS Related show interface Commands C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 473: Show Interface
NTERFACE OMMANDS SHOW INTERFACE show interface Overview Use this command to display interface configuration and status. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide. Syntax show interface [<interface-list>] show interface lo Parameter Description...
Page 474 NTERFACE OMMANDS SHOW INTERFACE Figure 12-1: Example output from the show interface command awplus#show interface Interface port1.0.1 Scope: both Link is UP, administrative state is UP Thrash-limiting Status Not Detected, Action link-down, Timeout 60(s) Hardware is Ethernet, address is 0000.cd24.daeb index 5001 metric 1 mru 1500...
Page 475 NTERFACE OMMANDS SHOW INTERFACE Figure 12-3: Example output from the show interface vlan1,vlan2 command  awplus#show interface vlan1,vlan2 Interface vlan1 Scope: both Link is UP, administrative state is UP Hardware is VLAN, address is 0015.77e9.5c50 IPv4 address 192.168.1.1/24 broadcast 192.168.1.255 index 201 metric 1 mtu 1500...
Page 476: Show Interface Brief
NTERFACE OMMANDS SHOW INTERFACE BRIEF show interface brief Overview Use this command to display brief interface, configuration, and status information, including provisioning information. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide.
Page 477: Show Interface Memory
This command displays the shared memory used by either all interfaces, or the specified interface or interfaces. The output is useful for diagnostic purposes by Allied Telesis authorized service personnel. For information on filtering and saving command output, see the “Getting Started...
Page 478 NTERFACE OMMANDS SHOW INTERFACE MEMORY Output Figure 12-5: Example output from the show interface memory command awplus#show interface memory Vlan blocking state shared memory usage --------------------------------------------- Interface shmid Bytes Used nattch Status port1.0.1 393228 1 port1.0.2 458766 1 port1.0.3 360459 1...
Page 479: Show Interface Status
NTERFACE OMMANDS SHOW INTERFACE STATUS show interface status Overview Use this command to display the status of the specified interface or interfaces. Note that when no interface or interfaces are specified then the status of all interfaces on the device are shown. show interface [<port-list>] status Syntax Parameter...
Page 480 NTERFACE OMMANDS SHOW INTERFACE STATUS Table 15: Parameters in the output from the show interface status command Parameter Description Port Name/Type of the interface. Name Description of the interface. Status The administrative and operational status of the interface; one of: •...
Page 481: Shutdown
NTERFACE OMMANDS SHUTDOWN shutdown Overview This command shuts down the selected interface. This administratively disables the link and takes the link down at the physical (electrical) layer. Use the no variant of this command to disable this function and therefore to bring the link back up again.
Page 482: Port Mirroring And Remote Mirroring Commands
Port Mirroring and Remote Mirroring Commands Introduction Overview This chapter provides an alphabetical reference of commands used to configure Port Mirroring and Remote Mirroring (also known as RSPAN). For more information, see the Mirroring Feature Overview and Configuration Guide. Command List •...
Page 483: Mirror Interface
IRRORING AND EMOTE IRRORING OMMANDS MIRROR INTERFACE mirror interface Overview Use this command to define a mirror port and mirrored (monitored) ports and direction of traffic to be mirrored. The port for which you enter interface mode will be the mirror port. The destination port is removed from all VLANs, and no longer participates in other switching.
Page 484 IRRORING AND EMOTE IRRORING OMMANDS MIRROR INTERFACE Mode Interface Configuration Usage Use this command to send traffic to another device connected to the mirror port for monitoring. For more information, see the Mirroring Feature Overview and Configuration Guide. A mirror port cannot be associated with a VLAN. If a switch port is configured to be a mirror port, it is automatically removed from any VLAN it was associated with.
Page 485: Remote-Mirror Interface
IRRORING AND EMOTE IRRORING OMMANDS REMOTE MIRROR INTERFACE remote-mirror interface Overview Use this command on the source device to specify the source port whose traffic is to be remote-mirrored (monitored), and the remote mirroring VLAN ID these mirrored frames will be tagged with when they egress from the source device. The port for which Interface Configuration mode is entered is the port via which the mirrored traffic egresses the source device towards the remote destination device.
Page 486 IRRORING AND EMOTE IRRORING OMMANDS REMOTE MIRROR INTERFACE This command can only be used to configure a single egress port on the source device, not a range of egress ports. Do not use the interface command with multiple interfaces before using this remote-mirror interface command. One egress (destination) port on the source device can transmit mirrored frames from up to four remote mirrored (source) ports.
Page 487: Show Mirror
IRRORING AND EMOTE IRRORING OMMANDS SHOW MIRROR show mirror Overview Use this command to display the status of all mirrored ports. show mirror Syntax Mode User Exec and Privileged Exec Example To display the status of all mirrored ports, use the following command: awplus# show mirror Output...
Page 488: Show Mirror Interface
IRRORING AND EMOTE IRRORING OMMANDS SHOW MIRROR INTERFACE show mirror interface Overview Use this command to display port mirroring configuration for a mirrored (monitored) switch port. show mirror interface <port> Syntax Parameter Description <port> The monitored switch port to display information about. Mode User Exec, Privileged Exec and Interface Configuration To display port mirroring configuration for the port1.0.4, use the following...
Page 489: Show Remote-Mirror
IRRORING AND EMOTE IRRORING OMMANDS SHOW REMOTE MIRROR show remote-mirror Overview Use this command to display information for remote-mirroring. show remote-mirror Syntax Mode User Exec Example To display information about remote mirroring, use the command: awplus# show remote-mirror Output Figure 13-3: Example output from show remote-mirror awplus#show remote-mirror...
Page 490 IRRORING AND EMOTE IRRORING OMMANDS SHOW REMOTE MIRROR Table 13-1: Parameters in the output from show remote-mirror (cont.) Parameter Description Remote mirror On the destination device, this displays : egress ports • the remote mirror egress ports • the remote mirror VLANs they are associated with Remote mirror On source, destination and intermediate devices, this VLANs...
Page 491: Switchport Remote-Mirror-Egress
IRRORING AND EMOTE IRRORING OMMANDS SWITCHPORT REMOTE MIRROR EGRESS switchport remote-mirror-egress Overview Use this command on the device receiving remote mirrored traffic to set the remote mirroring egress port for the specified remote mirroring VLAN. This port removes the remote mirror VLAN tagging before transmitting the mirrored traffic. Ingress traffic on this port is disabled.
Page 492: Vlan Mode Remote-Mirror-Vlan
IRRORING AND EMOTE IRRORING OMMANDS VLAN MODE REMOTE MIRROR VLAN vlan mode remote-mirror-vlan Overview Use this command to create a single VLAN or a range of VLANs in remote mirror mode to be used for remote mirroring. Use the no variant of this command to remove the remote mirror VLAN from the VLAN database and its configurations.
Page 493 IRRORING AND EMOTE IRRORING OMMANDS VLAN MODE REMOTE MIRROR VLAN switchport remote-mirror-egress C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 494: Interface Testing Commands
Interface Testing Commands Introduction Overview This chapter provides an alphabetical reference of commands used for testing interfaces. Command List • “clear test interface” on page 495 • “service test” on page 496 • “test interface” on page 497 C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™...
Page 495: Clear Test Interface
NTERFACE ESTING OMMANDS CLEAR TEST INTERFACE clear test interface Overview This command clears test results and counters after issuing the test interface command. Test results and counters must be cleared before executing subsequent test interface commands. clear test interface {<port-list>|all} Syntax Parameter Description...
Page 496: Service Test
NTERFACE ESTING OMMANDS SERVICE TEST service test Overview This command puts the device into the interface testing state, ready to begin testing. After entering this command, enter Interface Configuration mode for the desired interfaces and enter the command test interface. Do not test interfaces on a device that is part of a live network—disconnect the device first.
Page 497: Test Interface
NTERFACE ESTING OMMANDS TEST INTERFACE test interface Overview This command starts a test on a port or all ports or a selected range or list of ports. Use the no variant of this command to disable this function. The test duration can be configured by specifying the time in minutes after specifying a port or ports to test.
Page 498 NTERFACE ESTING OMMANDS TEST INTERFACE Example To test the switch ports in VLAN 1, install loopbacks in the ports, and enter the following commands: awplus(config)# service test awplus(config)# no spanning-tree rstp enable bridge-forward awplus(config)# interface vlan1 awplus(config-if)# shutdown awplus(config-if)# awplus# test interface all To see the output, use the commands: awplus#...
Page 499: Interfaces And Layer 2
Part 2: Interfaces and Layer 2 C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 500: Switching Commands
Switching Commands Introduction Overview This chapter provides an alphabetical reference of commands used to configure switching. For more information, see the Switching Feature Overview and Configuration Guide. Command List • “backpressure” on page 502 • “clear loop-protection counters” on page 504 •...
Page 501 WITCHING OMMANDS • “mac address-table static” on page 527 • “mac address-table thrash-limit” on page 528 • “platform hwfilter-size” on page 529 • “platform load-balancing” on page 530 • “platform stop-unreg-mc-flooding” on page 532 • “platform vlan-stacking-tpid” on page 534 •...
Page 502: Backpressure
WITCHING OMMANDS BACKPRESSURE backpressure Overview This command provides a method of applying flow control to ports running in half duplex mode. The setting will only apply when the link is in the half-duplex state. You can disable backpressure on an interface using the off parameter or the no variant of this command.
Page 503 WITCHING OMMANDS BACKPRESSURE To disable back pressure flow control on interface port1.0.2 enter the following commands: awplus# configure terminal awplus(config)# interface port1.0.2 awplus(config-if)# backpressure off Validation show running-config Commands show interface Related duplex Commands C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™...
Page 504: Clear Loop-Protection Counters
WITCHING OMMANDS CLEAR LOOP PROTECTION COUNTERS clear loop-protection counters Overview Use this command to clear the counters for the Loop Protection counters. clear loop-protection [interface <port-list>] counters Syntax Parameters Description interface The interface whose counters are to be cleared. <port-list> A port, a port range, or an aggregated link.
Page 505: Clear Mac Address-Table Dynamic
WITCHING OMMANDS CLEAR MAC ADDRESS TABLE DYNAMIC clear mac address-table dynamic Overview Use this command to clear the filtering database of all entries learned for a selected MAC address, an MSTP instance, a switch port interface or a VLAN interface. clear mac address-table dynamic [address Syntax <mac-address>|interface <port>...
Page 506 WITCHING OMMANDS CLEAR MAC ADDRESS TABLE DYNAMIC This example shows how to clear all dynamically learned filtering database entries when learned through device operation for a given MSTP instance 1 on switch port interface port1.0.2. awplus# clear mac address-table dynamic interface port1.0.2 instance 1 Related clear mac address-table static...
Page 507: Clear Mac Address-Table Static
WITCHING OMMANDS CLEAR MAC ADDRESS TABLE STATIC clear mac address-table static Overview Use this command to clear the filtering database of all statically configured entries for a selected MAC address, interface, or VLAN. clear mac address-table static [address <mac-address>|interface Syntax <port>|vlan <vid>] Parameter Description...
Page 508: Clear Port Counter
WITCHING OMMANDS CLEAR PORT COUNTER clear port counter Overview Use this command to clear the packet counters of the port. clear port counter [<port>] Syntax Parameter Description <port> The port number or range Mode Privileged Exec To clear the packet counter for port1.0.1, use the command: Example awplus# clear port counter port1.0.1...
Page 509: Clear Port-Security Intrusion
WITCHING OMMANDS CLEAR PORT SECURITY INTRUSION clear port-security intrusion Overview Use this command to clear the history of the port-security intrusion list on all ports, or an individual port. If a port is not specified, the intrusion lists of all ports are cleared.
Page 510 WITCHING OMMANDS CLEAR PORT SECURITY INTRUSION Table 15-2: Example output from show port-security intrusion  awplus#show port-security intrusion interface port1.0.1 Port Security Intrusion List ------------------------------------------------------------ Interface: port1.0.1 - 1 intrusion(s) detected 801f.0200.19da To clear the history of port-security intrusion list on port1.0.1, use the following command: awplus# clear port-security intrusion interface port1.0.1...
Page 511 WITCHING OMMANDS CLEAR PORT SECURITY INTRUSION Related show port-security interface Commands show port-security intrusion switchport port-security switchport port-security aging switchport port-security maximum switchport port-security violation C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 512: Debug Loopprot
WITCHING OMMANDS DEBUG LOOPPROT debug loopprot Overview This command enables Loop Protection debugging. The no variant of this command disables Loop Protection debugging. Syntax debug loopprot {info|msg|pkt|state|nsm|all} no debug loopprot {info|msg|pkt|state|nsm|all} Parameter Description info General Loop Protection information. Received and transmitted Loop Detection Frames (LDFs). Echo raw ASCII display of received and transmitted LDF packets to the console.
Page 513: Debug Platform Packet
WITCHING OMMANDS DEBUG PLATFORM PACKET debug platform packet Overview This command enables platform to CPU level packet debug functionality on the device. Use the no variant of this command to disable platform to CPU level packet debug. If the result means both send and receive packet debug are disabled, then any active timeout will be canceled.
Page 514 WITCHING OMMANDS DEBUG PLATFORM PACKET To enable packet debug for sFlow packets only for the default timeout of 5 minutes, enter: awplus# debug platform packet sflow To enable send packet debug with no timeout, enter: awplus# debug platform packet send timeout 0 To enable VLAN packet debug for VLAN 2 with a timeout duration of 3 minutes, enter: awplus#...
Page 515: Duplex
WITCHING OMMANDS DUPLEX duplex Overview This command changes the duplex mode for the specified port. To see the currently-negotiated duplex mode for ports whose links are up, use the command show interface. To see the configured duplex mode (when different from the default), use the command show running-config.
Page 516 WITCHING OMMANDS DUPLEX Related backpressure Commands polarity speed show interface C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 517: Flowcontrol (Switch Port)
WITCHING OMMANDS FLOWCONTROL SWITCH PORT flowcontrol (switch port) Overview Use this command to enable flow control, and configure the flow control mode for the switch port. Use the no variant of this command to disable flow control for the specified switch port.
Page 518 WITCHING OMMANDS FLOWCONTROL SWITCH PORT awplus# configure terminal Examples awplus(config)# interface port1.0.2 awplus(config-if)# flowcontrol receive on awplus# configure terminal awplus(config)# interface port1.0.2 awplus(config-if)# flowcontrol send on awplus# configure terminal awplus(config)# interface port1.0.2 awplus(config-if)# flowcontrol receive off awplus# configure terminal awplus(config)# interface port1.0.2 awplus(config-if)# flowcontrol send off...
Page 519: Linkflap Action
WITCHING OMMANDS LINKFLAP ACTION linkflap action Overview Use this command to detect flapping on all ports. If more than 15 flaps occur in less than 15 seconds the flapping port will shut down. Use the no variant of this command to disable flapping detection at this rate. Syntax linkflap action [shutdown] no linkflap action...
Page 520: Loop-Protection Loop-Detect
WITCHING OMMANDS LOOP PROTECTION LOOP DETECT loop-protection loop-detect Overview Use this command to enable the loop-protection loop-detect feature and configure its parameters. Use the no variant of this command to disable the loop-protection loop-detect feature. Syntax loop-protection loop-detect [ldf-interval <period>] [ldf-rx-window <frames>] [fast-block] no loop-protection loop-detect Parameter...
Page 521: Loop-Protection Action
WITCHING OMMANDS LOOP PROTECTION ACTION loop-protection action Overview Use this command to specify the protective action to apply when a network loop is detected on an interface. Use the no variant of this command to reset the loop protection actions to the default action, vlan-disable, on an interface.
Page 522: Loop-Protection Action-Delay-Time
WITCHING OMMANDS LOOP PROTECTION ACTION DELAY TIME loop-protection action-delay-time Overview Use this command to sets the loop protection action delay time for an interface to specified values in seconds. The action delay time specifies the waiting period for the action. Use the no variant of this command to reset the loop protection action delay time for an interface to default.
Page 523: Loop-Protection Timeout
WITCHING OMMANDS LOOP PROTECTION TIMEOUT loop-protection timeout Overview Use this command to specify the Loop Protection recovery action duration on an interface. Use the no variant of this command to set the loop protection timeout to the default. Syntax loop-protection timeout <duration> no loop-protection timeout Parameter Description...
Page 524: Mac Address-Table Acquire
WITCHING OMMANDS MAC ADDRESS TABLE ACQUIRE mac address-table acquire Overview Use this command to enable MAC address learning on the device. Use the no variant of this command to disable learning. Syntax mac address-table acquire no mac address-table acquire Default Learning is enabled by default for all instances.
Page 525: Mac Address-Table Ageing-Time
WITCHING OMMANDS MAC ADDRESS TABLE AGEING TIME mac address-table ageing-time Overview Use this command to specify an ageing-out time for a learned MAC address. The learned MAC address will persist for at least the specified time. The no variant of this command will reset the ageing-out time back to the default of 300 seconds (5 minutes).
Page 526: Mac Address-Table Logging
WITCHING OMMANDS MAC ADDRESS TABLE LOGGING mac address-table logging Overview Use this command to create log entries when the content of the FDB (forwarding database) changes. Log messages are produced when a MAC address is added to or removed from the FDB. : MAC address table logging may impact the performance of the switch.
Page 527: Mac Address-Table Static
WITCHING OMMANDS MAC ADDRESS TABLE STATIC mac address-table static Overview Use this command to statically configure the MAC address-table to forward or discard frames with a matching destination MAC address. mac address-table static <mac-addr> {forward|discard} interface Syntax <port> [vlan <vid>] no mac address-table static <mac-addr>...
Page 528: Mac Address-Table Thrash-Limit
WITCHING OMMANDS MAC ADDRESS TABLE THRASH LIMIT mac address-table thrash-limit Overview Use this command to set the thrash limit on the device or stack. Thrashing occurs when a MAC address table rapidly “flips” its mapping of a single MAC address between two subnets, usually as a result of a network loop. Use the no variant of this command to disable thrash limiting.
Page 529: Platform Hwfilter-Size
WITCHING OMMANDS PLATFORM HWFILTER SIZE platform hwfilter-size Overview You can use this command to control the configuration of hardware Access Control Lists (ACLs), which determines the total available number and functionality of hardware ACLs. For this command to take effect, you need to reboot the affected service. You cannot attach an IPv6 ACL to a port if the ACL contains a specified source or destination IPv6 address or both and the hw-filter size setting is ipv4-limited-ipv6.
Page 530: Platform Load-Balancing
WITCHING OMMANDS PLATFORM LOAD BALANCING platform load-balancing Overview This command selects which address fields are used as inputs into the load balancing algorithm for aggregated links. The output from this algorithm is used to select which individual path a given packet will traverse within an aggregated link.
Page 531 WITCHING OMMANDS PLATFORM LOAD BALANCING Examples To use all four inputs, you do not have to enter any commands, because this is the default. Note that this setting is not displayed in the show running-config output. Use the show platform command to verify this setting.
Page 532: Platform Stop-Unreg-Mc-Flooding
WITCHING OMMANDS PLATFORM STOP UNREG FLOODING platform stop-unreg-mc-flooding Overview If a multicast stream is arriving at a network device, and that network device has received no IGMP reports that request the receipt of the stream, then that stream is referred to as "unregistered". IGMP snooping actively prevents the flooding of unregistered streams to all ports in the VLAN on which the stream is received.
Page 533 WITCHING OMMANDS PLATFORM STOP UNREG FLOODING Examples To enable this feature and stop multicast packet flooding, use the following commands: awplus# configure terminal awplus(config)# platform stop-unreg-mc-flooding To disable this feature and allow multicast packet flooding, use the following commands: awplus# configure terminal awplus(config)# no platform stop-unreg-mc-flooding...
Page 534: Platform Vlan-Stacking-Tpid
WITCHING OMMANDS PLATFORM VLAN STACKING TPID platform vlan-stacking-tpid Overview This command specifies the Tag Protocol Identifier (TPID) value that applies to all frames that are carrying double tagged VLANs. All nested VLANs must use the same TPID value. (This feature is sometimes referred to as VLAN stacking or VLAN double-tagging.) Use the no variant of this command to revert to the default TPID value (0x8100).
Page 535: Polarity
WITCHING OMMANDS POLARITY polarity Overview This command sets the MDI/MDIX polarity on a copper-based switch port. polarity {auto|mdi|mdix} Syntax Parameter Description Sets the polarity to MDI (medium dependent interface). mdix Sets the polarity to MDI-X (medium dependent interface crossover). auto The switch port sets the polarity automatically.
Page 536: Show Debugging Loopprot
WITCHING OMMANDS SHOW DEBUGGING LOOPPROT show debugging loopprot Overview This command shows Loop Protection debugging information. show debugging loopprot Syntax Mode User Exec and Privileged Exec Example To display the enabled Loop Protection debugging modes, use the command: awplus# show debugging loopprot Related debug loopprot Commands...
Page 537: Show Debugging Platform Packet
WITCHING OMMANDS SHOW DEBUGGING PLATFORM PACKET show debugging platform packet Overview This command shows platform to CPU level packet debugging information. show debugging platform packet Syntax Mode User Exec and Privileged Exec Example To display the platform packet debugging information, use the command: awplus# show debugging platform packet Related...
Page 538: Show Flowcontrol Interface
WITCHING OMMANDS SHOW FLOWCONTROL INTERFACE show flowcontrol interface Overview Use this command to display flow control information. show flowcontrol interface <port> Syntax Parameter Description <port> Specifies the name of the port to be displayed. Mode User Exec and Privileged Exec To display the flow control for the port1.0.5, use the command: Example awplus#...
Page 539: Show Interface Err-Disabled
WITCHING OMMANDS SHOW INTERFACE ERR DISABLED show interface err-disabled Overview Use this command to show the ports which have been dynamically shut down by protocols running on the device and the protocols responsible for the shutdown. show interface [<interface-range> err-disabled] Syntax Parameter Description...
Page 540: Show Interface Switchport
WITCHING OMMANDS SHOW INTERFACE SWITCHPORT show interface switchport Overview Use this command to show VLAN information about each switch port. show interface switchport Syntax Mode User Exec and Privileged Exec Example To display VLAN information about each switch port, enter the command: awplus# show interface switchport Output...
Page 541: Show Loop-Protection
WITCHING OMMANDS SHOW LOOP PROTECTION show loop-protection Overview Use this command to display the current loop protection setup for the device. show loop-protection [interface <port-list>] [counters] Syntax Parameter Description interface The interface selected for display. <port-list> A port, a port range, or an aggregated link. counters Displays counter information for loop protection.
Page 542 WITCHING OMMANDS SHOW LOOP PROTECTION awplus#show loop-protection counters  Switch Loop Detection Counter  Interface Rx Invalid Last LDF Rx ------------------------------------------------------------------------- port1.0.1 vlan1 - port1.0.2 vlan1 - port1.0.3 vlan1 - C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 543: Show Mac Address-Table
WITCHING OMMANDS SHOW MAC ADDRESS TABLE show mac address-table Overview Use this command to display the mac address-table for all configured VLANs. show mac address-table Syntax Mode User Exec and Privileged Exec Usage The show mac address-table command is only applicable to view a mac address-table for Layer 2 switched traffic within VLANs.
Page 544 WITCHING OMMANDS SHOW MAC ADDRESS TABLE awplus(config)#mac address-table static 0000.1111.2222 for int  port1.0.3 vlan 2 awplus(config)#end awplus# awplus#show mac address-table  VLAN Port State unknown 0000.cd28.0752 static port1.0.2 0030.846e.bac7 dynamic port1.0.3 0000.1111.2222 static unknown 0000.cd28.0752 static port1.0.5 0030.846e.9bf4 dynamic 0000.cd00.0000 static Related...
Page 545: Show Mac Address-Table Thrash-Limit
WITCHING OMMANDS SHOW MAC ADDRESS TABLE THRASH LIMIT show mac address-table thrash-limit Overview Use this command to display the current thrash limit set for all interfaces on the device. show mac address-table thrash-limit Syntax Mode User Exec and Privileged Exec Example To display the current, use the following command: awplus#...
Page 546: Show Platform
WITCHING OMMANDS SHOW PLATFORM show platform Overview This command displays the settings configured by using the platform commands. show platform Syntax Mode Privileged Exec Usage This command displays the settings in the running config. For changes in some of these settings to take effect, the device must be rebooted with the new settings in the startup config.
Page 547 WITCHING OMMANDS SHOW PLATFORM Table 16: Parameters in the output of the show platform command (cont.) Parameter Description Vlan-stacking TPID The value of the TPID set in the Ethernet type field when a frame has a double VLAN tag (set with the platform vlan-stacking-tpid command).
Page 548: Show Platform Classifier Statistics Utilization Brief
WITCHING OMMANDS SHOW PLATFORM CLASSIFIER STATISTICS UTILIZATION BRIEF show platform classifier statistics utilization brief Overview This command displays the number of used entries available for various platform functions, and the percentage that number of entries represents of the total available. Syntax show platform classifier statistics utilization brief Mode...
Page 549: Show Platform Port
WITCHING OMMANDS SHOW PLATFORM PORT show platform port Overview This command displays the various port registers or platform counters for specified switchports. show platform port [<port-list>|counters] Syntax Parameter Description <port-list> The ports to display information about. A port-list can be: •...
Page 550 WITCHING OMMANDS SHOW PLATFORM PORT Output Figure 15-9: Example output from the show platform port command awplus#show platform port port1.0.1 Phy register value for port1.0.1 (ifindex: 5001)   00:1140 01:79ed 02:0362 03:5e7b 04:01e1 05:c1e1 06:006d 07:2001  08:4d77 09:0600 0a:3800 0b:0000 0c:0000...
Page 551 WITCHING OMMANDS SHOW PLATFORM PORT Table 17: Parameters in the output from the show platform port command Parameter Description 256 - 511 Number of 256 - 511 octet packets received and transmitted. 512 - 1023 Number of 512 - 1023 octet packets received and transmitted.
Page 552 WITCHING OMMANDS SHOW PLATFORM PORT Table 17: Parameters in the output from the show platform port command Parameter Description CarrierSenseErr Receive False Carrier Counter. UndersizePkts Number of undersized packets received. Transmit Counters for traffic transmitted. Octets Number of octets transmitted. Pkts Number of packets transmitted.
Page 553: Show Port-Security Interface
WITCHING OMMANDS SHOW PORT SECURITY INTERFACE show port-security interface Overview Use this command to show the current port-security configuration and the switch port status. show port-security interface <port> Syntax Parameter Description <port> The port to display information about. The port may be a switch port (e.g.
Page 554: Show Port-Security Intrusion
WITCHING OMMANDS SHOW PORT SECURITY INTRUSION show port-security intrusion Overview Use this command to show the intrusion list. If the port is not specified, the entire intrusion table is shown. show port-security intrusion [interface <port>] Syntax Parameter Description interface Specify a port <port>...
Page 555: Show Storm-Control
WITCHING OMMANDS SHOW STORM CONTROL show storm-control Overview Use this command to display storm-control information for all interfaces or a particular interface. show storm-control [<port>] Syntax Parameter Description <port> The port to display information about. The port may be a switch port (e.g.
Page 556: Speed
WITCHING OMMANDS SPEED speed Overview This command changes the speed of the specified port. You can optionally specify the speed or speeds that get autonegotiated, so autonegotiation is only attempted at the specified speeds. To see the currently-negotiated speed for ports whose links are up, use the show interface command.
Page 557: Speed Auto
WITCHING OMMANDS SPEED To return the port to auto-negotiating its speed, enter the following commands: awplus# configure terminal awplus(config)# interface port1.0.49 awplus(config-if)# speed auto To set the port to auto-negotiate its speed at 1000Mbps only, enter the following commands: awplus# configure terminal awplus(config)# interface port1.0.49...
Page 558: Storm-Control Level
WITCHING OMMANDS STORM CONTROL LEVEL storm-control level Overview Use this command to specify the speed limiting level for broadcasting, multicast, or destination lookup failure (DLF) traffic for the port. Storm-control limits the selected traffic type to the specified percentage of the maximum port speed. Use the no variant of this command to disable storm-control for broadcast, multicast or DLF traffic.
Page 559: Switchport Port-Security
WITCHING OMMANDS SWITCHPORT PORT SECURITY switchport port-security Overview Use this command to enable the port-security feature. This feature is also known as the port-based learn limit. It allows the user to set the maximum number of MAC addresses that each port can learn. Use the no variant of this command to disable the port-security feature.
Page 560: Switchport Port-Security Aging
WITCHING OMMANDS SWITCHPORT PORT SECURITY AGING switchport port-security aging Overview Use this command to set MAC addresses that have been learned by port security to age out. Use the no variant of this command to set the MAC addresses to not age out. Syntax switchport port-security aging no switchport port-security aging...
Page 561: Switchport Port-Security Maximum
WITCHING OMMANDS SWITCHPORT PORT SECURITY MAXIMUM switchport port-security maximum Overview Use this command to set the maximum number of MAC addresses that each port can learn. Use the no variant of this command to unset the maximum number of MAC addresses that each port can learn.
Page 562: Switchport Port-Security Violation
WITCHING OMMANDS SWITCHPORT PORT SECURITY VIOLATION switchport port-security violation Overview Use this command to set the action taken on a switch port when the port exceeds the learning limits. The port action can be either shutdown, restrict or protect. If shutdown is set, the physical link will be disabled and “shutdown”...
Page 563: Thrash-Limiting
WITCHING OMMANDS THRASH LIMITING thrash-limiting Overview Sets and configures the thrash limit action that will be applied to any port on the device when a thrashing condition is detected. The thrash-limiting timeout specifies the time, in seconds, for which the thrash action is employed. thrash-limiting {[action Syntax {learn-disable|link-down|port-disable|vlan-disable|none}]...
Page 564 WITCHING OMMANDS THRASH LIMITING To set the thrash limiting action to its default, use the following command: awplus(config-if)# no thrash-limiting action To set the thrash limiting timeout to its default, use the following command: awplus(config-if)# no thrash-limiting timeout Related loop-protection loop-detect Commands loop-protection action loop-protection timeout...
Page 565: Undebug Loopprot
WITCHING OMMANDS UNDEBUG LOOPPROT undebug loopprot Overview This command applies the functionality of the no debug loopprot command. C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 566: Undebug Platform Packet
WITCHING OMMANDS UNDEBUG PLATFORM PACKET undebug platform packet Overview This command applies the functionality of the no debug platform packet command. C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 567: Vlan Commands
VLAN Commands Introduction Overview This chapter provides an alphabetical reference of commands used to configure VLANs. For more information see the VLAN Feature Overview and Configuration Guide. Command List • “clear vlan statistics” on page 569 • “port-vlan-forwarding-priority” on page 570 •...
Page 568 VLAN C OMMANDS • “switchport mode private-vlan trunk promiscuous” on page 590 • “switchport mode private-vlan trunk secondary” on page 592 • “switchport mode trunk” on page 594 • “switchport private-vlan host-association” on page 595 • “switchport private-vlan mapping” on page 596 •...
Page 569: Clear Vlan Statistics
VLAN C OMMANDS CLEAR VLAN STATISTICS clear vlan statistics Overview This command resets the counters for either a specific VLAN statistics instance or (by not specifying an instance) resets the counters for all instances. The terms frame and packet are used interchangeably. Syntax clear vlan statistics [name <instance_name>] Parameter...
Page 570: Port-Vlan-Forwarding-Priority
VLAN C OMMANDS PORT VLAN FORWARDING PRIORITY port-vlan-forwarding-priority Overview Use this command to specify which protocol has the highest priority for controlling transitions from blocking to forwarding traffic, when more than one of EPSR, Loop Protection, and MAC thrashing protection are used on the switch. These protocols use the same mechanism to block or forward traffic.
Page 571 VLAN C OMMANDS PORT VLAN FORWARDING PRIORITY effects on a port would conflict and override each other. Without this command, each protocol could set a port to forwarding for a VLAN, sometimes overriding the previous setting by another protocol to block the port. This could sometimes lead to unexpected broadcast storms.
Page 572 VLAN C OMMANDS PORT VLAN FORWARDING PRIORITY To prioritize Loop Protection over EPSR or MAC Thrashing protection settings, so that EPSR or MAC Thrashing protection cannot set a port to the forwarding state for a VLAN if Loop Protection has set it to the blocking state, use the commands: awplus# configure terminal awplus(config)#...
Page 573: Private-Vlan
VLAN C OMMANDS PRIVATE VLAN private-vlan Overview Use this command to a create a private VLAN. Private VLANs can be either primary or secondary. Secondary VLANs can be ether community or isolated. Use the no variant of this command to remove the specified private VLAN. For more information, see the VLAN Feature Overview and Configuration Guide.
Page 574: Private-Vlan Association
VLAN C OMMANDS PRIVATE VLAN ASSOCIATION private-vlan association Overview Use this command to associate a secondary VLAN to a primary VLAN. Only one isolated VLAN can be associated to a primary VLAN. Multiple community VLANs can be associated to a primary VLAN. Use the no variant of this command to remove association of all the secondary VLANs to a primary VLAN.
Page 575: Show Port-Vlan-Forwarding-Priority
VLAN C OMMANDS SHOW PORT VLAN FORWARDING PRIORITY show port-vlan-forwarding-priority Overview Use this command to display the highest priority protocol that controls port-vlan forwarding or blocking traffic. This command displays whether EPSR or Loop Protection is set as the highest priority for determining whether a port forwards a VLAN, as set by the port-vlan-forwarding-priority command.
Page 576: Show Interface Switchport Vlan Translation
VLAN C OMMANDS SHOW INTERFACE SWITCHPORT VLAN TRANSLATION show interface switchport vlan translation Overview Use this command to display VLAN translation information for some or all interfaces. show interface switchport vlan translation interface [<int>] Syntax Parameter Description interface <int> The interface to display information about. An interface can be a switch port (e.g.
Page 577: Show Vlan
VLAN C OMMANDS SHOW VLAN show vlan Overview Use this command to display information about a particular VLAN by specifying its VLAN ID. Selecting all will display information for all the VLANs configured. show vlan Syntax {all|brief|dynamic|static|auto|static-ports|<1-4094>} Parameter Description <1-4094> Display information about the VLAN specified by the VLAN ID.
Page 578: Show Vlan Access-Map
VLAN C OMMANDS SHOW VLAN ACCESS show vlan access-map Overview Use this command to display information about the configured VLAN access-maps. VLAN access-maps contain a series of ACLs and enable you to filter traffic ingressing specified VLANs. show vlan access-map [<name>] Syntax Parameter Description...
Page 579: Show Vlan Classifier Group
VLAN C OMMANDS SHOW VLAN CLASSIFIER GROUP show vlan classifier group Overview Use this command to display information about all configured VLAN classifier groups or a specific group. show vlan classifier group [<1-16>] Syntax Parameter Description <1-16> VLAN classifier group identifier Mode User Exec and Privileged Exec Usage...
Page 580: Show Vlan Classifier Group Interface
VLAN C OMMANDS SHOW VLAN CLASSIFIER GROUP INTERFACE show vlan classifier group interface Overview Use this command to display information about a single switch port interface for all configured VLAN classifier groups. show vlan classifier group interface <switch-port> Syntax Parameter Description <switch-port>...
Page 581: Show Vlan Classifier Interface Group
VLAN C OMMANDS SHOW VLAN CLASSIFIER INTERFACE GROUP show vlan classifier interface group Overview Use this command to display information about all interfaces configured for a VLAN group or all the groups. show vlan classifier interface group [<1-16>] Syntax Parameter Description <1-16>...
Page 582: Show Vlan Classifier Rule
VLAN C OMMANDS SHOW VLAN CLASSIFIER RULE show vlan classifier rule Overview Use this command to display information about all configured VLAN classifier rules or a specific rule. show vlan classifier rule [<1-256>] Syntax Parameter Description <1-256> VLAN classifier rule identifier Mode User Exec and Privileged Exec Usage...
Page 583: Show Vlan Filter
VLAN C OMMANDS SHOW VLAN FILTER show vlan filter Overview Use this command to display information about the configured VLAN filters. VLAN filters apply access-maps (and therefore ACLs) to VLANs. This enables you to filter traffic ingressing specified VLANs. show vlan filter [<access-map-name>] Syntax Parameter Description...
Page 584: Show Vlan Private-Vlan
VLAN C OMMANDS SHOW VLAN PRIVATE VLAN show vlan private-vlan Overview Use this command to display the private VLAN configuration and associations. show vlan private-vlan Syntax Mode User Exec and Privileged Exec Example To display the private VLAN configuration and associations, enter the command: awplus# show vlan private-vlan Output...
Page 585: Show Vlan Statistics
VLAN C OMMANDS SHOW VLAN STATISTICS show vlan statistics Overview Use this command to display the current configuration for either a specific VLAN statistics instance, or (by not specifying an instance) display all VLAN packet counter instances. show vlan statistics [name <instance_name>] Syntax Mode User Exec and Privileged Exec...
Page 586: Switchport Access Vlan
VLAN C OMMANDS SWITCHPORT ACCESS VLAN switchport access vlan Overview Use this command to change the port-based VLAN of the current port. Use the no variant of this command to change the port-based VLAN of this port to the default VLAN, vlan1. Syntax switchport access vlan <vlan-id>...
Page 587: Switchport Enable Vlan
VLAN C OMMANDS SWITCHPORT ENABLE VLAN switchport enable vlan Overview This command enables the VLAN on the port manually once disabled by certain actions, such as QSP (QoS Storm Protection) or EPSR (Ethernet Protection Switching Ring). Note that if the VID is not given, all disabled VLANs are re-enabled. switchport enable vlan [<1-4094>] Syntax Parameter...
Page 588: Switchport Mode Access
VLAN C OMMANDS SWITCHPORT MODE ACCESS switchport mode access Overview Use this command to set the switching characteristics of the port to access mode. Received frames are classified based on the VLAN characteristics, then accepted or discarded based on the specified filtering criteria. switchport mode access [ingress-filter {enable|disable}] Syntax Parameter...
Page 589: Switchport Mode Private-Vlan
VLAN C OMMANDS SWITCHPORT MODE PRIVATE VLAN switchport mode private-vlan Overview Use this command to make a Layer 2 port a private VLAN host port or a promiscuous port. Use the no variant of this command to remove the configuration. Syntax switchport mode private-vlan {host|promiscuous} no switchport mode private-vlan {host|promiscuous}...
Page 590: Switchport Mode Private-Vlan Trunk Promiscuous
VLAN C OMMANDS SWITCHPORT MODE PRIVATE VLAN TRUNK PROMISCUOUS switchport mode private-vlan trunk promiscuous Overview Use this command to enable a port in trunk mode to be promiscuous port for isolated VLANs. : Private VLAN trunk ports are not supported by the current AlliedWare Plus GVRP NOTE implementation.
Page 591 VLAN C OMMANDS SWITCHPORT MODE PRIVATE VLAN TRUNK PROMISCUOUS To create the isolated VLANs 2, 3 and 4 and then enable port1.0.2 in trunk Examples mode as a promiscuous port for these VLANs with the group ID of 3, use the following commands: awplus# configure terminal...
Page 592: Switchport Mode Private-Vlan Trunk Secondary
VLAN C OMMANDS SWITCHPORT MODE PRIVATE VLAN TRUNK SECONDARY switchport mode private-vlan trunk secondary Overview Use this command to enable a port in trunk mode to be a secondary port for isolated VLANs. : Private VLAN trunk ports are not supported by the current AlliedWare Plus GVRP NOTE implementation.
Page 593 VLAN C OMMANDS SWITCHPORT MODE PRIVATE VLAN TRUNK SECONDARY To create isolated private VLAN 2 and then enable port1.0.3 in trunk mode as Examples a secondary port for the this VLAN with the group ID of 3, use the following commands: awplus# configure terminal...
Page 594: Switchport Mode Trunk
VLAN C OMMANDS SWITCHPORT MODE TRUNK switchport mode trunk Overview Use this command to set the switching characteristics of the port to trunk. Received frames are classified based on the VLAN characteristics, then accepted or discarded based on the specified filtering criteria. switchport mode trunk [ingress-filter {enable|disable}] Syntax Parameter...
Page 595: Switchport Private-Vlan Host-Association
VLAN C OMMANDS SWITCHPORT PRIVATE VLAN HOST ASSOCIATION switchport private-vlan host-association Overview Use this command to associate a primary VLAN and a secondary VLAN to a host port. Only one primary and secondary VLAN can be associated to a host port. Use the no variant of this command to remove the association.
Page 596: Switchport Private-Vlan Mapping
VLAN C OMMANDS SWITCHPORT PRIVATE VLAN MAPPING switchport private-vlan mapping Overview Use this command to associate a primary VLAN and a set of secondary VLANs to a promiscuous port. Use the no variant of this to remove all the association of secondary VLANs to primary VLANs for a promiscuous port.
Page 597: Switchport Trunk Allowed Vlan
VLAN C OMMANDS SWITCHPORT TRUNK ALLOWED VLAN switchport trunk allowed vlan Overview Use this command to add VLANs to be trunked over this switch port. Traffic for these VLANs can be sent and received on the port. Use the no variant of this command to reset switching characteristics of a specified interface to negate a trunked configuration specified with switchport trunk allowed vlan command.
Page 598 VLAN C OMMANDS SWITCHPORT TRUNK ALLOWED VLAN Usage The all parameter sets the port to be a tagged member of all the VLANs configured on the device. The none parameter removes all VLANs from the port’s tagged member set. The add and remove parameters will add and remove VLANs to and from the port’s member set.
Page 599 VLAN C OMMANDS SWITCHPORT TRUNK ALLOWED VLAN Examples The following shows adding a single VLAN to the port’s member set. awplus# configure terminal awplus(config)# interface port1.0.2 awplus(config-if)# switchport trunk allowed vlan add 2 The following shows adding a range of VLANs to the port’s member set. awplus# configure terminal awplus(config)#...
Page 600: Switchport Trunk Native Vlan
VLAN C OMMANDS SWITCHPORT TRUNK NATIVE VLAN switchport trunk native vlan Overview Use this command to configure the native VLAN for this port. The native VLAN is used for classifying the incoming untagged packets. Use the none parameter with this command to remove the native VLAN from the port and set the acceptable frame types to vlan-tagged only.
Page 601: Switchport Vlan Translation
VLAN C OMMANDS SWITCHPORT VLAN TRANSLATION switchport vlan translation Overview Use this command to create a VLAN translation entry on an interface. The translation entry translates a packet's VLAN-ID as seen on the wire. Use the no variant of this command to remove all translation entries or a specific entry.
Page 602: Switchport Vlan Translation Default Drop
VLAN C OMMANDS SWITCHPORT VLAN TRANSLATION DEFAULT DROP switchport vlan translation default drop Overview Use this command to configure a default behavior of dropping inbound tagged packets that have a VLAN-ID that does not match any entries in the VLAN translation table for an interface.
Page 603: Switchport Vlan-Stacking (Double Tagging)
VLAN C OMMANDS SWITCHPORT VLAN STACKING DOUBLE TAGGING switchport vlan-stacking (double tagging) Overview Use this command to enable VLAN stacking on a port and set it to be a customer-edge-port or provider-port. This is sometimes referred to as VLAN double-tagging, nested VLANs, or Q in Q. Use no parameter with this command to disable VLAN stacking on an interface.
Page 604: Switchport Voice Dscp
VLAN C OMMANDS SWITCHPORT VOICE DSCP switchport voice dscp Overview Use this command for a specific port to configure the Layer 3 DSCP value advertised when the transmission of LLDP-MED Network Policy TLVs for voice devices is enabled. When LLDP-MED capable IP phones receive this network policy information, they transmit voice data with the specified DSCP value.
Page 605: Switchport Voice Vlan
VLAN C OMMANDS SWITCHPORT VOICE VLAN switchport voice vlan Overview Use this command to configure the Voice VLAN tagging advertised when the transmission of LLDP-MED Network Policy TLVs for voice endpoint devices is enabled. When LLDP-MED capable IP phones receive this network policy information, they transmit voice data with the specified tagging.
Page 606 VLAN C OMMANDS SWITCHPORT VOICE VLAN If the Voice VLAN details are to be assigned by RADIUS, then the RADIUS server must be configured to send the attribute “Egress-VLANID (56)” or “Egress-VLAN-Name (58)” in the RADIUS Accept message when authenticating a phone attached to this port.
Page 607 VLAN C OMMANDS SWITCHPORT VOICE VLAN Related egress-vlan-id Commands egress-vlan-name lldp med-tlv-select spanning-tree edgeport (RSTP and MSTP) switchport voice dscp switchport voice vlan priority show lldp C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 608: Switchport Voice Vlan Priority
VLAN C OMMANDS SWITCHPORT VOICE VLAN PRIORITY switchport voice vlan priority Overview Use this command to configure the Layer 2 user priority advertised when the transmission of LLDP-MED Network Policy TLVs for voice devices is enabled. This is the priority in the User Priority field of the IEEE 802.1Q VLAN tag, also known as the Class of Service (CoS), or 802.1p priority.
Page 609: Vlan
VLAN C OMMANDS VLAN vlan Overview This command creates VLANs, assigns names to them, and enables or disables them. Disabling the VLAN causes all forwarding over the specified VLAN ID to cease. Enabling the VLAN allows forwarding of frames on the specified VLAN. The no variant of this command destroys the specified VLANs or returns their MTU to the default.
Page 610: Vlan Access-Map
VLAN C OMMANDS VLAN ACCESS vlan access-map Overview Use this command to create a VLAN access-map and enter into VLAN access-map mode, so you can add ACLs to the map. You can use any IPv4 or IPv6 hardware ACLs. VLAN access-maps are used to attach ACLs to VLANs, and therefore to filter traffic as it ingresses VLANs.
Page 611: Vlan Classifier Activate
VLAN C OMMANDS VLAN CLASSIFIER ACTIVATE vlan classifier activate Overview Use this command in Interface Configuration mode to associate a VLAN classifier group with the switch port. Use the no variant of this command to remove the VLAN classifier group from the switch port.
Page 612: Vlan Classifier Group
VLAN C OMMANDS VLAN CLASSIFIER GROUP vlan classifier group Overview Use this command to create a group of VLAN classifier rules. The rules must already have been created. Use the no variant of this command to delete a group of VLAN classifier rules. Syntax vlan classifier group <1-16>...
Page 613: Vlan Classifier Rule Ipv4
VLAN C OMMANDS VLAN CLASSIFIER RULE IPV vlan classifier rule ipv4 Overview Use this command to create an IPv4 subnet-based VLAN classifier rule and map it to a specific VLAN. Use the no variant of this command to delete the VLAN classifier rule.
Page 614: Vlan Classifier Rule Proto
VLAN C OMMANDS VLAN CLASSIFIER RULE PROTO vlan classifier rule proto Overview Use this command to create a protocol type-based VLAN classifier rule, and map it to a specific VLAN. See the published IANA EtherType IEEE 802 numbers here: www.iana.org/assignments/ieee-802-numbers/ieee-802-numbers.txt. Instead of a protocol name the decimal value of the protocol's EtherType can be entered.
Page 615 VLAN C OMMANDS VLAN CLASSIFIER RULE PROTO Parameter Description [decsyscomm|24583] DEC Systems Comms Arch protocol [g8bpqx25|2303] G8BPQ AX.25 protocol [ieeeaddrtrans|2561] Xerox IEEE802.3 PUP Address [ieeepup|2560] Xerox IEEE802.3 PUP protocol [ip|2048] IP protocol [ipv6|34525] IPv6 protocol [ipx|33079] IPX protocol [netbeui|61680] IBM NETBIOS/NETBEUI protocol [netbeui|61681] IBM NETBIOS/NETBEUI...
Page 616 VLAN C OMMANDS VLAN CLASSIFIER RULE PROTO awplus# configure terminal Example awplus(config)# vlan classifier rule 1 proto x25 encap ethv2 vlan 2 awplus(config)# vlan classifier rule 2 proto 512 encap ethv2 vlan 2 awplus(config)# vlan classifier rule 3 proto 2056 encap ethv2 vlan 2 awplus(config)# vlan classifier rule 4 proto 2054 encap ethv2...
Page 617: Vlan Database
VLAN C OMMANDS VLAN DATABASE vlan database Overview Use this command to enter the VLAN Configuration mode. vlan database Syntax Mode Global Configuration Usage Use this command to enter the VLAN configuration mode. You can then add or delete a VLAN, or modify its values. Example In the following example, note the change to VLAN configuration mode from Configure mode:...
Page 618: Vlan Filter
VLAN C OMMANDS VLAN FILTER vlan filter Overview Use this command to apply a VLAN access-map to a list of VLANs. The switch uses the ACLs in the access-map to filter traffic ingressing those VLANs. See the ACL Feature Overview and Configuration Guide for more information, including information about the number of rules consumed by per-VLAN ACLs, and ACL processing order.
Page 619: Vlan Mode Stack-Local-Vlan
VLAN C OMMANDS VLAN MODE STACK LOCAL VLAN vlan mode stack-local-vlan Overview This command enables you to create stack-local-VLANs and use ICMP to monitor and diagnose issues within specific members of the stack. When a VLAN is added using this method, all its traffic will be trapped to and processed by the CPU of the specific local stack member, rather than the CPU of the stack master.
Page 620 VLAN C OMMANDS VLAN MODE STACK LOCAL VLAN To remove VLAN 4002, use the following commands: awplus# configure terminal awplus(config)# vlan database awplus(config-vlan)# no vlan 4002 Related ip igmp snooping Commands vlan database C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™...
Page 621: Vlan Statistics
VLAN C OMMANDS VLAN STATISTICS vlan statistics Overview This command creates a VLAN packet counter instance, and enables you to add one or more ports to a defined counter instance. This command can only be applied to switch ports. You cannot apply it to aggregated links or eth ports. The no variant of this command enables the deletion of VLAN packet counter instances, or for removing one or more ports that are currently mapped to a counter instance.
Page 622 VLAN C OMMANDS VLAN STATISTICS To remove the remaining ports 1.0.2 to 1.0.4 from the packet counter instance named vlan2-data. Note that because there are no ports associated with the vlan2-data, this instance will be removed. awplus(config)# interface port1.0.2-port1.0.4 awplus(config-if)# no vlan statistics name vlan2-data Related clear vlan statistics...
Page 623: Spanning Tree Commands
Spanning Tree Commands Introduction Overview This chapter provides an alphabetical reference for commands used to configure RSTP, STP or MSTP. For information about spanning trees, including configuration procedures, see the STP Feature Overview and Configuration Guide. Command List • “clear spanning-tree statistics”...
Page 624 PANNING OMMANDS • “show spanning-tree statistics instance” on page 655 • “show spanning-tree statistics instance interface” on page 656 • “show spanning-tree statistics interface” on page 658 • “show spanning-tree vlan range-index” on page 660 • “spanning-tree autoedge (RSTP and MSTP)”...
Page 625: Clear Spanning-Tree Statistics
PANNING OMMANDS CLEAR SPANNING TREE STATISTICS clear spanning-tree statistics Overview Use this command to clear all the STP BPDU (Bridge Protocol Data Unit) statistics. clear spanning-tree statistics Syntax clear spanning-tree statistics [instance <mstp-instance>] clear spanning-tree statistics [interface <port> [instance <mstp-instance>]] Parameter Description <port>...
Page 626: Clear Spanning-Tree Detected Protocols (Rstp And Mstp)
PANNING OMMANDS (RSTP MSTP) CLEAR SPANNING TREE DETECTED PROTOCOLS clear spanning-tree detected protocols (RSTP and MSTP) Overview Use this command to clear the detected protocols for a specific port, or all ports. Use this command in RSTP or MSTP mode only. clear spanning-tree detected protocols [interface <port>] Syntax Parameter...
Page 627: Debug Mstp (Rstp And Stp)
PANNING OMMANDS (RSTP STP) DEBUG MSTP debug mstp (RSTP and STP) Overview Use this command to enable debugging for the configured spanning tree mode, and echo data to the console, at various levels. Note that although this command uses the keyword mstp it displays debugging output for RSTP and STP protocols as well the MSTP protocol.
Page 628 PANNING OMMANDS (RSTP STP) DEBUG MSTP command. The default terminal monitor filter will select and display these messages. Alternatively, the messages can be directed to any of the other log outputs by adding a filter for the MSTP application using log buffered (filter) command: awplus#...
Page 629 PANNING OMMANDS (RSTP STP) DEBUG MSTP awplus#terminal monitor awplus#debug mstp packet rx decode interface port1.0.4 17:23:42 awplus MSTP[1417]: port1.0.4 xSTP BPDU rx - start 17:23:42 awplus MSTP[1417]: Protocol version: MSTP, BPDU type: RST 17:23:42 awplus MSTP[1417]: CIST Flags: Agree Forward Learn role=Desig 17:23:42 awplus MSTP[1417]: CIST root id : 0000:0000cd1000fe...
Page 630 PANNING OMMANDS (RSTP STP) DEBUG MSTP awplus#terminal monitor awplus#debug mstp packet rx decode interface port1.0.4 awplus#17:30:17 awplus MSTP[1417]: port1.0.4 xSTP BPDU rx - start 17:30:17 awplus MSTP[1417]: Protocol version: RSTP, BPDU type: RST 17:30:17 awplus MSTP[1417]: CIST Flags: Forward Learn role=Desig 17:30:17 awplus MSTP[1417]: CIST root id : 8000:0000cd1000fe...
Page 631: Instance Priority (Mstp)
PANNING OMMANDS (MSTP) INSTANCE PRIORITY instance priority (MSTP) Overview Use this command to set the priority for this device to become the root bridge for the specified MSTI (Multiple Spanning Tree Instance). Use this command for MSTP only. Use the no variant of this command to restore the root bridge priority of the device for the instance to the default.
Page 632 PANNING OMMANDS (MSTP) INSTANCE PRIORITY Related region (MSTP) Commands revision (MSTP) show spanning-tree mst config spanning-tree mst instance spanning-tree mst instance priority C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 633: Instance Vlan (Mstp)
PANNING OMMANDS (MSTP) INSTANCE VLAN instance vlan (MSTP) Overview Use this command to create an MST Instance (MSTI), and associate the specified VLANs with it. An MSTI is a spanning tree instance that exists within an MST region (MSTR). When a VLAN is associated with an MSTI the member ports of the VLAN are automatically configured to send and receive spanning-tree information for the associated MSTI.
Page 634 PANNING OMMANDS (MSTP) INSTANCE VLAN Related region (MSTP) Commands revision (MSTP) show spanning-tree mst config spanning-tree mst instance vlan C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 635: Region (Mstp)
PANNING OMMANDS (MSTP) REGION region (MSTP) Overview Use this command to assign a name to the device’s MST Region. MST Instances (MSTI) of a region form different spanning trees for different VLANs. Use this command for MSTP only. Use the no variant of this command to remove this region name and reset it to the default.
Page 636: Revision (Mstp)
PANNING OMMANDS (MSTP) REVISION revision (MSTP) Overview Use this command to specify the MST revision number to be used in the configuration identifier. Use this command for MSTP only. Syntax revision <revision-number> Parameter Description <revision-number> <0-65535> Revision number. Default The default of revision number is 0. Mode MST Configuration Usage...
Page 637: Show Debugging Mstp
PANNING OMMANDS SHOW DEBUGGING MSTP show debugging mstp Overview Use this command to show the MSTP debugging options set. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide. Syntax show debugging mstp Mode User Exec and Privileged Exec mode...
Page 638: Show Spanning-Tree
PANNING OMMANDS SHOW SPANNING TREE show spanning-tree Overview Use this command to display detailed spanning tree information on the specified port or on all ports. Use this command for RSTP, MSTP or STP. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus”...
Page 639 PANNING OMMANDS SHOW SPANNING TREE Output Figure 17-2: Example output from show spanning-tree in RSTP mode awplus#show spanning-tree % 1: Bridge up - Spanning Tree Enabled % 1: Root Path Cost 0 - Root Port 0 - Bridge Priority 32768 % 1: Forward Delay 15 - Hello Time 2 - Max Age 20...
Page 640 PANNING OMMANDS SHOW SPANNING TREE % 1: Bridge up - Spanning Tree Enabled % 1: Root Path Cost 0 - Root Port 0 - Bridge Priority 32768 % 1: Forward Delay 15 - Hello Time 2 - Max Age 20 % 1: Root Id 80000000cd20f093...
Page 641: Show Spanning-Tree Brief
PANNING OMMANDS SHOW SPANNING TREE BRIEF show spanning-tree brief Overview Use this command to display a summary of spanning tree status information on all ports. Use this command for RSTP, MSTP or STP. show spanning-tree brief Syntax Parameter Description brief A brief summary of spanning tree information.
Page 642: Show Spanning-Tree Mst
PANNING OMMANDS SHOW SPANNING TREE MST show spanning-tree mst Overview This command displays bridge-level information about the CIST and VLAN to MSTI mappings. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide.
Page 643: Show Spanning-Tree Mst Config
PANNING OMMANDS SHOW SPANNING TREE MST CONFIG show spanning-tree mst config Overview Use this command to display MSTP configuration identifier for the device. show spanning-tree mst config Syntax Mode User Exec, Privileged Exec and Interface Configuration Usage The region name, the revision number, and the digest of the VLAN to MSTI configuration table must be the same on all devices that are intended to be in the same MST region.
Page 644: Show Spanning-Tree Mst Detail
PANNING OMMANDS SHOW SPANNING TREE MST DETAIL show spanning-tree mst detail Overview This command displays detailed information about each instance, and all interfaces associated with that particular instance. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus”...
Page 645 PANNING OMMANDS SHOW SPANNING TREE MST DETAIL port1.0.3: Port 5003 - Id 838b - Role Disabled - State Discarding port1.0.3: Designated External Path Cost 0 -Internal Path Cost 0 port1.0.3: Configured Path Cost 20000000 - Add type Explicit ref count 1 port1.0.3: Designated Port Id 838b - CIST Priority 128 -...
Page 646: Show Spanning-Tree Mst Detail Interface
PANNING OMMANDS SHOW SPANNING TREE MST DETAIL INTERFACE show spanning-tree mst detail interface Overview This command displays detailed information about the specified switch port, and the MST instances associated with it. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus”...
Page 647 PANNING OMMANDS SHOW SPANNING TREE MST DETAIL INTERFACE port1.0.2: No portfast configured - Current portfast off port1.0.2: portfast bpdu-guard default - Current portfast bpdu-guard off port1.0.2: portfast bpdu-filter default - Current portfast bpdu-filter off port1.0.2: no root guard configured - Current root guard off port1.0.2: Configured Link Type point-to-point - Current shared...
Page 648: Show Spanning-Tree Mst Instance
PANNING OMMANDS SHOW SPANNING TREE MST INSTANCE show spanning-tree mst instance Overview This command displays detailed information for the specified instance, and all switch ports associated with that instance. A topology change counter has been included for RSTP and MSTP. You can see the topology change counter for RSTP by using the show spanning-tree command.
Page 649: Show Spanning-Tree Mst Instance Interface
PANNING OMMANDS SHOW SPANNING TREE MST INSTANCE INTERFACE show spanning-tree mst instance interface Overview This command displays detailed information for the specified MST (Multiple Spanning Tree) instance, and the specified switch port associated with that MST instance. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus”...
Page 650: Show Spanning-Tree Mst Interface
PANNING OMMANDS SHOW SPANNING TREE MST INTERFACE show spanning-tree mst interface Overview This command displays the number of instances created, and VLANs associated with it for the specified switch port. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus”...
Page 651: Show Spanning-Tree Mst Detail Interface
PANNING OMMANDS SHOW SPANNING TREE MST DETAIL INTERFACE show spanning-tree mst detail interface Overview This command displays detailed information about the specified switch port, and the MST instances associated with it. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus”...
Page 652 PANNING OMMANDS SHOW SPANNING TREE MST DETAIL INTERFACE port1.0.2: No portfast configured - Current portfast off port1.0.2: portfast bpdu-guard default - Current portfast bpdu-guard off port1.0.2: portfast bpdu-filter default - Current portfast bpdu-filter off port1.0.2: no root guard configured - Current root guard off port1.0.2: Configured Link Type point-to-point - Current shared...
Page 653: Show Spanning-Tree Statistics
PANNING OMMANDS SHOW SPANNING TREE STATISTICS show spanning-tree statistics Overview This command displays BPDU (Bridge Protocol Data Unit) statistics for all spanning-tree instances, and all switch ports associated with all spanning-tree instances. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus”...
Page 654 PANNING OMMANDS SHOW SPANNING TREE STATISTICS % STATUS of Port Timers % --------------------- % Hello Time Configured : 2 % Hello timer : INACTIVE % Hello Time Value : 0 % Forward Delay Timer : INACTIVE % Forward Delay Timer Value : 0...
Page 655: Show Spanning-Tree Statistics Instance
PANNING OMMANDS SHOW SPANNING TREE STATISTICS INSTANCE show spanning-tree statistics instance Overview This command displays BPDU (Bridge Protocol Data Unit) statistics for the specified MST (Multiple Spanning Tree) instance, and all switch ports associated with that MST instance. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus”...
Page 656: Show Spanning-Tree Statistics Instance Interface
PANNING OMMANDS SHOW SPANNING TREE STATISTICS INSTANCE INTERFACE show spanning-tree statistics instance interface Overview This command displays BPDU (Bridge Protocol Data Unit) statistics for the specified MST (Multiple Spanning Tree) instance and the specified switch port associated with that MST instance. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus”...
Page 657 PANNING OMMANDS SHOW SPANNING TREE STATISTICS INSTANCE INTERFACE Output Figure 17-15: Example output from show spanning-tree statistics instance interface awplus#sh spanning-tree statistics interface port1.0.2 instance 1 Spanning Tree Enabled for Instance : 1 ================================== % INST_PORT port1.0.2 Information & Statistics % ----------------------------------------...
Page 658: Show Spanning-Tree Statistics Interface
PANNING OMMANDS SHOW SPANNING TREE STATISTICS INTERFACE show spanning-tree statistics interface Overview This command displays BPDU (Bridge Protocol Data Unit) statistics for the specified switch port, and all MST instances associated with that switch port. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus”...
Page 659 PANNING OMMANDS SHOW SPANNING TREE STATISTICS INTERFACE % PORT Based Information & Statistics % ----------------------------------- % Config Bpdu's xmitted : 0 % Config Bpdu's received : 0 % TCN Bpdu's xmitted : 0 % TCN Bpdu's received : 0 % Forward Trans Count : 0...
Page 660: Show Spanning-Tree Vlan Range-Index
PANNING OMMANDS SHOW SPANNING TREE VLAN RANGE INDEX show spanning-tree vlan range-index Overview Use this command to display information about MST (Multiple Spanning Tree) instances and the VLANs associated with them including the VLAN range-index value for the device. show spanning-tree vlan range-index Syntax Mode Privileged Exec...
Page 661: Spanning-Tree Autoedge (Rstp And Mstp)
PANNING OMMANDS (RSTP MSTP) SPANNING TREE AUTOEDGE spanning-tree autoedge (RSTP and MSTP) Overview Use this command to enable the autoedge feature on the port. The autoedge feature allows the port to automatically detect that it is an edge port. If it does not receive any BPDUs in the first three seconds after linkup, enabling, or entering RSTP or MSTP mode, it sets itself to be an edgeport and enters the forwarding state.
Page 662: Spanning-Tree Bpdu
PANNING OMMANDS SPANNING TREE BPDU spanning-tree bpdu Overview Use this command to configure BPDU (Bridge Protocol Data Unit) discarding or forwarding, when STP is disabled on the switch. This may be needed for correct STP operation in complex networks. There is no no variant for this command. Instead, apply the discard parameter to reset it back to the default then re-enable STP with the command spanning-tree enable.
Page 663 PANNING OMMANDS SPANNING TREE BPDU Examples To enable STP BPDU discard in Global Configuration mode with STP disabled, which discards all ingress STP BPDU frames, enter the commands: awplus# configure terminal awplus(config)# no spanning-tree rstp enable awplus(config)# spanning-tree bpdu discard To enable STP BPDU forward in Global Configuration mode with STP disabled, which forwards any ingress STP BPDU frames to all ports regardless of any VLAN membership, enter the commands:...
Page 664: Spanning-Tree Cisco-Interoperability (Mstp)
PANNING OMMANDS (MSTP) SPANNING TREE CISCO INTEROPERABILITY spanning-tree cisco-interoperability (MSTP) Overview Use this command to enable/disable Cisco-interoperability for MSTP. Use this command for MSTP only. Syntax spanning-tree cisco-interoperability {enable|disable} Parameter Description enable Enable Cisco interoperability for MSTP. disable Disable Cisco interoperability for MSTP. Default If this command is not used, Cisco interoperability is disabled.
Page 665: Spanning-Tree Edgeport (Rstp And Mstp)
PANNING OMMANDS (RSTP MSTP) SPANNING TREE EDGEPORT spanning-tree edgeport (RSTP and MSTP) Overview Use this command to set a port as an edge-port. Use this command for RSTP or MSTP. This command has the same effect as the spanning-tree portfast (STP) command, but the configuration displays differently in the output of some show commands.
Page 666: Spanning-Tree Enable
PANNING OMMANDS SPANNING TREE ENABLE spanning-tree enable Overview Use this command in Global Configuration mode to enable the specified spanning tree protocol for all switch ports. Note that this must be the spanning tree protocol that is configured on the device by the spanning-tree mode command.
Page 667 PANNING OMMANDS SPANNING TREE ENABLE To disable RSTP in Global Configuration mode, enter the below commands: awplus# configure terminal awplus(config)# no spanning-tree rstp enable Related spanning-tree bpdu Commands spanning-tree mode C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 668: Spanning-Tree Errdisable-Timeout Enable
PANNING OMMANDS SPANNING TREE ERRDISABLE TIMEOUT ENABLE spanning-tree errdisable-timeout enable Overview Use this command to enable the errdisable-timeout facility, which sets a timeout for ports that are disabled due to the BPDU guard feature. Use this command for RSTP or MSTP. Use the no variant of this command to disable the errdisable-timeout facility.
Page 669: Spanning-Tree Errdisable-Timeout Interval
PANNING OMMANDS SPANNING TREE ERRDISABLE TIMEOUT INTERVAL spanning-tree errdisable-timeout interval Overview Use this command to specify the time interval after which a port is brought back up when it has been disabled by the BPDU guard feature. Use this command for RSTP or MSTP. Syntax spanning-tree errdisable-timeout interval <10-1000000>...
Page 670: Spanning-Tree Force-Version
PANNING OMMANDS SPANNING TREE FORCE VERSION spanning-tree force-version Overview Use this command in Interface Configuration mode for a switch port interface only to force the protocol version for the switch port. Use this command for RSTP or MSTP only. spanning-tree force-version <version> Syntax no spanning-tree force-version Parameter...
Page 671: Spanning-Tree Forward-Time
PANNING OMMANDS SPANNING TREE FORWARD TIME spanning-tree forward-time Overview Use this command to set the forward delay value. Use the no variant of this command to reset the forward delay value to the default setting of 15 seconds. The forward delay sets the time (in seconds) to control how fast a port changes its spanning tree state when moving towards the forwarding state.
Page 672: Spanning-Tree Guard Root
PANNING OMMANDS SPANNING TREE GUARD ROOT spanning-tree guard root Overview Use this command in Interface Configuration mode for a switch port only to enable the Root Guard feature for the switch port. The root guard feature disables reception of superior BPDUs. You can use this command for RSTP, STP or MSTP. Use the no variant of this command to disable the root guard feature for the port.
Page 673: Spanning-Tree Hello-Time
PANNING OMMANDS SPANNING TREE HELLO TIME spanning-tree hello-time Overview Use this command to set the hello-time. This sets the time in seconds between the transmission of device spanning tree configuration information when the device is the Root Bridge of the spanning tree or is trying to become the Root Bridge. Use this command for RSTP, STP or MSTP.
Page 674: Spanning-Tree Link-Type
PANNING OMMANDS SPANNING TREE LINK TYPE spanning-tree link-type Overview Use this command in Interface Configuration mode for a switch port interface only to enable or disable point-to-point or shared link types on the switch port. Use this command for RSTP or MSTP only. Use the no variant of this command to return the port to the default link type.
Page 675: Spanning-Tree Max-Age
PANNING OMMANDS SPANNING TREE MAX spanning-tree max-age Overview Use this command to set the max-age. This sets the maximum age, in seconds, that dynamic spanning tree configuration information is stored in the device before it is discarded. Use this command for RSTP, STP or MSTP. Use the no variant of this command to restore the default of max-age.
Page 676: Spanning-Tree Max-Hops (Mstp)
PANNING OMMANDS (MSTP) SPANNING TREE MAX HOPS spanning-tree max-hops (MSTP) Overview Use this command to specify the maximum allowed hops for a BPDU in an MST region. This parameter is used by all the instances of the MST region. Use the no variant of this command to restore the default. Use this command for MSTP only.
Page 677: Spanning-Tree Mode
PANNING OMMANDS SPANNING TREE MODE spanning-tree mode Overview Use this command to change the spanning tree protocol mode on the device. The spanning tree protocol mode on the device can be configured to either STP, RSTP or MSTP. spanning-tree mode {stp|rstp|mstp} Syntax Default The default spanning tree protocol mode on the device is RSTP.
Page 678: Spanning-Tree Mst Configuration
PANNING OMMANDS SPANNING TREE MST CONFIGURATION spanning-tree mst configuration Overview Use this command to enter the MST Configuration mode to configure the Multiple Spanning-Tree Protocol. spanning-tree mst configuration Syntax Mode Global Configuration Examples The following example uses this command to enter MST Configuration mode. Note the change in the command prompt.
Page 679: Spanning-Tree Mst Instance
PANNING OMMANDS SPANNING TREE MST INSTANCE spanning-tree mst instance Overview Use this command to assign a Multiple Spanning Tree instance (MSTI) to a switch port or channel group. Note that ports are automatically configured to send and receive spanning-tree information for the associated MSTI when VLANs are assigned to MSTIs using the instance vlan (MSTP) command.
Page 680: Spanning-Tree Mst Instance Path-Cost
PANNING OMMANDS SPANNING TREE MST INSTANCE PATH COST spanning-tree mst instance path-cost Overview Use this command to set the cost of a path associated with a switch port, for the specified MSTI. This specifies the switch port’s contribution to the cost of a path to the MSTI regional root via that port.
Page 681 PANNING OMMANDS SPANNING TREE MST INSTANCE PATH COST To return the path cost to its default value on instance 3, use the commands: awplus# configure terminal awplus(config)# interface port1.0.2 awplus(config-if)# no spanning-tree mst instance 3 path-cost Related instance vlan (MSTP) Commands spanning-tree mst instance spanning-tree mst instance priority...
Page 682: Spanning-Tree Mst Instance Priority
PANNING OMMANDS SPANNING TREE MST INSTANCE PRIORITY spanning-tree mst instance priority Overview Use this command in Interface Configuration mode for a switch port interface only to set the port priority for an MST instance (MSTI). Use the no variant of this command to restore the default priority value (128). Syntax spanning-tree mst instance <instance-id>...
Page 683: Spanning-Tree Mst Instance Restricted-Role
PANNING OMMANDS SPANNING TREE MST INSTANCE RESTRICTED ROLE spanning-tree mst instance restricted-role Overview Use this command in Interface Configuration mode for a switch port interface only to enable the restricted role for an MSTI (Multiple Spanning Tree Instance) on a switch port.
Page 684 PANNING OMMANDS SPANNING TREE MST INSTANCE RESTRICTED ROLE Related instance vlan (MSTP) Commands spanning-tree priority (port priority) spanning-tree mst instance spanning-tree mst instance path-cost spanning-tree mst instance restricted-tcn C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 685: Spanning-Tree Mst Instance Restricted-Tcn
PANNING OMMANDS SPANNING TREE MST INSTANCE RESTRICTED spanning-tree mst instance restricted-tcn Overview Use this command to prevent a switch port from propagating received topology change notifications and topology changes to other switch ports. This is named restricted TCN (Topology Change Notification). A TCN is a simple Bridge Protocol Data Unit (BPDU) that a bridge sends out to its root port to signal a topology change.
Page 686: Spanning-Tree Path-Cost
PANNING OMMANDS SPANNING TREE PATH COST spanning-tree path-cost Overview Use this command in Interface Configuration mode for a switch port interface only to set the cost of a path for the specified port. This value then combines with others along the path to the root bridge in order to determine the total cost path value from the particular port, to the root bridge.
Page 687: Spanning-Tree Portfast (Stp)
PANNING OMMANDS (STP) SPANNING TREE PORTFAST spanning-tree portfast (STP) Overview Use this command in Interface Configuration mode for a switch port interface only to set a port as an edge-port. The portfast feature enables a port to rapidly move to the forwarding state, without having first to pass through the intermediate spanning tree states.
Page 688 PANNING OMMANDS (STP) SPANNING TREE PORTFAST awplus# configure terminal Example awplus(config)# interface port1.0.2 awplus(config-if)# spanning-tree portfast Related spanning-tree edgeport (RSTP and MSTP) Commands show spanning-tree spanning-tree portfast bpdu-filter spanning-tree portfast bpdu-guard C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 689: Spanning-Tree Portfast Bpdu-Filter
PANNING OMMANDS SPANNING TREE PORTFAST BPDU FILTER spanning-tree portfast bpdu-filter Overview This command sets the bpdu-filter feature and applies a filter to any BPDUs (Bridge Protocol Data Units) received. Enabling this feature ensures that configured ports will not transmit any BPDUs and will ignore (filter out) any BPDUs received. BPDU Filter is not enabled on a port by default.
Page 690 PANNING OMMANDS SPANNING TREE PORTFAST BPDU FILTER To enable STP BPDU filtering in Interface Configuration mode, enter the commands: awplus# configure terminal awplus(config)# interface port1.0.2 awplus(config-if)# spanning-tree portfast bpdu-filter enable Related spanning-tree edgeport (RSTP and MSTP) Commands show spanning-tree spanning-tree portfast (STP) spanning-tree portfast bpdu-guard C613-50170-01 Rev B Command Reference for x510 Series...
Page 691: Spanning-Tree Portfast Bpdu-Guard
PANNING OMMANDS SPANNING TREE PORTFAST BPDU GUARD spanning-tree portfast bpdu-guard Overview This command applies a BPDU (Bridge Protocol Data Unit) guard to the port. A port with the bpdu-guard feature enabled will block all traffic (BPDUs and user data), if it starts receiving BPDUs.
Page 692 PANNING OMMANDS SPANNING TREE PORTFAST BPDU GUARD Use the show spanning-tree command to display the device and port configurations for the BPDU Guard feature. It shows both the administratively configured and currently running values of bpdu-guard. Example To enable STP BPDU guard in Global Configuration mode, enter the below commands: awplus# configure terminal...
Page 693: Spanning-Tree Priority (Bridge Priority)
PANNING OMMANDS SPANNING TREE PRIORITY BRIDGE PRIORITY spanning-tree priority (bridge priority) Overview Use this command to set the bridge priority for the device. A lower priority value indicates a greater likelihood of the device becoming the root bridge. Use this command for RSTP, STP or MSTP. When MSTP mode is configured, this will apply to the CIST.
Page 694: Spanning-Tree Priority (Port Priority)
PANNING OMMANDS SPANNING TREE PRIORITY PORT PRIORITY spanning-tree priority (port priority) Overview Use this command in Interface Configuration mode for a switch port interface only to set the port priority for port. A lower priority value indicates a greater likelihood of the port becoming part of the active topology.
Page 695: Spanning-Tree Restricted-Role
PANNING OMMANDS SPANNING TREE RESTRICTED ROLE spanning-tree restricted-role Overview Use this command in Interface Configuration mode for a switch port interface only to restrict the port from becoming a root port. Use the no variant of this command to disable the restricted role functionality. Syntax spanning-tree restricted-role no spanning-tree restricted-role...
Page 696: Spanning-Tree Restricted-Tcn
PANNING OMMANDS SPANNING TREE RESTRICTED spanning-tree restricted-tcn Overview Use this command in Interface Configuration mode for a switch port interface only to prevent TCN (Topology Change Notification) BPDUs (Bridge Protocol Data Units) from being sent on a port. If this command is enabled, after a topology change a bridge is prevented from sending a TCN to its designated bridge.
Page 697: Spanning-Tree Transmit-Holdcount
PANNING OMMANDS SPANNING TREE TRANSMIT HOLDCOUNT spanning-tree transmit-holdcount Overview Use this command to set the maximum number of BPDU transmissions that are held back. Use the no variant of this command to restore the default transmit hold-count value. Syntax spanning-tree transmit-holdcount no spanning-tree transmit-holdcount Default Transmit hold-count default is 3.
Page 698: Undebug Mstp
PANNING OMMANDS UNDEBUG MSTP undebug mstp Overview This command applies the functionality of the no debug mstp (RSTP and STP) command. C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 699: Link Aggregation Commands
Link Aggregation Commands Introduction Overview This chapter provides an alphabetical reference of commands used to configure a static channel group (static aggregator) and dynamic channel group (LACP channel group, etherchannel or LACP aggregator). Link aggregation is also sometimes referred to as channeling. : AlliedWare Plus™...
Page 700 GGREGATION OMMANDS • “lacp system-priority” on page 707 • “lacp timeout” on page 708 • “platform load-balancing” on page 710 • “show debugging lacp” on page 712 • “show diagnostic channel-group” on page 713 • “show etherchannel” on page 715 •...
Page 701: Channel-Group
GGREGATION OMMANDS CHANNEL GROUP channel-group Overview Use this command to either create a new dynamic channel group while at the same time adding a port to it, or to add a port to an existing dynamic channel group. Note that you must also set the LACP mode to be either active or passive. You can create up to 32 dynamic (LACP) channel groups (and up to 96 static channel groups).
Page 702 GGREGATION OMMANDS CHANNEL GROUP Examples To add device port1.0.6 to a newly created LACP channel group 2 use the commands below: awplus# configure terminal awplus(config)# interface port1.0.6 awplus(config-if)# channel-group 2 mode active To remove device port1.0.6 from any created LACP channel groups use the command below: awplus# configure terminal...
Page 703: Clear Lacp Counters
GGREGATION OMMANDS CLEAR LACP COUNTERS clear lacp counters Overview Use this command to clear all counters of all present LACP aggregators (channel groups) or a given LACP aggregator. clear lacp [<1-32>] counters Syntax Parameter Description <1-32> Channel-group number. Mode Privileged Exec awplus# clear lacp 2 counters Example...
Page 704: Debug Lacp
GGREGATION OMMANDS DEBUG LACP debug lacp Overview Use this command to enable all LACP troubleshooting functions. Use the no variant of this command to disable this function. Syntax debug lacp {all|cli|event|ha|packet|sync|timer[detail]} no debug lacp {all|cli|event|ha|packet|sync|timer[detail]} Parameter Description Turn on all debugging for LACP. Specifies debugging for CLI messages.
Page 705: Lacp Global-Passive-Mode Enable
GGREGATION OMMANDS LACP GLOBAL PASSIVE MODE ENABLE lacp global-passive-mode enable Overview Use this command to enable LACP channel-groups to dynamically self-configure when they are connected to another device that has LACP channel-groups configured with Active Mode. lacp global-passive-mode enable Syntax no lacp global-passive-mode enable Default Enabled...
Page 706: Lacp Port-Priority
GGREGATION OMMANDS LACP PORT PRIORITY lacp port-priority Overview Use this command to set the priority of a device port. Ports are selected for aggregation based on their priority, with the higher priority (numerically lower) ports selected first. Use the no variant of this command to reset the priority of port to the default. Syntax lacp port-priority <1-65535>...
Page 707: Lacp System-Priority
GGREGATION OMMANDS LACP SYSTEM PRIORITY lacp system-priority Overview Use this command to set the system priority of a local system. This is used in determining the system responsible for resolving conflicts in the choice of aggregation groups. Use the no variant of this command to reset the system priority of the local system to the default.
Page 708: Lacp Timeout
GGREGATION OMMANDS LACP TIMEOUT lacp timeout Overview Use this command to set the short or long timeout on a port. Ports will time out of the aggregation if three consecutive updates are lost. lacp timeout {short|long} Syntax Parameter Description timeout Number of seconds before invalidating a received LACP data unit (DU).
Page 709 GGREGATION OMMANDS LACP TIMEOUT The following commands set the LACP short timeout for 1 second on port1.0.2. awplus# configure terminal awplus(config)# interface port1.0.2 awplus(config-if)# lacp timeout short C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 710: Platform Load-Balancing
GGREGATION OMMANDS PLATFORM LOAD BALANCING platform load-balancing Overview This command selects which address fields are used as inputs into the load balancing algorithm for aggregated links. The output from this algorithm is used to select which individual path a given packet will traverse within an aggregated link.
Page 711 GGREGATION OMMANDS PLATFORM LOAD BALANCING Examples To use all four inputs, you do not have to enter any commands, because this is the default. Note that this setting is not displayed in the show running-config output. Use the show platform command to verify this setting.
Page 712: Show Debugging Lacp
GGREGATION OMMANDS SHOW DEBUGGING LACP show debugging lacp Overview Use this command to display the LACP debugging option set. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide. Syntax show debugging lacp Mode User Exec and Privileged Exec...
Page 713: Show Diagnostic Channel-Group
Overview This command displays dynamic and static channel group interface status information. The output of this command is useful for Allied Telesis authorized service personnel for diagnostic purposes. For information on filtering and saving command output, see the “Getting Started...
Page 714 GGREGATION OMMANDS SHOW DIAGNOSTIC CHANNEL GROUP  Channel Group Info based on HW: Note: Pos - position in hardware table Only entries from first device are displayed. ------------------------------------------------------------- Interface IfIndex Member port IfIndex Active Pos ------------------------------------------------------------- 4503 N/a 4601 N/a ...
Page 715: Show Etherchannel
GGREGATION OMMANDS SHOW ETHERCHANNEL show etherchannel Overview Use this command to display information about a LACP channel specified by the channel group number. The command output also shows the thrash limiting status. If thrash limiting is detected and the action parameter of the thrash-limiting command is set to vlan-disable, the output will also show the VLANs on which thrashing is detected.
Page 716: Show Etherchannel Detail
GGREGATION OMMANDS SHOW ETHERCHANNEL DETAIL show etherchannel detail Overview Use this command to display detailed information about all LACP channels. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide, which is available on our website at alliedtelesis.com.
Page 717: Show Etherchannel Summary
GGREGATION OMMANDS SHOW ETHERCHANNEL SUMMARY show etherchannel summary Overview Use this command to display a summary of all LACP channels. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide, which is available on our website at alliedtelesis.com.
Page 718: Show Lacp Sys-Id
GGREGATION OMMANDS SHOW LACP SYS show lacp sys-id Overview Use this command to display the LACP system ID and priority. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide, which is available on our website at alliedtelesis.com.
Page 719: Show Lacp-Counter
GGREGATION OMMANDS SHOW LACP COUNTER show lacp-counter Overview Use this command to display the packet traffic on all ports of all present LACP aggregators, or a given LACP aggregator. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus”...
Page 720: Show Port Etherchannel
GGREGATION OMMANDS SHOW PORT ETHERCHANNEL show port etherchannel Overview Use this command to show LACP details of the device port specified. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide, which is available on our website at alliedtelesis.com.
Page 721: Show Static-Channel-Group
GGREGATION OMMANDS SHOW STATIC CHANNEL GROUP show static-channel-group Overview Use this command to display all configured static channel groups and their corresponding member ports. Note that a static channel group is the same as a static aggregator. The command output also shows the thrash limiting status. If thrash limiting is detected and the action parameter of the thrash-limiting command is set to...
Page 722: Static-Channel-Group
GGREGATION OMMANDS STATIC CHANNEL GROUP static-channel-group Overview Use this command to create a static channel group, or add a member port to an existing static channel group. Static channel groups are also known as static aggregators. You can create up to 96 static channel groups (and up to 32 dynamic channel groups).
Page 723 GGREGATION OMMANDS STATIC CHANNEL GROUP To reference static channel group 2 as an interface, use the commands: awplus# configure terminal awplus(config)# interface sa2 awplus(config-if)# To make it possible to use QoS Storm Protection on static channel group 2 on port1.0.6, with an ACL named “test-acl”, use the commands: awplus# configure terminal awplus(config)#...
Page 724: Undebug Lacp
GGREGATION OMMANDS UNDEBUG LACP undebug lacp Overview This command applies the functionality of the no debug lacp command. C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 725: Power Over Ethernet Commands
The following documents offer further information for configuring PoE on AlliedWare Plus switches. • PoE Feature Overview and Configuration_Guide. • Support for Allied Telesis Enterprise_MIBs_in AlliedWare Plus, for information about which PoE MIB objects are supported. • SNMP Feature Overview and Configuration_Guide, for information about SNMP traps.
Page 726 OWER OVER THERNET OMMANDS • “show debugging power-inline” on page 739 • “show power-inline” on page 740 • “show power-inline counters” on page 743 • “show power-inline interface” on page 745 • “show power-inline interface detail” on page 747 C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™...
Page 727: Clear Power-Inline Counters Interface
OWER OVER THERNET OMMANDS CLEAR POWER INLINE COUNTERS INTERFACE clear power-inline counters interface Overview This command will clear the counters from a specified port, a range of ports, or all ports on the switch. If no ports are entered then PoE counters for all ports are cleared.
Page 728: Debug Power-Inline
OWER OVER THERNET OMMANDS DEBUG POWER INLINE debug power-inline Overview This command enables debugging display for messages that are specific to Power over Ethernet (PoE). Use the no variant of this command to disable the specified PoE debugging messages. Syntax debug power-inline [all|event|info|power] no debug power-inline [all|event|info|power] Parameter...
Page 729 OWER OVER THERNET OMMANDS DEBUG POWER INLINE Related show debugging power-inline Commands terminal monitor C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 730: Power-Inline Allow-Legacy
OWER OVER THERNET OMMANDS POWER INLINE ALLOW LEGACY power-inline allow-legacy Overview This command enables detection of pre-IEEE 802.3af Power Ethernet standard legacy Powered Devices (PDs). The no variant of this command disables detection of pre-IEEE 802.3af Power Ethernet standard legacy Powered Devices (PDs). Syntax power-inline allow-legacy no power-inline allow-legacy...
Page 731: Power-Inline Description
OWER OVER THERNET OMMANDS POWER INLINE DESCRIPTION power-inline description Overview This command adds a description for a Powered Device (PD) connected to a PoE port. The no variant of this command clears a previously entered description for a connected PD, resetting the PD description to the default (null). Syntax power-inline description <pd-description>...
Page 732: Power-Inline Enable
OWER OVER THERNET OMMANDS POWER INLINE ENABLE power-inline enable Overview This command enables Power over Ethernet (PoE) to detect a connected Powered Device (PD) and supply power. The no variant of this command disables PoE functionality on the selected PoE port(s).
Page 733: Power-Inline Max
OWER OVER THERNET OMMANDS POWER INLINE MAX power-inline max Overview This command sets the maximum power allocated to a Power over an Ethernet (PoE and PoE+) port. The amount of power actually supplied to the port depends on the power requirements of the connected PD. It is also a function of the total PoE power loading on the switch and the PoE priority set for the port by the power-inline priority command.
Page 734 OWER OVER THERNET OMMANDS POWER INLINE MAX  awplus#configure terminal  awplus(config)#interface port1.0.1  awplus(config-if)#power-line max 5300  % The maximum power has been rounded to 5450mW in hardware. See the LLDP Feature Overview and Configuration Guide for information about power monitoring at the PD.
Page 735: Power-Inline Priority
OWER OVER THERNET OMMANDS POWER INLINE PRIORITY power-inline priority Overview This command sets the Power over Ethernet (PoE) priority level of a PoE port to one of three available priority levels: • • high • critical The no variant of this command restores the PoE port priority to the default (low). power-inline priority {low|high|critical} Syntax no power-inline priority...
Page 736 OWER OVER THERNET OMMANDS POWER INLINE PRIORITY Examples To set the priority level to high on port1.0.1 to port1.0.4, use the following commands: awplus# configure terminal awplus(config)# interface port1.0.1-port1.0.4 awplus(config-if)# power-inline priority high To reset the priority level to the default of low on port1.0.1 to port1.0.4, use the following commands: awplus# configure terminal...
Page 737: Power-Inline Usage-Threshold
OWER OVER THERNET OMMANDS POWER INLINE USAGE THRESHOLD power-inline usage-threshold Overview This command sets the level at which the switch will issue a message that the power supplied to all Powered Devices (PDs) has reached a critical level of the nominal power rating for the switch.
Page 738: Service Power-Inline
OWER OVER THERNET OMMANDS SERVICE POWER INLINE service power-inline Overview This command enables Power over Ethernet (PoE) globally on the switch, for all PoE ports. service power-inline Syntax no service power-inline Default PoE functionality is enabled by default Mode Global Configuration Usage In a stack, issuing this command enables PoE globally for all PoE ports.
Page 739: Show Debugging Power-Inline
OWER OVER THERNET OMMANDS SHOW DEBUGGING POWER INLINE show debugging power-inline Overview This command displays Power over Ethernet (PoE) debug settings. show debugging power-inline Syntax Mode User Exec and Privileged Exec Example To display PoE debug settings, use the following command: awplus# show debugging power-inline Output...
Page 740: Show Power-Inline
OWER OVER THERNET OMMANDS SHOW POWER INLINE show power-inline Overview This command displays the Power over Ethernet (PoE) status for all ports. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide.
Page 741 OWER OVER THERNET OMMANDS SHOW POWER INLINE Table 1: Parameters in the show power-inline command output (cont.) Parameter Description Operational Status The operational status of the PSU hardware when this command was issued: • On if the PSU is installed and switched on. •...
Page 742 OWER OVER THERNET OMMANDS SHOW POWER INLINE Table 1: Parameters in the show power-inline command output (cont.) Parameter Description Device The description of the connected PD device if a description has been added with the power-inline description command. No description is shown for PDs not configured with the power-inline description command.
Page 743: Show Power-Inline Counters
OWER OVER THERNET OMMANDS SHOW POWER INLINE COUNTERS show power-inline counters Overview This command displays Power over Ethernet (PoE) event counters for ports on the Power Sourcing Equipment (PSE). The PoE event counters displayed can also be accessed by objects in the PoE MIB (RFC 3621). See the MIB Objects Feature Overview and Configuration Guide for information about which PoE MIB objects...
Page 744 OWER OVER THERNET OMMANDS SHOW POWER INLINE COUNTERS Table 2: Parameters in the show power-inline counters command output Parameter Description Interface The PoE port(s) in the format portx.y.z, where x is the device number, y is the module number within the device, and z is the PoE port number within the module.
Page 745: Show Power-Inline Interface
OWER OVER THERNET OMMANDS SHOW POWER INLINE INTERFACE show power-inline interface Overview This command displays a summary of Power over Ethernet (PoE) information for specified ports. If no ports are specified then PoE information is displayed for all ports. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus”...
Page 746 OWER OVER THERNET OMMANDS SHOW POWER INLINE INTERFACE Table 3: Parameters in show power-inline interface output (cont.) Parameter Description The current PoE priorities for PoE ports on the PSE, as configured from a power-inline priority command: • Low displays when the low parameter is issued. The lowest priority for a PoE enabled port (default).
Page 747: Show Power-Inline Interface Detail
OWER OVER THERNET OMMANDS SHOW POWER INLINE INTERFACE DETAIL show power-inline interface detail Overview This command displays detailed information for one or more Power over Ethernet (PoE) ports. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus”...
Page 748 OWER OVER THERNET OMMANDS SHOW POWER INLINE INTERFACE DETAIL Table 4: Parameters in show power-inline interface detail output Parameter Description Interface The PoE port(s) in the format portx.y.z, where x is the device number, y is the module number within the device, and z is the PoE port number within the module.
Page 749 OWER OVER THERNET OMMANDS SHOW POWER INLINE INTERFACE DETAIL Related show power-inline Commands show power-inline interface C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 750: Gvrp Commands
GVRP Commands Introduction Overview With GVRP enabled the switch can exchange VLAN configuration information with other GVRP enabled switches. VLANs can be dynamically created and managed through trunk ports. • There is a limit of 400 VLANs supported by the AlliedWare Plus GVRP implementation.
Page 751 GVRP C OMMANDS • “show gvrp timer” on page 765 C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 752: Clear Gvrp Statistics
GVRP C OMMANDS CLEAR GVRP STATISTICS clear gvrp statistics Overview Use this command to clear the GVRP statistics for all switchports, or for a specific switchport. clear gvrp statistics {all|<interface>} Syntax Parameter Description Specify all switchports to clear GVRP statistics. <interface>...
Page 753: Debug Gvrp
GVRP C OMMANDS DEBUG GVRP debug gvrp Overview Use this command to debug GVRP packets and commands, sending output to the console. Use the no variant of this command to turn off debugging for GVRP packets and commands. Syntax debug gvrp {all|cli|event|packet} no debug gvrp {all|cli|event|packet} Parameter Description...
Page 754 GVRP C OMMANDS DEBUG GVRP To send debug output for GVRP commands to the console, enter the commands: awplus# terminal monitor awplus# configure terminal awplus(config)# debug gvrp cli To stop sending debug output for GVRP packets and GVRP commands to the console, and to stop the display of any debug output on the console, enter the commands: awplus#...
Page 755: Gvrp (Interface)
GVRP C OMMANDS GVRP INTERFACE gvrp (interface) Overview Use this command to enable GVRP for switchport interfaces. Use the no variant of this command to disable GVRP for switchport interfaces. Syntax gvrp no gvrp Mode Interface Configuration (for switchport interfaces). Default Disabled by default.
Page 756: Gvrp Dynamic-Vlan-Creation
GVRP C OMMANDS GVRP DYNAMIC VLAN CREATION gvrp dynamic-vlan-creation Overview Use this command to enable dynamic VLAN creation globally for the switch. Use the no variant of this command to disable dynamic VLAN creation globally for the switch. Syntax gvrp dynamic-vlan-creation no gvrp dynamic-vlan-creation Mode Global Configuration...
Page 757: Gvrp Enable (Global)
GVRP C OMMANDS GVRP ENABLE GLOBAL gvrp enable (global) Overview Use this command to enable GVRP globally for the switch. Use the no variant of this command to disable GVRP globally for the switch. Syntax gvrp enable no gvrp enable Mode Global Configuration Default...
Page 758: Gvrp Registration
GVRP C OMMANDS GVRP REGISTRATION gvrp registration Overview Use this command to set GVRP registration to normal, fixed, and forbidden registration modes. Use the no variant of this command to disable GVRP registration. Syntax gvrp registration {normal|fixed|forbidden} no gvrp registration {normal|fixed|forbidden} Parameter Description normal...
Page 759: Gvrp Timer
GVRP C OMMANDS GVRP TIMER gvrp timer Overview Use this command to set GVRP timers in Interface Configuration mode for a given interface. Use the no variant of this command to reset the GVRP timers to the defaults specified in the table below. Syntax gvrp timer {join <timer-value>|leave <timer-value>|leaveall <timer-value>}...
Page 760: No Gvrp Timer Join
GVRP C OMMANDS GVRP TIMER To reset the GVRP join timer to its default of 20 hundredths of a second for interface port1.0.1, enter the commands: awplus# configure terminal awplus(config)# interface port1.0.1 awplus(config-if)# no gvrp timer join Related show gvrp timer Commands C613-50170-01 Rev B Command Reference for x510 Series...
Page 761: Show Debugging Gvrp
GVRP C OMMANDS SHOW DEBUGGING GVRP show debugging gvrp Overview Use this command to display the GVRP debugging option set. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide. Syntax show debugging gvrp Mode...
Page 762: Show Gvrp Configuration
GVRP C OMMANDS SHOW GVRP CONFIGURATION show gvrp configuration Overview Use this command to display GVRP configuration data for a switch. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide.
Page 763: Show Gvrp Machine
GVRP C OMMANDS SHOW GVRP MACHINE show gvrp machine Overview Use this command to display the state machine for GVRP. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide. Syntax show gvrp machine Mode...
Page 764: Show Gvrp Statistics
GVRP C OMMANDS SHOW GVRP STATISTICS show gvrp statistics Overview Use this command to display a statistical summary of GVRP information for the switch. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide.
Page 765: Show Gvrp Timer
GVRP C OMMANDS SHOW GVRP TIMER show gvrp timer Overview Use this command to display data for the GVRP timers set with the gvrp timer command. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide.
Page 766: Part 3: Layer 3 Switching
Part 3: Layer 3 Switching C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 767: Ip Addressing And Protocol Commands
IP Addressing and Protocol Commands Introduction Overview This chapter provides an alphabetical reference of commands used to configure various IP features, including the following protocols: • Address Resolution Protocol (ARP) • ICMP Router Discovery Advertisements (IRDP) For more information, see the IP Feature Overview and Configuration Guide.
Page 768 IP A DDRESSING AND ROTOCOL OMMANDS • “ip tcp synack-retries” on page 796 • “ip unreachables” on page 797 • “local-proxy-arp” on page 799 • “optimistic-nd” on page 800 • “ping” on page 801 • “show arp” on page 802 •...
Page 769: Arp-Aging-Timeout
IP A DDRESSING AND ROTOCOL OMMANDS AGING TIMEOUT arp-aging-timeout Overview This command sets a timeout period on dynamic ARP entries associated with a specific interface. If your device stops receiving traffic for the host specified in a dynamic ARP entry, it deletes the ARP entry from the ARP cache after this timeout is reached.
Page 770: Arp-Mac-Disparity
IP A DDRESSING AND ROTOCOL OMMANDS DISPARITY arp-mac-disparity Overview Use this command to enable the switch to support services like Microsoft Network Load Balancing (MS-NLB). Such services use ARP with disparate MAC addresses to ensure that packets destined for a server cluster virtual address are sent to all servers in the cluster. Disparate MAC addresses mean that the MAC address in the “sender hardware address”...
Page 771 IP A DDRESSING AND ROTOCOL OMMANDS DISPARITY For example, to flood only port1.0.1 to port1.0.3, use the commands: awplus# configure terminal awplus(config)# interface vlan2 awplus(config-if)# arp 10.10.1.100 010e.11ff.2222 port1.0.1-port1.0.3 Usage, multicast Multicast-IGMP mode is enabled by using the command arp-mac-disparity igmp mode multicast-igmp.
Page 772 IP A DDRESSING AND ROTOCOL OMMANDS DISPARITY To disable support for MS-NLB in unicast mode on interface vlan2, use the following commands: awplus# configure terminal awplus(config)# interface vlan2 awplus(config-if)# no arp-mac-disparity unicast Related arp (IP address MAC) Commands clear arp-cache show arp C613-50170-01 Rev B Command Reference for x510 Series...
Page 773: Arp (Ip Address Mac)
IP A DDRESSING AND ROTOCOL OMMANDS MAC) ADDRESS arp (IP address MAC) Overview This command adds a static ARP entry to the ARP cache. This is typically used to add entries for hosts that do not support ARP or to speed up the address resolution function for a host.
Page 774: Arp Log
IP A DDRESSING AND ROTOCOL OMMANDS ARP LOG arp log Overview This command enables the logging of dynamic and static ARP entries in the ARP cache. The ARP cache contains mappings of device ports, VLAN IDs, and IP addresses to physical MAC addresses for hosts. This command can display the MAC addresses in the ARP log either using the notation HHHH.HHHH.HHHH, or using the IEEE standard hexadecimal notation (HH-HH-HH-HH-HH-HH).
Page 775 IP A DDRESSING AND ROTOCOL OMMANDS ARP LOG To enable ARP logging and specify that the MAC address in the log message is displayed in the standard IEEE format hexadecimal notation (HH-HH-HH-HH-HH-HH), use the following commands: awplus# configure terminal awplus(config)# arp log mac-address-format ieee To leave ARP logging enabled, but stop using HH-HH-HH-HH-HH-HH format and use HHHH.HHHH.HHHH format instead, use the following commands:...
Page 776 IP A DDRESSING AND ROTOCOL OMMANDS ARP LOG The following table lists the parameters in output of the show log | include ARP_LOG command. The ARP log message format is: <date> <time> <severity> <hostname> <program-name>  ARP_LOG <port-number> <vid> <operation> <MAC> <IP> Table 21-1: Parameters in the output from show log | include ARP_LOG Parameter Description...
Page 777: Arp Opportunistic-Nd
IP A DDRESSING AND ROTOCOL OMMANDS ARP OPPORTUNISTIC arp opportunistic-nd Overview Use this command to enable opportunistic neighbor discovery for the global ARP cache. This command changes the behavior for unsolicited ARP packet forwarding on the device. Use the no variant of this command to disable opportunistic neighbor discovery for the global ARP cache.
Page 778: Arp-Reply-Bc-Dmac
IP A DDRESSING AND ROTOCOL OMMANDS REPLY DMAC arp-reply-bc-dmac Overview Use this command to allow processing of ARP replies that arrive with a broadcast destination MAC (ffff.ffff.ffff). This makes neighbors reachable if they send ARP responses that contain a broadcast destination MAC. Use the no variant of this command to turn off processing of ARP replies that arrive with a broadcast destination MAC.
Page 779: Clear Arp-Cache
IP A DDRESSING AND ROTOCOL OMMANDS CLEAR ARP CACHE clear arp-cache Overview This command deletes dynamic ARP entries from the ARP cache. You can optionally specify the IPv4 address of an ARP entry to be cleared from the ARP cache. clear arp-cache [<ip-address>] Syntax Parameter...
Page 780: Debug Ip Packet Interface
IP A DDRESSING AND ROTOCOL OMMANDS DEBUG IP PACKET INTERFACE debug ip packet interface Overview The debug ip packet interface command enables IP packet debug and is controlled by the terminal monitor command. If the optional icmp keyword is specified then ICMP packets are shown in the output.
Page 781 IP A DDRESSING AND ROTOCOL OMMANDS DEBUG IP PACKET INTERFACE To turn on ARP packet debugging on vlan1, use the command: Examples awplus# debug ip packet interface vlan1 arp To turn on all packet debugging on all interfaces on the device, use the command: awplus# debug ip packet interface all To turn on TCP packet debugging on vlan1 and IP address 192.168.2.4, use...
Page 782: Ip Address (Ip Addressing And Protocol)
IP A DDRESSING AND ROTOCOL OMMANDS (IP A IP ADDRESS DDRESSING AND ROTOCOL ip address (IP Addressing and Protocol) Overview This command sets a static IP address on an interface. The no variant of this command removes the IP address from the interface. You cannot remove the primary address when a secondary address is present.
Page 783 IP A DDRESSING AND ROTOCOL OMMANDS (IP A IP ADDRESS DDRESSING AND ROTOCOL To add the IP address 10.10.11.50/24 to the local loopback interface lo, use the following commands: awplus# configure terminal awplus(config)# interface lo awplus(config-if)# ip address 10.10.11.50/24 Related interface (to configure) Commands show ip interface...
Page 784: Ip Directed-Broadcast
IP A DDRESSING AND ROTOCOL OMMANDS IP DIRECTED BROADCAST ip directed-broadcast Overview Use this command to enable flooding of directed broadcast packets into a directly connected subnet. If this command is configured on a VLAN interface, then directed broadcasts received on other VLAN interfaces, destined for the subnet on this VLAN, will be flooded to the subnet broadcast address of this VLAN.
Page 785 IP A DDRESSING AND ROTOCOL OMMANDS IP DIRECTED BROADCAST Related ip forward-protocol udp Commands ip helper-address show running-config C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 786: Ip Forward-Protocol Udp
IP A DDRESSING AND ROTOCOL OMMANDS IP FORWARD PROTOCOL UDP ip forward-protocol udp Overview This command enables you to control which UDP broadcasts will be forwarded to the helper address(es). A UDP broadcast will only be forwarded if the destination UDP port number in the packet matches one of the port numbers specified using this command.
Page 787 IP A DDRESSING AND ROTOCOL OMMANDS IP FORWARD PROTOCOL UDP To delete a UDP port from the UDP ports that the device forwards, use the following commands: awplus# configure terminal awplus(config)# no ip forward-protocol udp <port> Related ip helper-address Commands ip directed-broadcast show running-config C613-50170-01 Rev B...
Page 788: Ip Gratuitous-Arp-Link
IP A DDRESSING AND ROTOCOL OMMANDS IP GRATUITOUS LINK ip gratuitous-arp-link Overview This command sets the Gratuitous ARP time limit for all switchports. The time limit restricts the sending of Gratuitous ARP packets to one Gratuitous ARP packet within the time in seconds. : This command specifies time between sequences of Gratuitous ARP packets, NOTE and time between individual Gratuitous ARP packets occurring in a sequence, to allow...
Page 789 IP A DDRESSING AND ROTOCOL OMMANDS IP GRATUITOUS LINK To restrict the sending of Gratuitous ARP packets to one every 20 seconds, use the commands: awplus# configure terminal awplus(config)# ip gratuitous-arp-link 20 Validation show running-config Commands C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™...
Page 790: Ip Helper-Address
IP A DDRESSING AND ROTOCOL OMMANDS IP HELPER ADDRESS ip helper-address Overview This command adds a forwarding destination address for IP Helper to enable forwarding of User Datagram Protocol (UDP) broadcasts on an interface. Use the no variant of this command to disable the forwarding of broadcast packets to specific addresses.
Page 791 IP A DDRESSING AND ROTOCOL OMMANDS IP HELPER ADDRESS The following example removes IPv4 address 192.168.1.100 as an IP Helper destination address to which to forward UDP broadcasts received on vlan2: awplus# configure terminal awplus(config)# interface vlan2 awplus(config-if)# no ip helper-address 192.168.1.100 Related ip forward-protocol udp Commands...
Page 792: Ip Limited-Local-Proxy-Arp
IP A DDRESSING AND ROTOCOL OMMANDS IP LIMITED LOCAL PROXY ip limited-local-proxy-arp Overview Use this command to enable local proxy ARP, but only for a specified set of IP addresses. This makes the device respond to ARP requests for those IP addresses when the addresses are reachable via the interface you are configuring.
Page 793: Ip Local-Proxy-Arp
IP A DDRESSING AND ROTOCOL OMMANDS IP LOCAL PROXY ip local-proxy-arp Overview This command allows you to stop MAC address resolution between hosts within a private VLAN edge interface. Local Proxy ARP works by intercepting ARP requests between hosts within a subnet and responding with your device’s own MAC address details instead of the destination host’s details.
Page 794: Ip Proxy-Arp
IP A DDRESSING AND ROTOCOL OMMANDS IP PROXY ip proxy-arp Overview This command enables Proxy ARP responses to ARP requests on an interface. When enabled, your device intercepts ARP broadcast packets and substitutes its own physical address for that of the remote host. By responding to the ARP request, your device ensures that subsequent packets from the local host are directed to its physical address, and it can then forward these to the remote host.
Page 795: Ip Redirects
IP A DDRESSING AND ROTOCOL OMMANDS IP REDIRECTS ip redirects Overview This command enables the device to send ICMP redirects on one or more interfaces. Use the no variant of this command to stop the device from sending ICMP redirects on one or more interfaces.
Page 796: Ip Tcp Synack-Retries
IP A DDRESSING AND ROTOCOL OMMANDS IP TCP SYNACK RETRIES ip tcp synack-retries Overview Use this command to specify how many times the switch will retry sending a SYN ACK for a TCP connection for which it has received a SYN but not an ACK. Such connections are called half-open TCP connections.
Page 797: Ip Unreachables
IP A DDRESSING AND ROTOCOL OMMANDS IP UNREACHABLES ip unreachables Overview Use this command to enable ICMP (Internet Control Message Protocol) type 3, destination unreachable, messages. Use the no variant of this command to disable destination unreachable messages. This prevents an attacker from using these messages to discover the topology of a network.
Page 798 IP A DDRESSING AND ROTOCOL OMMANDS IP UNREACHABLES Table 21-2: ICMP type 3 reason codes and description (cont.) Code Description [RFC] Host Precedence Violation [RFC1812] Precedence cutoff in effect [RFC1812] Example To disable destination unreachable messages, use the commands awplus# configure terminal awplus(config)# no ip unreachables...
Page 799: Local-Proxy-Arp
IP A DDRESSING AND ROTOCOL OMMANDS LOCAL PROXY local-proxy-arp Overview Use this command to specify an IP subnet for use with limited local proxy ARP. When limited local proxy ARP is enabled with the command limited-local-proxy-arp, the device will respond to ARP requests for addresses in that subnet.
Page 800: Optimistic-Nd
IP A DDRESSING AND ROTOCOL OMMANDS OPTIMISTIC optimistic-nd Overview Use this command to enable the optimistic neighbor discovery feature for both IPv4 and IPv6. Use the no variant of this command to disable the optimistic neighbor discovery feature. Syntax optimistic-nd no optimistic-nd Default The optimistic neighbor discovery feature is enabled by default.
Page 801: Ping
IP A DDRESSING AND ROTOCOL OMMANDS PING ping Overview This command sends a query to another IPv4 host (send Echo Request messages). ping [ip] <host> [broadcast] [df-bit {yes|no}] [interval Syntax <0-128>] [pattern <hex-data-pattern>] [repeat {<1-2147483647>|continuous}] [size <36-18024>] [source <ip-addr>] [timeout <1-65535>] [tos <0-255>] Parameter Description <host>...
Page 802: Show Arp
IP A DDRESSING AND ROTOCOL OMMANDS SHOW ARP show arp Overview Use this command to display entries in the ARP routing and forwarding table—the ARP cache contains mappings of IP addresses to physical addresses for hosts. To have a dynamic entry in the ARP cache, a host must have used the ARP protocol to access another host.
Page 803 IP A DDRESSING AND ROTOCOL OMMANDS SHOW ARP Table 22: Parameters in the output of the show arp command Parameter Meaning IP Address IP address of the network device this entry maps to. MAC Address Hardware address of the network device. Interface Interface over which the network device is accessed.
Page 804: Show Debugging Ip Packet
IP A DDRESSING AND ROTOCOL OMMANDS SHOW DEBUGGING IP PACKET show debugging ip packet Overview Use this command to show the IP interface debugging status. IP interface debugging is set using the debug ip packet interface command. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus”...
Page 805 IP A DDRESSING AND ROTOCOL OMMANDS SHOW DEBUGGING IP PACKET Related debug ip packet interface Commands terminal monitor C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 806: Show Ip Interface
IP A DDRESSING AND ROTOCOL OMMANDS SHOW IP INTERFACE show ip interface Overview Use this command to display information about interfaces and the IP addresses assigned to them. To display information about a specific interface, specify the interface name with the command. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus”...
Page 807: Show Ip Sockets
IP A DDRESSING AND ROTOCOL OMMANDS SHOW IP SOCKETS show ip sockets Overview Use this command to display information about the IP or TCP sockets that are present on the device. It includes TCP and UDP listen sockets, and displays the associated IP address and port.
Page 808 IP A DDRESSING AND ROTOCOL OMMANDS SHOW IP SOCKETS Table 21-1: Parameters in the output from show ip sockets Parameter Description Not showing This field refers to established sessions between processes internal <number> to the device, that are used in its operation and management. local These sessions are not displayed as they are not useful to the user.
Page 809 IP A DDRESSING AND ROTOCOL OMMANDS SHOW IP SOCKETS Table 21-1: Parameters in the output from show ip sockets (cont.) Parameter Description Remote For TCP and UDP listening sockets this shows the source IP address Address (either IPv4 or IPv6) and source TCP or UDP port number for which the socket will accept packets.
Page 810: Show Ip Traffic
IP A DDRESSING AND ROTOCOL OMMANDS SHOW IP TRAFFIC show ip traffic Overview Use this command to display statistics regarding IP traffic sent and received by all interfaces on the device, showing totals for IP and IPv6 and then broken down into sub-categories such as TCP, UDP, ICMP and their IPv6 equivalents when appropriate.
Page 811 IP A DDRESSING AND ROTOCOL OMMANDS SHOW IP TRAFFIC 155 delayed acks sent 21187 headers predicted 736 pure ACKs 80497 pure ACKs predicted UDP: 139468 datagrams received 139468 datagrams sent UDPLite: C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 812: Tcpdump
IP A DDRESSING AND ROTOCOL OMMANDS TCPDUMP tcpdump Overview Use this command to start a tcpdump, which gives the same output as the Unix-like tcpdump command to display TCP/IP traffic. Press <ctrl> + c to stop a running tcpdump. tcpdump <line> Syntax Parameter Description...
Page 813: Traceroute
IP A DDRESSING AND ROTOCOL OMMANDS TRACEROUTE traceroute Overview Use this command to trace the route to the specified IPv4 host. traceroute {<ip-addr>|<hostname>} Syntax Parameter Description <ip-addr> The destination IPv4 address. The IPv4 address uses the format A.B.C.D. <hostname> The destination hostname. Mode User Exec and Privileged Exec awplus#...
Page 814: Undebug Ip Packet Interface
IP A DDRESSING AND ROTOCOL OMMANDS UNDEBUG IP PACKET INTERFACE undebug ip packet interface Overview This command applies the functionality of the no debug ip packet interface command. C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 815: Domain Name Service (Dns) Commands
Domain Name Service (DNS) Commands Introduction Overview This chapter provides an alphabetical reference of commands used to configure Domain Name Service (DNS) features, including the following: • DNS client • DNS forwarding (DNS relay) For more information about DNS for Switches, see the Domain Name System (DNS) for AlliedWare Plus Switches Feature Overview and Configuration Guide Command List...
Page 816 (DNS) C OMAIN ERVICE OMMANDS • “show ip dns forwarding server” on page 833 • “show ip domain-list” on page 834 • “show ip domain-name” on page 835 • “show ip name-server” on page 836 C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™...
Page 817: Clear Ip Dns Forwarding Cache
(DNS) C OMAIN ERVICE OMMANDS CLEAR IP DNS FORWARDING CACHE clear ip dns forwarding cache Overview Use this command to clear the DNS Relay name resolver cache. clear ip dns forwarding cache Syntax Mode Privileged Exec Examples To clear all cached data, use the command: awplus# clear ip dns forwarding cache Related...
Page 818: Debug Ip Dns Forwarding
(DNS) C OMAIN ERVICE OMMANDS DEBUG IP DNS FORWARDING debug ip dns forwarding Overview Use this command to enable DNS Relay debugging. Use the no variant of this command to disable DNS Relay debugging. Syntax debug ip dns forwarding no debug ip dns forwarding Default DNS Relay debugging is disabled by default.
Page 819: Ip Dns Forwarding
(DNS) C OMAIN ERVICE OMMANDS IP DNS FORWARDING ip dns forwarding Overview Use this command to enable DNS Relay, the forwarding of incoming DNS queries for IP hostname-to-address translation. Use the no variant of this command to disable the forwarding of incoming DNS queries for IP hostname-to-address translation.
Page 820: Ip Dns Forwarding Cache
(DNS) C OMAIN ERVICE OMMANDS IP DNS FORWARDING CACHE ip dns forwarding cache Overview Use this command to set the DNS Relay name resolver cache size and cache entry lifetime period. The DNS Relay name resolver cache stores the mappings between domain names and IP addresses.
Page 821: Ip Dns Forwarding Dead-Time
(DNS) C OMAIN ERVICE OMMANDS IP DNS FORWARDING DEAD TIME ip dns forwarding dead-time Overview Use this command to set the time period in seconds when the device stops sending any DNS requests to an unresponsive server and all retries set using ip dns forwarding retry are used.
Page 822: Ip Dns Forwarding Retry
(DNS) C OMAIN ERVICE OMMANDS IP DNS FORWARDING RETRY ip dns forwarding retry Overview Use this command to set the number of times DNS Relay will retry to forward DNS queries. The device stops sending DNS requests to an unresponsive server at the time set using the ip dns forwarding dead-time command and when all of the...
Page 823: Ip Dns Forwarding Source-Interface
(DNS) C OMAIN ERVICE OMMANDS IP DNS FORWARDING SOURCE INTERFACE ip dns forwarding source-interface Overview Use this command to set the interface to use for forwarding and receiving DNS queries. Use the no variant of this command to unset the interface used for forwarding and receiving DNS queries.
Page 824: Ip Dns Forwarding Timeout
(DNS) C OMAIN ERVICE OMMANDS IP DNS FORWARDING TIMEOUT ip dns forwarding timeout Overview Use this command to set the time period for the DNS Relay to wait for a DNS response. Use the no variant of this command to set the time period to wait for a DNS response to the default of 3 seconds.
Page 825: Ip Domain-List
(DNS) C OMAIN ERVICE OMMANDS IP DOMAIN LIST ip domain-list Overview This command adds a domain to the DNS list. Domains are appended to incomplete host names in DNS requests. Each domain in this list is tried in turn in DNS lookups.
Page 826: Ip Domain-Lookup
(DNS) C OMAIN ERVICE OMMANDS IP DOMAIN LOOKUP ip domain-lookup Overview This command enables the DNS client on your device. This allows you to use domain names instead of IP addresses in commands. The DNS client resolves the domain name into an IP address by sending a DNS inquiry to a DNS server, specified with the ip name-server command.
Page 827: Ip Domain-Name
(DNS) C OMAIN ERVICE OMMANDS IP DOMAIN NAME ip domain-name Overview This command sets a default domain for the DNS. The DNS client appends this domain to incomplete host-names in DNS requests. The no variant of this command removes the domain-name previously set by this command.
Page 828: Ip Name-Server
(DNS) C OMAIN ERVICE OMMANDS IP NAME SERVER ip name-server Overview This command adds IPv4 or IPv6 DNS server addresses. The DNS client on your device sends DNS queries to IP addresses in this list when trying to resolve a host name.
Page 829: Show Debugging Ip Dns Forwarding
(DNS) C OMAIN ERVICE OMMANDS SHOW DEBUGGING IP DNS FORWARDING show debugging ip dns forwarding Overview Use this command to display the DNS Relay debugging status. DNS Relay debugging is set using the debug ip dns forwarding command. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus”...
Page 830: Show Hosts
(DNS) C OMAIN ERVICE OMMANDS SHOW HOSTS show hosts Overview This command shows the default domain, domain list, and name servers configured on your device. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide.
Page 831: Show Ip Dns Forwarding
(DNS) C OMAIN ERVICE OMMANDS SHOW IP DNS FORWARDING show ip dns forwarding Overview Use this command to display the DNS Relay status. show ip dns forwarding Syntax Mode User Exec and Privileged Exec Examples To display the DNS Relay status, use the command: awplus# show ip dns forwarding Output...
Page 832: Show Ip Dns Forwarding Cache
(DNS) C OMAIN ERVICE OMMANDS SHOW IP DNS FORWARDING CACHE show ip dns forwarding cache Overview Use this command to display the DNS Relay name resolver cache. show ip dns forwarding cache Syntax Mode User Exec and Privileged Exec Example To display the DNS Relay name resolver cache, use the command: awplus# show ip dns forwarding cache...
Page 833: Show Ip Dns Forwarding Server
(DNS) C OMAIN ERVICE OMMANDS SHOW IP DNS FORWARDING SERVER show ip dns forwarding server Overview Use this command to display the status of DNS forwarding name servers. show ip dns forwarding server Syntax Parameter Description forwarding Display information about the DNS forwarding name servers. server Mode User Exec and Privileged Exec...
Page 834: Show Ip Domain-List
(DNS) C OMAIN ERVICE OMMANDS SHOW IP DOMAIN LIST show ip domain-list Overview This command shows the domains configured in the domain list. The DNS client uses the domains in this list to append incomplete hostnames when sending a DNS inquiry to a DNS server. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus”...
Page 835: Show Ip Domain-Name
(DNS) C OMAIN ERVICE OMMANDS SHOW IP DOMAIN NAME show ip domain-name Overview This command shows the default domain configured on your device. When there are no entries in the DNS list, the DNS client appends this domain to incomplete hostnames when sending a DNS inquiry to a DNS server.
Page 836: Show Ip Name-Server
(DNS) C OMAIN ERVICE OMMANDS SHOW IP NAME SERVER show ip name-server Overview This command displays a list of IPv4 and IPv6 DNS server addresses that your device will send DNS requests to. This is a static list configured using the name-server command.
Page 837: Ipv6 Commands
IPv6 Commands Introduction Overview This chapter provides an alphabetical reference of commands used to configure IPv6. For more information, see the IPv6 Feature Overview and Configuration Guide. Command List • “clear ipv6 neighbors” on page 839 • “ipv6 address” on page 840 •...
Page 838 OMMANDS • “ipv6 opportunistic-nd” on page 863 • “ipv6 route” on page 864 • “ipv6 unreachables” on page 865 • “ping ipv6” on page 866 • “show ipv6 forwarding” on page 867 • “show ipv6 interface brief” on page 868 •...
Page 839: Clear Ipv6 Neighbors
OMMANDS CLEAR IPV NEIGHBORS clear ipv6 neighbors Overview Use this command to clear all dynamic IPv6 neighbor entries. clear ipv6 neighbors Syntax Mode Privileged Exec awplus# clear ipv6 neighbors Example C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 840: Ipv6 Address
OMMANDS ADDRESS ipv6 address Overview Use this command to set the IPv6 address of an interface. The command also enables IPv6 on the interface, which creates an EUI-64 link-local address as well as enabling RA processing and SLAAC. To stop the device from processing prefix information (routes and addresses from the received Router Advertisements) use the command no ipv6 nd accept-ra-pinfo.
Page 841 OMMANDS ADDRESS To remove the IPv6 address 2001:0db8::a2/64 from the VLAN interface vlan2, use the following commands: awplus# configure terminal awplus(config)# interface vlan2 awplus(config-if)# no ipv6 address 2001:0db8::a2/64 Related ipv6 address autoconfig Commands ipv6 address dhcp ipv6 dhcp server ipv6 enable ipv6 eui64-linklocal show running-config show ipv6 interface brief...
Page 842: Ipv6 Address Autoconfig
OMMANDS ADDRESS AUTOCONFIG ipv6 address autoconfig Overview Use this command to enable IPv6 stateless address autoconfiguration (SLAAC) for an interface. This configures an IPv6 address on an interface derived from the MAC address on the interface. Use the no variant of this command to disable IPv6 SLAAC on an interface. Note that if no global addresses are left after removing all IPv6 autoconfigured addresses then IPv6 is disabled.
Page 843 OMMANDS ADDRESS AUTOCONFIG To disable SLAAC on the VLAN interface vlan2, use the following commands: awplus# configure terminal awplus(config)# interface vlan2 awplus(config-if)# no ipv6 address autoconfig Related ipv6 address Commands ipv6 enable show ipv6 interface brief show ipv6 route show running-config C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™...
Page 844: Ipv6 Enable
OMMANDS ENABLE ipv6 enable Overview Use this command to enable automatic configuration of a link-local IPv6 address on an interface using Stateless Automatic Address Configuration (SLAAC). By default, the EUI-64 method is used to generate the link-local address. Use the no variant of this command to disable IPv6 on an interface without a global address.
Page 845 OMMANDS ENABLE Related ipv6 address Commands ipv6 address autoconfig ipv6 address dhcp ipv6 address (DHCPv6 PD) ipv6 dhcp client pd ipv6 nd prefix show ipv6 interface brief show ipv6 route show running-config C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™...
Page 846: Ipv6 Eui64-Linklocal
OMMANDS LINKLOCAL ipv6 eui64-linklocal Overview When IPv6 is enabled on an interface, an EUI link-local address is generated and installed on the interface. In other words, ipv6 eui64-linklocal is enabled by default on any IPv6 enabled interface. Use the no variant of this command to disallow the automatic generation of the EUI-64 link-local address on an IPv6 enabled interface.
Page 847: Ipv6 Forwarding
OMMANDS FORWARDING ipv6 forwarding Overview Use this command to turn on IPv6 unicast routing for IPv6 packet forwarding. Execute this command globally on your device prior to issuing ipv6 enable individual interfaces. Use this no variant of this command to turn off IPv6 unicast routing. Note IPv6 unicast routing is disabled by default.
Page 848: Ipv6 Multicast Forward-Slow-Path-Packet
OMMANDS MULTICAST FORWARD SLOW PATH PACKET ipv6 multicast forward-slow-path-packet Overview Use this command to enable multicast packets to be forwarded to the CPU. Enabling this command will ensure that the layer L3 MTU is set correctly for each IP multicast group and will apply the value of the smallest MTU among the outgoing interfaces for the multicast group.
Page 849: Ipv6 Nd Accept-Ra-Pinfo
OMMANDS ND ACCEPT PINFO ipv6 nd accept-ra-pinfo Overview Use this command to allow the processing of the prefix information included in a received RA (Router Advertisement) on an IPv6 enabled interface. Use the no variant of this command to disable an IPv6 interface from using the prefix information within a received RA.
Page 850: Ipv6 Nd Managed-Config-Flag
OMMANDS ND MANAGED CONFIG FLAG ipv6 nd managed-config-flag Overview Use this command to set the managed address configuration flag, contained within the router advertisement field. Setting this flag indicates the operation of a stateful autoconfiguration protocol such as DHCPv6 for address autoconfiguration, and that address information (i.e. the network prefix) and other (non-address) information can be requested from the device.
Page 851: Ipv6 Nd Minimum-Ra-Interval
OMMANDS ND MINIMUM INTERVAL ipv6 nd minimum-ra-interval Overview Use this command in Interface Configuration mode to set a minimum Router Advertisement (RA) interval for a VLAN interface. Use the no variant of this command in Interface Configuration mode to remove the minimum RA interval for a VLAN interface.
Page 852: Ipv6 Nd Other-Config-Flag
OMMANDS ND OTHER CONFIG FLAG ipv6 nd other-config-flag Overview Use this command to set the other stateful configuration flag (contained within the router advertisement field) to be used for IPv6 address auto-configuration. This flag is used to request the router to provide information in addition to providing addresses.
Page 853: Ipv6 Nd Prefix
OMMANDS ND PREFIX ipv6 nd prefix Overview Use this command in Interface Configuration mode for a VLAN interface to specify the IPv6 prefix information that is advertised by the router advertisement for IPv6 address auto-configuration. Use the no parameter with this command to reset the IPv6 prefix for a VLAN interface in Interface Configuration mode.
Page 854 OMMANDS ND PREFIX Usage This command specifies the IPv6 prefix flags that are advertised by the router advertisement message. Examples The following example configures the device to issue router advertisements on the VLAN interface vlan4, and advertises the address prefix of 2001:0db8::/64. awplus# configure terminal awplus(config)#...
Page 855: Ipv6 Nd Ra-Interval
OMMANDS ND RA INTERVAL ipv6 nd ra-interval Overview Use this command to specify the interval between IPv6 Router Advertisements (RA) transmissions. Use no parameter with this command to reset the value to the default value (600 seconds). Syntax ipv6 nd ra-interval <seconds> no ipv6 nd ra-interval Parameter Description...
Page 856: Ipv6 Nd Ra-Lifetime
OMMANDS ND RA LIFETIME ipv6 nd ra-lifetime Overview Use this command to specify the time period that this router can usefully act as a default gateway for the network. Each router advertisement resets this time period. Use no parameter with this command to reset the value to default. Syntax ipv6 nd ra-lifetime <seconds>...
Page 857: Ipv6 Nd Raguard
OMMANDS ND RAGUARD ipv6 nd raguard Overview Use this command to apply the Router Advertisements (RA) Guard feature from the Interface Configuration mode for a device port. This blocks all RA messages received on a device port. For more information about RA Guard, see the IPv6 Feature Overview and Configuration Guide.
Page 858 OMMANDS ND RAGUARD Output Example output from using show running-config interface port1.0.2 to verify RA Guard: ! interface port1.0.2 switchport mode access  ipv6 nd raguard ! Related show running-config interface Commands C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™...
Page 859: Ipv6 Nd Reachable-Time
OMMANDS ND REACHABLE TIME ipv6 nd reachable-time Overview Use this command to specify the reachable time in the router advertisement to be used for detecting reachability of the IPv6 neighbor. Use the no variant of this command to reset the value to default. Syntax ipv6 nd reachable-time <milliseconds>...
Page 860: Ipv6 Nd Retransmission-Time
OMMANDS ND RETRANSMISSION TIME ipv6 nd retransmission-time Overview Use this command to specify the advertised retransmission interval for Neighbor Solicitation in milliseconds between IPv6 Routers. Use the no variant of this command to reset the retransmission time to the default (1 second).
Page 861: Ipv6 Nd Suppress-Ra
OMMANDS ND SUPPRESS ipv6 nd suppress-ra Overview Use this command to inhibit IPv6 Router Advertisement (RA) transmission for the current interface. Router advertisements are used when applying IPv6 stateless auto-configuration. Use no parameter with this command to enable Router Advertisement transmission.
Page 862: Ipv6 Neighbor
OMMANDS NEIGHBOR ipv6 neighbor Overview Use this command to add a static IPv6 neighbor entry. Use the no variant of this command to remove a specific IPv6 neighbor entry. Syntax ipv6 neighbor <ipv6-address> <vlan-name> <mac-address> <port-list> no ipv6 neighbor <ipv6-address> <vlan-name> <port-list> Parameter Description <ipv6-address>...
Page 863: Ipv6 Opportunistic-Nd
OMMANDS OPPORTUNISTIC ipv6 opportunistic-nd Overview Use this command to enable opportunistic neighbor discovery for the global IPv6 ND cache. Opportunistic neighbor discovery changes the behavior for unsolicited ICMPv6 ND packet forwarding on the device. Use the no variant of this command to disable opportunistic neighbor discovery for the global IPv6 ND cache.
Page 864: Ipv6 Route
OMMANDS ROUTE ipv6 route Overview This command adds a static IPv6 route to the Routing Information Base (RIB). If this route is the best route for the destination, then your device adds it to the Forwarding Information Base (FIB). Your device uses the FIB to advertise routes to neighbors and forward packets.
Page 865: Ipv6 Unreachables
OMMANDS UNREACHABLES ipv6 unreachables Overview Use this command to enable ICMPv6 (Internet Control Message Protocol version 6) type 1, destination unreachable, messages. Use the no variant of this command to disable destination unreachable messages. This prevents an attacker from using these messages to discover the topology of a network.
Page 866: Ping Ipv6
OMMANDS PING IPV ping ipv6 Overview This command sends a query to another IPv6 host (send Echo Request messages). ping ipv6 {<host>|<ipv6-address>} [repeat Syntax {<1-2147483647>|continuous}] [size <10-1452>] [interface <interface-list>] [timeout <1-65535>] Parameter Description <ipv6-addr> The destination IPv6 address. The IPv6 address uses the format X:X::X:X.
Page 867: Show Ipv6 Forwarding
OMMANDS SHOW IPV FORWARDING show ipv6 forwarding Overview Use this command to display IPv6 forwarding status. show ipv6 forwarding Syntax Mode User Exec and Privileged Exec awplus# show ipv6 forwarding Example Output Figure 23-1: Example output from the show ipv6 forwarding command ...
Page 868: Show Ipv6 Interface Brief
OMMANDS SHOW IPV INTERFACE BRIEF show ipv6 interface brief Overview Use this command to display brief information about interfaces and the IPv6 address assigned to them. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide.
Page 869: Show Ipv6 Neighbors
OMMANDS SHOW IPV NEIGHBORS show ipv6 neighbors Overview Use this command to display all IPv6 neighbors. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide. Syntax show ipv6 neighbors Mode User Exec and Privileged Exec C613-50170-01 Rev B...
Page 870: Show Ipv6 Route
OMMANDS SHOW IPV ROUTE show ipv6 route Overview Use this command to display the IPv6 routing table for a protocol or from a particular table. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide.
Page 871 OMMANDS SHOW IPV ROUTE Output Figure 23-3: Example output of the show ipv6 route command  IPv6 Routing Table Codes: C - connected, S - static, R - RIP, O - OSPF, B - BGP ::/0 [1/0] via 2001::a:0:0:c0a8:a6, vlan10 2001:db8::a:0:0:0:0/64 via ::, vlan10...
Page 872: Show Ipv6 Route Summary
OMMANDS SHOW IPV ROUTE SUMMARY show ipv6 route summary Overview Use this command to display the summary of the current NSM RIB entries. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide.
Page 873: Traceroute Ipv6
OMMANDS TRACEROUTE IPV traceroute ipv6 Overview Use this command to trace the route to the specified IPv6 host. traceroute ipv6 {<ipv6-addr>|<hostname>} Syntax Parameter Description <ipv6-addr> The destination IPv6 address. The IPv6 address uses the format X:X::X:X. <hostname> The destination hostname. Mode User Exec and Privileged Exec Example...
Page 874: Routing Commands
Routing Commands Introduction Overview This chapter provides an alphabetical reference of routing commands that are common across the routing IP protocols. For more information, see the Route Selection Feature Overview and Configuration Guide. Command List • “ip route” on page 875 •...
Page 875: Ip Route
OUTING OMMANDS IP ROUTE ip route Overview This command adds a static route to the Routing Information Base (RIB). If this route is the best route for the destination, then your device adds it to the Forwarding Information Base (FIB). Your device uses the FIB to advertise routes to neighbors and forward packets.
Page 876 OUTING OMMANDS IP ROUTE Examples To add the destination 192.168.3.0 with the mask 255.255.255.0 as a static route available through the device at “10.10.0.2” with the default administrative distance, use the commands: awplus# configure terminal awplus(config)# ip route 192.168.3.0 255.255.255.0 10.10.0.2 To remove the destination 192.168.3.0 with the mask 255.255.255.0 as a static route available through the device at “10.10.0.2”...
Page 877: Ipv6 Route
OUTING OMMANDS ROUTE ipv6 route Overview This command adds a static IPv6 route to the Routing Information Base (RIB). If this route is the best route for the destination, then your device adds it to the Forwarding Information Base (FIB). Your device uses the FIB to advertise routes to neighbors and forward packets.
Page 878: Max-Fib-Routes
OUTING OMMANDS ROUTES max-fib-routes Overview This command enables you to control the maximum number of FIB routes configured. It operates by providing parameters that enable you to configure preset maximums and warning message thresholds. : For static routes use the max-static-routes command.
Page 879: Max-Static-Routes
OUTING OMMANDS STATIC ROUTES max-static-routes Overview Use this command to set the maximum number of static routes, excluding FIB (Forwarding Information Base) routes. : For FIB routes use the max-fib-routes command. NOTE Use the no variant of this command to set the maximum number of static routes to the default of 1000 static routes.
Page 880: Maximum-Paths
OUTING OMMANDS MAXIMUM PATHS maximum-paths Overview This command enables ECMP on your device, and sets the maximum number of paths that each route has in the Forwarding Information Base (FIB). ECMP is enabled by default. The no variant of this command sets the maximum paths to the default of 4. Syntax maximum-paths <1-8>...
Page 881: Show Ip Route
OUTING OMMANDS SHOW IP ROUTE show ip route Overview Use this command to display routing entries in the FIB (Forwarding Information Base). The FIB contains the best routes to a destination, and your device uses these routes when forwarding traffic. You can display a subset of the entries in the FIB based on protocol.
Page 882 OUTING OMMANDS SHOW IP ROUTE • outgoing interface name • time since route entry was added Figure 24-1: Example output from the show ip route command Codes: C - connected, S - static, R - RIP, B - BGP O - OSPF, IA - OSPF inter area N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2...
Page 883 OUTING OMMANDS SHOW IP ROUTE Related ip route Commands maximum-paths show ip route database C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 884: Show Ip Route Database
OUTING OMMANDS SHOW IP ROUTE DATABASE show ip route database Overview This command displays the routing entries in the RIB (Routing Information Base). When multiple entries are available for the same prefix, RIB uses the routes’ administrative distances to choose the best route. All best routes are entered into the FIB (Forwarding Information Base).
Page 885 OUTING OMMANDS SHOW IP ROUTE DATABASE Related maximum-paths Commands show ip route C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 886: Show Ip Route Summary
OUTING OMMANDS SHOW IP ROUTE SUMMARY show ip route summary Overview This command displays a summary of the current RIB (Routing Information Base) entries. To modify the lines displayed, use the | (output modifier token); to save the output to a file, use the > output redirection token. Syntax show ip route summary Mode...
Page 887: Show Ipv6 Route
OUTING OMMANDS SHOW IPV ROUTE show ipv6 route Overview Use this command to display the IPv6 routing table for a protocol or from a particular table. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide.
Page 888 OUTING OMMANDS SHOW IPV ROUTE Output Figure 24-4: Example output of the show ipv6 route command  IPv6 Routing Table Codes: C - connected, S - static, R - RIP, O - OSPF, B - BGP ::/0 [1/0] via 2001::a:0:0:c0a8:a6, vlan10 2001:db8::a:0:0:0:0/64 via ::, vlan10...
Page 889: Show Ipv6 Route Summary
OUTING OMMANDS SHOW IPV ROUTE SUMMARY show ipv6 route summary Overview Use this command to display the summary of the current NSM RIB entries. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide.
Page 890: Rip Commands
RIP Commands Introduction Overview This chapter provides an alphabetical reference of commands used to configure RIP. For information about configuring RIP, see the RIP Feature Overview and Configuration Guide. Command List • “accept-lifetime” on page 892 • “alliedware-behavior” on page 894 •...
Page 891 RIP C OMMANDS • “ip rip split-horizon” on page 918 • “key” on page 919 • “key chain” on page 920 • “key-string” on page 921 • “maximum-prefix” on page 922 • “neighbor (RIP)” on page 923 • “network (RIP)” on page 924 •...
Page 892: Accept-Lifetime
RIP C OMMANDS ACCEPT LIFETIME accept-lifetime Overview Use this command to specify the time period during which the authentication key on a key chain is received as valid. Use the no variant of this command to remove a specified time period for an authentication key on a key chain as set previously with the accept-lifetime command.
Page 893 RIP C OMMANDS ACCEPT LIFETIME awplus# configure terminal awplus(config)# key chain mychain awplus(config-keychain)# key 1 awplus(config-keychain-key)# accept-lifetime 03:03:01 3 Sep 2016 04:04:02 6 Oct 2016 Related Commands key-string key chain send-lifetime C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 894: Alliedware-Behavior
RIP C OMMANDS ALLIEDWARE BEHAVIOR alliedware-behavior Overview This command configures your device to exhibit AlliedWare behavior when sending RIPv1 response/update messages. Configuring for this behavior may be necessary if you are replacing an AlliedWare device with an AlliedWare Plus device and wish to ensure consistent RIPv1 behavior.
Page 895 RIP C OMMANDS ALLIEDWARE BEHAVIOR To return your device to AlliedWare Plus-like behavior when sending and receiving RIPv1 update messages, enter the commands: awplus# configure terminal awplus(config)# router rip awplus(config-router)# no alliedware-behavior rip1-send awplus(config-router)# no alliedware-behavior rip1-recv Validation show ip protocols rip Commands show running-config Related...
Page 896: Cisco-Metric-Behavior (Rip)
RIP C OMMANDS (RIP) CISCO METRIC BEHAVIOR cisco-metric-behavior (RIP) Overview Use this command to enable or disable the RIP routing metric update to conform to Cisco’s implementation. This command is provided to allow inter-operation with older Cisco devices that do not conform to the RFC standard for RIP route metrics.
Page 897: Clear Ip Rip Route
RIP C OMMANDS CLEAR IP RIP ROUTE clear ip rip route Overview Use this command to clear specific data from the RIP routing table. clear ip rip route {<ip-dest-network/prefix-length>| Syntax static|connected|rip|ospf|invalid-routes|all} Parameter Description <ip-dest-network/ Removes entries which exactly match this destination prefix-length>...
Page 898: Debug Rip
RIP C OMMANDS DEBUG RIP debug rip Overview Use this command to specify the options for the displayed debugging information for RIP events and RIP packets. Use the no variant of this command to disable the specified debug option. Syntax debug rip {events|nsm|<packet>|all} no debug rip {events|nsm|<packet>|all} Parameter...
Page 899: Default-Information Originate (Rip)
RIP C OMMANDS (RIP) DEFAULT INFORMATION ORIGINATE default-information originate (RIP) Overview Use this command to generate a default route into the Routing Information Protocol (RIP). Use the no variant of this command to disable this feature. Syntax default-information originate no default-information originate Default Disabled Mode...
Page 900: Default-Metric (Rip)
RIP C OMMANDS (RIP) DEFAULT METRIC default-metric (RIP) Overview Use this command to specify the metrics to be assigned to redistributed RIP routes. Use the no variant of this command to reset the RIP metric back to its default (1). Syntax default-metric <metric>...
Page 901: Distance (Rip)
RIP C OMMANDS (RIP) DISTANCE distance (RIP) Overview This command sets the administrative distance for RIP routes. Your device uses this value to select between two or more routes to the same destination obtained from two different routing protocols. The route with the smallest administrative distance value is added to the Forwarding Information Base (FIB).
Page 902: Distribute-List (Rip)
RIP C OMMANDS (RIP) DISTRIBUTE LIST distribute-list (RIP) Overview Use this command to filter incoming or outgoing route updates using the access-list or the prefix-list. Use the no variant of this command to disable this feature. Syntax distribute-list {<access-list> | prefix <prefix-list>} {in|out} [<interface>] no distribute-list {<access-list>...
Page 903: Fullupdate (Rip)
RIP C OMMANDS (RIP) FULLUPDATE fullupdate (RIP) Overview Use this command to specify which routes RIP should advertise when performing a triggered update. By default, when a triggered update is sent, RIP will only advertise those routes that have changed since the last update. When fullupdate is configured, the device advertises the full RIP route table in outgoing triggered updates, including routes that have not changed.
Page 904: Ip Rip Authentication Key-Chain
RIP C OMMANDS IP RIP AUTHENTICATION KEY CHAIN ip rip authentication key-chain Overview Use this command to enable RIPv2 authentication on an interface and specify the name of the key chain to be used. Use the no variant of this command to disable this function. Syntax ip rip authentication key-chain <key-chain-name>...
Page 905 RIP C OMMANDS IP RIP AUTHENTICATION KEY CHAIN Specify the mode of authentication for the given interface (text or MD5), using the following command: awplus(config-if)# ip rip authentication mode {md5|text} Example In the following example of a configuration for multiple keys authentication, a password “toyota”...
Page 906: Ip Rip Authentication Mode
RIP C OMMANDS IP RIP AUTHENTICATION MODE ip rip authentication mode Overview Use this command to specify the type of authentication mode used for RIP v2 packets. Use the no variant of this command to restore clear text authentication. Syntax ip rip authentication mode {md5|text} no ip rip authentication mode Parameter...
Page 907 RIP C OMMANDS IP RIP AUTHENTICATION MODE Usage: multiple For multiple keys authentication, use the following steps to configure a route to enable RIPv2 authentication using multiple keys at different times: Define a key chain with a key chain name, using the following commands: awplus# configure terminal awplus(config)#...
Page 908 RIP C OMMANDS IP RIP AUTHENTICATION MODE Example 3 The following example specifies “mykey” as the authentication string with MD5 authentication, for the VLAN interface vlan2: awplus# configure terminal awplus(config)# interface vlan2 awplus(config-if)# ip rip authentication string mykey awplus(config-if)# ip rip authentication mode md5 Related ip rip authentication string Commands...
Page 909: Ip Rip Authentication String
RIP C OMMANDS IP RIP AUTHENTICATION STRING ip rip authentication string Overview Use this command to specify the authentication string or password used by a key. Use the no variant of this command to remove the authentication string. Syntax ip rip authentication string <auth-string> no ip rip authentication string Parameter Description...
Page 910 RIP C OMMANDS IP RIP AUTHENTICATION STRING In the following example, the VLAN interface vlan2 is configured to have an Example authentication string as guest. Any received RIP packet in that interface should have the same string as password. awplus# configure terminal awplus(config)# interface vlan2...
Page 911: Ip Rip Receive-Packet
RIP C OMMANDS IP RIP RECEIVE PACKET ip rip receive-packet Overview Use this command to configure the interface to enable the reception of RIP packets. Use the no variant of this command to disable this feature. Syntax ip rip receive-packet no ip rip receive-packet Default Receive-packet is enabled...
Page 912: Ip Rip Receive Version
RIP C OMMANDS IP RIP RECEIVE VERSION ip rip receive version Overview Use this command to specify the version of RIP packets accepted on an interface and override the setting of the version command. Use the no variant of this command to use the setting specified by the version (RIP) command.
Page 913: Ip Rip Send-Packet
RIP C OMMANDS IP RIP SEND PACKET ip rip send-packet Overview Use this command to enable sending RIP packets through the current interface. Use the no variant of this command to disable this feature. Syntax ip rip send-packet no ip rip send-packet Default Send packet is enabled Mode...
Page 914: Ip Rip Send Version
RIP C OMMANDS IP RIP SEND VERSION ip rip send version Overview Use this command in Interface Configuration mode to specify the version of RIP packets sent on an interface and override the setting of the version (RIP) command. This mechanism causes RIP version 2 interfaces to send multicast packets instead of broadcasting packets.
Page 915 RIP C OMMANDS IP RIP SEND VERSION In the following example, the VLAN interface vlan4 is configured to send both RIP version 2 and 1 packets. awplus# configure terminal awplus(config)# interface vlan4 awplus(config-if)# ip rip send version 2 1 In the following example, the VLAN interface vlan4 is configured to send RIP version 1 packets only.
Page 916: Ip Rip Send Version 1-Compatible
RIP C OMMANDS IP RIP SEND VERSION COMPATIBLE ip rip send version 1-compatible Overview Use this command in Interface Configuration mode to send RIP version 1 compatible packets from a RIP version 2 interfaces to other RIP Interfaces. This mechanism causes RIP version 2 interfaces to send broadcast packets instead of multicasting packets, and is used in environments where multicast is not enabled or where hosts do not listen to multicast.
Page 917 RIP C OMMANDS IP RIP SEND VERSION COMPATIBLE Related ip rip send version Commands version (RIP) C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 918: Ip Rip Split-Horizon
RIP C OMMANDS IP RIP SPLIT HORIZON ip rip split-horizon Overview Use this command to turn on the split-horizon mechanism on the interface. Use the no variant of this command to disable this mechanism. Syntax ip rip split-horizon [poisoned] no ip rip split-horizon Parameter Description poisoned...
Page 919: Key
RIP C OMMANDS Overview Use this command to manage, add and delete authentication keys in a key-chain. Use the no variant of this command to delete the authentication key. Syntax key <keyid> no key <keyid> Parameter Description <keyid> <0-2147483647> Key identifier number. Mode Keychain Configuration Usage...
Page 920: Key Chain
RIP C OMMANDS KEY CHAIN key chain Overview Use this command to enter the key chain management mode and to configure a key chain with a key chain name. Use the no variant of this command to remove the key chain and all configured keys.
Page 921: Key-String
RIP C OMMANDS STRING key-string Overview Use this command to define the password to be used by a key. Use the no variant of this command to remove a password. Syntax key-string <key-password> no key-string Parameter Description <key-password> A string of characters to be used as a password by the key. Mode Keychain-key Configuration Usage...
Page 922: Maximum-Prefix
RIP C OMMANDS MAXIMUM PREFIX maximum-prefix Overview Use this command to configure the maximum number of RIP routes stored in the routing table. Use the no variant of this command to disable all limiting of the number of RIP routes stored in the routing table. Syntax maximum-prefix <maxprefix>...
Page 923: Neighbor (Rip)
RIP C OMMANDS (RIP) NEIGHBOR neighbor (RIP) Overview Use this command to specify a neighbor router. It is used for each router to which you wish to send unicast RIP updates. Use the no variant of this command to stop sending unicast updates to the specific router.
Page 924: Network (Rip)
RIP C OMMANDS (RIP) NETWORK network (RIP) Overview Use this command to activate the transmission of RIP routing information on the defined network. Use the no variant of this command to remove the specified network or VLAN as one that runs RIP. Syntax network {<network-address>[/<subnet-mask>]|<vlan-name>} no network {<network-address>[/<subnet-mask>]|<vlan-name>}...
Page 925: Offset-List (Rip)
RIP C OMMANDS (RIP) OFFSET LIST offset-list (RIP) Overview Use this command to add an offset to the in and out metrics of routes learned through RIP. Use the no variant of this command to remove the offset list. Syntax offset-list <access-list>...
Page 926: Passive-Interface (Rip)
RIP C OMMANDS (RIP) PASSIVE INTERFACE passive-interface (RIP) Overview Use this command to block RIP broadcasts on the interface. Use the no variant of this command to disable this function. Syntax passive-interface <interface> no passive-interface <interface> Parameter Description <interface> Specifies the interface name. Default Disabled Mode...
Page 927: Recv-Buffer-Size (Rip)
RIP C OMMANDS (RIP) RECV BUFFER SIZE recv-buffer-size (RIP) Overview Use this command to run-time configure the RIP UDP (User Datagram Protocol) receive-buffer size to improve UDP reliability by avoiding UDP receive buffer overrun. Use the no variant of this command to reset the configured RIP UDP receive-buffer size to the system default (196608 bits).
Page 928: Redistribute (Rip)
RIP C OMMANDS (RIP) REDISTRIBUTE redistribute (RIP) Overview Use this command to redistribute information from other routing protocols into RIP. Use the no variant of this command to disable the specified redistribution. The parameters metric and routemap may be used on this command, but have no effect.
Page 929: Restart Rip Graceful
RIP C OMMANDS RESTART RIP GRACEFUL restart rip graceful Overview Use this command to force the RIP process to restart, and optionally set the grace-period. restart rip graceful [grace-period <1-65535>] Syntax Mode Privileged Exec Default The default RIP grace-period is 60 seconds. Usage After this command is executed, the RIP process immediately shuts down.
Page 930: Rip Restart Grace-Period
RIP C OMMANDS RIP RESTART GRACE PERIOD rip restart grace-period Overview Use this command to change the grace period of RIP graceful restart. Use the no variant of this command to disable this function. Syntax rip restart grace-period <1-65535> no rip restart grace-period <1-65535> Mode Global Configuration Default...
Page 931: Route (Rip)
RIP C OMMANDS (RIP) ROUTE route (RIP) Overview Use this command to add a static RIP route. Use the no variant of this command to remove a static RIP route. Syntax route <ip-addr/prefix-length> no route <ip-addr/prefix-length> Parameter Description <ip-addr/prefix-length> The IPv4 address and prefix length. Default No static RIP route is added by default.
Page 932: Router Rip
RIP C OMMANDS ROUTER RIP router rip Overview Use this global command to enter Router Configuration mode to enable the RIP routing process. Use the no variant of this command to disable the RIP routing process. Syntax router rip no router rip Mode Global Configuration Example...
Page 933: Send-Lifetime
RIP C OMMANDS SEND LIFETIME send-lifetime Overview Use this command to specify the time period during which the authentication key on a key chain can be sent. send-lifetime <start-date> {<end-date>| Syntax duration <seconds>|infinite} no send-lifetime Parameter Description Specifies the start time and date in the format:  <start-date>...
Page 934 RIP C OMMANDS SEND LIFETIME Related Commands key-string key chain accept-lifetime C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 935: Show Debugging Rip
RIP C OMMANDS SHOW DEBUGGING RIP show debugging rip Overview Use this command to display the RIP debugging status for these debugging options: nsm debugging, RIP event debugging, RIP packet debugging and RIP nsm debugging. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus”...
Page 936: Show Ip Protocols Rip
RIP C OMMANDS SHOW IP PROTOCOLS RIP show ip protocols rip Overview Use this command to display RIP process parameters and statistics. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide.
Page 937: Show Ip Rip
RIP C OMMANDS SHOW IP RIP show ip rip Overview Use this command to show RIP routes. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide. Syntax show ip rip Mode User Exec and Privileged Exec awplus#...
Page 938: Show Ip Rip Database
RIP C OMMANDS SHOW IP RIP DATABASE show ip rip database Overview Use this command to display information about the RIP database. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide.
Page 939: Show Ip Rip Interface
RIP C OMMANDS SHOW IP RIP INTERFACE show ip rip interface Overview Use this command to display information about the RIP interfaces. You can specify an interface name to display information about a specific interface. show ip rip interface [<interface>] Syntax Parameter Description...
Page 940: Timers (Rip)
RIP C OMMANDS (RIP) TIMERS timers (RIP) Overview Use this command to adjust routing network timers. Use the no variant of this command to restore the defaults. Syntax timers basic <update> <timeout> <garbage> no timers basic Parameter Description <update> <5-2147483647> Specifies the period at which RIP route update packets are transmitted.
Page 941: Undebug Rip
RIP C OMMANDS UNDEBUG RIP undebug rip Overview Use this command to disable the options set for debugging information of RIP events, packets and communication between RIP and NSM. This command has the same effect as the no debug rip command. Syntax undebug rip {all|events|nsm|<packet>} Parameter...
Page 942: Version (Rip)
RIP C OMMANDS (RIP) VERSION version (RIP) Overview Use this command to specify a RIP version used globally by the router. Use the no variant of this command to restore the default version. Syntax version {1|2} no version Parameter Description Specifies the version of RIP processing.
Page 943: Ripng For Ipv6 Commands
RIPng for IPv6 Commands Introduction Overview This chapter contains RIPng commands. RIPng (Routing Information Protocol next generation) is an extension of RIPv2 to support IPv6. RFC 2080 specifies RIPng. The differences between RIPv2 and RIPng are: • RIPng does not support RIP updates authentication •...
Page 944 NG FOR OMMANDS • “router ipv6 rip” on page 961 • “show debugging ipv6 rip” on page 962 • “show ipv6 protocols rip” on page 963 • “show ipv6 rip” on page 964 • “show ipv6 rip database” on page 965 •...
Page 945: Aggregate-Address (Ipv6 Ripng)
NG FOR OMMANDS 6 RIP AGGREGATE ADDRESS aggregate-address (IPv6 RIPng) Overview Use this command to add an aggregate route to RIPng. Use the no variant of this command to remove the aggregate route from RIPng. Syntax aggregate-address <ipv6-addr/prefix-length> no aggregate-address <ipv6-addr/prefix-length> Parameter Description <ipv6-addr/prefix-length>...
Page 946: Clear Ipv6 Rip Route
NG FOR OMMANDS CLEAR IPV RIP ROUTE clear ipv6 rip route Overview Use this command to clear specific data from the RIPng routing table. clear ipv6 rip route Syntax {<ipv6-addr/prefix-length>|all|connected|rip|static|ospf} Parameter Description <ipv6-addr/ Specify the IPv6 Address in format X:X::X:X/Prefix-Length. prefix-length>...
Page 947: Debug Ipv6 Rip
NG FOR OMMANDS DEBUG IPV debug ipv6 rip Overview Use this command to enable RIPng debugging and specify debugging for RIPng events, RIPng packets, or RIPng communication with NSM processes. Use the no variant of this command to disable RIPng debugging. Syntax debug ipv6 rip [all|events|nsm|packet [detail]|recv [detail]|send [detail]]...
Page 948: Default-Information Originate (Ipv6 Ripng)
NG FOR OMMANDS 6 RIP DEFAULT INFORMATION ORIGINATE default-information originate (IPv6 RIPng) Overview Use this command to generate a default route into RIPng. Use the no variant of this command to disable this feature. Syntax default-information originate no default-information originate Default Disabled Mode...
Page 949: Default-Metric (Ipv6 Ripng)
NG FOR OMMANDS 6 RIP DEFAULT METRIC default-metric (IPv6 RIPng) Overview Use this command to specify the metrics to be assigned to redistributed RIPng routes. Use the no variant of this command to reset the RIPng metric back to its default (1). Syntax default-metric <1-16>...
Page 950: Distribute-List (Ipv6 Ripng)
NG FOR OMMANDS 6 RIP DISTRIBUTE LIST distribute-list (IPv6 RIPng) Overview Use this command to filter incoming or outgoing route updates using the access-list or the prefix-list. Use the no variant of this command to disable this feature. Syntax distribute-list [<access-list>|prefix <prefix-list-name>] [in|out] [<interface>] no distribute-list [<access-list>|prefix <prefix-list-name>] [in|out] [<interface>]...
Page 951: Ipv6 Rip Metric-Offset
NG FOR OMMANDS RIP METRIC OFFSET ipv6 rip metric-offset Overview Use this command to increment the metric value on incoming routes for a specified interface. This command can be used to artificially inflate the metric value for routes learned on the specified interface. Routes learned on the specified interface are only used if the routes to the same destination with a lower metric value in the routing table are down.
Page 952 NG FOR OMMANDS RIP METRIC OFFSET Examples To increment the metric-offset on the VLAN interface vlan2, enter the below commands: awplus# configure terminal awplus(config)# router ipv6 rip awplus(config-router)# exit awplus(config)# interface vlan2 awplus(config-if)# ipv6 rip metric-offset 1 To reset the metric-offset on the VLAN interface vlan2 to the default value, enter the below commands: awplus# configure terminal...
Page 953: Ipv6 Rip Split-Horizon
NG FOR OMMANDS RIP SPLIT HORIZON ipv6 rip split-horizon Overview Use this command to perform the split-horizon action on the interface. The default is split-horizon with poisoned reverse. Use the no variant of this command to disable this function. Syntax ipv6 rip split-horizon [poisoned] no ipv6 rip split-horizon Parameter...
Page 954: Ipv6 Router Rip
NG FOR OMMANDS ROUTER RIP ipv6 router rip Overview Use this command to enable RIPng routing on an interface. Use the no variant of this command to disable RIPng routing on an interface. Syntax ipv6 router rip no ipv6 router rip Default RIPng routing is disabled by default.
Page 955: Neighbor (Ipv6 Ripng)
NG FOR OMMANDS 6 RIP NEIGHBOR neighbor (IPv6 RIPng) Overview Use this command to specify a neighbor router. Use the no variant of this command to disable the specific router. Syntax neighbor <ipv6-link-local-addr> <interface> no neighbor <ipv6-link-local-addr> <interface> Parameter Description <ipv6-link-local-addr>...
Page 956: Offset-List (Ipv6 Ripng)
NG FOR OMMANDS 6 RIP OFFSET LIST offset-list (IPv6 RIPng) Overview Use this command to add an offset to in and out metrics to routes learned through RIPng. Use the no variant of this command to remove an offset list. Syntax offset-list {<access-list-number>|<access-list-name>} {in|out} <offset>...
Page 957: Passive-Interface (Ipv6 Ripng)
NG FOR OMMANDS 6 RIP PASSIVE INTERFACE passive-interface (IPv6 RIPng) Overview Use this command to enable suppression of routing updates on an interface. Use the no variant of this command to disable this function. Syntax passive-interface <interface> no passive-interface <interface> Parameter Description <interface>...
Page 958: Recv-Buffer-Size (Ipv6 Ripng)
NG FOR OMMANDS 6 RIP RECV BUFFER SIZE recv-buffer-size (IPv6 RIPng) Overview Use this command to configure the RIPng UDP (User Datagram Protocol) receive-buffer size. This should improve UDP reliability by avoiding UDP receive buffer overruns. Use the no variant of this command to unset the configured RIPng UDP receive-buffer size and set it back to the system default of 196608 bits.
Page 959: Redistribute (Ipv6 Ripng)
NG FOR OMMANDS 6 RIP REDISTRIBUTE redistribute (IPv6 RIPng) Overview Use this command to redistribute information from other routing protocols into RIPng. Use the no variant of this command to disable the specified redistribution. The parameters metric and routemap may be used on this command, but have no effect.
Page 960: Route (Ipv6 Ripng)
NG FOR OMMANDS 6 RIP ROUTE route (IPv6 RIPng) Overview Use this command to configure static RIPng routes. Use the no variant of this command to disable this function. Syntax route <ipv6-addr/prefix-length> no route <ipv6-addr/prefix-length> Parameter Description <ipv6-addr/prefix-length> Specify the IPv6 Address in format X:X::X:X/Prefix- Length.
Page 961: Router Ipv6 Rip
NG FOR OMMANDS ROUTER IPV router ipv6 rip Overview Use this global command to enter Router Configuration mode to enable a RIPng routing process. Use the no variant of this command to disable the RIPng routing process. Syntax router ipv6 rip no router ipv6 rip Mode Global Configuration...
Page 962: Show Debugging Ipv6 Rip
NG FOR OMMANDS SHOW DEBUGGING IPV show debugging ipv6 rip Overview Use this command to display the RIPng debugging status for the debugging options of: nsm debugging, RIPng event debugging, RIPng packet debugging, and RIPng nsm debugging. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus”...
Page 963: Show Ipv6 Protocols Rip
NG FOR OMMANDS SHOW IPV PROTOCOLS RIP show ipv6 protocols rip Overview Use this command to display RIPng process parameters and statistics. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide.
Page 964: Show Ipv6 Rip
NG FOR OMMANDS SHOW IPV show ipv6 rip Overview Use this command to show RIPng routes. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide. Syntax show ipv6 rip Mode User Exec and Privileged Exec Example...
Page 965: Show Ipv6 Rip Database
NG FOR OMMANDS SHOW IPV RIP DATABASE show ipv6 rip database Overview Use this command to display information about the RIPng database. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus” Feature Overview and Configuration Guide.
Page 966: Show Ipv6 Rip Interface
NG FOR OMMANDS SHOW IPV RIP INTERFACE show ipv6 rip interface Overview Use this command to display information about the RIPng interfaces. You can specify an interface name to display information about a specific interface. For information on filtering and saving command output, see the “Getting Started with AlliedWare Plus”...
Page 967: Timers (Ipv6 Ripng)
NG FOR OMMANDS 6 RIP TIMERS timers (IPv6 RIPng) Overview Use this command to adjust the RIPng routing network timers. Use the no variant of this command to restore the defaults. Syntax timers basic <update> <timeout> <garbage> no timers basic Parameter Description <update>...
Page 968: Undebug Ipv6 Rip
NG FOR OMMANDS UNDEBUG IPV undebug ipv6 rip Overview Use this command to disable debugging options of RIPng events, RIPng packets, and communication between RIPng and NSM processes. undebug ipv6 rip [all|events|nsm|packet [recv|send][detail]] Syntax Parameter Description Disables all RIPng debugging. events Disable the display of RIPng events information.
Page 969: Ospf Commands
OSPF Commands Introduction Overview This chapter provides an alphabetical reference of commands used to configure OSPF. For more information, see the OSPF Feature Overview and Configuration Guide. Command List • “area default-cost” on page 972 • “area authentication” on page 973 •...
Page 970 OSPF C OMMANDS • “debug ospf route” on page 996 • “default-information originate” on page 997 • “default-metric (OSPF)” on page 998 • “distance (OSPF)” on page 999 • “distribute-list (OSPF)” on page 1001 • “enable db-summary-opt” on page 1003 •...
Page 971 OSPF C OMMANDS • “router ospf” on page 1037 • “router-id” on page 1038 • “show debugging ospf” on page 1039 • “show ip ospf” on page 1040 • “show ip ospf border-routers” on page 1043 • “show ip ospf database”...
Page 972: Area Default-Cost
OSPF C OMMANDS AREA DEFAULT COST area default-cost Overview This command specifies a cost for the default summary route sent into a stub or NSSA area. The no variant of this command removes the assigned default-route cost. Syntax area <area-id> default-cost <0-16777215> no area <area-id>...
Page 973: Area Authentication
OSPF C OMMANDS AREA AUTHENTICATION area authentication Overview Use this command to enable authentication for an OSPF area. Specifying the area authentication sets the authentication to Type 1 authentication or the Simple Text password authentication (details in RFC 2328). The no variant of this command removes the authentication specification for an area.
Page 974: Area Filter-List
OSPF C OMMANDS AREA FILTER LIST area filter-list Overview This command configures filters to advertise summary routes on Area Border Routers (ABR). This command is used to suppress particular intra-area routes from/to an area to/from the other areas. You can use this command in conjunction with either the access-list or the prefix-list command.
Page 975: Area Nssa
OSPF C OMMANDS AREA NSSA area nssa Overview This command sets an area as a Not-So-Stubby-Area (NSSA). By default, no NSSA area is defined. Use this command to simplify administration if you are connecting a central site using OSPF to a remote site that is using a different routing protocol. You can extend OSPF to cover the remote connection by defining the area between the central router and the remote router as an NSSA.
Page 976 OSPF C OMMANDS AREA NSSA Parameter Description <role> The role type. Specify one of the following keywords: always Router always translate NSSA- LSA to Type-5 LSA. candidate Router may translate NSSA-LSA to Type-5 LSA if it is elected. never Router never translate NSSA- LSA.
Page 977: Area Range
OSPF C OMMANDS AREA RANGE area range Overview Use this command to summarize OSPF routes at an area boundary, configuring an IPv4 address range which consolidates OSPF routes. By default, this feature is not enabled. A summary route created by this command is then advertised to other areas by the Area Border Routers (ABRs).
Page 978 OSPF C OMMANDS AREA RANGE Ensure OSPF IPv4 routes exist in the area range for advertisement before using this command. awplus# configure terminal Example awplus(config)# router ospf 100 awplus(config-router)# area 1 range 192.16.0.0/16 awplus(config-router)# area 1 range 203.18.0.0/16 C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™...
Page 979: Area Stub
OSPF C OMMANDS AREA STUB area stub Overview This command defines an OSPF area as a stub area. By default, no stub area is defined. Use this command when routers in the area do not require learning about summary LSAs from other areas. You can define the area as a totally stubby area by configuring the Area Border Router of that area using the area stub no-summary command.
Page 980: Area Virtual-Link
OSPF C OMMANDS AREA VIRTUAL LINK area virtual-link Overview This command configures a link between two backbone areas that are physically separated through other non-backbone areas. In OSPF, all non-backbone areas must be connected to a backbone area. If the connection to the backbone is lost, the virtual link repairs the connection.
Page 981 OSPF C OMMANDS AREA VIRTUAL LINK Parameter Description message-digest Use message-digest authentication. null Use null authentication to override password or message digest. dead-interval If no packets are received from a particular neighbor for dead-interval seconds, the router considers that neighboring router as being off-line.
Page 982 OSPF C OMMANDS AREA VIRTUAL LINK Related area authentication Commands show ip ospf show ip ospf virtual-links C613-50170-01 Rev B Command Reference for x510 Series AlliedWare Plus™ Operating System - Version 5.4.7-1.x...
Page 983: Auto-Cost Reference Bandwidth
OSPF C OMMANDS AUTO COST REFERENCE BANDWIDTH auto-cost reference bandwidth Overview This command controls how OSPF calculates default metrics for the interface. Use the no variant of this command to assign cost based only on the interface bandwidth. Syntax auto-cost reference-bandwidth <1-4294967> no auto-cost reference-bandwidth Parameter Description...
Page 984 OSPF C OMMANDS AUTO COST REFERENCE BANDWIDTH Calculation result = 0.1 Result after rounding up to the nearest integer = 1 (Interface cost is 1) The auto-cost reference bandwidth value should be consistent across all OSPF routers in the OSPF process. Note that using the ip ospf cost command on a layer 3 interface will override the...
Page 985: Bandwidth
OSPF C OMMANDS BANDWIDTH bandwidth Overview Use this command to specify the maximum bandwidth to be used for each VLAN interface. The bandwidth value is in bits per second. OSPF uses this to calculate metrics for the VLAN interface. The no variant of this command removes any applied bandwidth value and replaces it with a value equal to the lowest port speed within that VLAN.
Page 986: Capability Opaque
OSPF C OMMANDS CAPABILITY OPAQUE capability opaque Overview This command enables opaque-LSAs. Opaque-LSAs are Type 9, 10 and 11 LSAs that deliver information used by external applications. Use the no variant of this command to disable opaque-LSAs. Syntax capability opaque no capability opaque Default By default, opaque-LSAs are enabled.
Page 987: Capability Restart
OSPF C OMMANDS CAPABILITY RESTART capability restart Overview This command enables OSPF Graceful Restart or restart signaling features. By default, this is enabled. Use the no variant of this command to disable OSPF Graceful Restart and restart signaling features. Syntax capability restart [graceful|signaling] no capability restart Parameter...
Page 988: Clear Ip Ospf Process
OSPF C OMMANDS CLEAR IP OSPF PROCESS clear ip ospf process Overview This command clears and restarts the OSPF routing process. Specify the Process ID to clear one particular OSPF process. When no Process ID is specified, this command clears all running OSPF processes. clear ip ospf [<0-65535>] process Syntax Parameter...
Page 989: Compatible Rfc1583
OSPF C OMMANDS 1583 COMPATIBLE RFC compatible rfc1583 Overview This command changes the method used to calculate summary route to the that specified in RFC 1583. By default, OSPF uses the method specified in RFC 2328. RFC 1583 specifies a method for calculating the metric for summary routes based on the minimum metric of the component paths available.
Page 990: Debug Ospf Events
OSPF C OMMANDS DEBUG OSPF EVENTS debug ospf events Overview This command enables OSPF debugging for OSPF event troubleshooting. To enable all debugging options, specify debug ospf event with no additional parameters. The no and undebug variant of this command disable OSPF debugging. Use this command without parameters to disable all the options.
Page 991: Debug Ospf Ifsm
OSPF C OMMANDS DEBUG OSPF IFSM debug ospf ifsm Overview This command specifies debugging options for OSPF Interface Finite State Machine (IFSM) troubleshooting. To enable all debugging options, specify debug ospf ifsm with no additional parameters. The no and undebug variant of this command disable OSPF IFSM debugging. Use this command without parameters to disable all the options.
Page 992: Debug Ospf Lsa
OSPF C OMMANDS DEBUG OSPF LSA debug ospf lsa Overview This command enables debugging options for OSPF Link State Advertisements (LSA) troubleshooting. This displays information related to internal operations of LSAs. To enable all debugging options, specify debug ospf lsa with no additional parameters.
Page 993: Debug Ospf Nfsm
OSPF C OMMANDS DEBUG OSPF NFSM debug ospf nfsm Overview This command enables debugging options for OSPF Neighbor Finite State Machines (NFSMs). To enable all debugging options, specify debug ospf nfsm with no additional parameters. The no and undebug variant of this command disable OSPF NFSM debugging. Use this command without parameters to disable all the options.
Page 994: Debug Ospf Nsm
OSPF C OMMANDS DEBUG OSPF NSM debug ospf nsm Overview This command enables debugging options for the OSPF Network Service Module. To enable both debugging options, specify debug ospf nsm with no additional parameters. The no and undebug variant of this command disable OSPF NSM debugging. Use this command without parameters to disable both options.
Page 995: Debug Ospf Packet
OSPF C OMMANDS DEBUG OSPF PACKET debug ospf packet Overview This command enables debugging options for OSPF packets. To enable all debugging options, specify debug ospf packet with no additional parameters. The no and undebug variant of this command disable OSPF packet debugging. Use this command without parameters to disable all options.
Page 996: Debug Ospf Route
OSPF C OMMANDS DEBUG OSPF ROUTE debug ospf route Overview This command enables debugging of route calculation. Use this command without parameters to turn on all the options. To enable all debugging options, specify debug ospf route with no additional parameters.
Page 997: Default-Information Originate
OSPF C OMMANDS DEFAULT INFORMATION ORIGINATE default-information originate Overview This command creates a default external route into an OSPF routing domain. When you use the default-information originate command to redistribute routes into an OSPF routing domain, then the system acts like an Autonomous System Boundary Router (ASBR).
Page 998: Default-Metric (Ospf)
OSPF C OMMANDS (OSPF) DEFAULT METRIC default-metric (OSPF) Overview This command sets default metric values for the OSPF routing protocol. The no variant of this command returns OSPF to using built-in, automatic metric translations, as appropriate for each routing protocol. Syntax default-metric <1-16777214>...
Page 999: Distance (Ospf)
OSPF C OMMANDS (OSPF) DISTANCE distance (OSPF) Overview This command sets the administrative distance for OSPF routes based on the route type. Your device uses this value to select between two or more routes to the same destination from two different routing protocols. The route with the smallest administrative distance value is added to the Forwarding Information Base (FIB).
Page 1000: No Distance Ospf
OSPF C OMMANDS (OSPF) DISTANCE • 10 for intra-area routes • 40 for external routes use the commands: awplus(config)# router ospf 100 awplus(config-router)# distance ospf inter-area 20 intra-area 10 external 40 To set the administrative distance for all routes in OSPF 100 back to the default of 110, use the commands: awplus(config)# router ospf 100...

This manual is also suitable for:

X510-28gsx-80 X510-28gpx X510dp-28gtx X510dp-52gtx X510l-28gt X510-52gpx ... Show all

Allied Telesis x510-28GTX Command Reference Manual

Table of Contents

Chapter 1 CLI Navigation Commands

Chapter 2 File and Configuration Management Commands

Chapter 3 User Access Commands

Chapter 4 Feature Licensing Commands

Chapter 5 Subscription Licensing Commands

Chapter 6: GUI Commands

Chapter 7 System Configuration and Monitoring Commands

Chapter 8 Pluggables and Cabling Commands

Chapter 9 Connectivity Fault Management Commands

Table of Contents

Chapter 10: Logging Commands

Chapter 11: Scripting Commands

Chapter 12: Interface Commands

Chapter 13 Port Mirroring and Remote Mirroring Commands

Chapter 14 Interface Testing Commands

Chapter 15: Switching Commands

Chapter 16: VLAN Commands

Chapter 17: Spanning Tree Commands

Chapter 18 Link Aggregation Commands

Chapter 19: Power over Ethernet Commands

Chapter 20: GVRP Commands

Chapter 21: IP Addressing and Protocol Commands

Chapter 22 Domain Name Service (DNS) Commands

Chapter 23: Ipv6 Commands

Chapter 24: Routing Commands

Chapter 25: RIP Commands

Chapter 26: Ripng for Ipv6 Commands

Chapter 27: OSPF Commands

Chapter 28 Ospfv3 for Ipv6 Commands

Chapter 29: Route Map Commands

Chapter 30 IGMP and IGMP Snooping Commands

Chapter 31 MLD and MLD Snooping Commands

Chapter 32: Multicast Commands

Chapter 33: PIM-SM Commands

Chapter 34: PIM-Smv6 Commands

Chapter 35: PIM-DM Commands

Chapter 36 Ipv4 Hardware Access Control List (ACL) Commands

Chapter 37 Ipv4 Software Access Control List (ACL) Commands

Chapter 38 Ipv6 Hardware Access Control List (ACL) Commands

Chapter 39 Ipv6 Software Access Control List (ACL) Commands

Chapter 40: Qos Commands

Chapter 41: 802.1X Commands

Chapter 42: Authentication Commands

Chapter 43: AAA Commands

Chapter 44: RADIUS Commands

Chapter 45 Local RADIUS Server Commands

Chapter 46: Public Key Infrastructure Commands

Chapter 47: TACACS+ Commands

Chapter 48: DHCP Snooping Commands

Chapter 49: Openflow Commands

Chapter 50 Virtual Chassis Stacking (Vcstack™) Commands

Chapter 51: VRRP Commands

Chapter 52 Ethernet Protection Switched Ring (Epsring™) Commands

Chapter 53 Ethernet Ring Protection Switching Commands

Chapter 54 Allied Telesis Management Framework™ (AMF) Commands

Chapter 55 Dynamic Host Configuration Protocol (DHCP) Commands

Chapter 56 DHCP for Ipv6 (Dhcpv6) Commands

Chapter 57: NTP Commands

Chapter 58: SNMP Commands

Chapter 59: LLDP Commands

Chapter 60: SMTP Commands

Chapter 61: RMON Commands

Chapter 62 Secure Shell (SSH) Commands

Chapter 63: Trigger Commands

Chapter 64: Ping-Polling Commands

Chapter 65: Sflow Commands

Quick Links

Chapters

Related Manuals for Allied Telesis x510-28GTX

Summary of Contents for Allied Telesis x510-28GTX
