4C-5 Rear Brakes:
5) Install brake shoes. Refer to "Rear Brake Shoe
Removal and Installation".
6) Install brake drum. Refer to "Rear Brake Drum
Removal and Installation".
7) Fill reservoir with brake fluid and bleed brake
system. For bleeding operation refer to "Air Bleeding
of Brake System in Section 4A".
8) Adjust parking brake cable referring to "Parking
Brake Inspection and Adjustment in Section 4D".
9) Install rear wheel.
10) Check to ensure that brake drum is free from
dragging and proper braking is obtained. Remove
vehicle from hoist and perform brake test (foot brake
and parking brake).

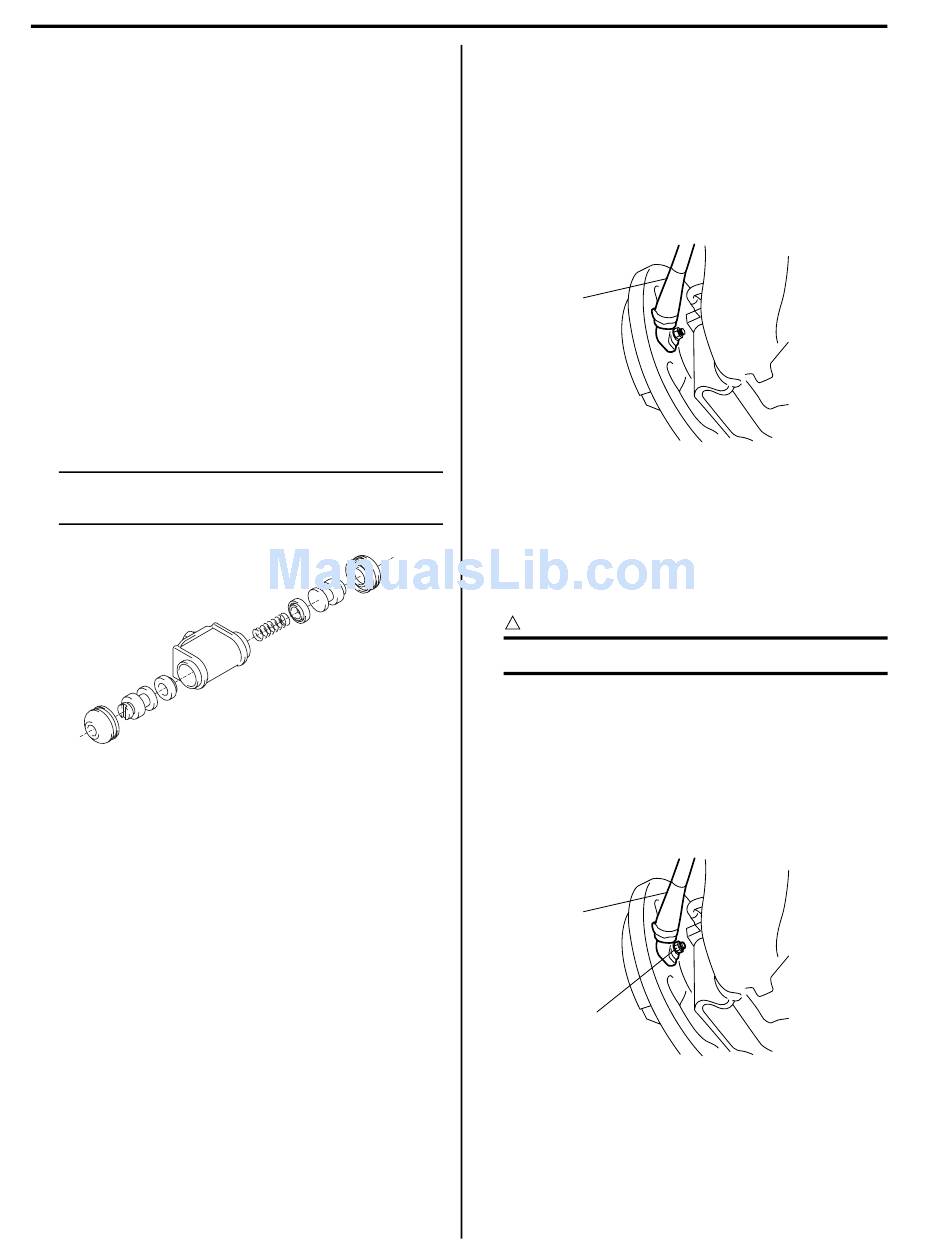

Wheel Cylinder Inspection
Inspect wheel cylinder disassembled parts for wear,
cracks, corrosion or damage.
NOTE
Clean wheel cylinder components with brake
fluid.
Brake Back Plate Removal and Installation
Removal
1) Remove rear wheel hub referring to "Rear Wheel
Hub Assembly Removal and Installation in Section
2C".
2) Remove parking brake cable (1) from brake back
plate.
S7RW0A4306008
3) Remove wheel cylinder from brake back plate
referring to "Wheel Cylinder Removal and
Installation".
Installation
Install brake back plate by reversing removal procedure,
noting the instructions.
CAUTION
!
Never reuse rear wheel hub mounting bolts.
• Install rear wheel hub and brake back plate, and then
tighten mounting bolt. Refer to "Rear Drum Brake
Components".
I6RW0D430002-02
• Install parking brake cable (1) to brake back plate.
Tightening torque
Parking cable cap nut (a): 11 N·m (1.1 kgf-m, 8.0
lb-ft)
• After installing all removed parts, bleed air from brake
system referring to "Air Bleeding of Brake System in
Section 4A". and then adjust parking brake cable
referring to "Parking Brake Inspection and Adjustment
in Section 4D".
1
1
(a)
S7RW0A4306009
I4RS0A430020-01
I4RS0A430024-01
