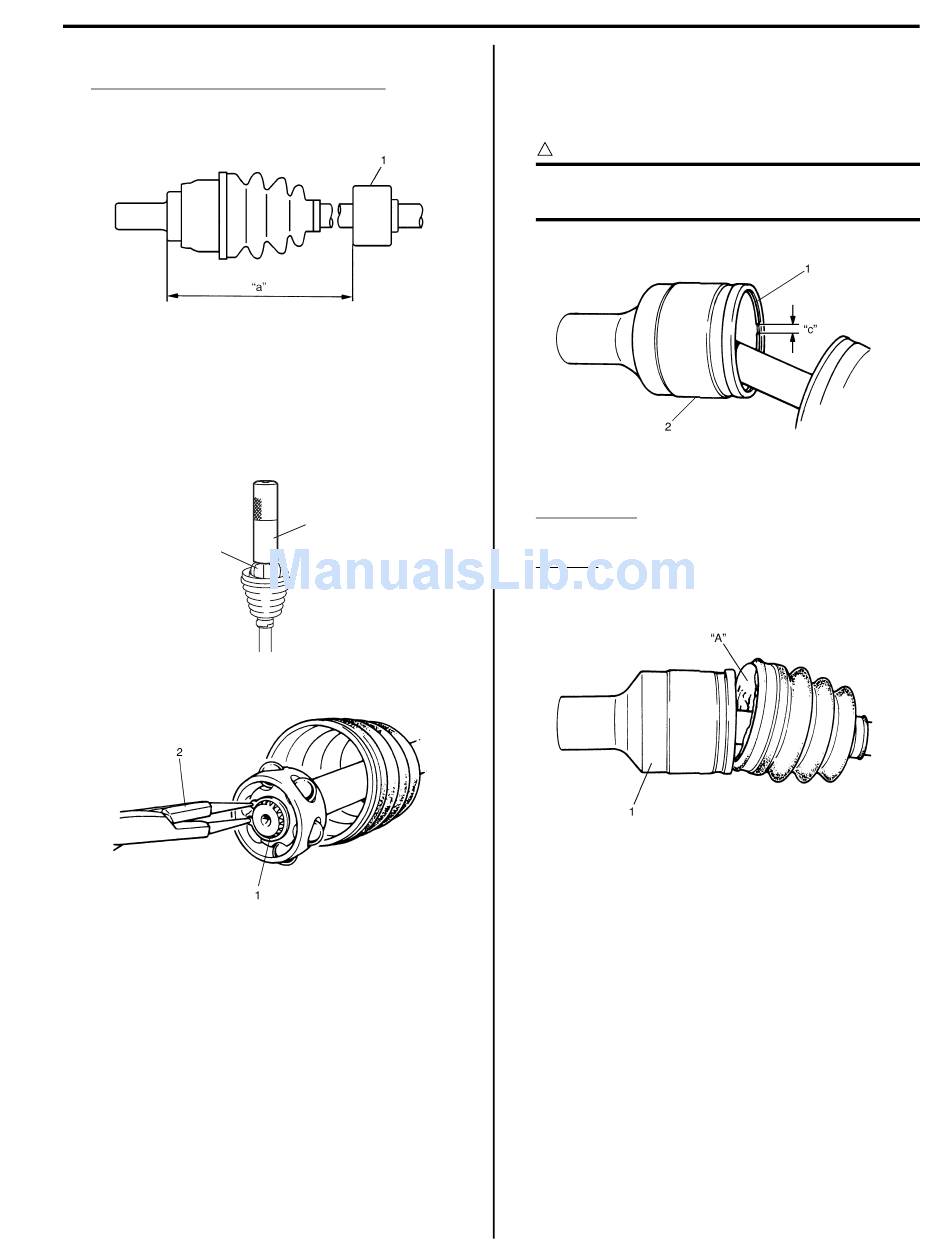

10) Install damper (1) to specified position on drive shaft.
Drive shaft damper installing position
"a": 354 mm (13.9 in.) (right side)
"a": 252 mm (9.9 in.) (left side)
11) Set new differential side (or center shaft side) small
band and new differential side (or center shaft side)
boot on shaft temporarily.
12) Drive in the cage (1) by using special tool.
Special tool
(A): 09913–84510
1
13) Install circlip (1) by using snap ring pliers (2).
I5RW0A311004-01
(A)
I5RS0B310009-01
I5RS0B310010-01
Drive Shaft / Axle: Front 3A-8
14) Apply grease to entire surface of cage. Use specified
grease in tube included in spare parts.
15) Insert cage into joint housing (2) and fit snap ring (1)
into groove of joint housing (2).
CAUTION
!
Position opening of snap ring "c" so that it
will not be lined up with a ball.
16) Apply grease (including in spare parts) to inside of
joint housing (1).
Grease color
"A": Dark gray
Amount
"A": 75 – 95 g (2.6 – 3.4 oz) (right side)
"A": 70 – 90 g (2.5 – 3.2 oz) (left side)
I2RH01310036-01
I5RS0B310011-02
