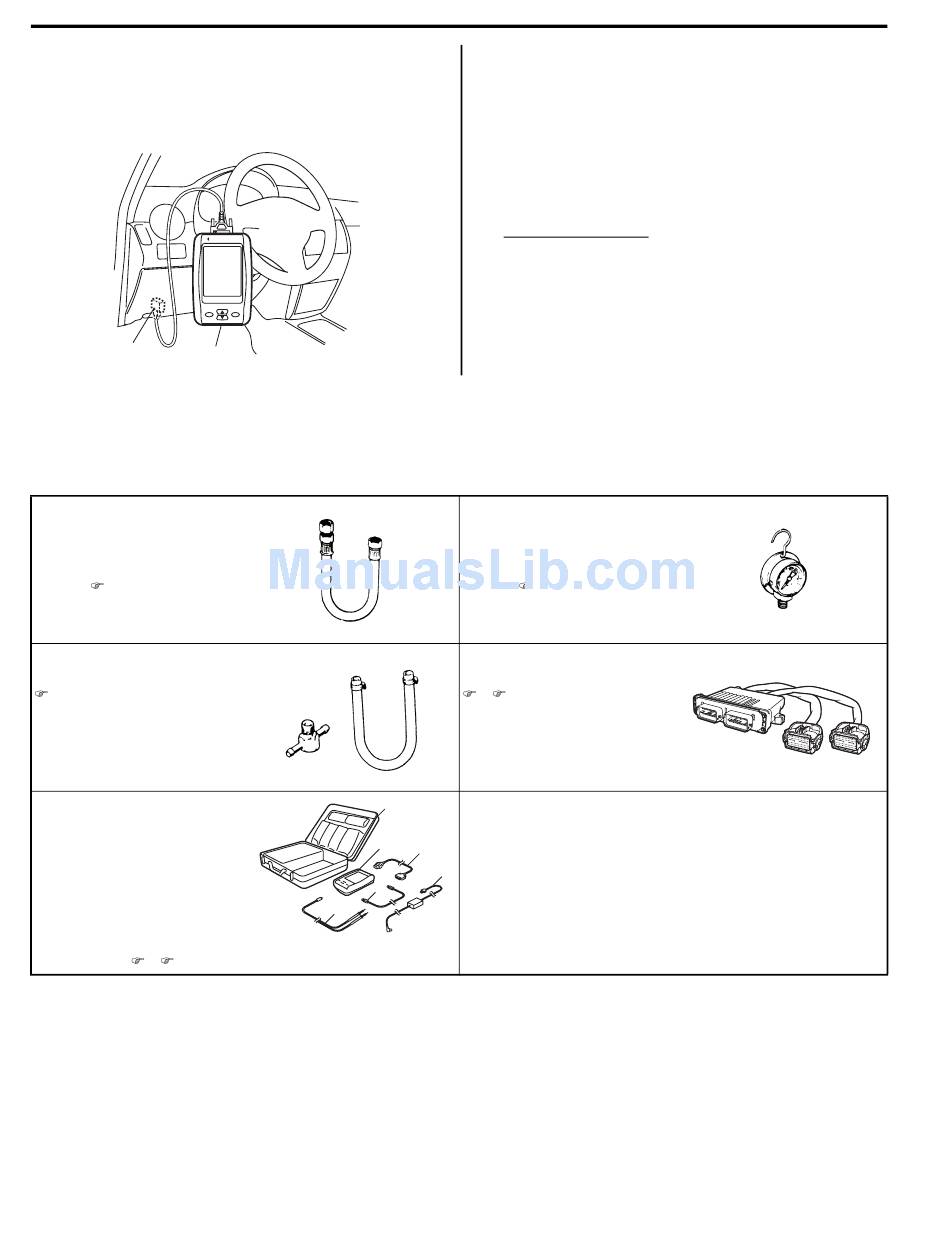

1A-214 Engine General Information and Diagnosis:
1) Connect SUZUKI scan tool to DLC (1) with ignition
switch turned OFF.

Special tool

(A): SUZUKI scan tool (SUZUKI-SDT)
1
(A)
Special Tool
09912–58432
Fuel pressure gauge hose
This tool is included in fuel
pressure gauge set (09912-
58413).
09912–58490
3-way joint & hose
SUZUKI scan tool (SUZUKI-
SDT)
This kit includes following
items. 1. SUZUKI-SDT 2.
DLC3 cable 3. USB cable 4.
AC/DC power supply 5.
Voltage meter probe 6.
Storage case
/
I5RW0C110011-01

Special Tools and Equipment

09912–58442
Fuel pressure gauge
This tool is included in fuel
pressure gauge set (09912-
58413).
09933–06320
ECM check harness (120P)
6
1
2
4
3
5
2) Warm up engine to normal operating temperature.
3) Check engine idle speed and "IAC throttle opening"
by using "Data List" mode on scan tool to check "IAC
throttle opening".
4) If check result is out of specification, inspect electric
throttle body assembly referring to "Electric Throttle
Body Assembly On-Vehicle Inspection in Section
1C".
Engine idle speed
A/C OFF: 700 ± 50 rpm (IAC duty: 5 – 25%)
A/C ON: 750 ± 50 rpm
5) Check that specified engine idle speed is obtained
with A/C turned ON if vehicle is equipped with A/C.
If not, check A/C system referring to "A/C System
Circuits Check".
/
S7RW0A1108001
