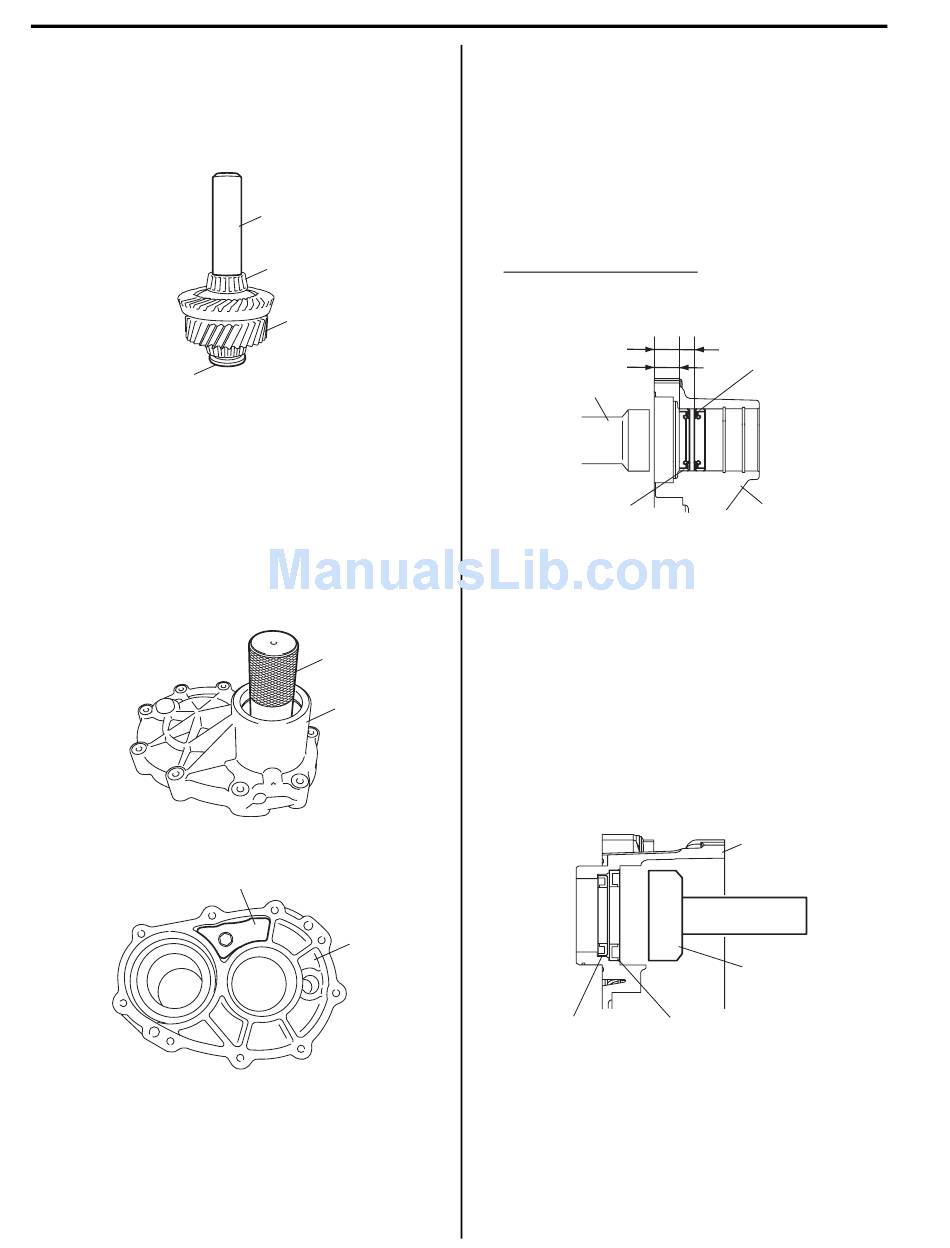

3C-9 Transfer:
3) Install left bearing (1) to reduction driven gear (2)
using special tools and hydraulic press.
Special tool
(A): 09913–84510
(B): 09924–84510–005
(B)
Transfer Right Case and Left Case Disassembly
and Reassembly
Disassembly
1) Remove oil seals from right case (1) using special
tool, if necessary.
Special tool
(A): 09925–15410
2) Remove oil plate (1) from right case (2), if necessary.
3) Remove oil seals from left case using flat end rod or
the like, if necessary.
(A)
1
2
I5RW0A330025-02
S7RW0A3306008
(A)
1
I5RW0A330026-01
1
2
I5RW0A330027-01
Reassembly
1) When installing oil seal No.2 (1) and No.3 (2) to right
case (3) using special tool, use care so that oil seals
in proper direction and position as shown in figure.
Apply grease to oil seal lip.
Special tool
(A): 09925–15410
"A": Grease 99000–25010 (SUZUKI Super
Grease A)
Oil seals installing depth
"a": 23.5 – 24.0 mm (0.925 – 0.945 in.)
"b": 38.0 – 39.0 mm (1.496 – 1.535 in.)
"b"
"a"
(A)
2, "A"
2) Install oil plate to right case.
Tightening torque
Oil plate bolt: 9 N·m (0.9 kgf-m, 6.5 lb-ft)
3) When installing new oil seal No.1 (1) and No.2 (2) to
left case (3) using special tool, use care so that oil
seals in proper direction as shown in figure.
Apply grease to oil seal lip.
Special tool
(A): 09913–85210 (For oil seal No.1)
(A): 09944–88210 (For oil seal No.2)
"A": Grease 99000–25010 (SUZUKI Super
Grease A)
1, "A"
1, "A"
3
I5RW0A330028-01
3
(A)
2, "A"
I5RW0A330029-01
