3B-35 Differential:

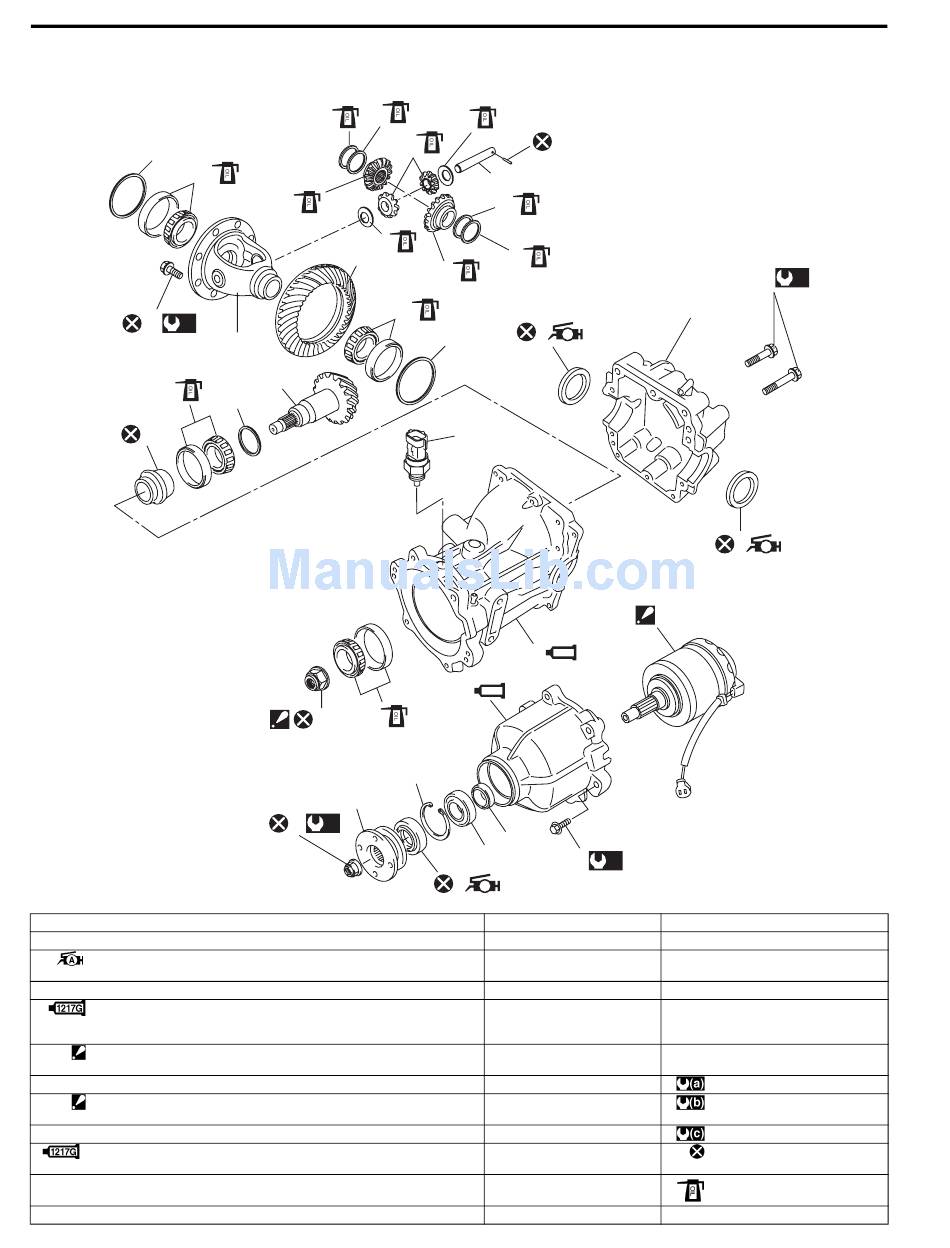

Rear Differential Components

18
19
22
(c)
15
14
1. Flange nut
2. Companion flange
3. Oil seal
: Apply grease 99000-25010 to oil seal lip.
4. Coupling front bearing
5. Coupling case
: Apply sealant 99000-31260 to mating surface of carrier and coupling
case.
6. Coupling assembly
: Never disassemble.
7. Snap ring
8. Bevel pinion nut
: Tighten nut so as rotation torque of bevel pinion to be in specified value.
9. Front bearing
10. Differential carrier
: Apply sealant 99000-31260 to mating surface of carrier and rear cover.
11. Coupling air temperature sensor
12. Differential cover
26
27
24
25
23
20
19
21
17
16
9
8
2
1
(b)
23
29
28
26
27
25
3
A
18
11
10
1217G
5
1217G
7
14
4
30
3
A
13. Differential cover bolt
14. Spacer
15. Rear bearing
16. Shim
17. Bevel pinion
18. Shim
19. Differential side bearing
20. Bevel gear
21. Differential case
22. Bevel gear bolt
23. Pinion washer
24. Pinion
13
12
3
A
6
(a)
25. Differential gear
26. Spring washer
27. Thrust washer
28. Pinion shaft
29. Pinion shaft pin
30. Coupling case bolt
: 23 N⋅m (2.3 kgf-m, 17.0 lb-ft)
: 125 N⋅m (12.5 kgf-m, 90.5 lb-ft)
: 78 N⋅m (7.8 kgf-m, 56.5 lb-ft)
: Do not reuse.
: Apply differential oil.
S7RW0A3206013
(a)
I5RW0A320026-02
