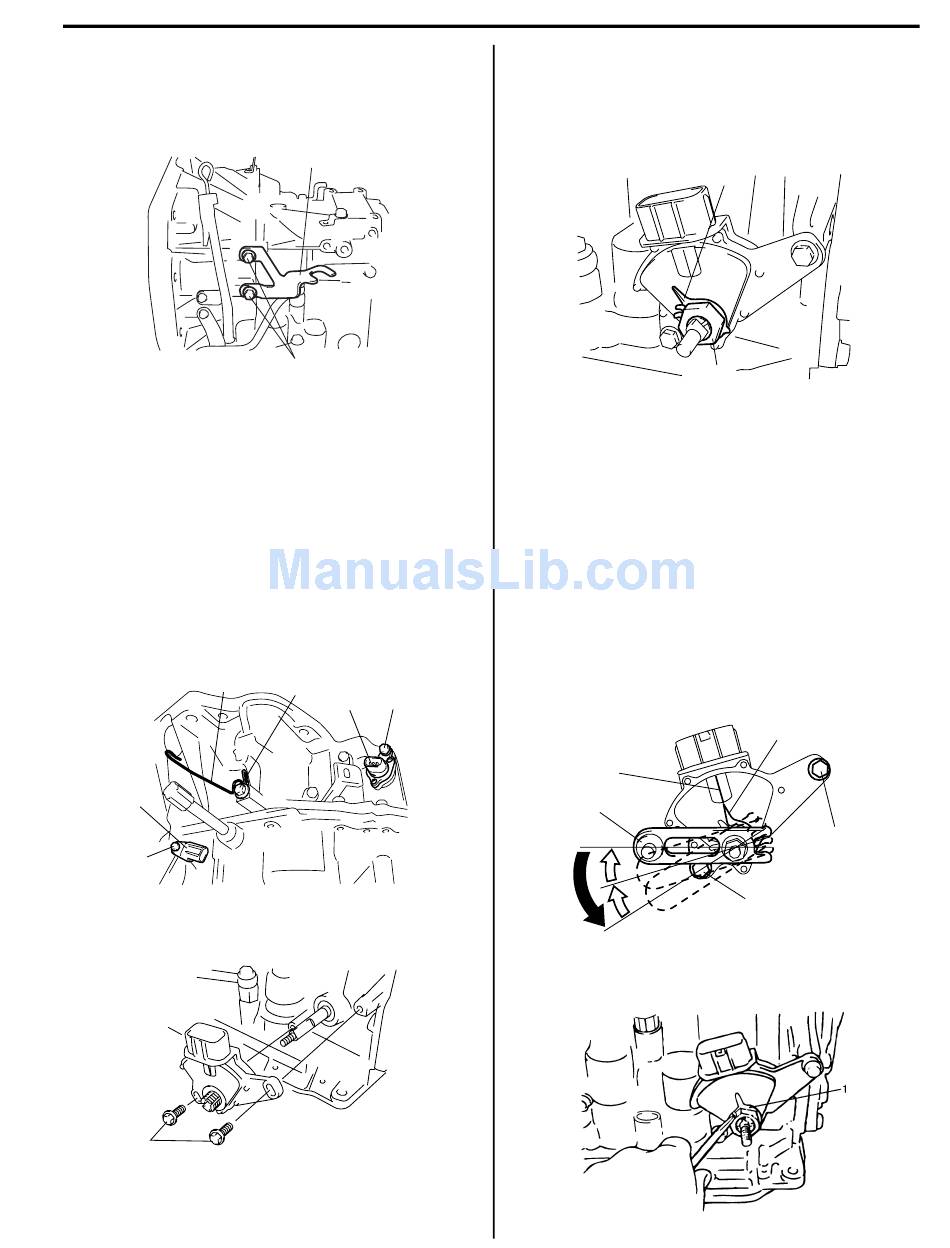

83) Install select cable bracket (1).
Tightening torque
Select cable bracket bolt (a): 23 N·m (2.3 kgf-m,
17.0 lb-ft)
84) Apply A/T fluid to O-rings of each sensor and install
input shaft speed sensor (1) and output shaft speed
sensor (VSS) (2).
Tightening torque
Input shaft speed sensor bolt (a): 5.5 N·m (0.55
kgf-m, 4.0 lb-ft)
Output shaft speed sensor (VSS) bolt (b): 13
N·m (1.3 kgf-m, 9.5 lb-ft)
85) Install harness bracket and select cable clamp (3).
Tightening torque
Select cable clamp bolt (c): 13 N·m (1.3 kgf-m,
9.5 lb-ft)
3
1
(a)
86) Install transmission range sensor to transaxle case,
tighten bolts temporarily at this step.
1
1
(a)
I5RW0C510069-02
(c)
(b)
2
I2RH0B510330-01
I2RH0B510331-01
Automatic Transmission/Transaxle:
87) Install lock washer (1) and tighten lock nut (2) to
specified torque.
Tightening torque
Transmission range sensor lock nut (a): 7 N·m (
0.7 kgf-m, 5.0 lb-ft)
88) Install manual select lever (1) temporarily at this
step.
89) After shifting manual select lever counterclockwise
fully, select "N" range position by bringing it back 2
notches clockwise.
90) Remove manual select lever (1) at this step.
91) Loosen sensor bolts (4) and align needle direction
shaped on lock washer (2) with "N" reference line (3)
on transmission range sensor by moving sensor in
rotative direction.
92) Tighten sensor bolts to specified torque.
Tightening torque
Transmission range sensor bolt (b): 5.5 N·m (
0.55 kgf-m, 4.0 lb-ft)
3
1
93) Bend dents of lock washer (1) in order to prevent
displacement of lock washer.
5A-161
1
2, (a)
I2RH0B510332-01
2
4, (b)
4, (b)
I2RH0B510333-01
I2RH0B510334-01
