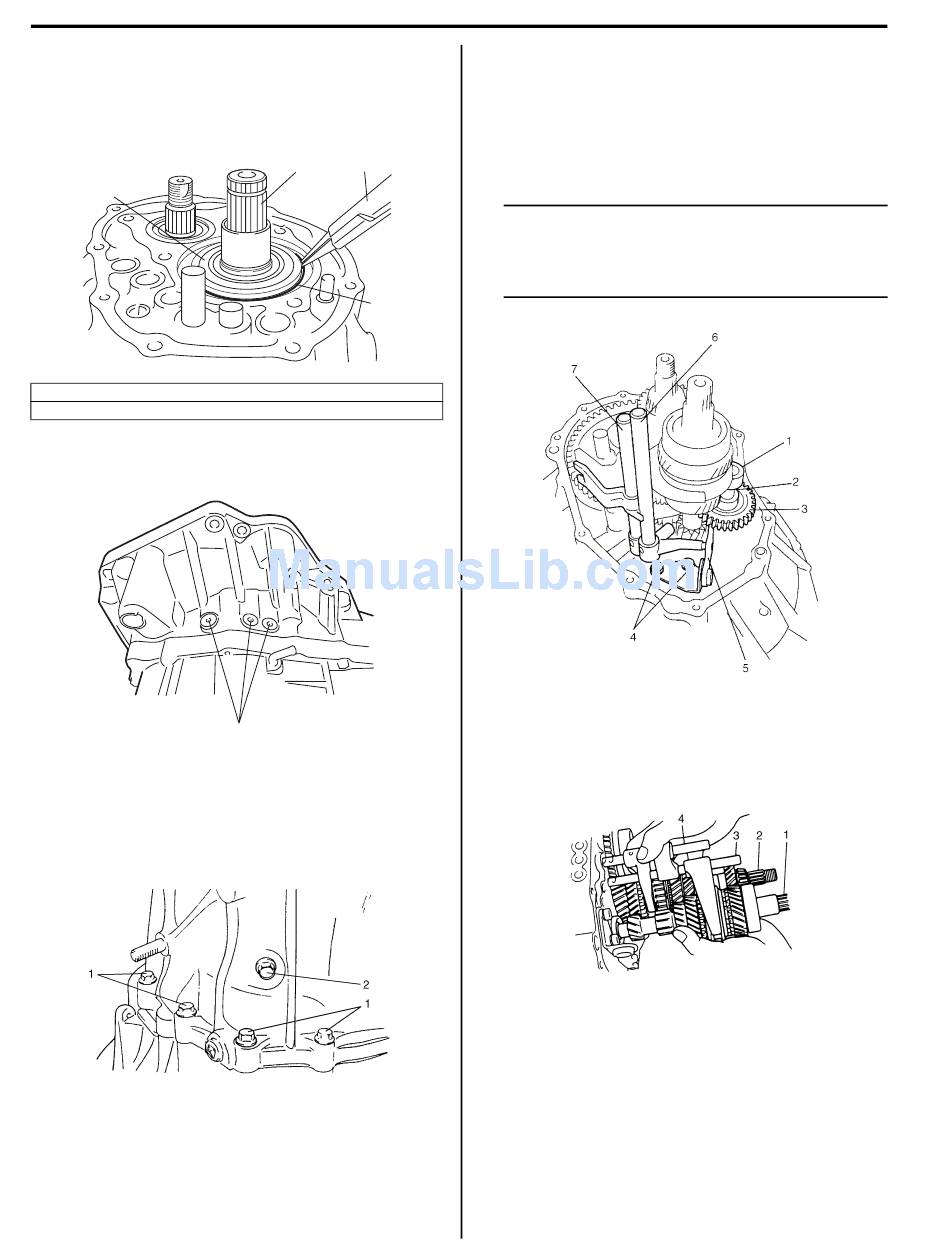

5B-20 Manual Transmission/Transaxle:
2) Remove bearing set shim.
3) Remove snap ring (1) using special tool.
Special tool
(A): 09900–06107
3
2. Input shaft
3. Input shaft left bearing
4) Remove gear shift locating bolts (1), then take out
locating springs and steel balls.
5) Remove reverse shaft bolt (2) with washer.
6) Remove transaxle case bolts (1) from outside and
another bolts from clutch housing side.
7) Tapping left case flanges with plastic hammer,
remove left case.
(A)
2
1
I4RH01520019-01
1
I5RW0A520021-01
I4RH01520020-01
8) Pull out reverse gear shaft (1) with washer (2), then
take off reverse idler gear (3).
9) Remove reverse gear shift lever bolts (4) and
reverse gear shift lever (5).
10) Pull out 5th & reverse gear shift guide shaft (6)
together with 5th & reverse gear shift shaft (7).
NOTE
When removing 5th & reverse gear shift shaft
(7) and guide shaft (6), push up high speed
gear shift shaft and shift it to 4th to facilitate
removal of 5th & reverse shift shaft.
11) Tapping input shaft end with plastic hammer, push it
out as assembly from case a little, then take out
input shaft assembly (1), countershaft assembly (2),
high speed gear shift shaft (3) and low speed gear
shift shaft (4) all at once.
12) Remove countershaft left bearing outer race from left
case.
13) Remove differential assembly from right case.
I3RH0A520012-01
I2RH01520035-01
