3A-1 Drive Shaft / Axle: Front

Drive Shaft / Axle

Driveline / Axle

Front

Front Drive Shaft Construction

A constant velocity ball joint is used on the wheel side of both right and left side drive shaft assemblies. For A/T
vehicle, a tripod type constant velocity joint is used on the differential side and center shaft side. For M/T vehicle, a
double offset type constant velocity joint (DOJ) is used on the differential side and center shaft side. The drive shaft
can slide through the tripod joint or the double offset joint (DOJ) in the extension/contraction direction.

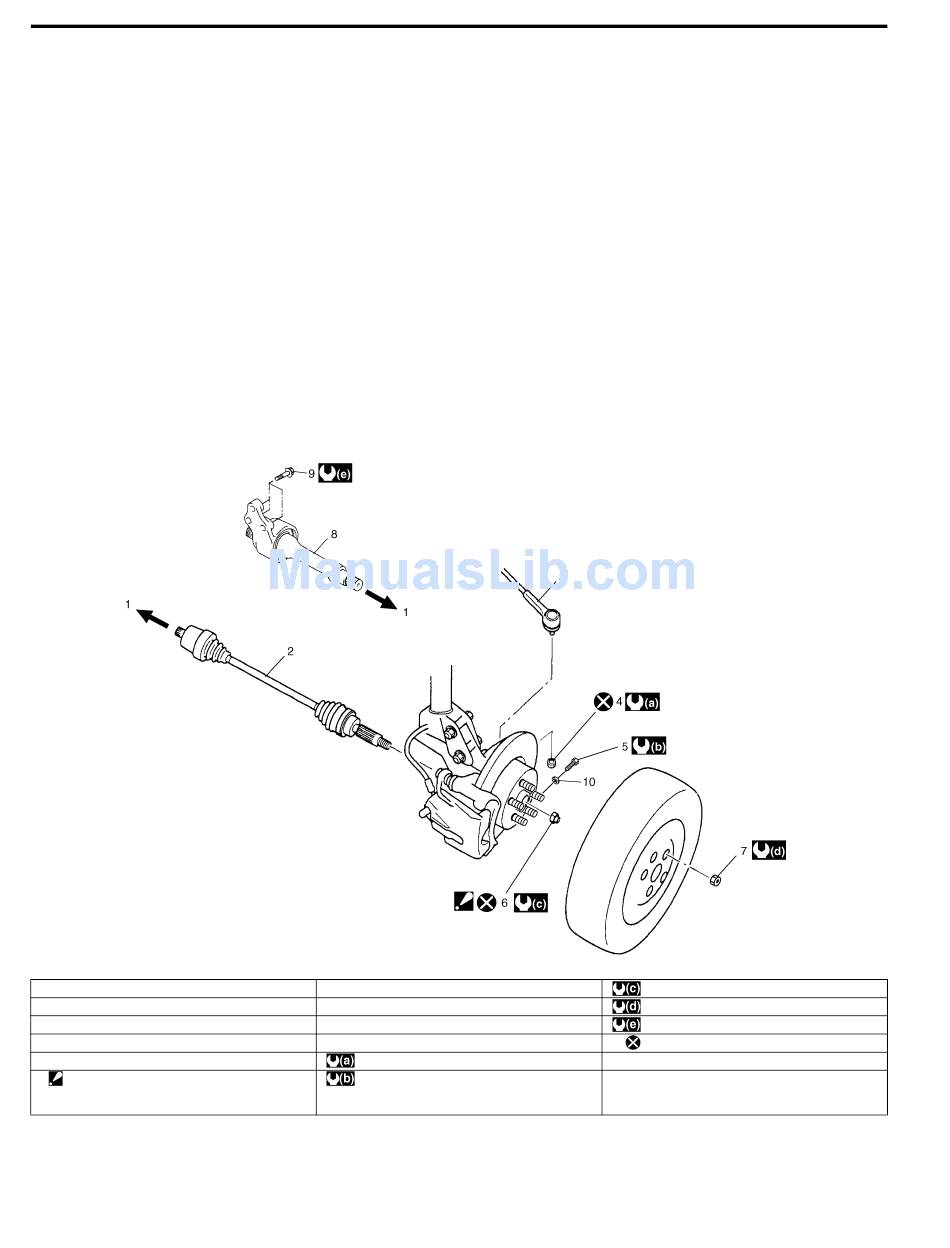

Front Drive Shaft Assembly Components Location

1. To transaxle
2. Drive shaft assembly
3. Tie-rod end
4. Tie-rod end nut
5. Ball stud bolt
6. Drive shaft nut
: After tightening nut to specified torque,
caulk nut securely.

General Description

Component Location

7. Wheel nut
8. Center shaft assembly (if equipped)
9. Center bearing support bolts (if equipped)
10. Washer
: 45 N⋅m (4.5 kgf-m, 32.5 lb-ft)
: 60 N⋅m (6.0 kgf-m, 43.5 lb-ft)
S7RW0A3111001
S7RW0A3113001
I6RW0D311001-01
: 200 N⋅m (20.0 kgf-m, 145.0 lb-ft)
: 85 N⋅m (8.5 kgf-m, 61.5 lb-ft)
: 55 N⋅m (5.5 kgf-m, 40.0 lb-ft)
: Do not reuse.
