6) Fill reservoir with specified brake fluid up to its MAX
level.
7) After completing the work, bleed air from brake
system referring to "Air Bleeding of Brake System"
and bleed air from clutch system referring to"Air
Bleeding of Clutch System in Section 5C" (M/T
model).
8) Check each installed parts for fluid leakage.
9) Perform brake test and check fluid leakage.

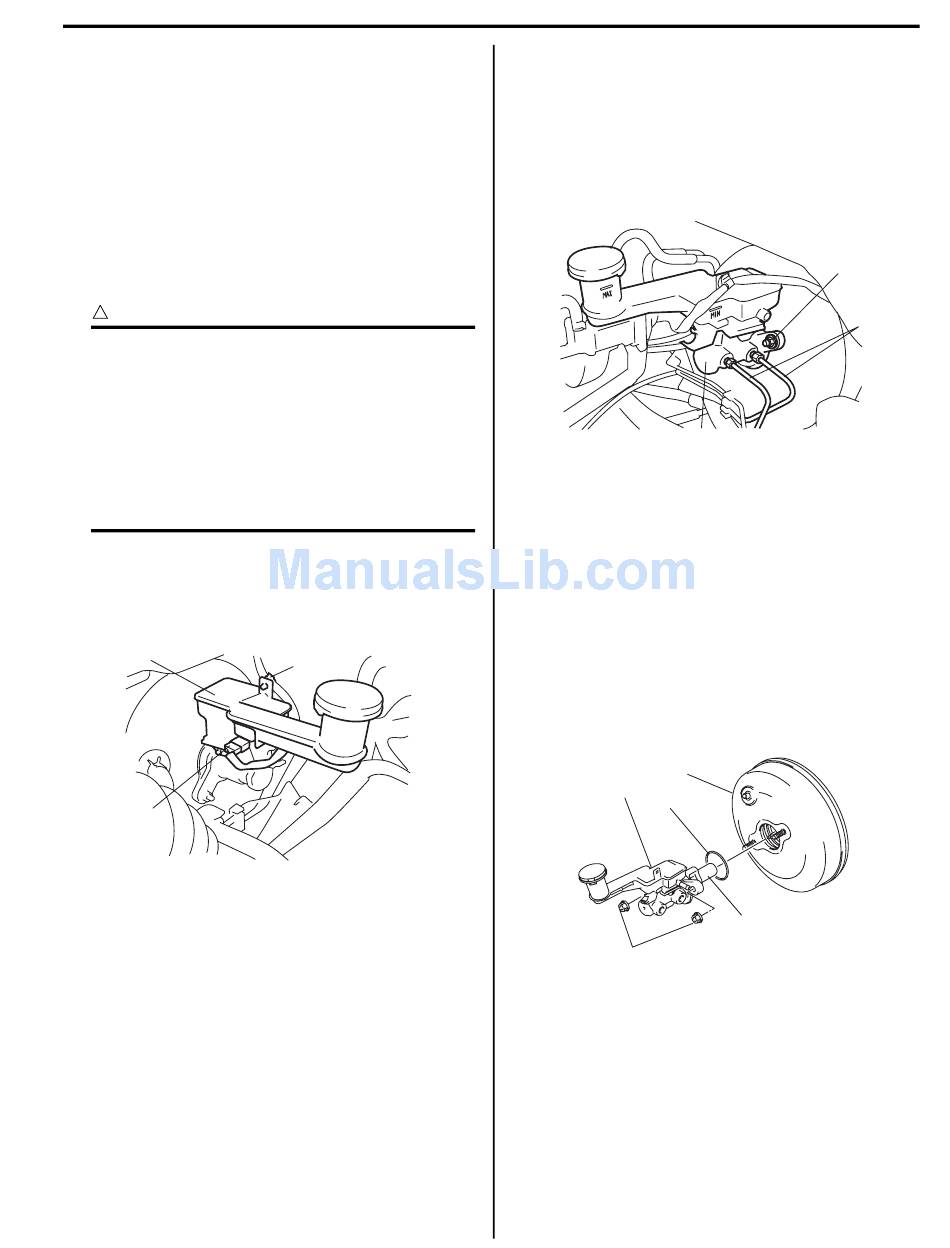

Master Cylinder Removal and Installation

CAUTION
!
• Never disassemble master cylinder since
the master cylinder is supplied as
assembly parts.
If faulty condition is found, replace it with
new one.
• Do not allow brake fluid to get on painted
surfaces. Painted surfaces will be
damaged by brake fluid, flush it with water
immediately if any fluid is spilled.
Removal
1) Clean outside of master cylinder.
2) Disconnect fluid level switch coupler (1) and clamp
(3) from reservoir (2).
2
1
S7RW0A4106013
3
I7RW01410009-01
Brake Control System and Diagnosis:
3) Drain brake fluid in reservoir.
4) Disconnect clutch reservoir hose from reservoir (M/T
model).
5) Disconnect brake pipes (1) connected to master
cylinder.
6) Remove master cylinder fixing nuts (2).
7) Remove master cylinder (3) and O-ring.
Installation
1) Install new O-ring (2) to master cylinder assembly
(1).
2) Apply grease to piston rod "A".
Use specified grease in spare to master cylinder or
brake booster as supply parts.
3) Install master cylinder assembly (1) to brake booster
(3) and tighten master cylinder fixing nuts to
specified torque.
Tightening torque
Master cylinder fixing nut (a): 18 N·m (1.8 kgf-
m, 13.0 lb-ft)
3
1
2
(a)
4A-13
2
1
3
I7RW01410012-01
"A"
I7RW01410019-01
