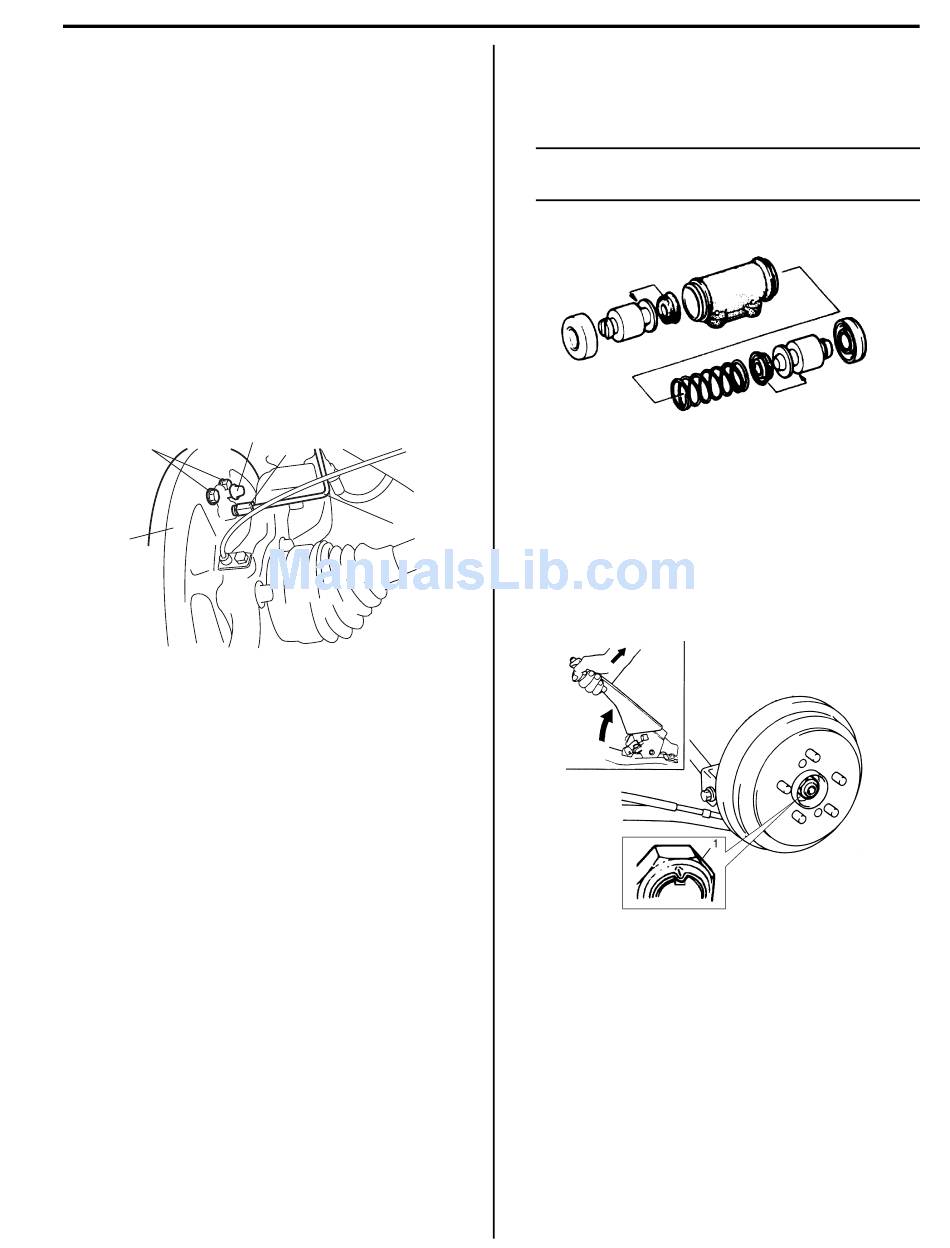

Installation
1) Fit wheel cylinder to brake back plate, take off
bleeder plug cap from brake pipe and connect pipe
to wheel cylinder just enough to prevent fluid from
leaking.
2) Tighten wheel cylinder mounting bolts to brake back
plate (1) to specified torque.
Tightening torque
Wheel cylinder mounting bolt (a): 13 N·m (1.3
kgf-m, 9.5 lb-ft)
3) Tighten flare nut of brake pipe (2) to specified torque.
Tightening torque
Brake pipe flare nut (b): 16 N·m (1.6 kgf-m, 12.0
lb-ft)
4) Install bleeder plug cap (3) taken off from pipe back
to bleeder plug.
(a)
1
5) Install brake shoe referring to "Rear Brake Shoe
Removal and Installation: ".
6) Install brake drum referring to step 1) to 2) of "Rear
Brake Drum Removal and Installation: ".
7) Fill reservoir with brake fluid and bleed brake
system. For bleeding operation refer to "Air Bleeding
of Brake System: in Section 4A".
8) Adjust, check brake and install rear wheel referring
to step 3) to 6) of "Rear Brake Drum Removal and
Installation: ".
3
(b)
2
I5JB0A430014-01

Wheel Cylinder Inspection

Inspect wheel cylinder disassembled parts for wear,
cracks, corrosion or damage.
NOTE
Clean wheel cylinder components with brake
fluid.

Rear Brake Back Plate Removal and Installation

Removal
1) Hoist vehicle and remove rear wheel.
2) Uncaulk rear axle nut (1).
3) Pull up parking brake lever fully and remove rear
axle nut (1).
Rear Brakes: 4C-7
S5JB0A4306009
IYSQ01430019-01
S5JB0A4306010
I5JB0A230058-01
