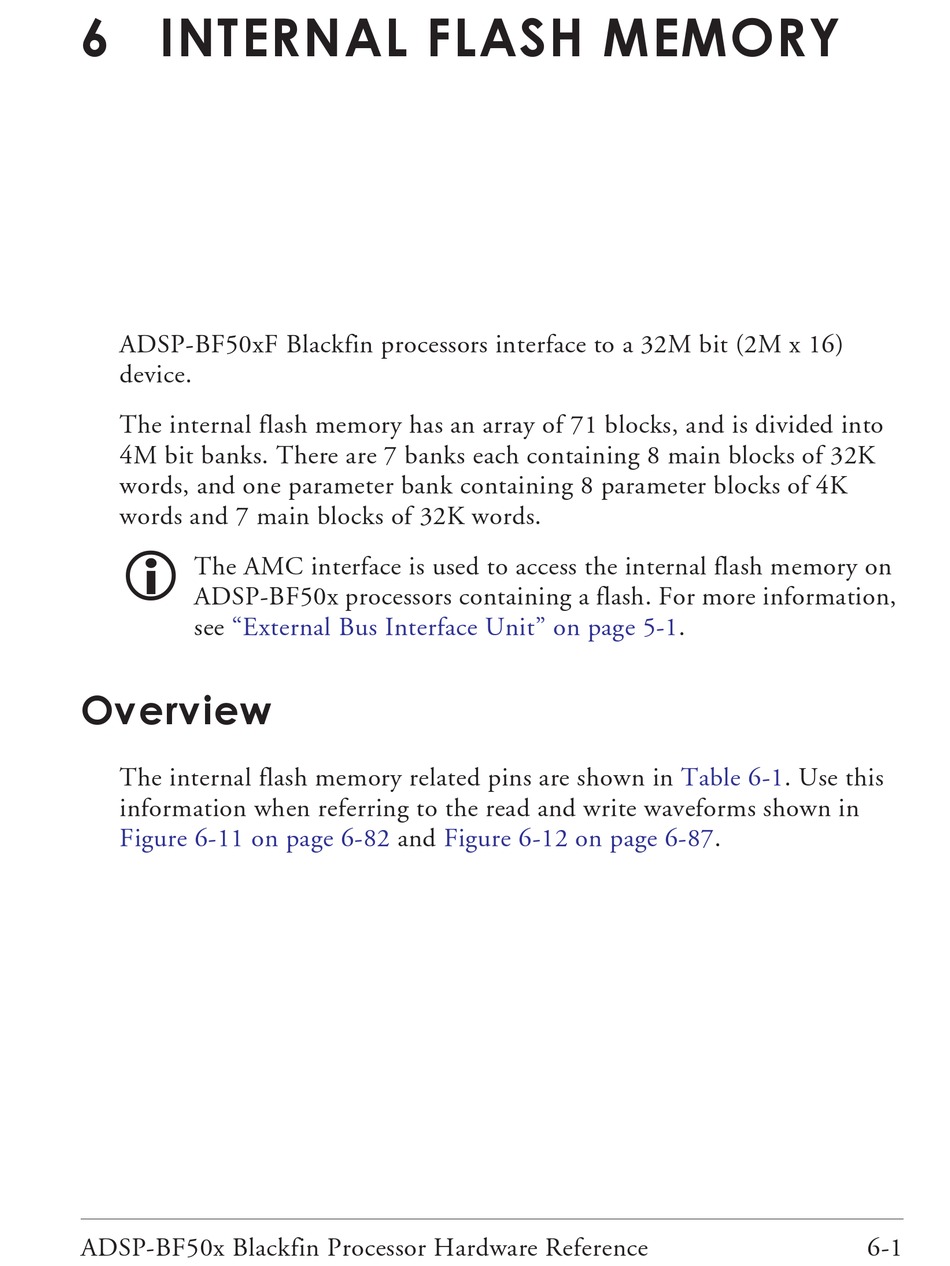

6 INTERNAL FLASH MEMORY

ADSP-BF50xF Blackfin processors interface to a 32M bit (2M x 16)
device.
The internal flash memory has an array of 71 blocks, and is divided into
4M bit banks. There are 7 banks each containing 8 main blocks of 32K
words, and one parameter bank containing 8 parameter blocks of 4K
words and 7 main blocks of 32K words.

The AMC interface is used to access the internal flash memory on
ADSP-BF50x processors containing a flash. For more information,
see "External Bus Interface Unit" on page

Overview

The internal flash memory related pins are shown in
information when referring to the read and write waveforms shown in
Figure 6-11 on page 6-82
ADSP-BF50x Blackfin Processor Hardware Reference
and Figure 6-12 on page
5-1.
Table 6-1. Use this
6-87.
6-1
