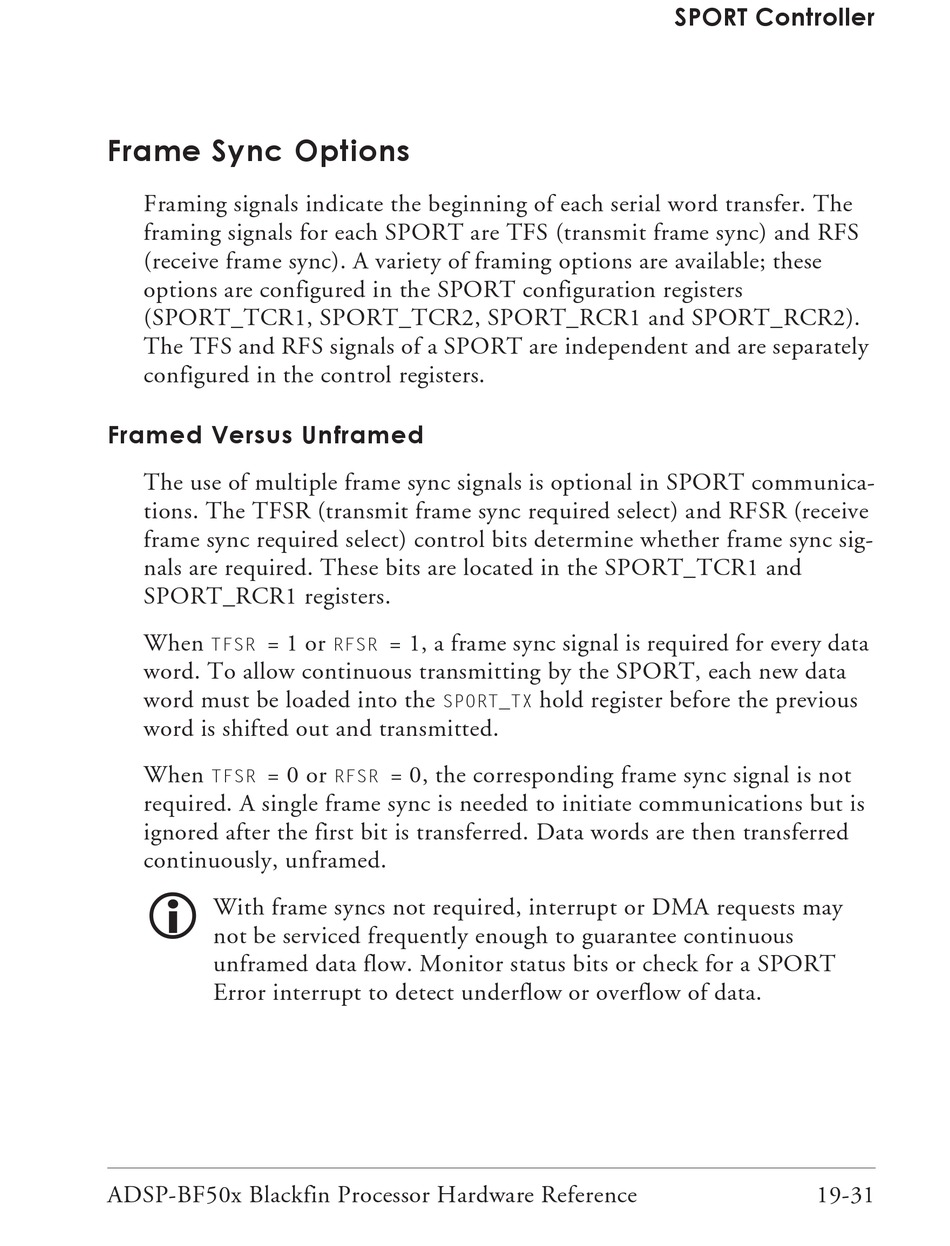

Frame Sync Options

Framing signals indicate the beginning of each serial word transfer. The
framing signals for each SPORT are TFS (transmit frame sync) and RFS
(receive frame sync). A variety of framing options are available; these
options are configured in the SPORT configuration registers
(SPORT_TCR1, SPORT_TCR2, SPORT_RCR1 and SPORT_RCR2).
The TFS and RFS signals of a SPORT are independent and are separately
configured in the control registers.

Framed Versus Unframed

The use of multiple frame sync signals is optional in SPORT communica-
tions. The TFSR (transmit frame sync required select) and RFSR (receive
frame sync required select) control bits determine whether frame sync sig-
nals are required. These bits are located in the SPORT_TCR1 and
SPORT_RCR1 registers.
When = 1 or
TFSR
word. To allow continuous transmitting by the SPORT, each new data
word must be loaded into the
word is shifted out and transmitted.
When = 0 or
TFSR
required. A single frame sync is needed to initiate communications but is
ignored after the first bit is transferred. Data words are then transferred
continuously, unframed.

With frame syncs not required, interrupt or DMA requests may
not be serviced frequently enough to guarantee continuous
unframed data flow. Monitor status bits or check for a SPORT
Error interrupt to detect underflow or overflow of data.
ADSP-BF50x Blackfin Processor Hardware Reference
= 1, a frame sync signal is required for every data
RFSR
SPORT_TX
= 0, the corresponding frame sync signal is not
RFSR
SPORT Controller
hold register before the previous
19-31
