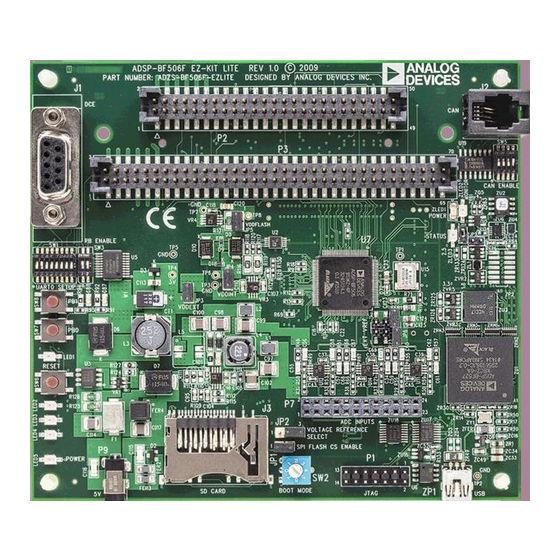

ADSP-BF506F EZ-KIT Lite
®
Evaluation System Manual
Revision 1.1, July 2012
Part Number
82-000226-01
Analog Devices, Inc.
One Technology Way
a
Norwood, Mass. 02062-9106

Advertisement

loading
Need help?

Need help?

Do you have a question about the ADSP-BF506F EZ-KIT Lite and is the answer not in the manual?

Questions and answers

Related Manuals for Analog Devices ADSP-BF506F EZ-KIT Lite

Summary of Contents for Analog Devices ADSP-BF506F EZ-KIT Lite

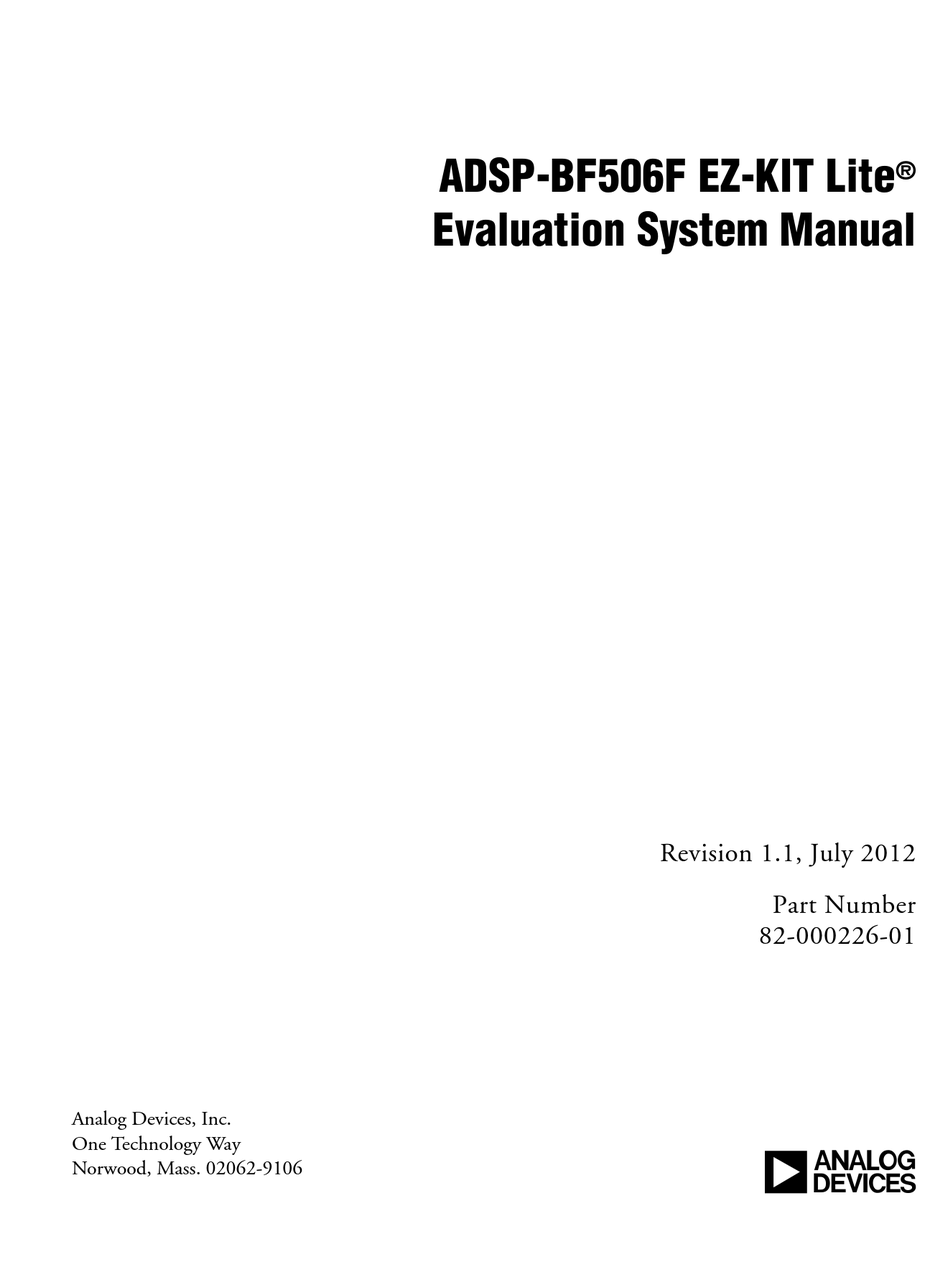

  • Page 1 ADSP-BF506F EZ-KIT Lite ® Evaluation System Manual Revision 1.1, July 2012 Part Number 82-000226-01 Analog Devices, Inc. One Technology Way Norwood, Mass. 02062-9106...
  • Page 2 Analog Devices, Inc. Printed in the USA. Disclaimer Analog Devices, Inc. reserves the right to change this product without prior notice. Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use;...
  • Page 3 Regulatory Compliance The ADSP-BF506F EZ-KIT Lite is designed to be used solely in a labora- tory environment. The board is not intended for use as a consumer end product or as a portion of a consumer end product. The board is an open system design which does not include a shielded enclosure and therefore may cause interference to other electrical devices in close proximity.
  • Page 5 What’s New in This Manual ............xiv Technical Support ................xv Supported Processors ..............xvi Product Information ..............xvi Analog Devices Web Site ............xvi EngineerZone ................xvii Related Documents ..............xviii Notation Conventions ..............xviii ADSP-BF506F EZ-KIT Lite Evaluation System Manual...
  • Page 6 Power-On-Self Test ..............1-14 LEDs and Push Buttons .............. 1-14 JTAG Interface ................1-15 Expansion Interface II ..............1-15 VDDINT Programmable Regulator ..........1-16 Power Measurements ..............1-17 Example Programs ..............1-18 Board Design Database ............... 1-18 ADSP-BF506F EZ-KIT Lite Evaluation System Manual...
  • Page 7 VDDINT Power Jumper (JP4) ..........2-12 VDDFLASH Power Jumper (JP5) .......... 2-12 ADC Voltage Reference (JP6) ..........2-13 LEDs ..................2-14 Reset LED (LED1) ..............2-15 GPIO LEDs (LED2–4) ............2-15 Power LED (LED5) ............... 2-15 ADSP-BF506F EZ-KIT Lite Evaluation System Manual...
  • Page 8 Expansion Interface II Connector (P3) ........2-18 DMAX Land Grid Array Connectors (P5–6) ......2-19 ADC Input Connector (P7) ..........2-19 Power Connector (P9) ............2-19 ADSP-BF506F EZ-KIT LITE BILL OF MATERIALS ADSP-BF506F EZ-KIT LITE SCHEMATIC INDEX viii ADSP-BF506F EZ-KIT Lite Evaluation System Manual...
  • Page 9 PREFACE ® Thank you for purchasing the ADSP-BF506F EZ-KIT Lite , Analog ® Devices, Inc. evaluation system for the ADSP-BF504/BF506F Blackfin processors. Blackfin processors embody a type of embedded processor designed specif- ically to meet the computational demands and power constraints of today’s embedded audio, video, and communications applications.
  • Page 10 ADSP-BF506F processor and evalua- tion board peripherals. Analog Devices JTAG emulators offer faster communication between the host PC and target hardware. Analog Devices carries a wide range of in-circuit emulation products. To learn more about Analog Devices emulators and processor development tools, go to http://www.analog.com/dsp/tools...
  • Page 11 • Numonyx M58WT032 – 4 MB (2M x 16 bits) • SPI flash memory • Numonyx M25P16 – 16 Mb • Internal ADC • Analog Devices AD7266 2 MSPS, 12-bit, 3-channel SAR analog-to-digital converter • Twelve single-ended inputs • Six differential inputs...
  • Page 12 • Easy probing of all port pins • Other features • JTAG ICE 14-pin header • Processor power measurement jumpers For information about the hardware components of the EZ-KIT Lite, refer to Chapter 2, “ADSP-BF506F EZ-KIT Lite Hardware Reference”. ADSP-BF506F EZ-KIT Lite Evaluation System Manual...
  • Page 13 Intended Audience The primary audience for this manual is a programmer who is familiar with Analog Devices processors. This manual assumes that the audience has a working knowledge of the appropriate processor architecture and instruction set. Programmers who are unfamiliar with Analog Devices processors can use this manual but should supplement it with other texts that describe your target architecture.
  • Page 14 Manual. The manual has been updated to include CCES information. In addition, modifications and corrections based on errata reports against the previous manual revision have been made. For the latest version of this manual, please refer to the Analog Devices Web site. ADSP-BF506F EZ-KIT Lite Evaluation System Manual...
  • Page 15 Preface Technical Support You can reach Analog Devices processors and DSP technical support in the following ways: • Post your questions in the processors and DSP support community ® at EngineerZone http://ez.analog.com/community/dsp • Submit your questions to technical support directly at: http://www.analog.com/support...
  • Page 16 This evaluation system supports Analog Devices ADSP-BF504, ADSP-BF504F, and ADSP-BF506F Blackfin embedded processors. Product Information Product information can be obtained from the Analog Devices Web site and the online help system. Analog Devices Web Site The Analog Devices Web site, , provides information www.analog.com...
  • Page 17 Visit (found on the Analog Devices home page) to sign up. If myAnalog you are a registered user, just log on. Your user name is your e-mail address.
  • Page 18 Optional item lists in syntax descriptions appear within brackets delim- [this,…] ited by commas and terminated with an ellipse; read the example as an optional comma-separated list of this xviii ADSP-BF506F EZ-KIT Lite Evaluation System Manual...
  • Page 19 A Warning identifies conditions or inappropriate usage of the product that could lead to conditions that are potentially hazardous for the devices users. In the online version of this book, the word Warning appears instead of this symbol. ADSP-BF506F EZ-KIT Lite Evaluation System Manual...
  • Page 20 Notation Conventions ADSP-BF506F EZ-KIT Lite Evaluation System Manual...
  • Page 21 1 USING ADSP-BF506F EZ-KIT LITE This chapter provides specific information to assist you with development of programs for the ADSP-BF506F EZ-KIT Lite evaluation system. The following topics are covered. • “Package Contents” on page 1-2 • “Default Configuration” on page 1-3 •...
  • Page 22 “Related Documents”. Package Contents Your ADSP-BF506F EZ-KIT Lite evaluation system package contains the following items. • ADSP-BF506F EZ-KIT Lite board • USB cable If any item is missing, contact the vendor where you purchased your EZ-KIT Lite or contact Analog Devices, Inc.
  • Page 23 Follow these instructions to ensure correct operation of the product soft- ware and hardware. Step 1: Connect the EZ-KIT Lite board to a personal computer (PC) run- ning CCES using one of two options: an Analog Devices emulator or via the debug agent. ADSP-BF506F EZ-KIT Lite Evaluation System Manual...
  • Page 24 1. Plug one side of the USB cable into the USB connector of the emu- lator. Plug the other side into a USB port of the PC running CCES. 2. Attach the emulator to the header connector (labeled ) on JTAG the EZ-KIT Lite board. ADSP-BF506F EZ-KIT Lite Evaluation System Manual...
  • Page 25 ) and the green power LED (labeled ZLED2 ) on the debug agent are both on. This signifies that the board is ZLED1 communicating properly with the host PC and ready to run CCES. ADSP-BF506F EZ-KIT Lite Evaluation System Manual...
  • Page 26 The Select Processor page of the Session Wizard appears. 4. Ensure Blackfin is selected in Processor family. In Processor type, select ADSP-BF506F. Click Next. The Select Connection Type page of the Session Wizard appears. ADSP-BF506F EZ-KIT Lite Evaluation System Manual...
  • Page 27 The Select Platform page of the Session Wizard appears. 6. Do one of the following: • For standalone debug agent connections, ensure that the selected platform is ADSP-BF506F EZ-KIT Lite via Debug Agent. • For emulator connections, choose the type of emulator that is connected to the board.
  • Page 28 (PC) running VisualDSP++: via an Analog Devices emulator or va a standalone debug module. The standalone debug agent allows a debug agent to interface to the ADSP-BF506F EZ-KIT Lite. The stand- alone debug agent is shipped with the kit.
  • Page 29 5. The Select Platform page of the wizard appears on the screen. For standalone debug agent connections, ensure that the selected platform is ADSP-BF506F EZ-KIT Lite via Debug Agent. For emulator connections, choose the type of emulator that is con- nected.
  • Page 30 Delete. Click OK. CCES Evaluation License The ADSP-BF506F EZ-KIT Lite software is part of the Board Support Package (BSP) for the Blackfin ADSP-BF50x family. The EZ-KIT Lite is a licensed product that offers an unrestricted evaluation license for 90 days after activation.
  • Page 31 • Analog Devices directly. Call (800) 262-5645 or 781-937-2384 or go to: http://www.analog.com/buyonline • Analog Devices, Inc. local sales office or authorized distributor. To locate one, go to: http://www.analog.com/salesdir/continent.asp  The EZ-KIT Lite hardware must be connected and powered up to use CCES with a valid evaluation or full license.
  • Page 32 Table 1-1. The internal memory details can be found in the ADSP-BF50x Blackfin Processor Hard- ware Reference. The ADSP-BF506F EZ-KIT Lite board includes external serial peripheral interconnect (SPI) flash and internal flash memories. See Table 1-2; see also the following “Internal Flash Memory Interface” and “SPI Flash Memory Interface”.
  • Page 33 EZ-KIT Lite installation directory. SPI Flash Memory Interface SPI flash memory of the ADSP-BF506F EZ-KIT Lite is a 16 Mb Numonyx M25P16 device. The device is selected via SPI0_SEL1 SPI flash memory is pre-loaded with boot code for the power-on-self test (POST) program.
  • Page 34 . The switch should be turned off when another source is driving the signals. An example program is included in the ADSP-BF506F installation direc- tory to demonstrate functionality of the LEDs and push buttons. 1-14 ADSP-BF506F EZ-KIT Lite Evaluation System Manual...
  • Page 35 2-18. JTAG Interface The board contains an on-board debug agent that operates via a USB port. The ADSP-BF506F EZ-KIT Lite receives all of its power via USB; there- fore, no power supply is required. For debugging, the JTAG connector (...
  • Page 36 Additional circuitry can add extra loading to signals, decreasing their maximum effective speed.  Analog Devices does not support and is not responsible for the effects of additional circuitry. VDDINT Programmable Regulator By default, the EZ-KIT Lite runs at 1.4V. The board contains a program- mable regulator that supplies the processor’s core with a voltage between...
  • Page 37 Once the voltage and resistance are measured, the current can be calculated by dividing the voltage by the resistance. For the highest accuracy, a differential probe should be used for measuring the voltage across the resistor. ADSP-BF506F EZ-KIT Lite Evaluation System Manual 1-17...
  • Page 38 Example Programs Example Programs Example programs are provided with the ADSP-BF506F EZ-KIT Lite to demonstrate various capabilities of the product. The programs are included in the product installation kit and can be found in the Examples folder of the installation. Refer to a readme file provided with each exam- ple for more information.
  • Page 39 Shows the locations and describes the LEDs. • “Connectors” on page 2-16 Shows the locations and provides part numbers for the on-board connectors. In addition, the manufacturer and part number infor- mation is provided for the mating parts. ADSP-BF506F EZ-KIT Lite Evaluation System Manual...
  • Page 40 The EZ-KIT Lite is designed to demonstrate the ADSP-BF506F Blackfin processor capabilities. The processor has an I/O voltage of 3.3V. The core voltage of the processor is controlled by an Analog Devices ADP1715 low dropout regulator (LDO) and an Analog Devices AD5258 digipot, which is configurable over the 2-wire interface (TWI) signals.
  • Page 41 Land grid array, expansion interface II CDG0 Default: DT0PRI/PWM0_BH/PPI_D8/ LED2 Land grid array, expansion interface II CZM0 Default: TFS0/PWM0_BL/PPI_D9/ Land grid array, expansion interface II CDG0 Default: RFS0/PWM0_CH/PPI_D10/ Land grid array, expansion interface II TACLK0 ADSP-BF506F EZ-KIT Lite Evaluation System Manual...
  • Page 42 Table 2-2. Port G Programmable Flag Connections Processor Pin Other Processor Function EZ-KIT Lite Function Default: SPI1_SEL3/TMRCLK/ CAN_ERR PPI_CLK/ UA1_RX_ALT/ Land grid array, expansion interface II TACI4 Default: SPI1_SEL2/PPI_FS3/ CAN_RX Land grid array, expansion interface II CAN_RX/ TACI5 ADSP-BF506F EZ-KIT Lite Evaluation System Manual...
  • Page 43 , land grid array, expansion interface II CZM1 DS_D5 Default: PG14 /UA0_RTS/SD_D6/TMR0/ UART0_RTS , land grid array, expansion interface II PPI_FS1/CUD1 DS_D5 Default: PG15 /UA0_CTS/SD_D7/TMR1/ UART0_CTS , land grid array, expansion interface II PPI_FS2/CDG1 DS_D7 ADSP-BF506F EZ-KIT Lite Evaluation System Manual...
  • Page 44 Other Processor Function EZ-KIT Lite Function Default: ACM_A2/DT1PRI/SPI0_SEL3 ACM_A2 Land grid array, expansion interface II /WAKEUP Default: ACM_A1/TFS1/ ACM_A1 Land grid array, expansion interface II SPI1_SEL3_ALT/TACLK3 Default: ACM_A0/TSCLK1/ ACM_A0 Land grid array, expansion interface II SPI1_SEL2_ALT/TACI7 ADSP-BF506F EZ-KIT Lite Evaluation System Manual...
  • Page 45 ADSP-BF506F EZ-KIT Lite Hardware Reference Push Buttons and Switches This section describes operation of the push buttons and switches. The push button and switch locations are shown in Figure 2-2. Figure 2-2. Push Button and Switch Locations ADSP-BF506F EZ-KIT Lite Evaluation System Manual...
  • Page 46 Boots from stacked parallel flash in asynchronous mode Boots from stacked parallel flash in synchronous mode Boots through SPI0 master from SPI memory Boots through SPI0 slave from host device Boots through PPI from host ADSP-BF506F EZ-KIT Lite Evaluation System Manual...
  • Page 47 Programmable Flag Push Buttons (SW7–8) Two momentary push buttons ( ) are provided for general-pur- pose user input. The buttons are connected to the GPIO pins of the PF3–4 ADSP-BF506F EZ-KIT Lite Evaluation System Manual...
  • Page 48 Enable Switch (SW3)” on page 2-9 for more information). ADC Loopback Switches (SW9–10) The ADC loopback switches ( ) are used for testing only. The SW10 switches connect a test signal to the ADC inputs. 2-10 ADSP-BF506F EZ-KIT Lite Evaluation System Manual...
  • Page 49 Figure 2-3. Configuration Jumper Locations SPI FLASH CS Enable Jumper (JP1) The SPI flash CS enable jumper ( ) connects the signal to SPI0_SEL1 SPI flash memory. By default, is installed, and SPI flash is connected. ADSP-BF506F EZ-KIT Lite Evaluation System Manual 2-11...
  • Page 50 , and the current flows through the two-pin IDC header. To measure power, remove the jumper and measure the voltage across the precision resistor and resistance value. For more information, refer to “Power Measurements” on page 1-17. 2-12 ADSP-BF506F EZ-KIT Lite Evaluation System Manual...
  • Page 51 1, 2 and 3, 4. To supply your own voltage reference, remove all jumpers from and con- nect your voltage reference to pins 1 and 3. By default, no jumpers are installed on ADSP-BF506F EZ-KIT Lite Evaluation System Manual 2-13...
  • Page 52 LEDs LEDs This section describes the on-board LEDs. Figure 2-4 shows the LED locations. Figure 2-4. LED Locations 2-14 ADSP-BF506F EZ-KIT Lite Evaluation System Manual...
  • Page 53 When is lit, it indicates that the master reset of all the major ICs is LED1 active. The reset signal is controlled by the Analog Devices ADM708 supervisory reset circuit. GPIO LEDs (LED2–4) Three LEDs connect to the three general-purpose I/O pins of the proces-...
  • Page 54 Connectors Connectors This section describes connector functionality and provides information about mating connectors. The connector locations are shown in Figure 2-5. Figure 2-5. Connector Locations 2-16 ADSP-BF506F EZ-KIT Lite Evaluation System Manual...
  • Page 55 The JTAG header ( ) is the connecting point between the JTAG inter- face and ADSP-BF506F processor. Pin 3 is missing to provide keying. Pin 3 in the mating connector should have a plug. ADSP-BF506F EZ-KIT Lite Evaluation System Manual 2-17...
  • Page 56 The connector is located on the upper edge of the board. For more information, see “Expansion Interface II” on page 1-15. Part Description Manufacturer Part Number 70-position 0.1’’, SMT header SAMTEC TSSH-135-01-L-DV-A Mating Connector 70-position 0.1’’, SMT socket SAMTEC SSW-135-22-F-D-VS 2-18 ADSP-BF506F EZ-KIT Lite Evaluation System Manual...
  • Page 57 ADC Input Connector (P7) Part Description Manufacturer Part Number 24-position 0.1’’, TH header SAMTEC TSSH-112-01-L-D Power Connector (P9) Part Description Manufacturer Part Number 0.65 mm power jack 045-0883R Mating Connector 5.0VDC@3.6A power supply GLOBETEK GS-1750(R) ADSP-BF506F EZ-KIT Lite Evaluation System Manual 2-19...
  • Page 58 Connectors 2-20 ADSP-BF506F EZ-KIT Lite Evaluation System Manual...
  • Page 59 SOIC14 SI4411DY SO-8 VISHAY Si4411DY-T1-E3 BF506F M25P16 ST MICRO M25P16-VMW6G MIC94042 MICREL MIC94042YFL MLF4 ADM708SARZ ANALOG ADM708SARZ SOIC8 DEVICES ADM3202ARNZ ANALOG ADM3202ARNZ SOIC16 DEVICES ADSP-BF506F ANALOG ADSPBF506FBSWZ- LQFP120 DEVICES ADP1864AUJZ ANALOG ADP1864AUJZ-R7 SOT23-6 DEVICES ADSP-BF506F EZ-KIT Lite Evaluation System Manual...
  • Page 60 CON039 DIP2 SWT020 C&K CKN9064-ND IDC 2X1 JP1,JP3-5 90726-402HLF IDC2X1 IDC 3X1 90726-403HLF IDC3X1 IDC 7X2 SAMTEC TSW-107-07-T-D IDC7X2 IDC 12X2 SAMTEC SSW-112-01-T-D IDC12X2 3A RESETABLE TYCO SMD300F-2 FUS004 SJ1-6 DIGI-KEY S9001-ND 2PIN_JUMPER_ SHORT ADSP-BF506F EZ-KIT Lite Evaluation System Manual...
  • Page 61 ADSP-BF506F EZ-KIT Lite Bill Of Materials Ref. Qty. Description Reference Designator Manufacturer Part Number PWR .65MM CP1-023-ND CON045 MOMENTARY SW6-8 PANASONIC EVQ-Q2K03W SWT024 ROTARY COPAL S-8110 SWT027 SD_CONN MORETHA- MHC-W21-601-LF 8-BIT CON067 NALL YELLOW LED2-4 PANASONIC LN1461C LED001 100 1/10W 5%...
  • Page 62 06035A680JAT2A 0603 4.7UF 6.3V 20% C106-107,C110 PANASONIC ECJ-1VB0J475M 0603 470PF 50V 5% C111 06033A471JAT2A 0603 220UF 6.3V 20% SANYO 10TPE220ML 330 1/10W 5% R80,R84-87 VISHAY CRCW0603330RJNEA 0603 0 1/10W 5% R111 PHYCOMP 232270296001L 0603 ADSP-BF506F EZ-KIT Lite Evaluation System Manual...
  • Page 63 ADSP-BF506F EZ-KIT Lite Bill Of Materials Ref. Qty. Description Reference Designator Manufacturer Part Number 10 1/10W 5% R23-24,R41,R44,R47- VISHAY CRCW060310R0JNEA 0603 48,R51,R54,R57,R62, R65,R68,R75,R77,R11 4700PF 16V 10% DIGI-KEY 311-1083-2-ND 0603 100PF 50V 5% C78,C80 06035A101JAT2A 0603 1000PF 50V 5% C104 PANASONIC...
  • Page 64 RNS003 1.2K 1/16W 1% R12-13,R117 VISHAY CRCW04021K20FKE 0402 4.3 1/4W 5% R116,R119 PANASONIC ERJ-8GEYJ4R3V 1206 2.67K 1/16W 1% R118 PANASONIC ERJ-2RKF2671X 0402 22UH 20% COILCRAFT MSD7342-223MLC IND024 330 100MHZ FER1 MURATA BLM21PG331SN1D 1.5A 0805 ADSP-BF506F EZ-KIT Lite Evaluation System Manual...
  • Page 65 ADSP-BF506F EZ-KIT Lite Bill Of Materials Ref. Qty. Description Reference Designator Manufacturer Part Number 3300PF 50V 5% PANASONIC ECJ-1VB1H332K 0603 27.4K 1/10W 1% R115 PANASONIC ERJ-3EKF2742V 0603 20.0K 1/16W 1% R109 VISHAY CRCW040220K0FKE 0402 30A GSOT05 VISHAY GSOT05-GS08 SOT23-3 30A GSOT03...
  • Page 66 ADSP-BF506F EZ-KIT Lite Evaluation System Manual...
  • Page 67 ADSP-BF506F EZ-KIT LITE SCHEMATIC ANALOG 20 Cotton Road Nashua, NH 03063 DEVICES PH: 1-800-ANALOGD ADSP-BF506F EZ-KIT LITE Title TITLE Size Board No. A0226-2009 Date Sheet 17-12-2009_16:20...
  • Page 68 DSP_EMU JTAG_CONN_TDI JTAG_CONN_TDO 33.0K 220PF IDC7X2 0402 0402 ANALOG 20 Cotton Road DA_SOFT_RESET DA_SOFT_RESET Nashua, NH 03063 EXT_PS EXT_PS DA_USB_PWR DA_USB_PWR DEVICES PH: 1-800-ANALOGD ADSP-BF506F EZ-KIT LITE Title DEBUG_AGENT DSP + SPI FLASH Size Board No. A0226-2009 Date Sheet 17-12-2009_16:20...
  • Page 69 VDDINT7 VDDFLASH1 VDDFLASH2 VDDFLASH3 VDDFLASH ADSP-BF506F LQFP120_EP 10UF 0.1UF 0.1UF 0.1UF 0805 0402 0402 0402 ANALOG 20 Cotton Road Nashua, NH 03063 DEVICES PH: 1-800-ANALOGD ADSP-BF506F EZ-KIT LITE Title DSP POWER, BYPASS CAPS Size Board No. A0226-2009 Date Sheet 17-12-2009_16:20...
  • Page 70 0.1UF 0.1UF 0.1UF 0.1UF 0.1UF 0.1UF 0.1UF 0.1UF 0.1UF 0.1UF 0.1UF PH: 1-800-ANALOGD 0402 0402 0402 0402 0402 0402 0402 0402 0402 0402 0402 0402 ADSP-BF506F EZ-KIT LITE Title ADC BUFFERS Size Board No. A0226-2009 AGND AGND Date Sheet 17-12-2009_16:20...
  • Page 71 SW9 & 10 are only used for POST ANALOG 20 Cotton Road "ADC LOOPBACK" Nashua, NH 03063 10UF 0.1UF 10UF 0.1UF 10UF 0.1UF DEVICES 0805 0402 0805 0402 0805 0402 PH: 1-800-ANALOGD ADSP-BF506F EZ-KIT LITE Title AGND Size Board No. A0226-2009 Date 17-12-2009_16:20 Sheet...
  • Page 72 SPLIT CAN_TX CANL CON039 62.0 TJA1041 4700PF 0603 0603 SOIC14 0603 100PF 0603 3.3V PS_5V 0.01UF 0.01UF 0402 0402 ANALOG 20 Cotton Road Nashua, NH 03063 DEVICES PH: 1-800-ANALOGD ADSP-BF506F EZ-KIT LITE Title Size Board No. A0226-2009 Date 17-12-2009_16:20 Sheet...
  • Page 73 R136 ADC_CS/SD_CMD MINI_SD_DAT1 0402 MINI_SD_DAT2 MINI_SD_DAT3 MINI_SD_CLK MINI_SD_CMD SD_CD SD_WP CON067 ANALOG 20 Cotton Road Nashua, NH 03063 DEVICES PH: 1-800-ANALOGD ADSP-BF506F EZ-KIT LITE Title RESET, LEDS, PUSH BUTTONS, UART, SD "SD CARD" Size Board No. A0226-2009 Date Sheet 17-12-2009_16:20...
  • Page 74 GND16 ADC_DOUTA/SD_D0 ADC_CS/SD_CMD GND7 ADC_SCLK/SD_CLK GND7 UART0_RX/SD_D4 GND17 ANALOG 20 Cotton Road GND17 UART0_TX/SD_D5 UART0_RTS/SD_D6 Nashua, NH 03063 GND8 UART0_CTS/SD_D7 DEVICES PH: 1-800-ANALOGD GND8 DMAX_ALT DMAX_ALT ADSP-BF506F EZ-KIT LITE Title EXPANSION INTERFACE, DMAX Size Board No. A0226-2009 Date Sheet 17-12-2009_16:20...
  • Page 75 C105 0603 0603 0603 ADP1613 R109 R112 20.0K 22000PF 4.99K MSOP8 0402 0603 0402 3300PF 0603 ANALOG 20 Cotton Road Nashua, NH 03063 DEVICES PH: 1-800-ANALOGD ADSP-BF506F EZ-KIT LITE Title DUAL POWER REGULATOR Size Board No. A0226-2009 Date Sheet 17-12-2009_16:20...
  • Page 76 MBRS540T3G GSOT03 SI4411DY 220UF 4.7UF SHORTING SOT23-3 SO-8 0805 JUMPER DEFAULT=INSTALLLED R127 255.0K 0603 PGND ANALOG 20 Cotton Road PGND Nashua, NH 03063 DEVICES PH: 1-800-ANALOGD ADSP-BF506F EZ-KIT LITE Title COPPER POWER Size Board No. A0226-2009 PGND Date Sheet 17-12-2009_16:20...
  • Page 77 1-18 enable switch (SW5), expansion interface, 1-15, 2-18 clock in (CLK IN) signal, external memory, 1-13 configuration, of this EZ-KIT Lite, flag pins, See programmable flags by name (PFx, PGx, and PHx) ADSP-BF506F EZ-KIT Lite Evaluation System Manual...
  • Page 78 See also memory map startup, of this EZ-KIT Lite Media Instruction Set Computing (MISC), CCES, memory map, of this EZ-KIT Lite, 1-12 SW1 (UART setup) switch, Micro Signal Architecture (MSA), SW2 (boot mode select) switch, ADSP-BF506F EZ-KIT Lite Evaluation System Manual...
  • Page 79 2-12 VDDFLASH, 1-17 pin, 1-17 power jumper (JP5), 2-12 VDDIN pin, 1-17 VDDINT power jumper (JP4), 2-12 programmable regulator, 1-16 very-long instruction word (VLIW), VisualDSP++ environment, voltage reference select jumper (JP2), 2-12 values, 1-17 ADSP-BF506F EZ-KIT Lite Evaluation System Manual...
